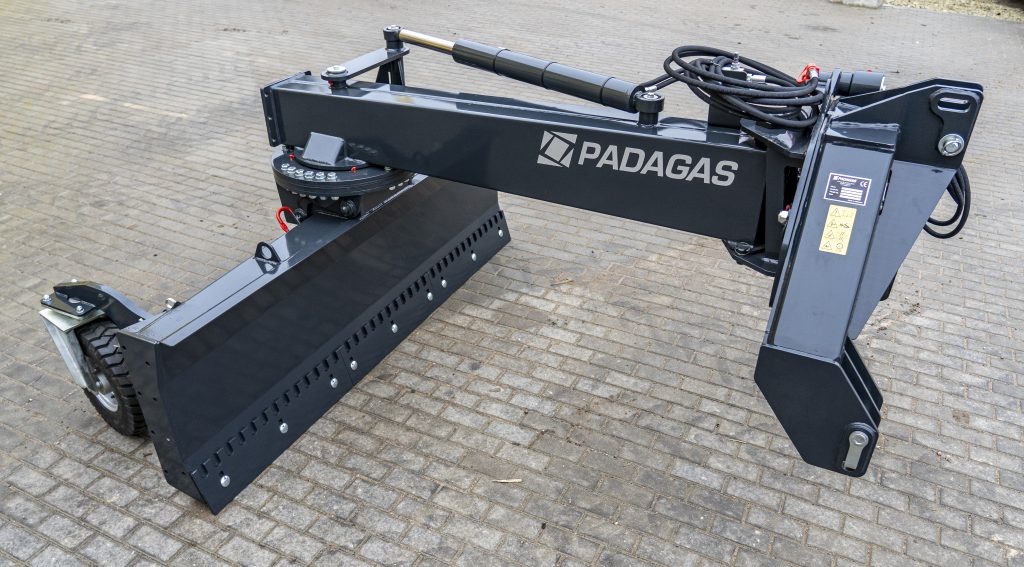

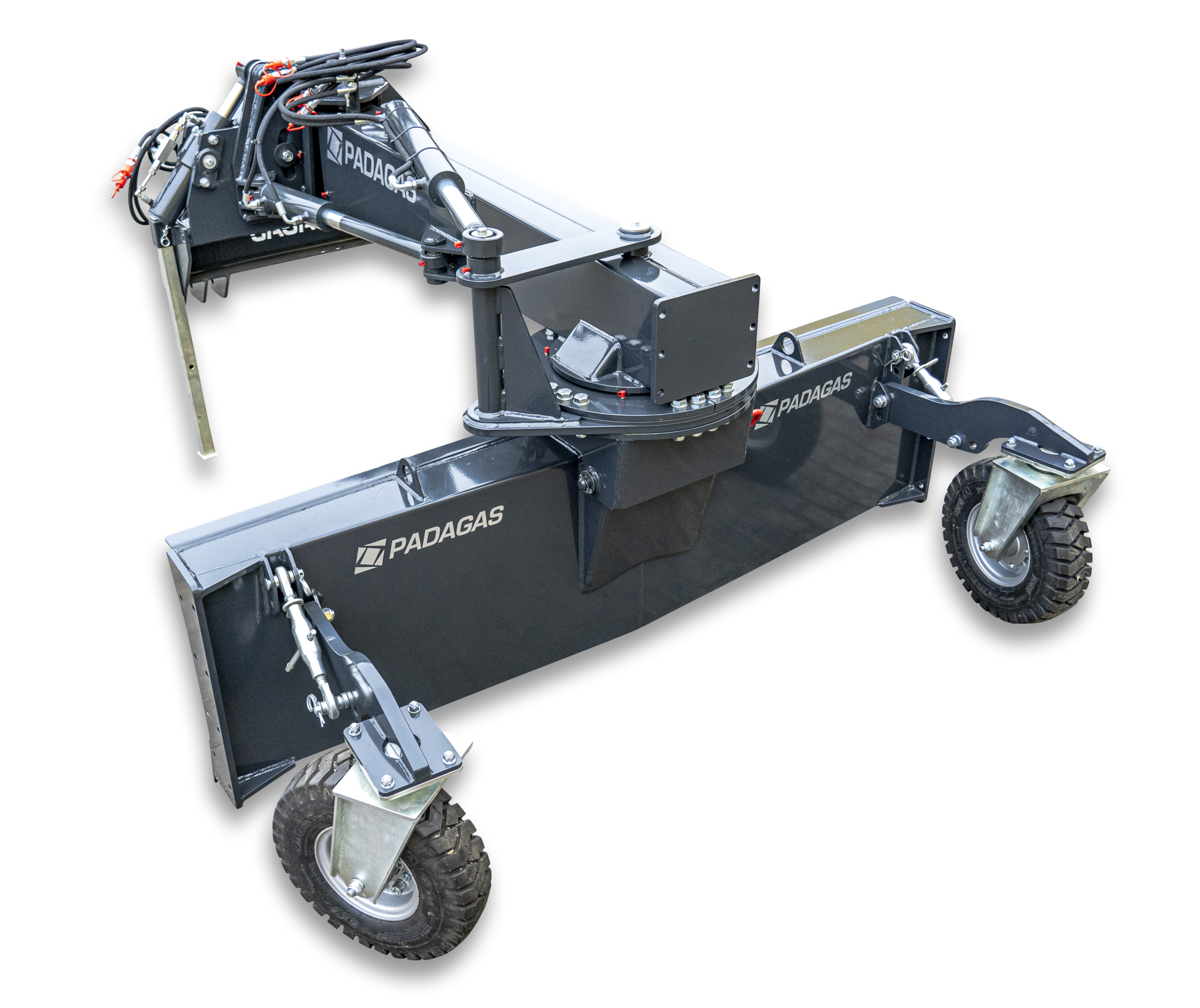

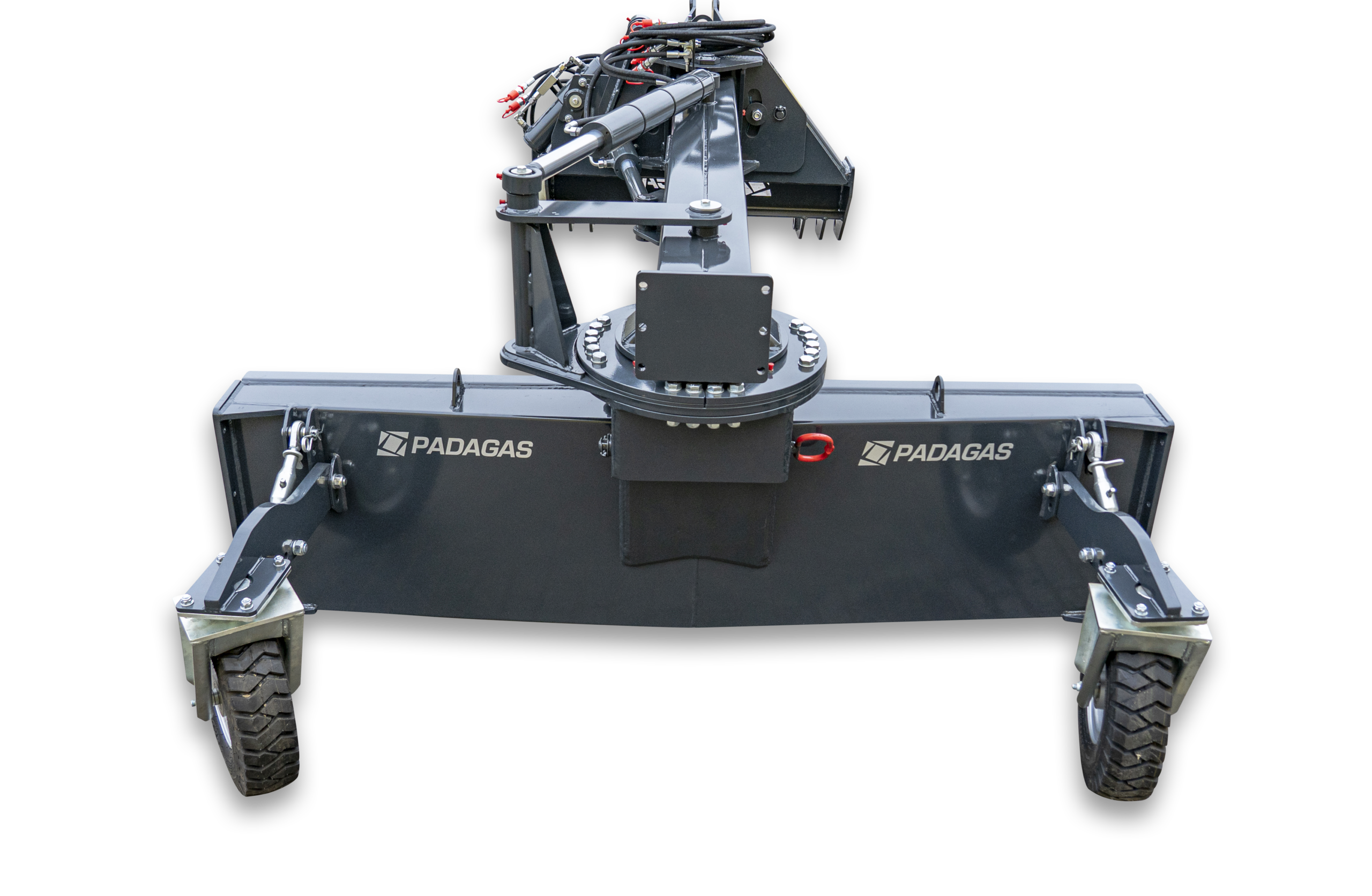

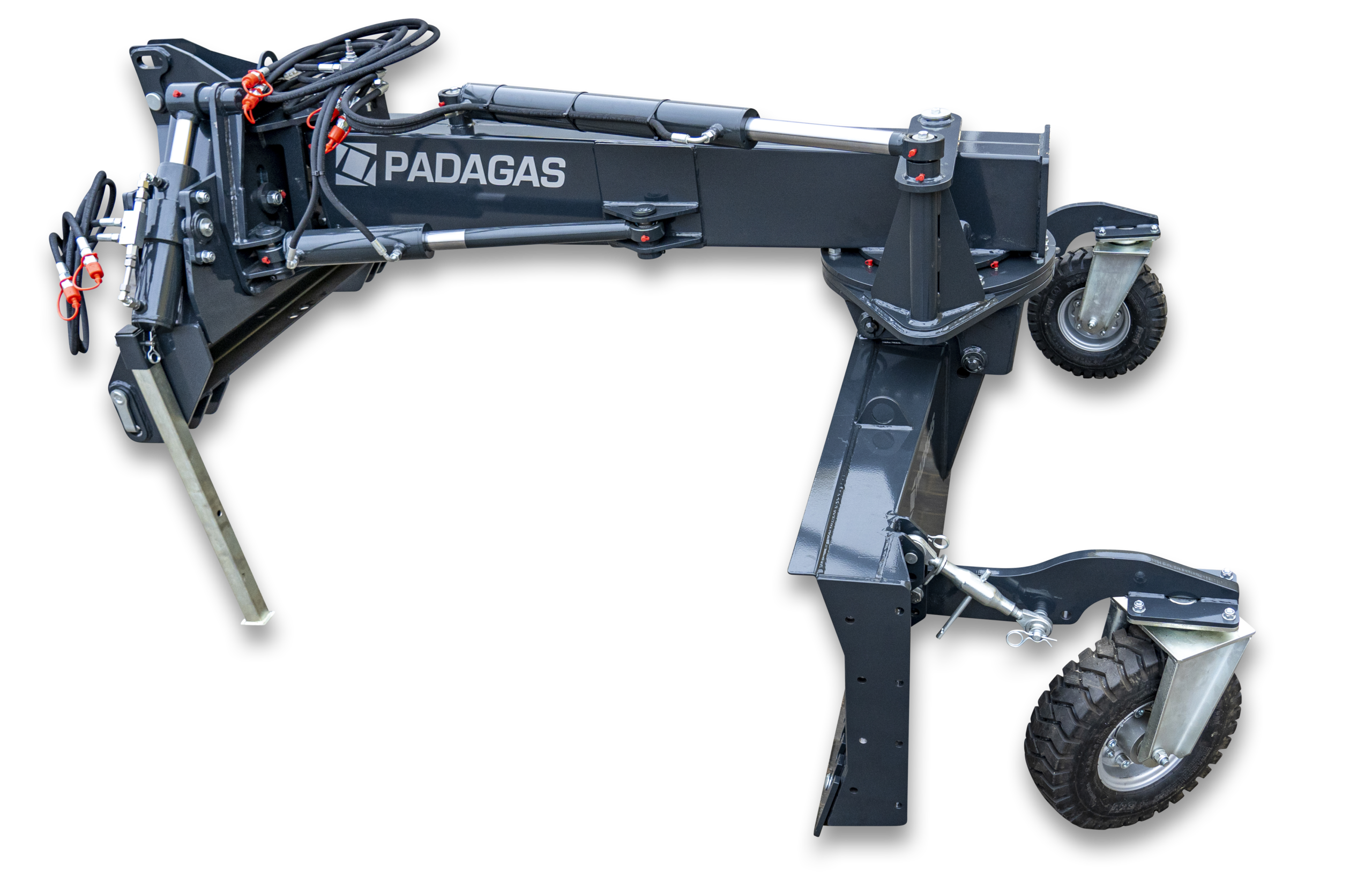

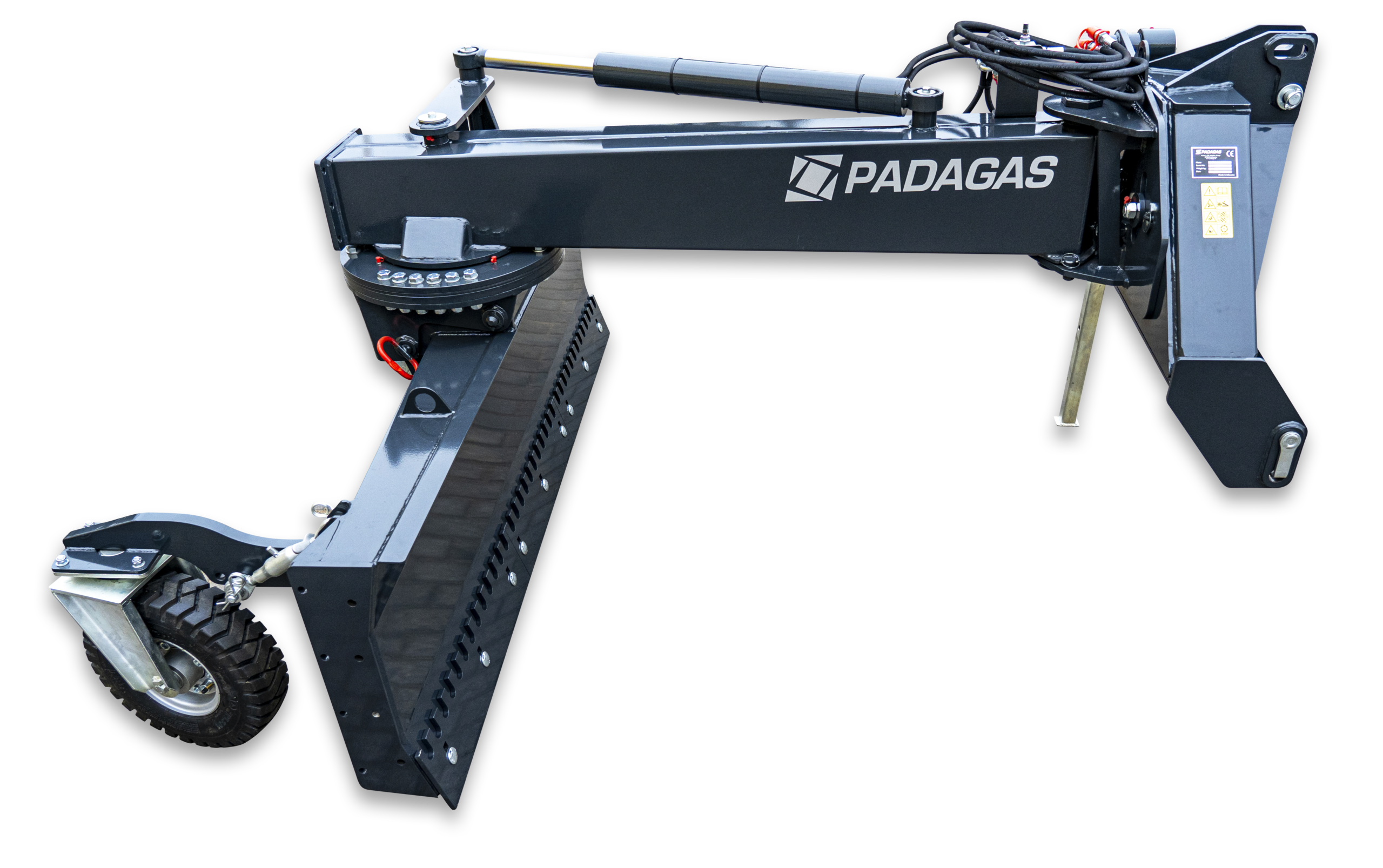

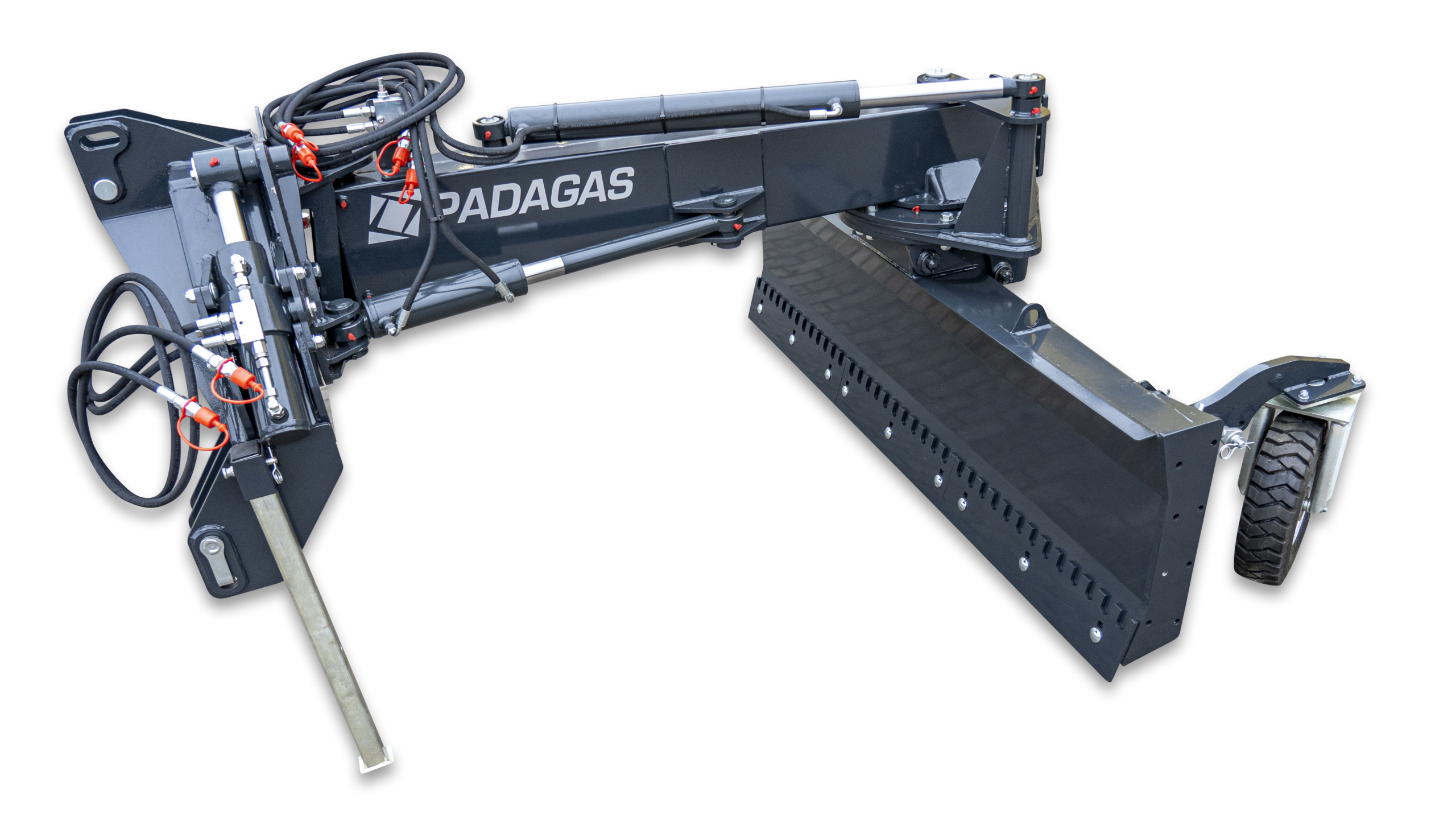

Tractor grader RB-PROFI

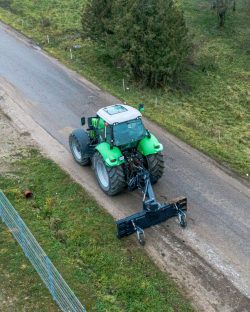

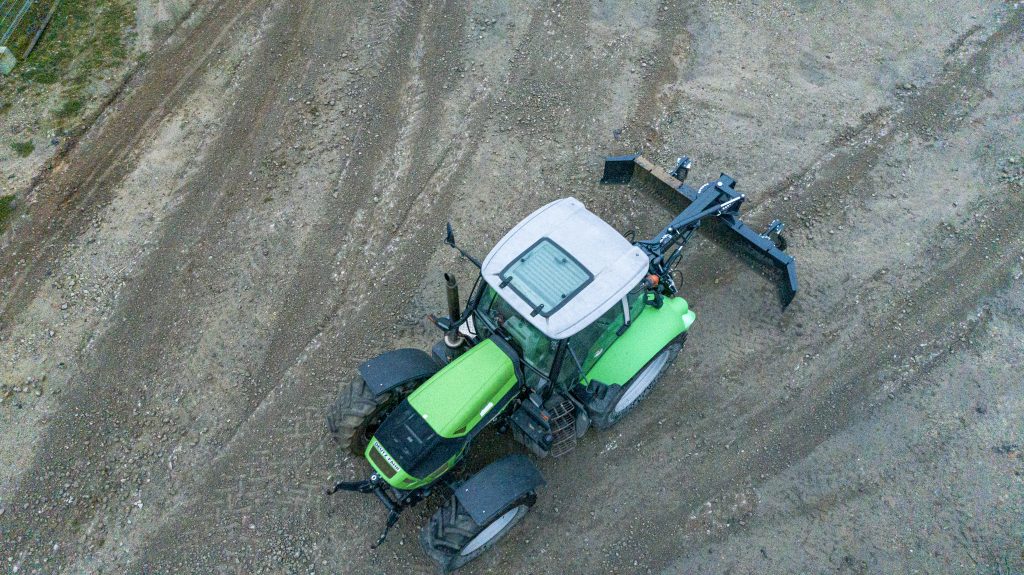

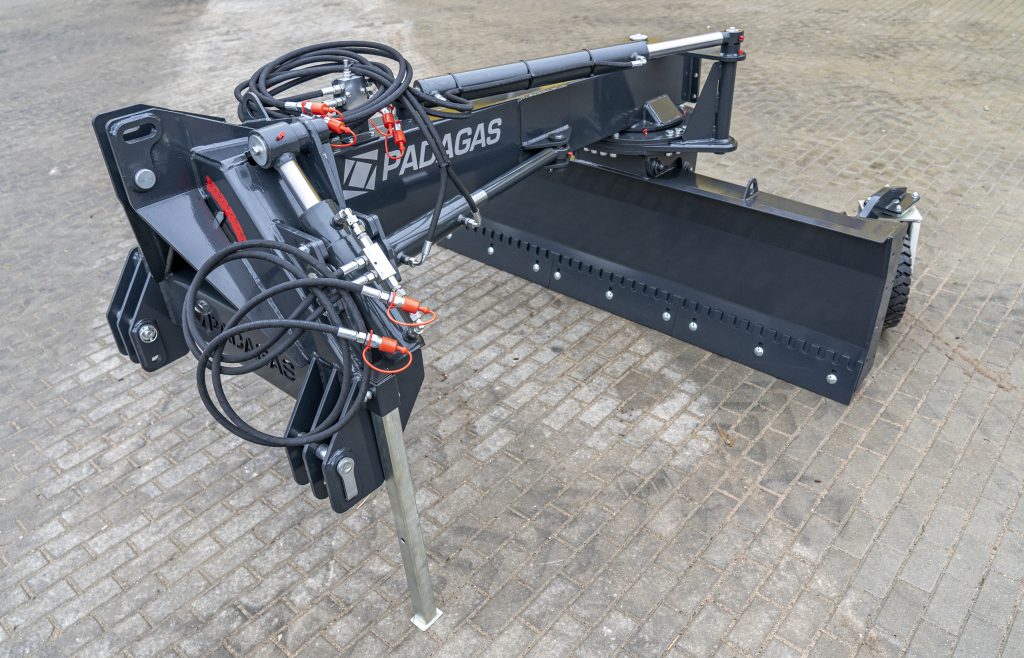

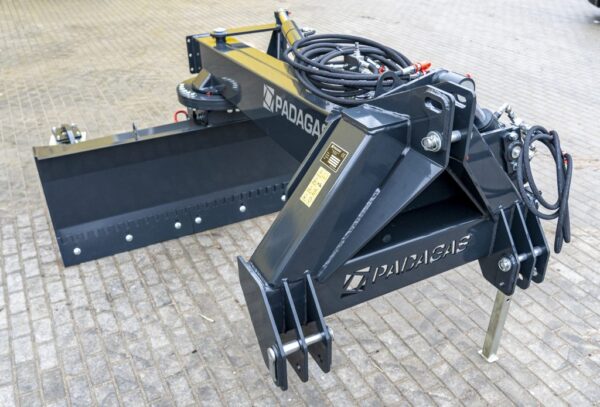

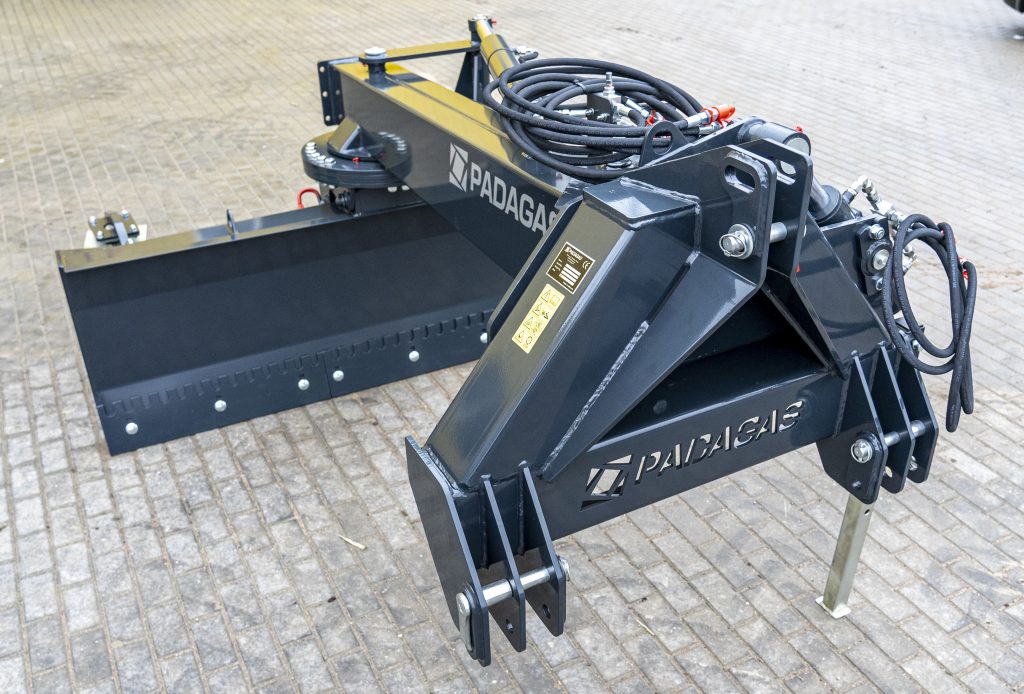

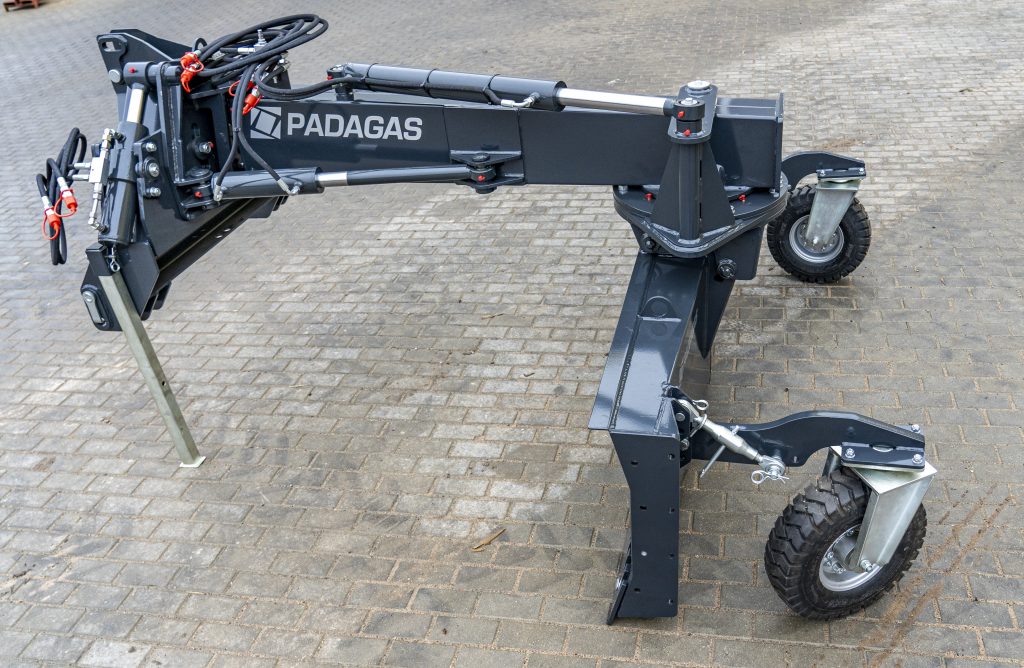

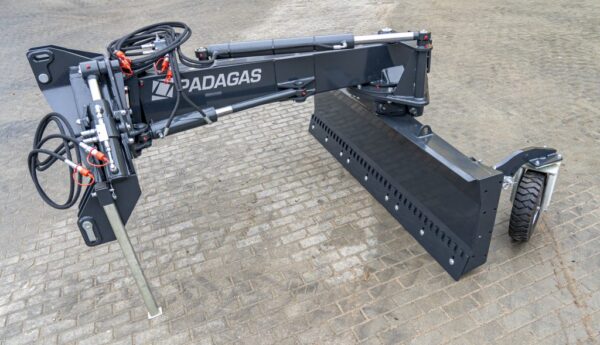

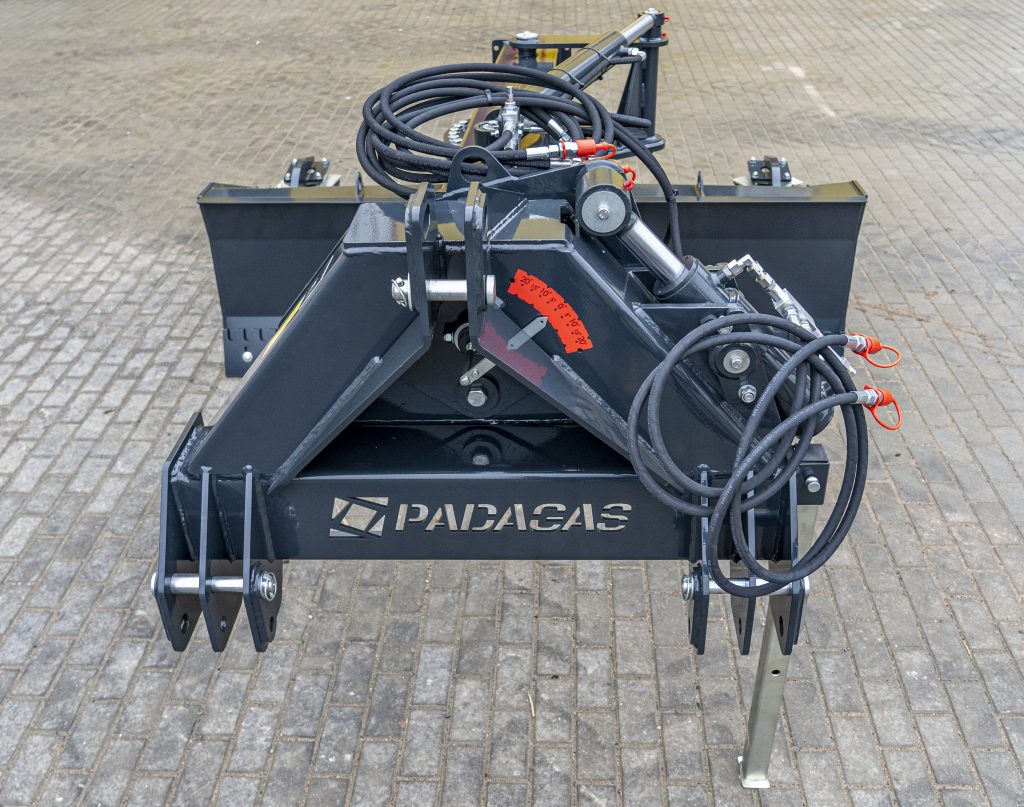

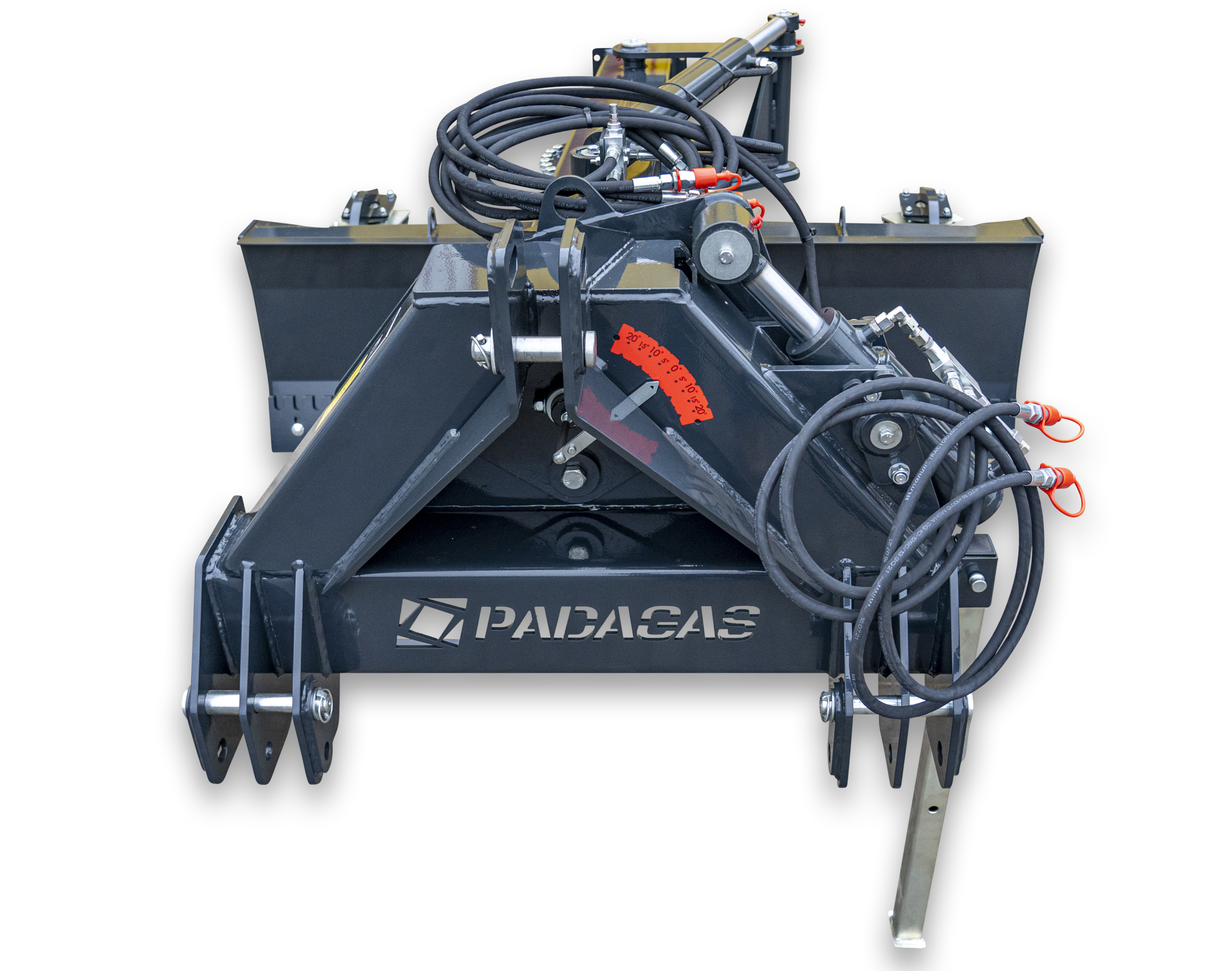

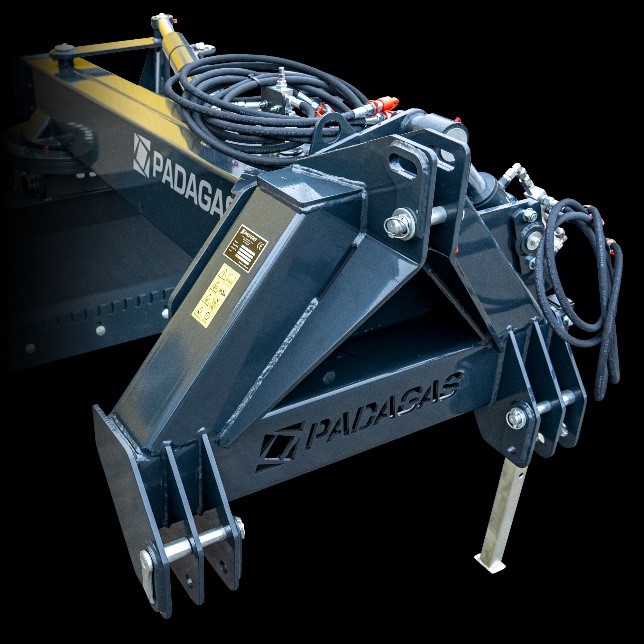

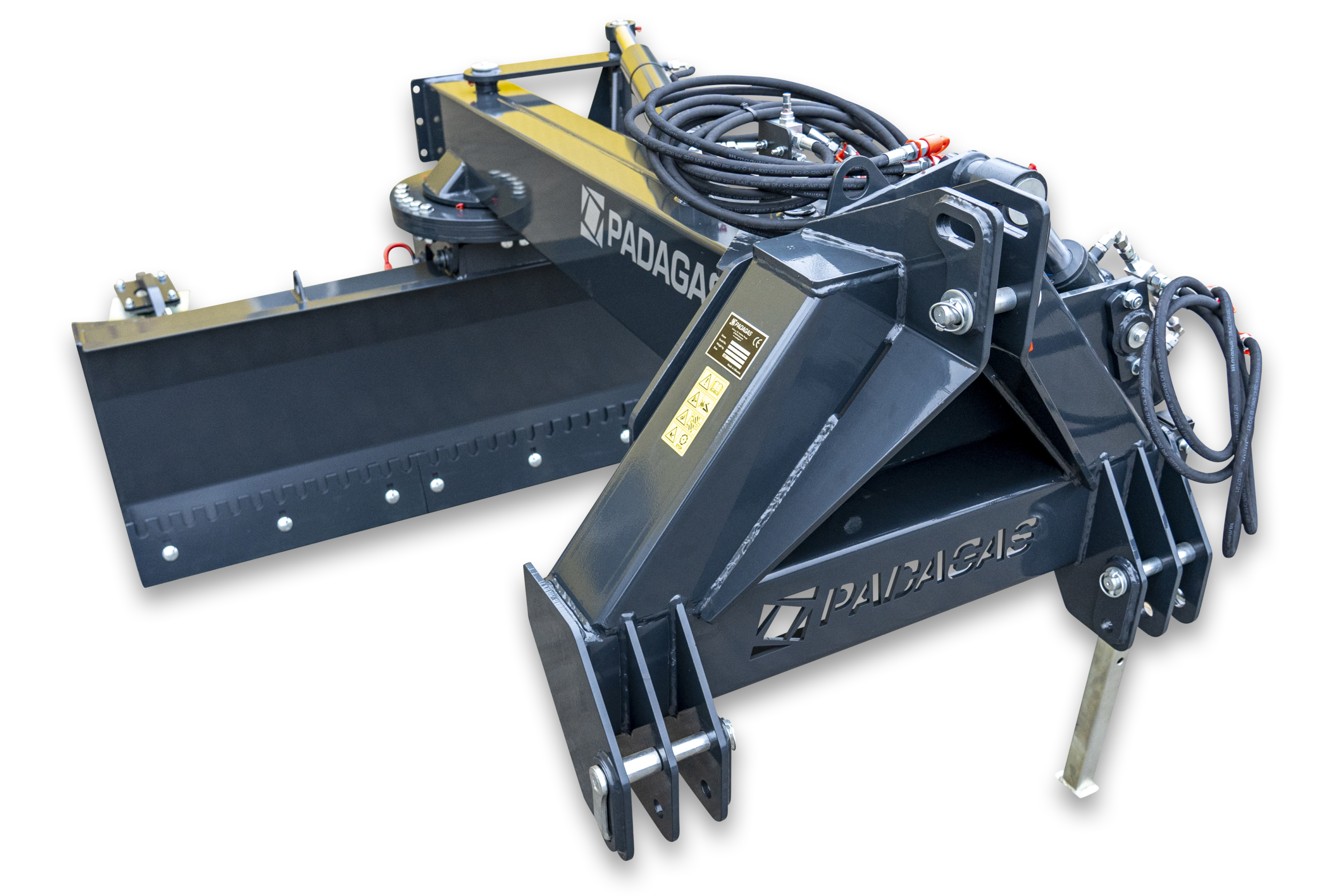

Tractor grader RB-PROFI with three-point suspension of II-III category allows hanging the grader to the tractor’s back. Supporting locking leg after the work allows a convenient storage of the product
Product inquiry
Or
Description
| TECHNICAL DATA | RB-PROFI | WIDENING 238 MM STRAIGHT | WIDENING 238 MM ANGLED 45° | WIDENING 363 MM STRAIGHT | WIDENING 363 MM ANGLED 45° | WIDENING 238 MM STRAIGHT AND 238MM ANGLED 45° |
| Bracket | 3P cat. II-III | 3P cat. II-III | 3P cat. II-III | 3P cat. II-III | 3P cat. II-III | 3P cat. II-III |
| Recommend power, hp | > 80 | > 80 | > 80 | > 80 | > 80 | > 80 |
| Width, m | 2,27 | 2,75 | 2,75 | 3,00 | 3,00 | 3,22 |
| Shellboard rotation | 50° | 50° | 50° | 50° | 50° | 50° |
| Height, m | 0,85 | 0,85 | 0,85 | 0,85 | 0,85 | 0,85 |
| Cleaning blades, pcs | 3 | 5 | 5 | 5 | 5 | 7 |
| Weight, kg | 1000 | 1080 | 1070 | 1110 | 1080 | 1150 |

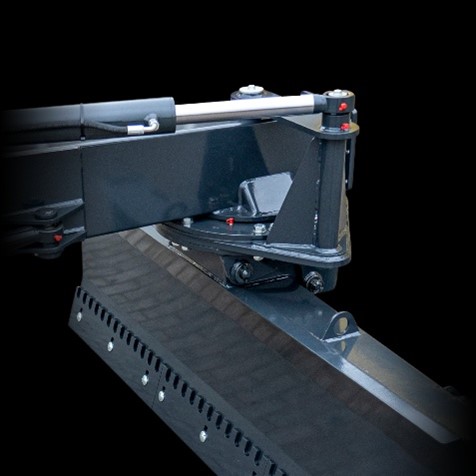

With the help of hydraulic cylinders the rotation angle of the grader‘s shellboard is 50 degrees. Angle of coulter attack is 20 degrees. RB-PROFI grader is suitable for from 80 horse power tractors.

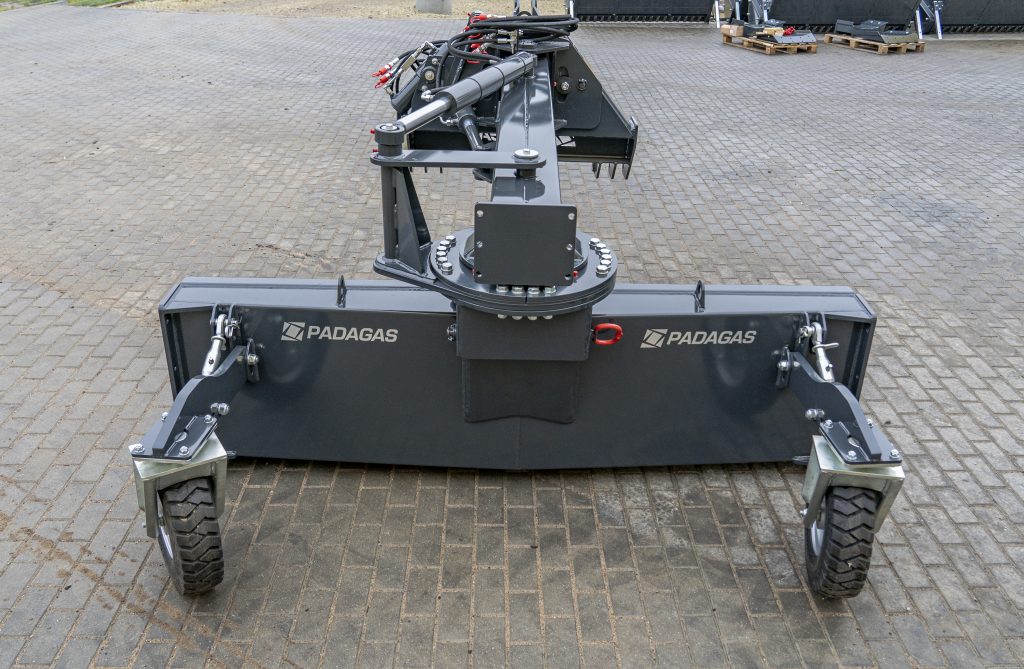

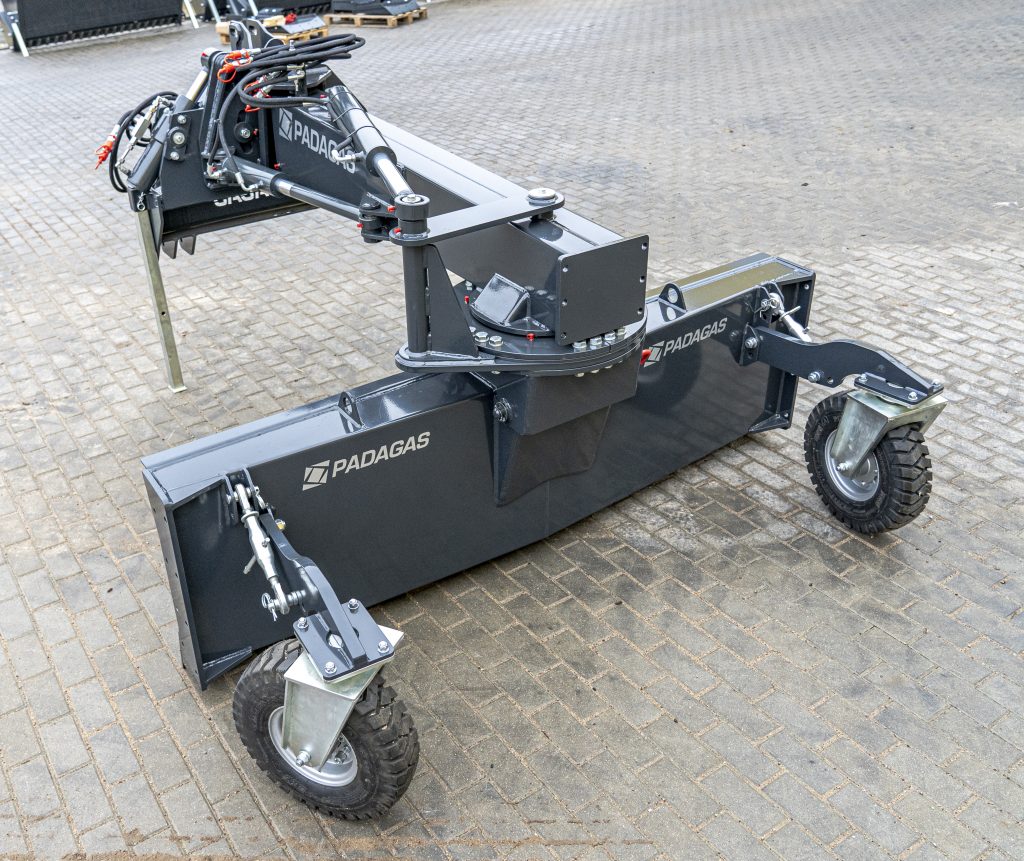

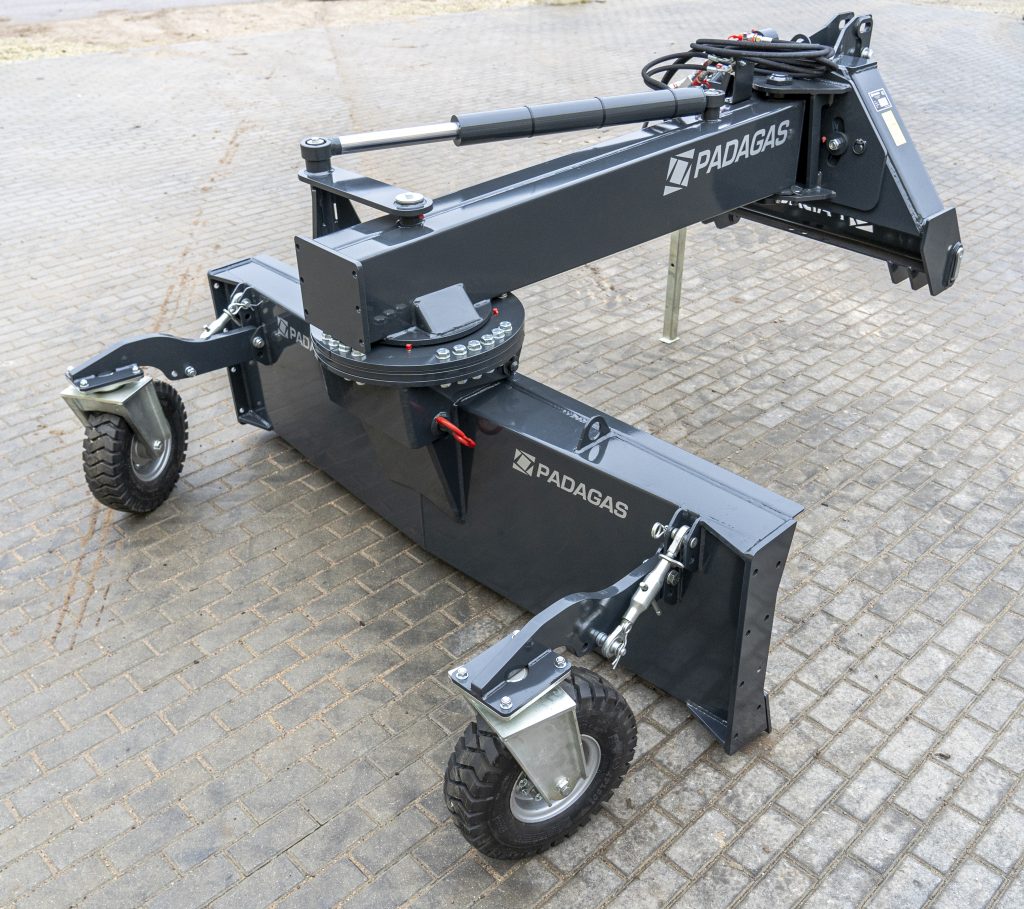

Standart model RB-PROFI graders comes with hydraulic angling and wheels.
