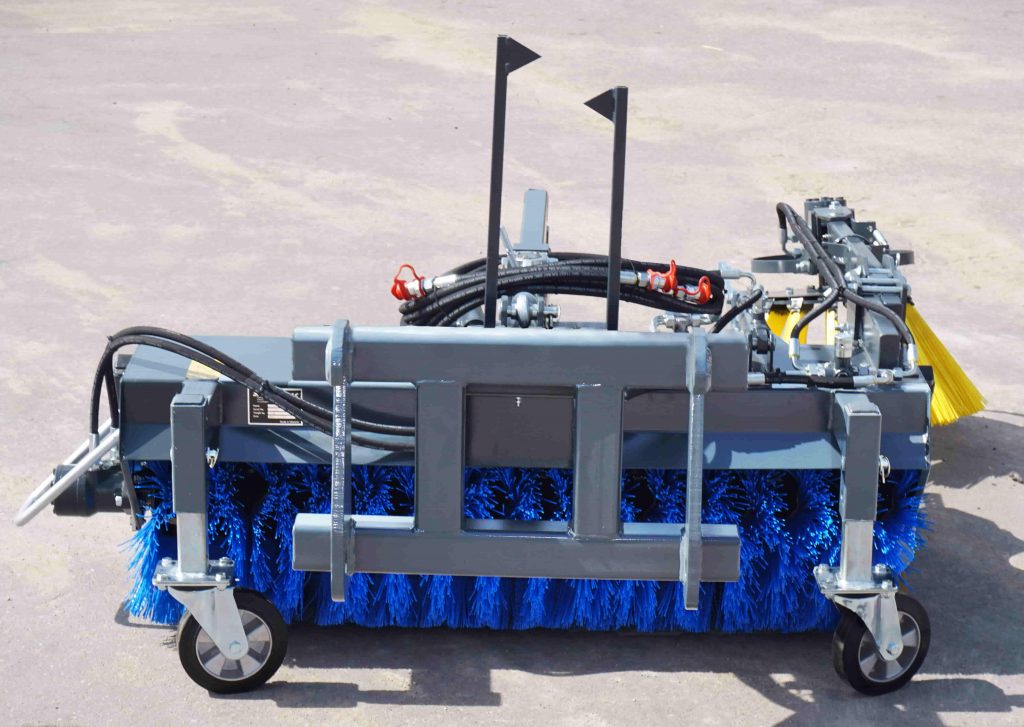

FKM/GKM-BH – sweeping machine made to clean warehouses, roads or sites. Sweeper running by hydraulic motor, whose optimal oil flow – 25 l/min. Due to unique design, sweeper could be mounted either at the front (GKM), either at the back of the tractor (FKM). Moreover, it fits for most tractors with 3 points or triangle bracket.

Accordion title

Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.

Accordion title

Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.

Accordion title

Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.

Sweeping machines

Sweeping machine FKM/GKM-BH

228

kg, weight

1,68

m, width

616

mm, height

TECHNICAL DATA	FKM/GKM-130BH	FKM/GKM-150BH	FKM/GKM-180BH	FKM/GKM-230BH
Total width, mm	1600	1800	2100	2600
Working width, mm	1300	1500	1800	2300
Angling	25°
Weight with bracket, kg	186	200	220	250
Brush ring diameter, mm	520

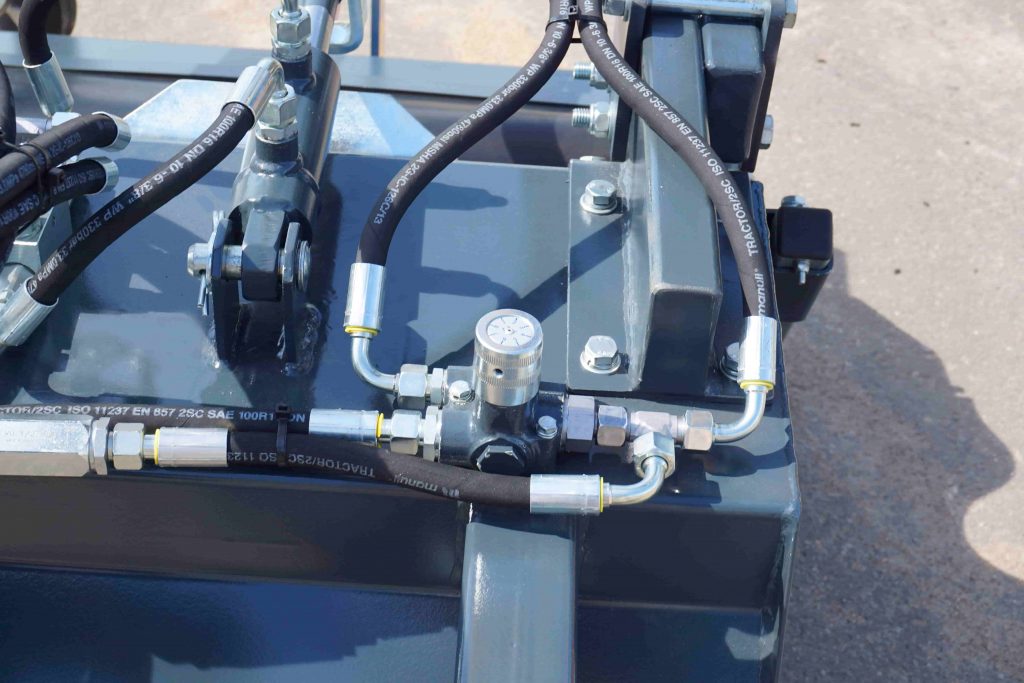

Drive	1 Oil motor
Oil pressure min/recomended/max, bar	120/140/175
Oil flow min/recomended/max, l/min	25/30/60

Suspension systems:

3 point bracket (front or back mounted)
triangle bracket (front or back mounted)

Sweeping machines FKM/GKM-BH with collection bunker Road sweeper

FKM/GKM-BH – sweeping machine made to clean warehouses, roads or sites. Sweeper running by hydraulic motor, whose optimal oil flow – 25 l/min. Due to unique design, sweeper could be mounted either at the front (GKM), either at the back of the tractor (FKM). Moreover, it fits for most tractors with 3 points or triangle bracket.

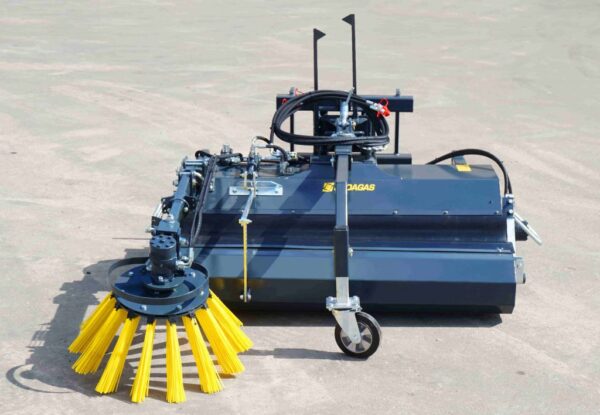

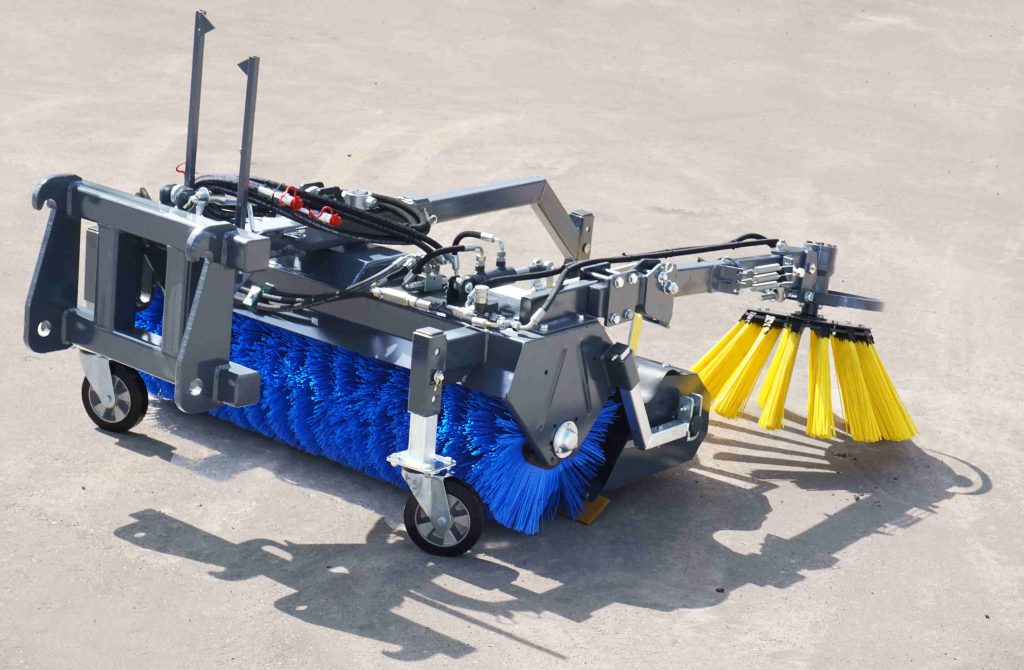

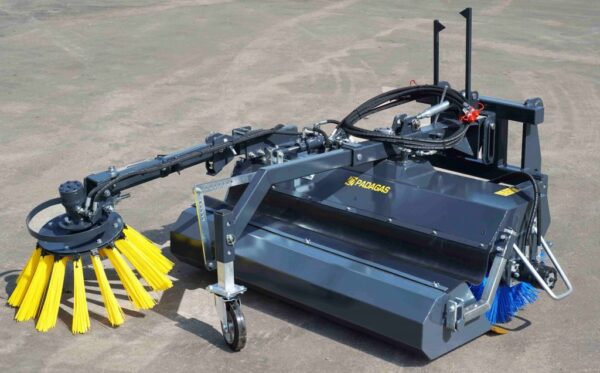

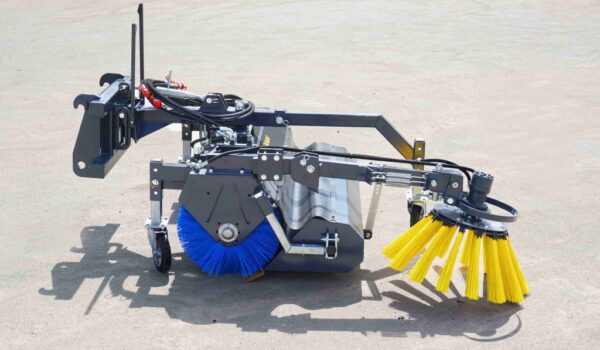

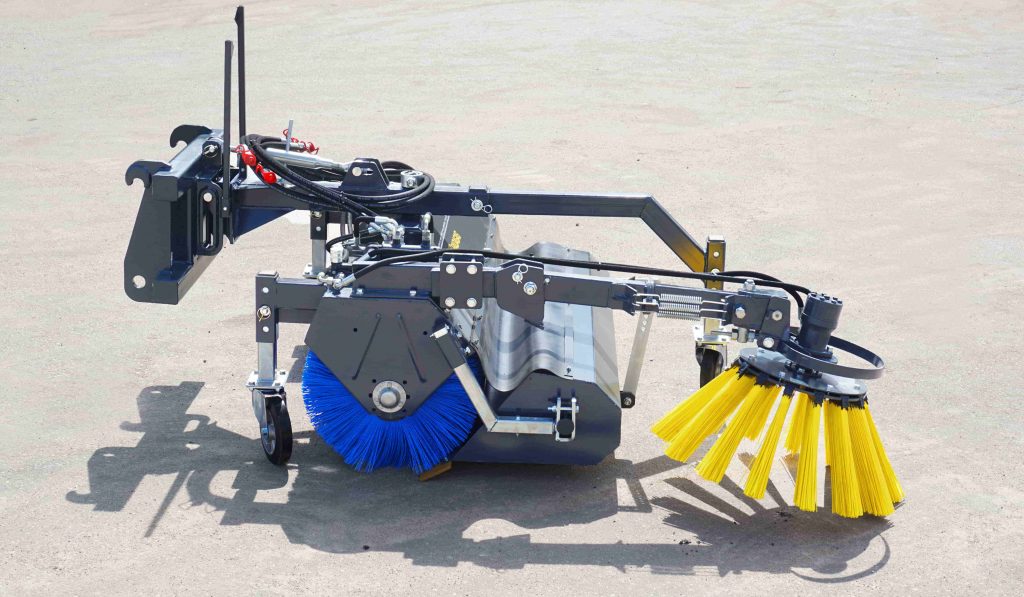

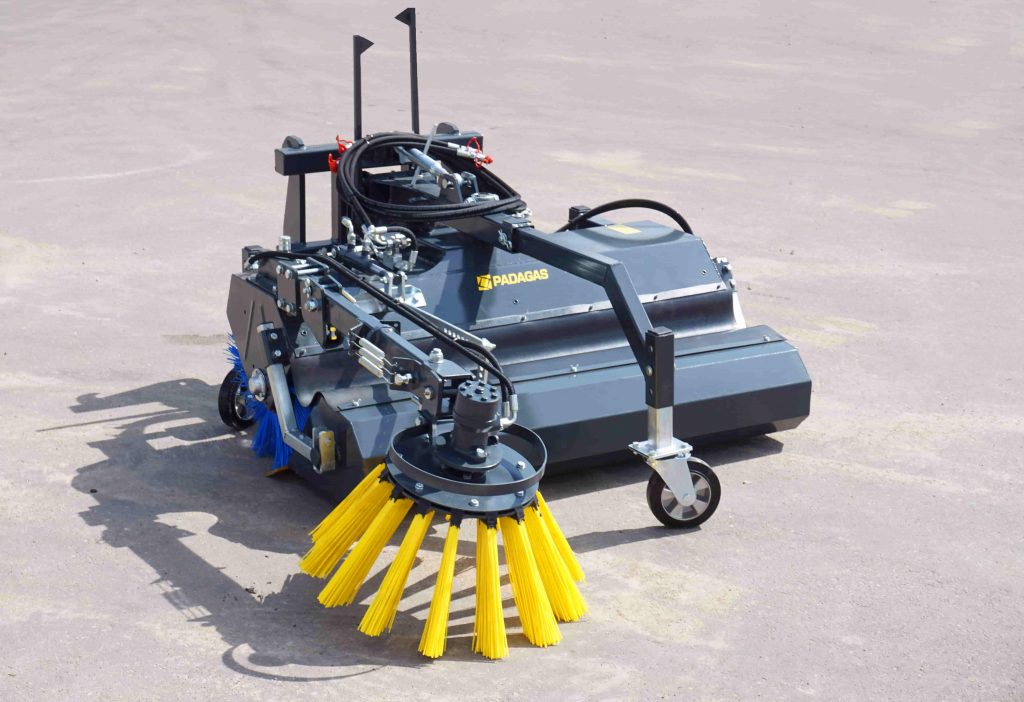

Customers could select FKM/GKM between widths 1,6 to 2,6 m. Also could order additional functions – hydraulic angling and collecting box emptying mechanism, or accessories – water system, side brush. By customers request, we will include composite segment brush (50% wire, 50% plastic).

PADAGAS recommends FKM/GKM, especially for low power tractors.

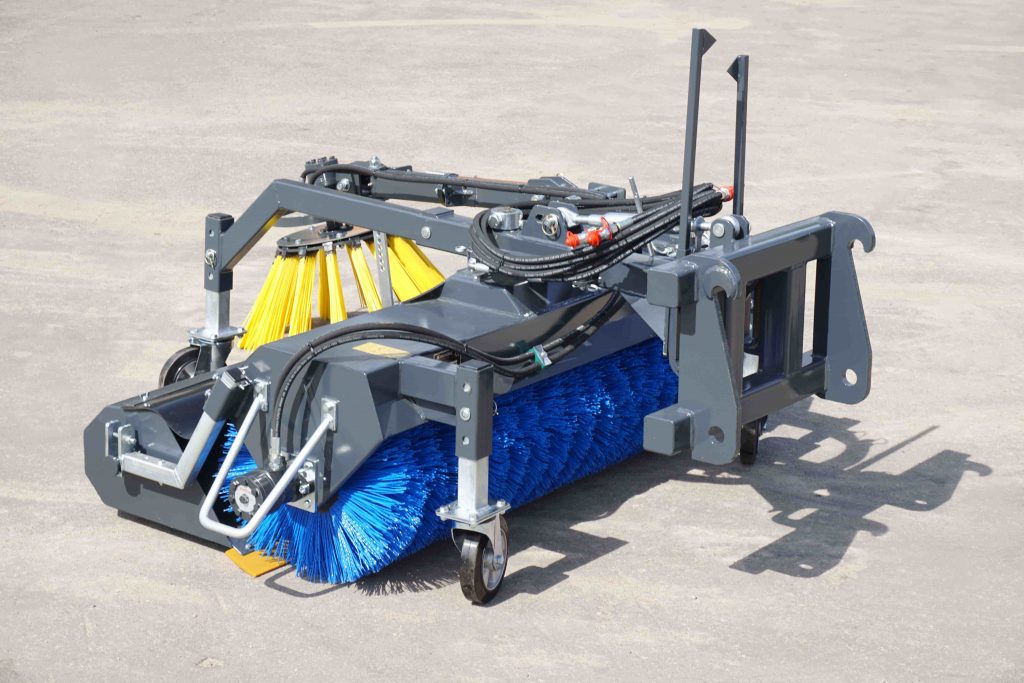

The basic model of the sweeping machine FKM/GKM comes with box, plastic rings, without hydraulic angling and water system. Sweeping machines FKM/GKM-BH with collection bunker for dust.

Sweeping machine BS benefits

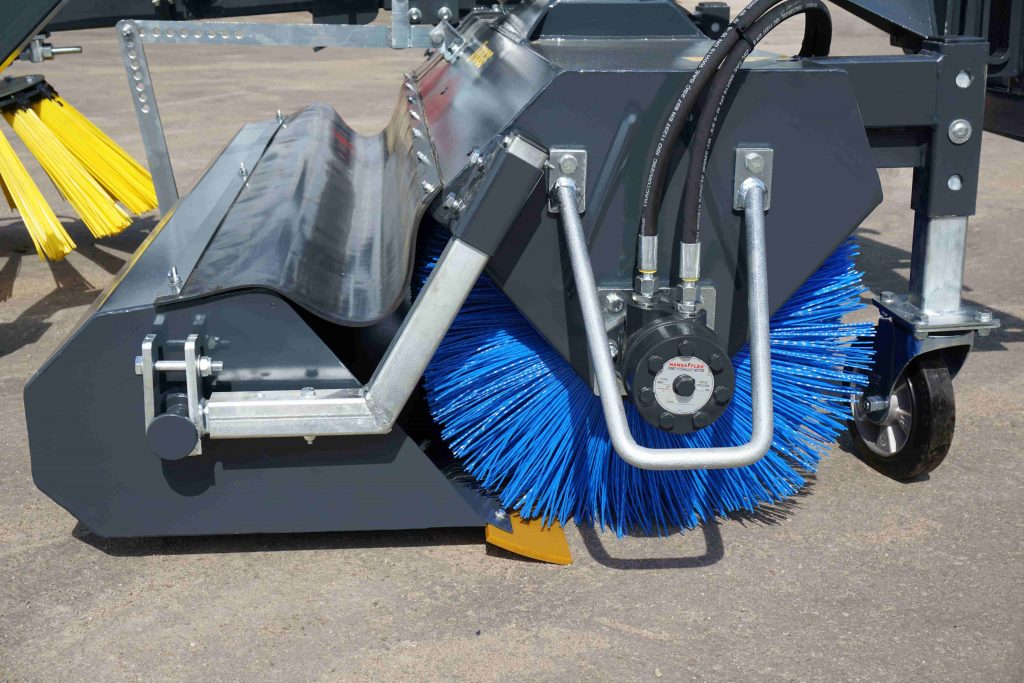

Professional design. Padagas Bucket sweeper produced to make the job more efficient. Adjustable arms to adjust the height of the sweeper off the ground and a motor guard which prevents damage to the Roller Stator motor.
Powerful sweeper. High torque motor for more power in the bucket brush, so powerful hydraulic engine for long life.
High-quality parts. Most importantly is that all parts used in Padagas sweepers are from well-known brands.
Easy Maintainance. The sweeping brushes are easy to change. Order extra brushes directly from us. Sweeping machines FKM/GKM-BH with collection bunker for dust.
