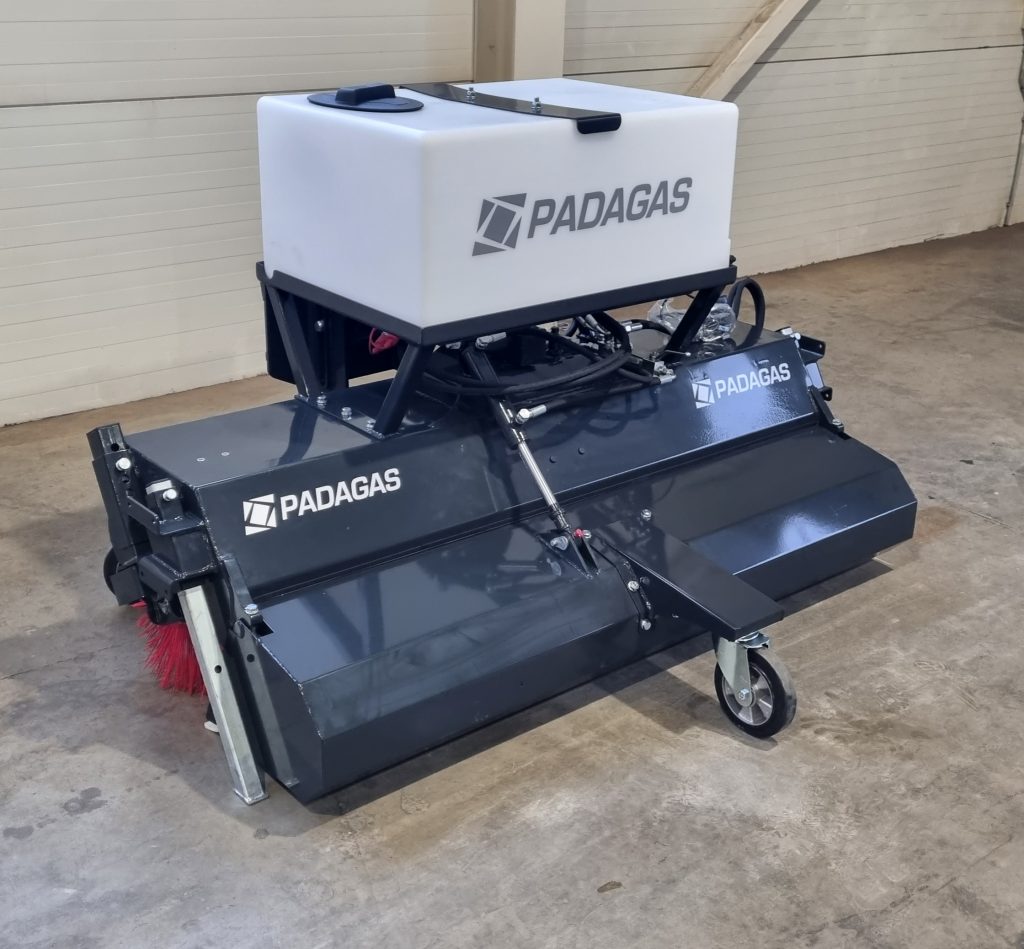

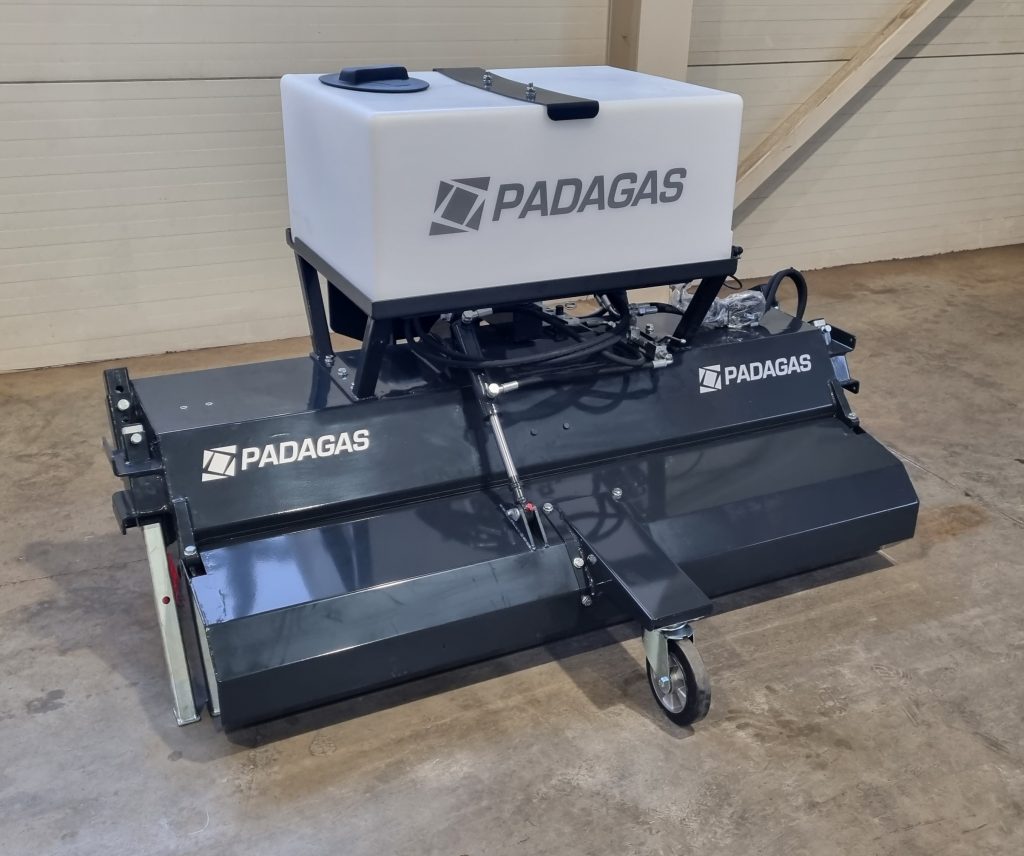

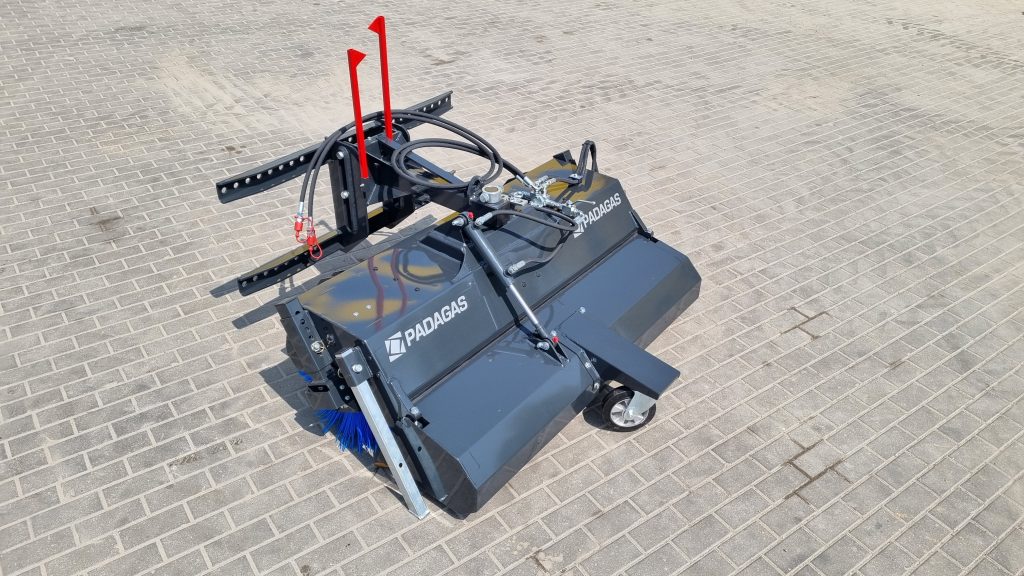

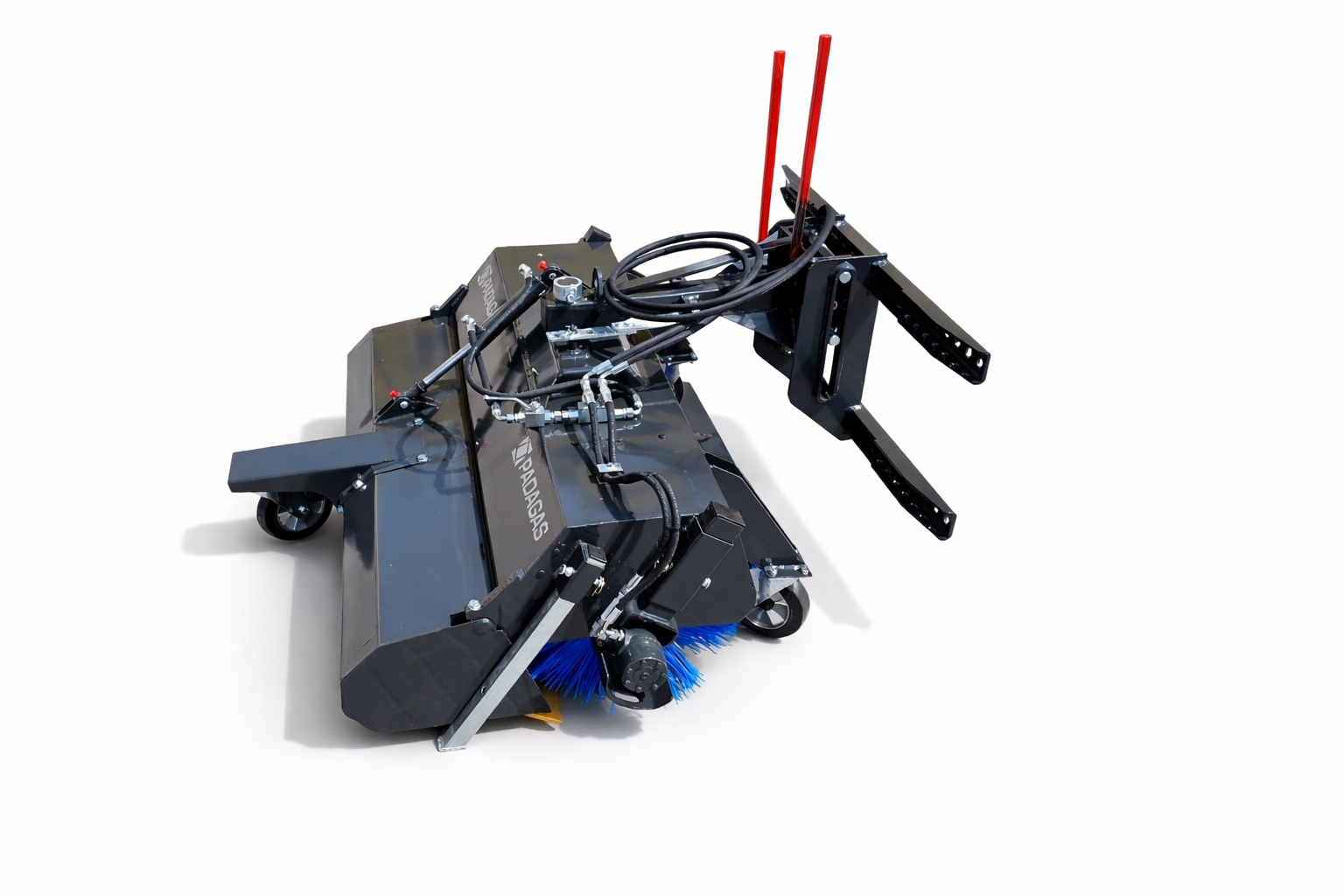

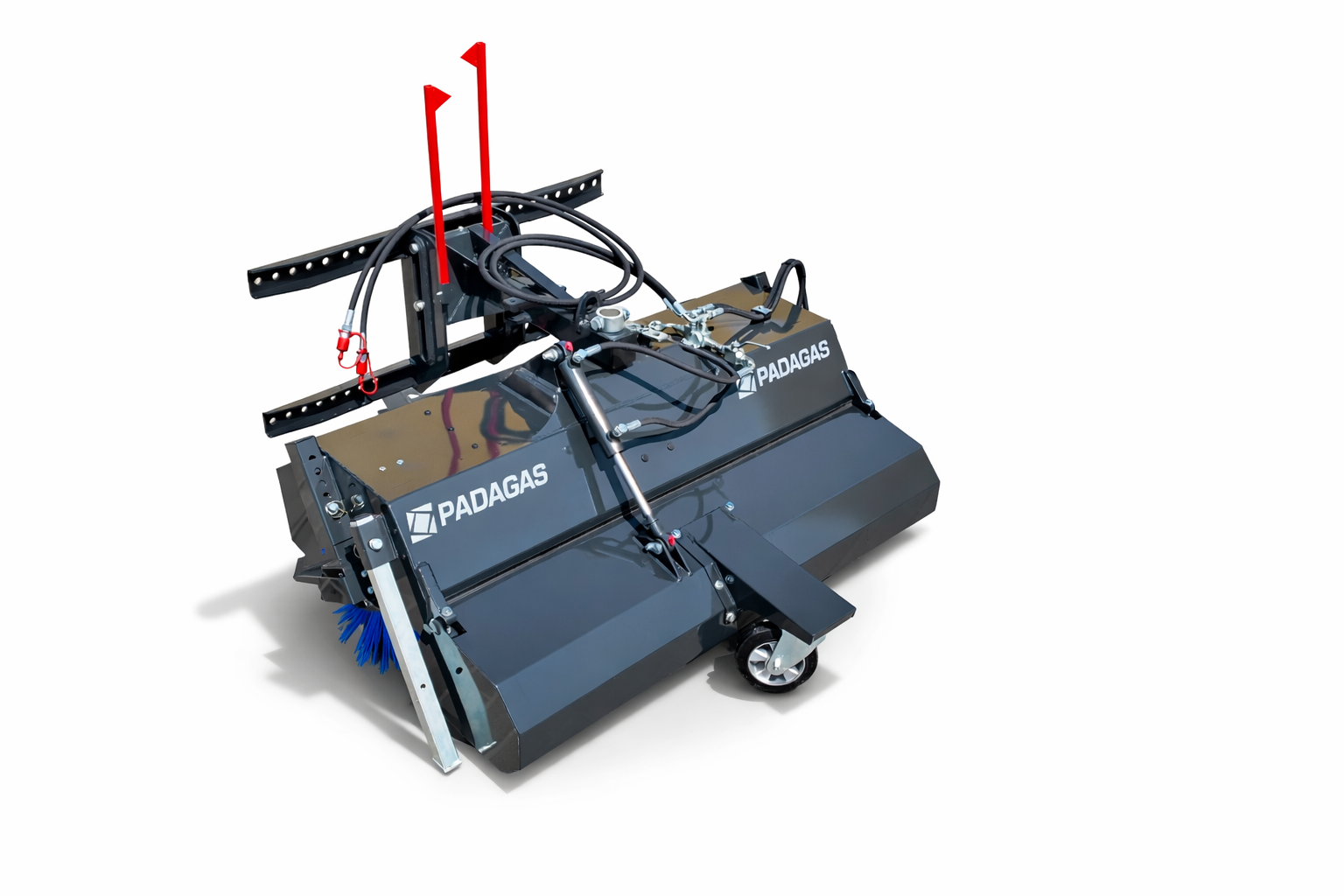

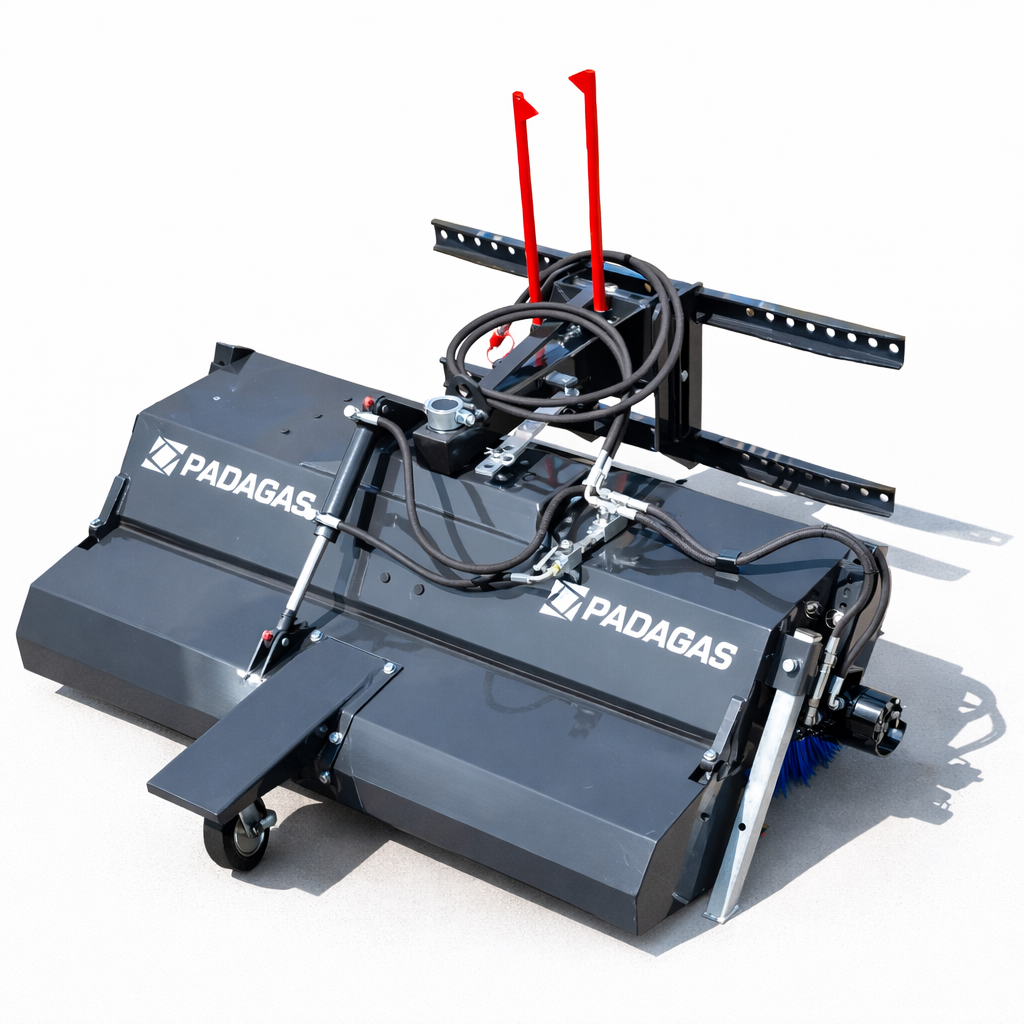

FOX BH Sweeper is a versatile sweeping machine designed for cleaning yards, roads, warehouses, and other areas. Powered by a single hydraulic motor with an optimal oil flow of 30 l/min, it is well suited for low-power tractors. Its unique design allows mounting both on the front or rear three-point hitch, and the machine can operate either with a lowered debris container for collection or with the container raised for open sweeping, providing flexibility for different tasks.

Accordion title

Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.

Accordion title

Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.

Accordion title

Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.

Product Highlights

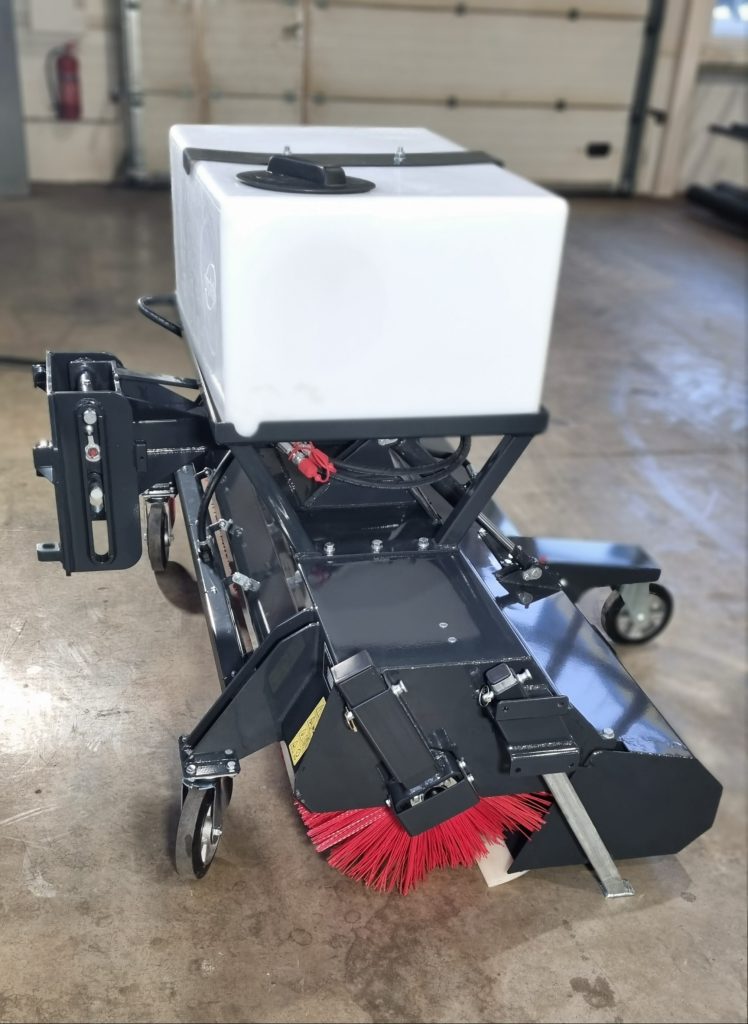

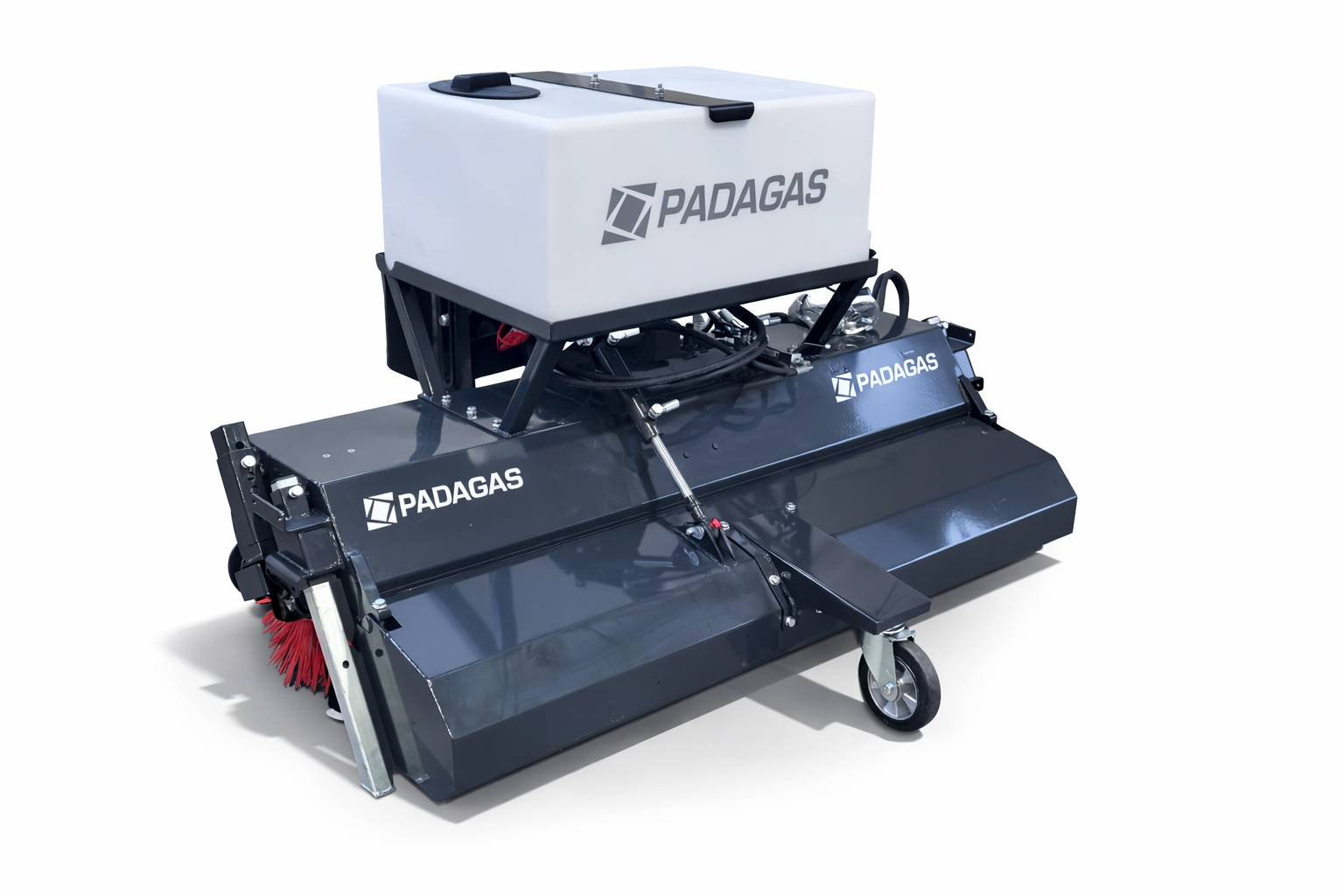

Hydraulic Tipping Debris Container

Large-capacity container with hydraulic tipping allows easy emptying and efficient debris handling.

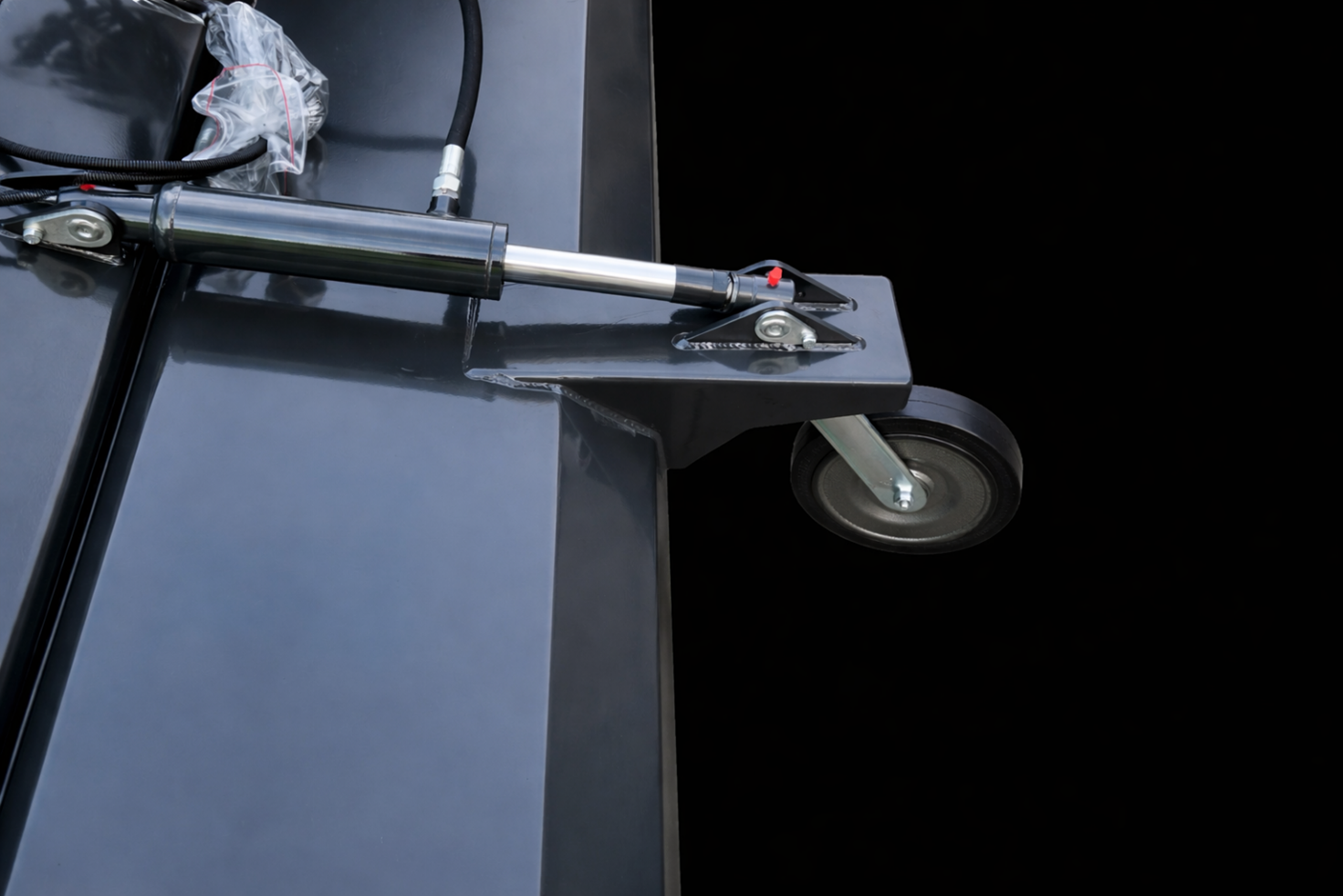

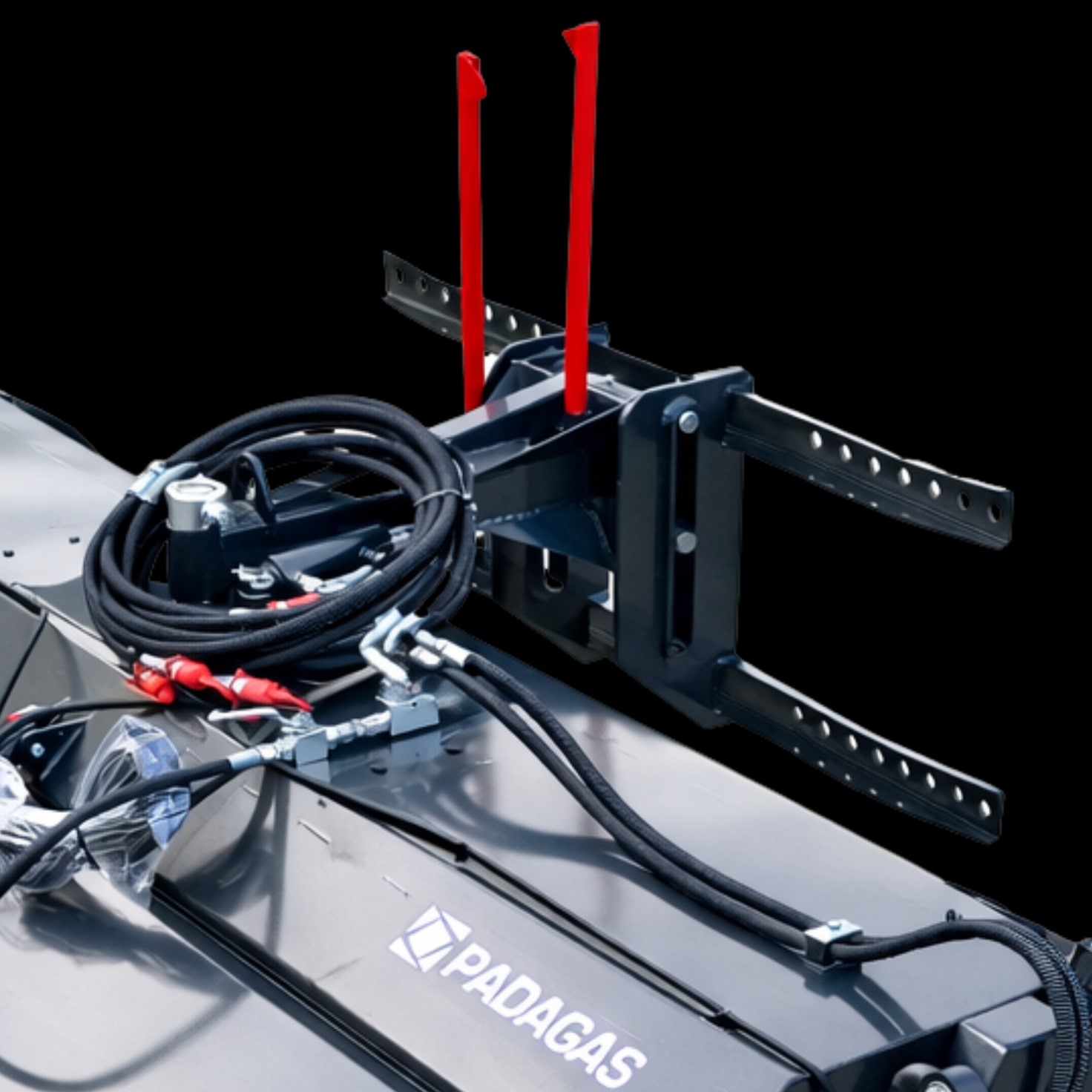

Hydraulic Brush Angle Control

Hydraulic 20° left and right brush angling ensures precise sweeping direction and efficient operation.

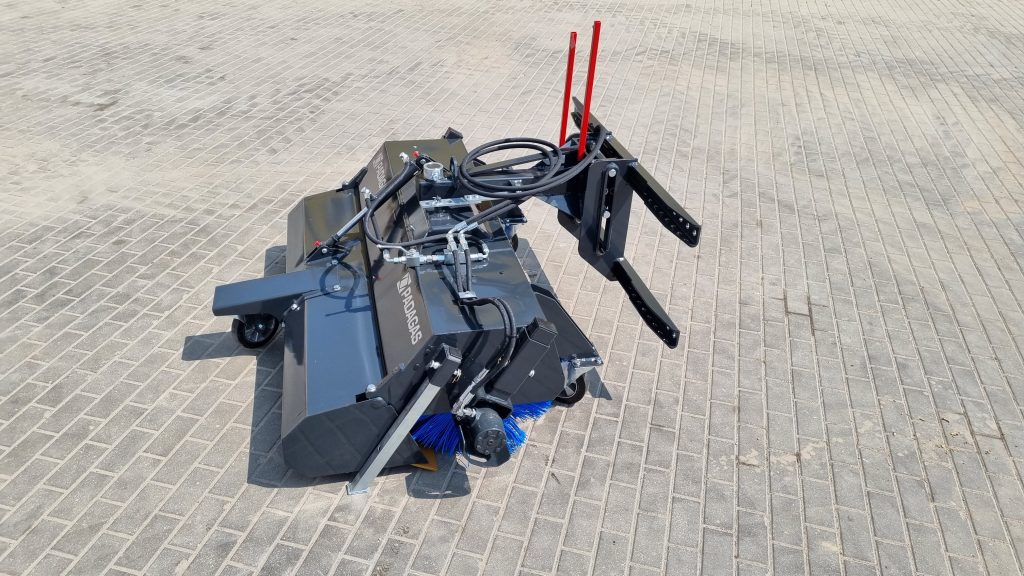

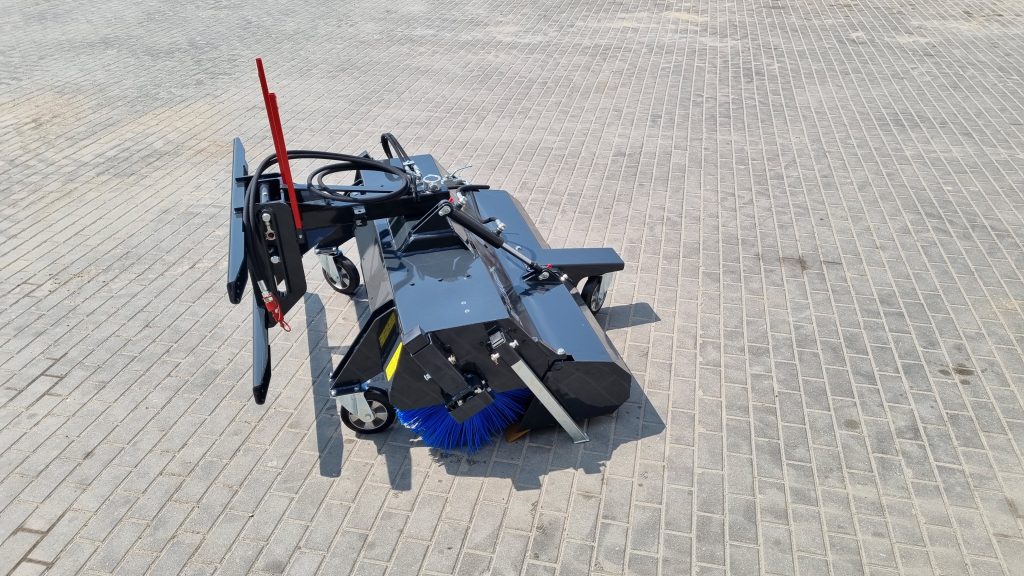

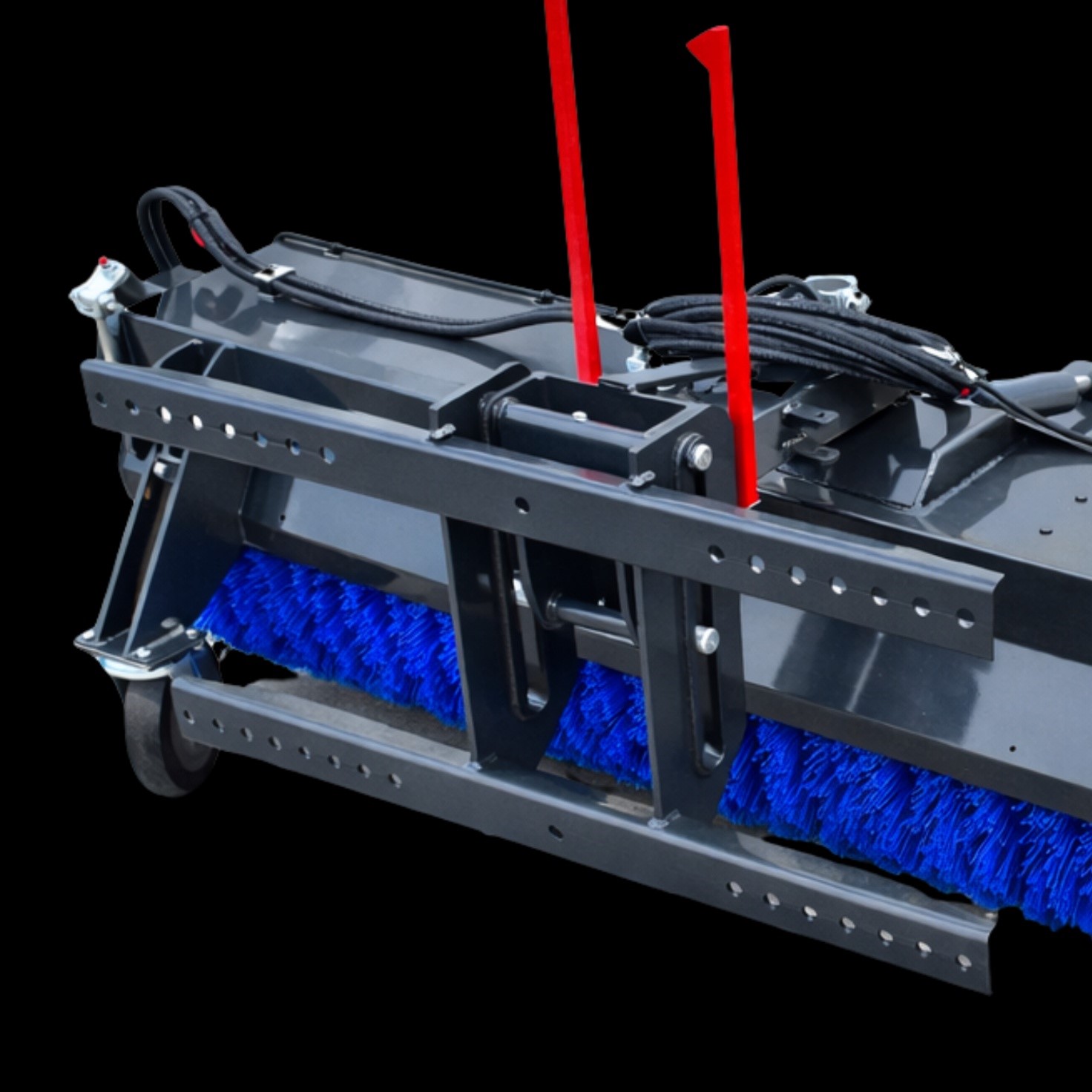

Universal Mounting Frame

Interchangeable mounting frame allows quick adaptation to different machines and carriers.

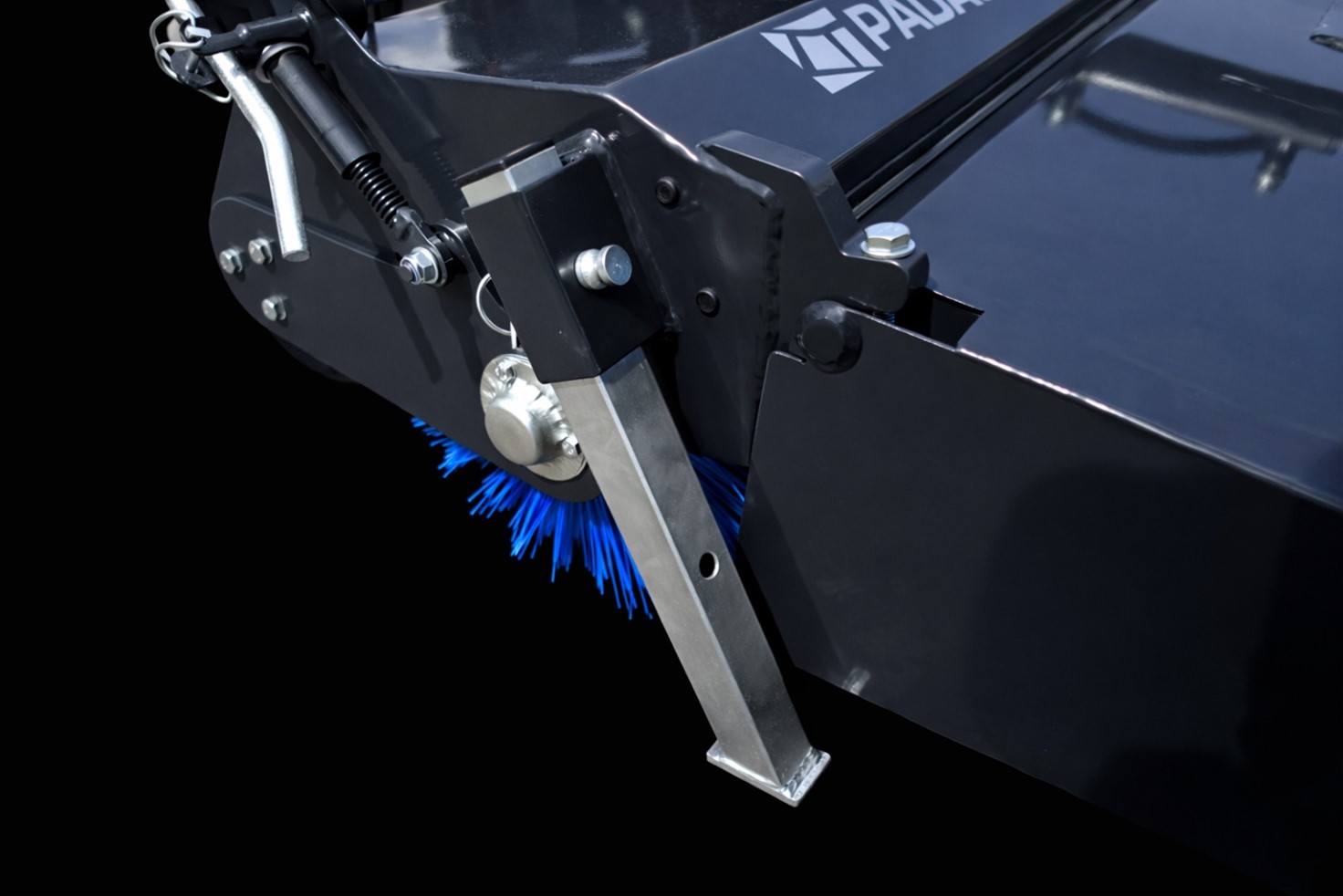

Support Stand for Storage

Lowering support stand allows stable parking and easy storage when the sweeper is not in use.

Standard Configuration

Additional Equipment

Possible Mounting Systems

Sweeping machines

Sweeping machine FOX BH

228

kg, weight

1,68

m, width

616

mm, height

TECHNICAL DATA	FOX 130BH	FOX 150BH	FOX 180BH	FOX 250BH
Total width, mm	1584	1774	2084	2584
Working width, mm	1253	1443	1753	2253
Angling	20°
Weight with bracket, kg	250	262	282	314
Brush ring diameter, mm	520

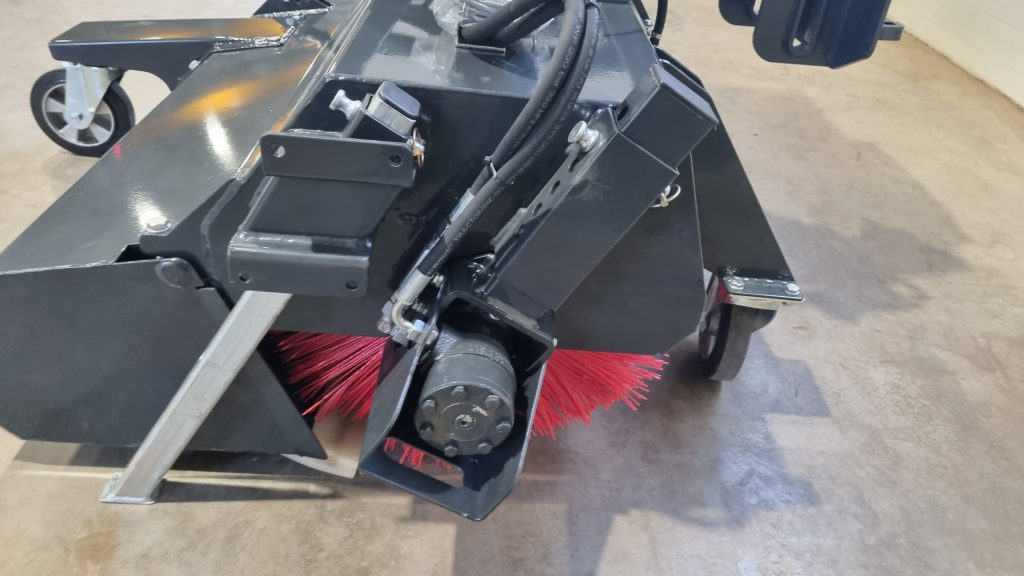

Drive	1 Oil motor
Oil pressure min/recomended/max, bar	120/140/175
Oil flow min/recomended/max, l/min	25/30/60
