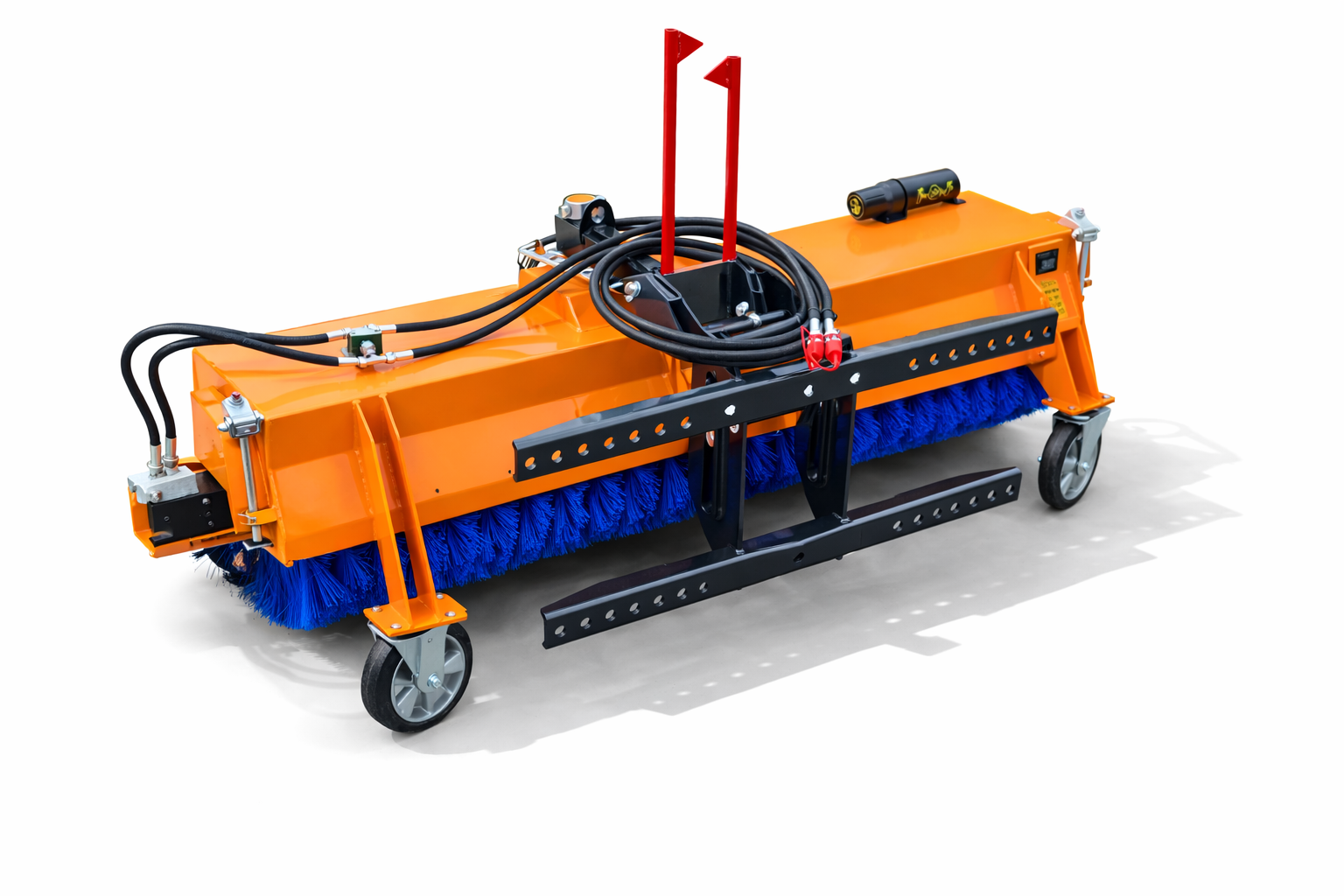

FOX-H Sweeper is a versatile sweeping machine designed for cleaning yards, roads, warehouses, and other surfaces. Powered by a single hydraulic motor with an optimal oil flow of 30 l/min, this model is well suited for low-power tractors. Its unique design allows mounting on both the front or rear three-point hitch, providing flexibility for different working setups. Available working widths range from 1.5 m to 2.5 m.
Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.
Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.
Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.

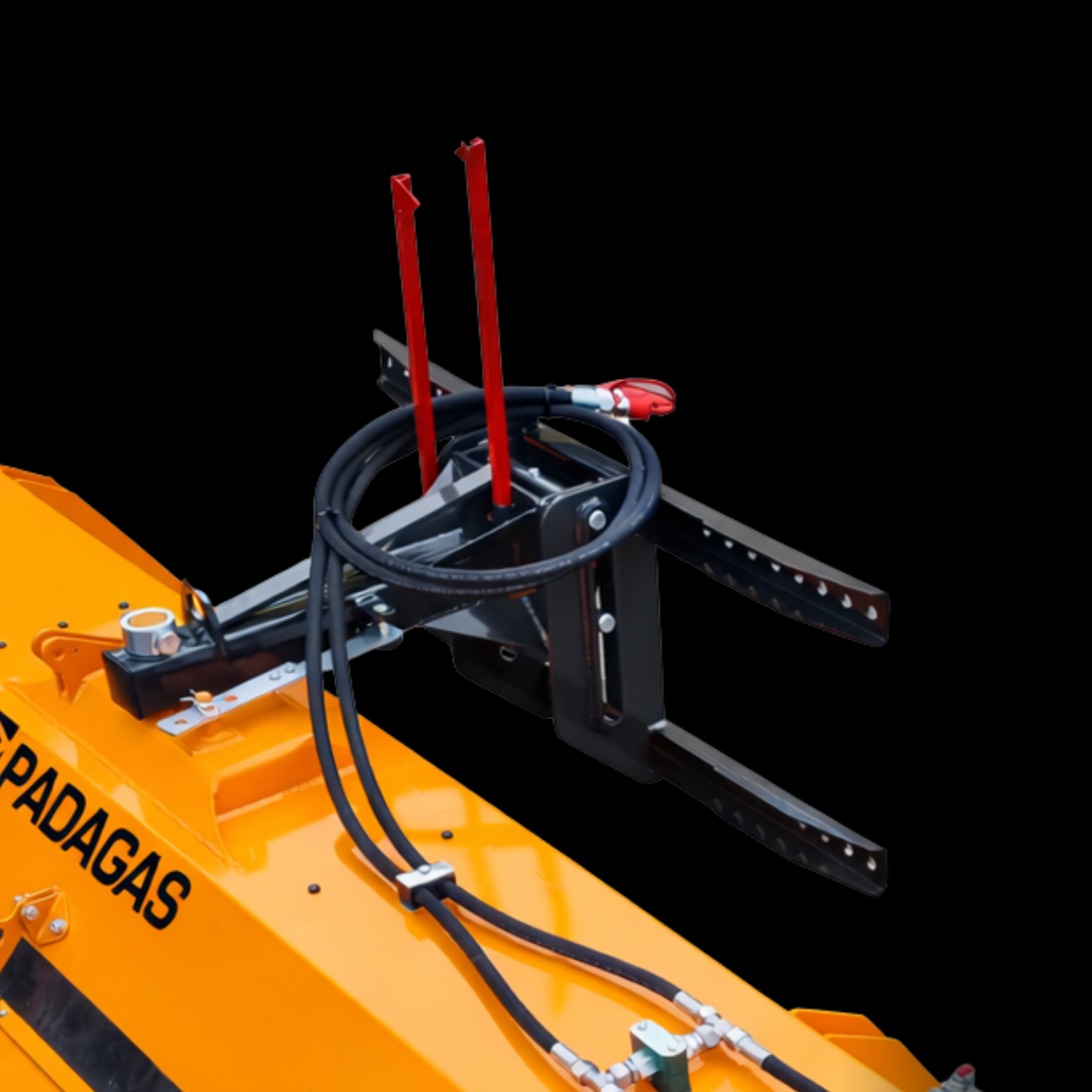

Hydraulic Brush Angle Control

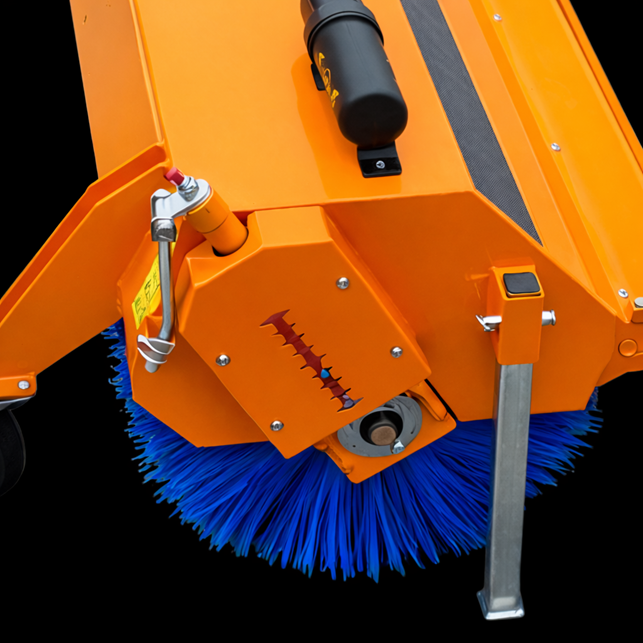

Manual Brush Lift/Lowering

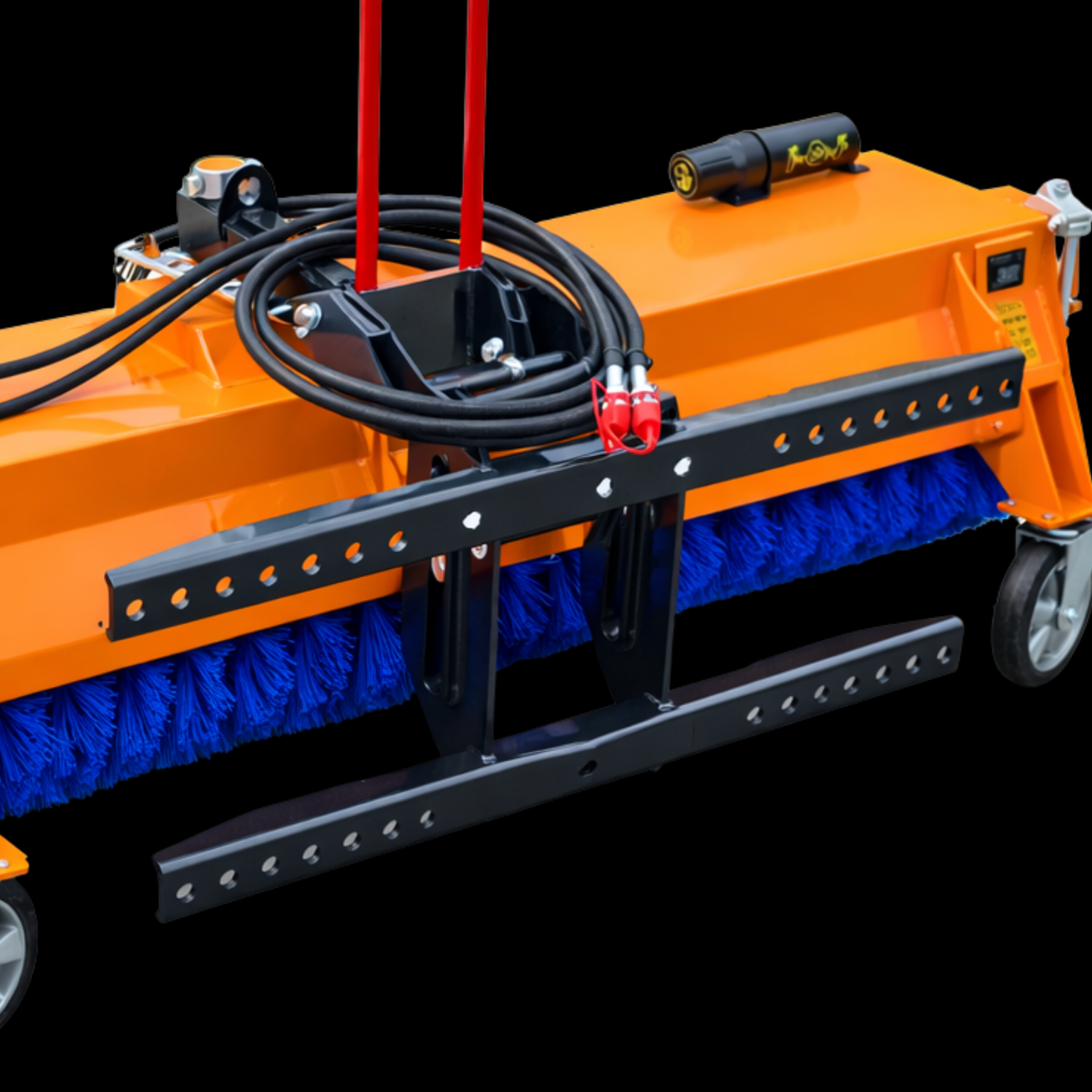

Front or Rear Three-Point Mounting

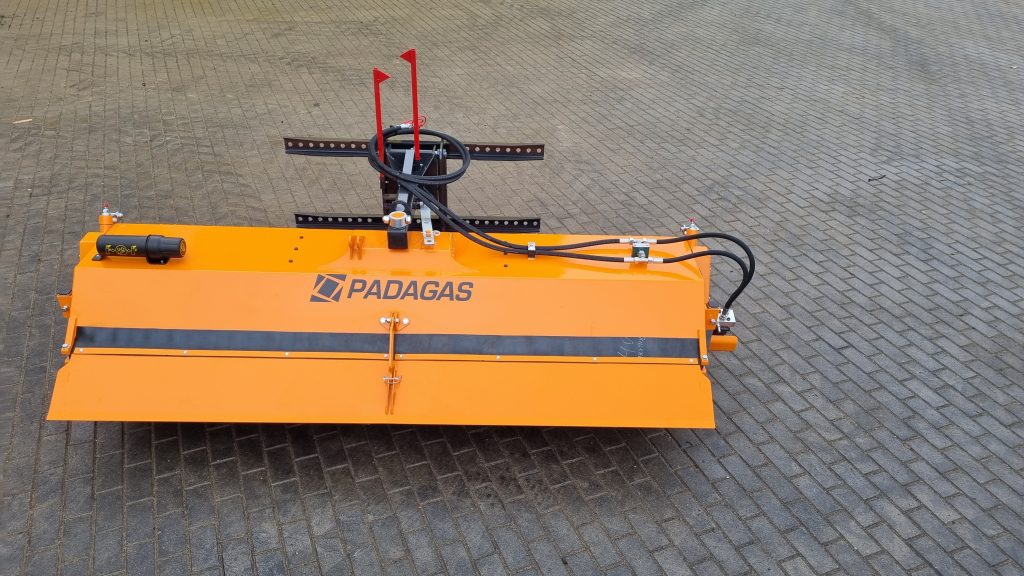

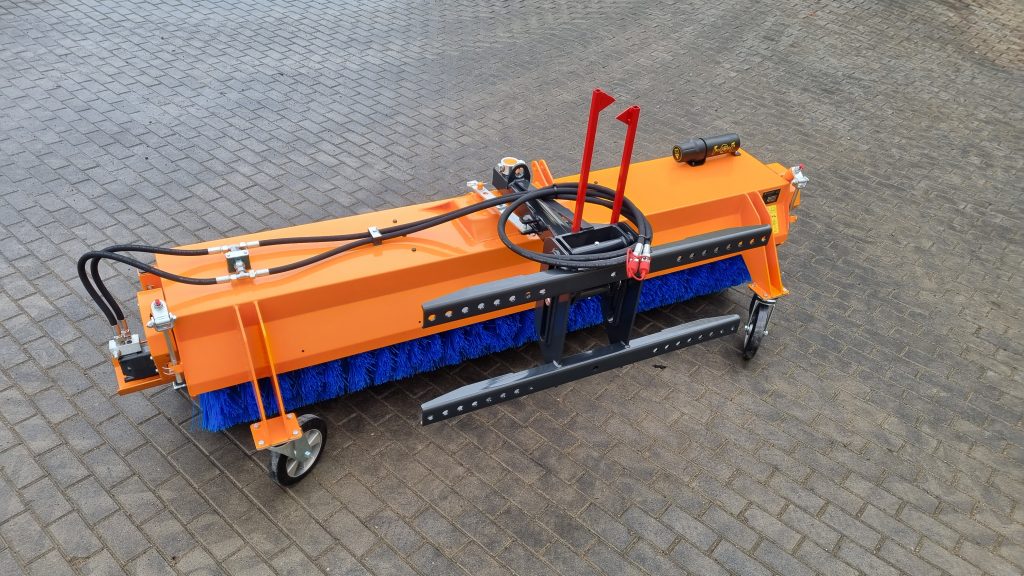

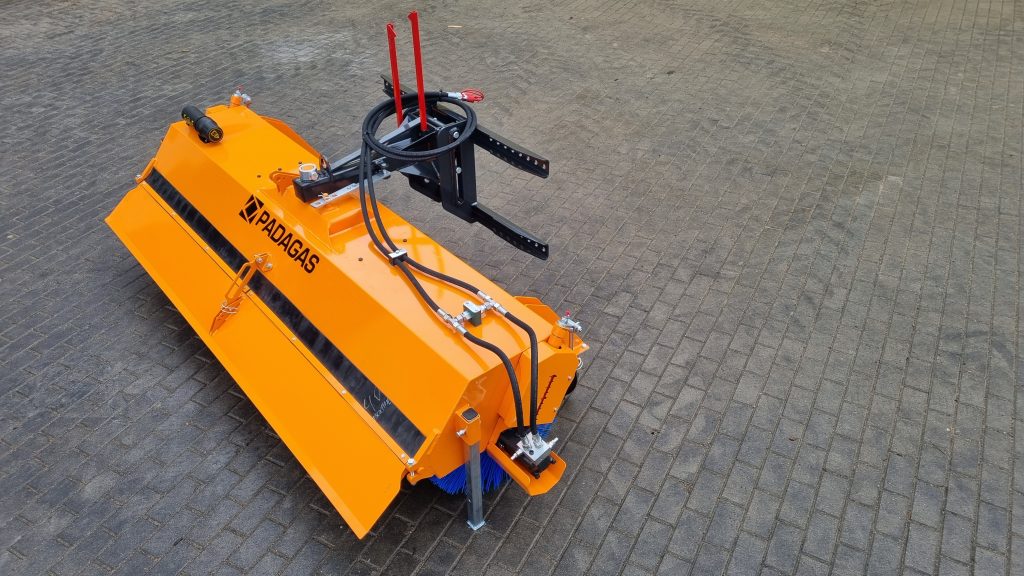

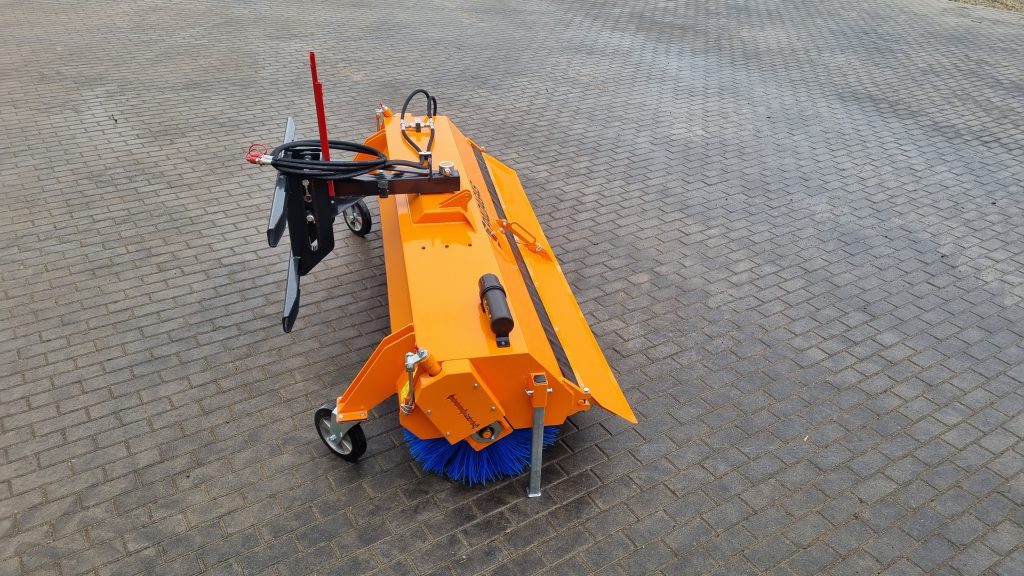

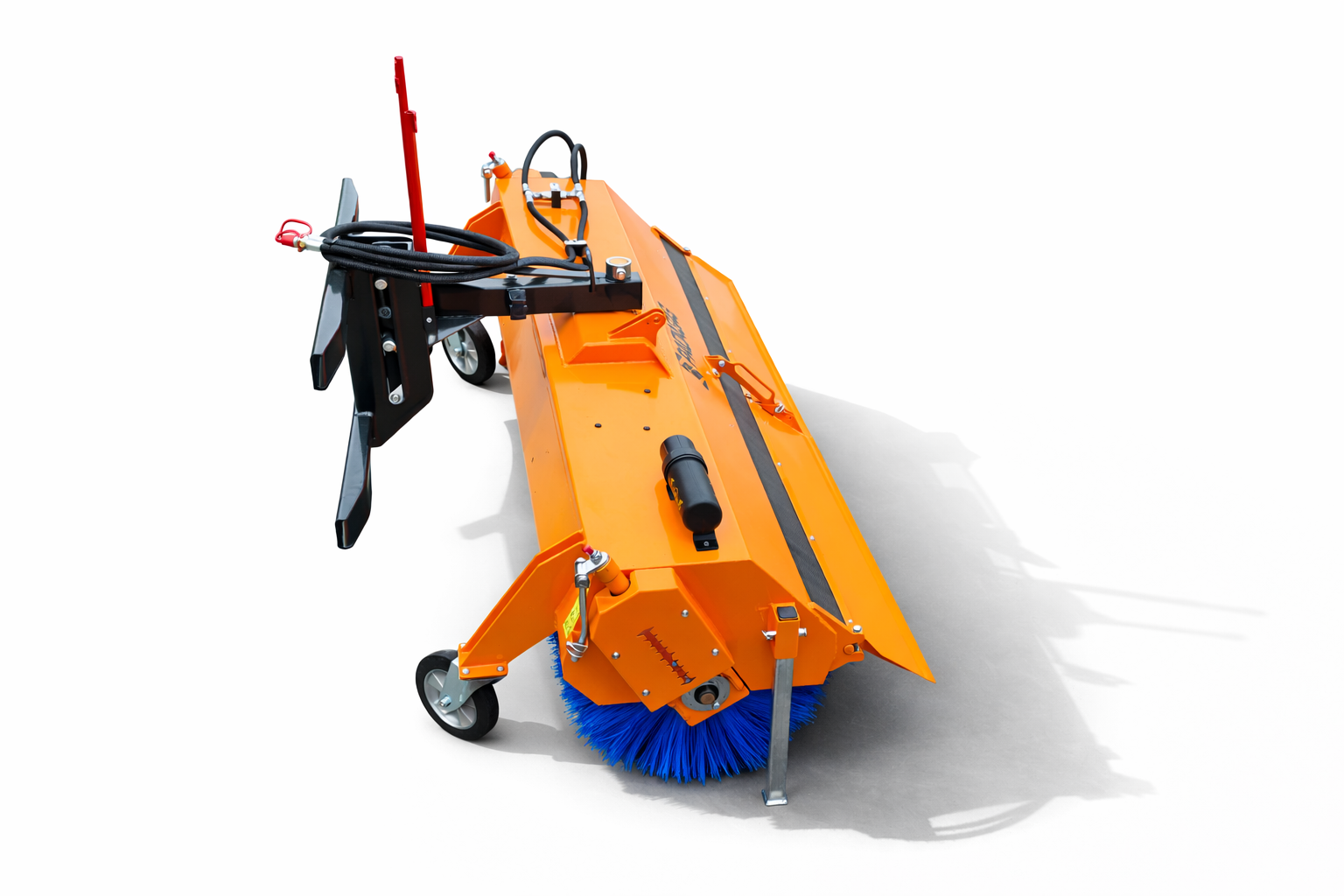

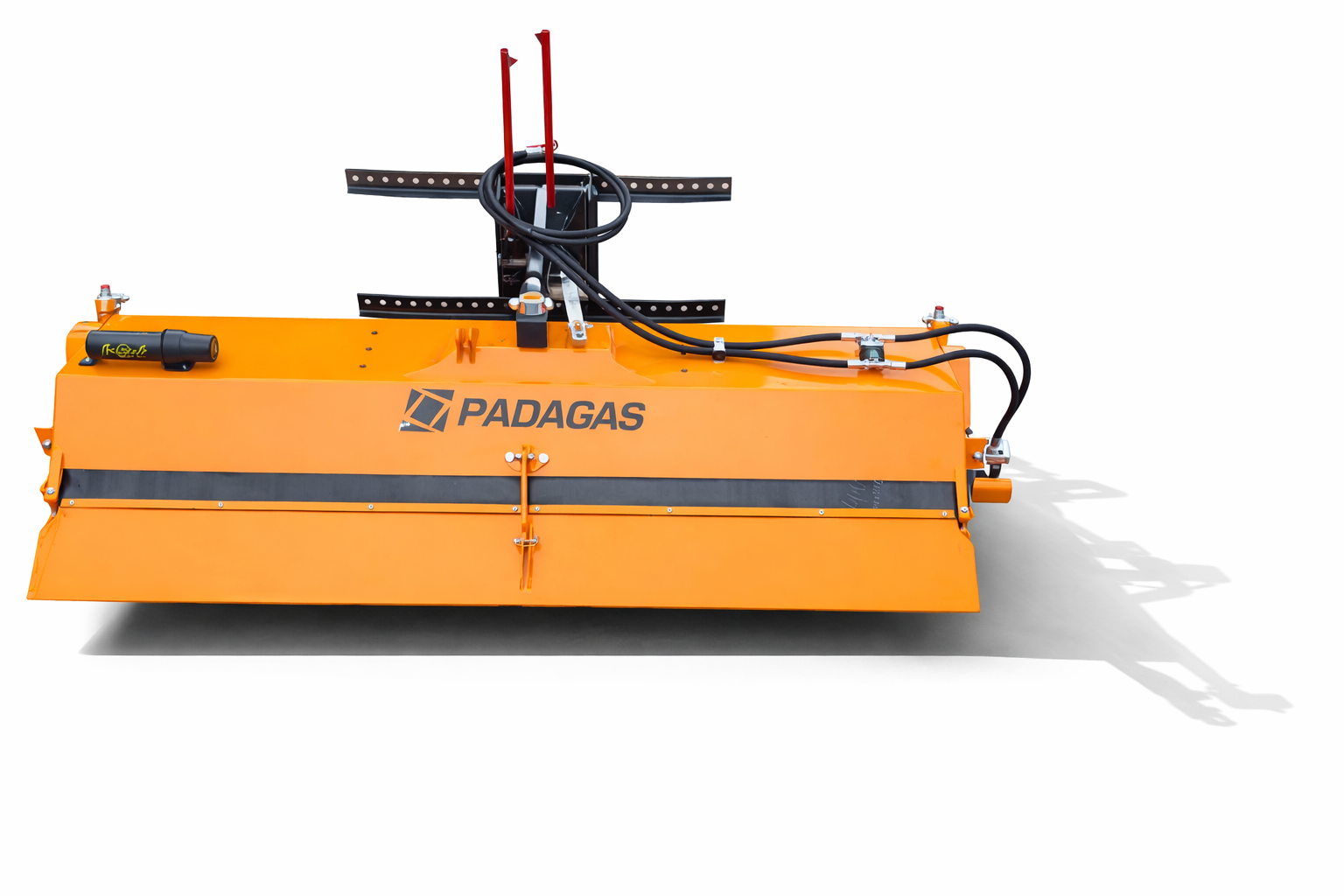

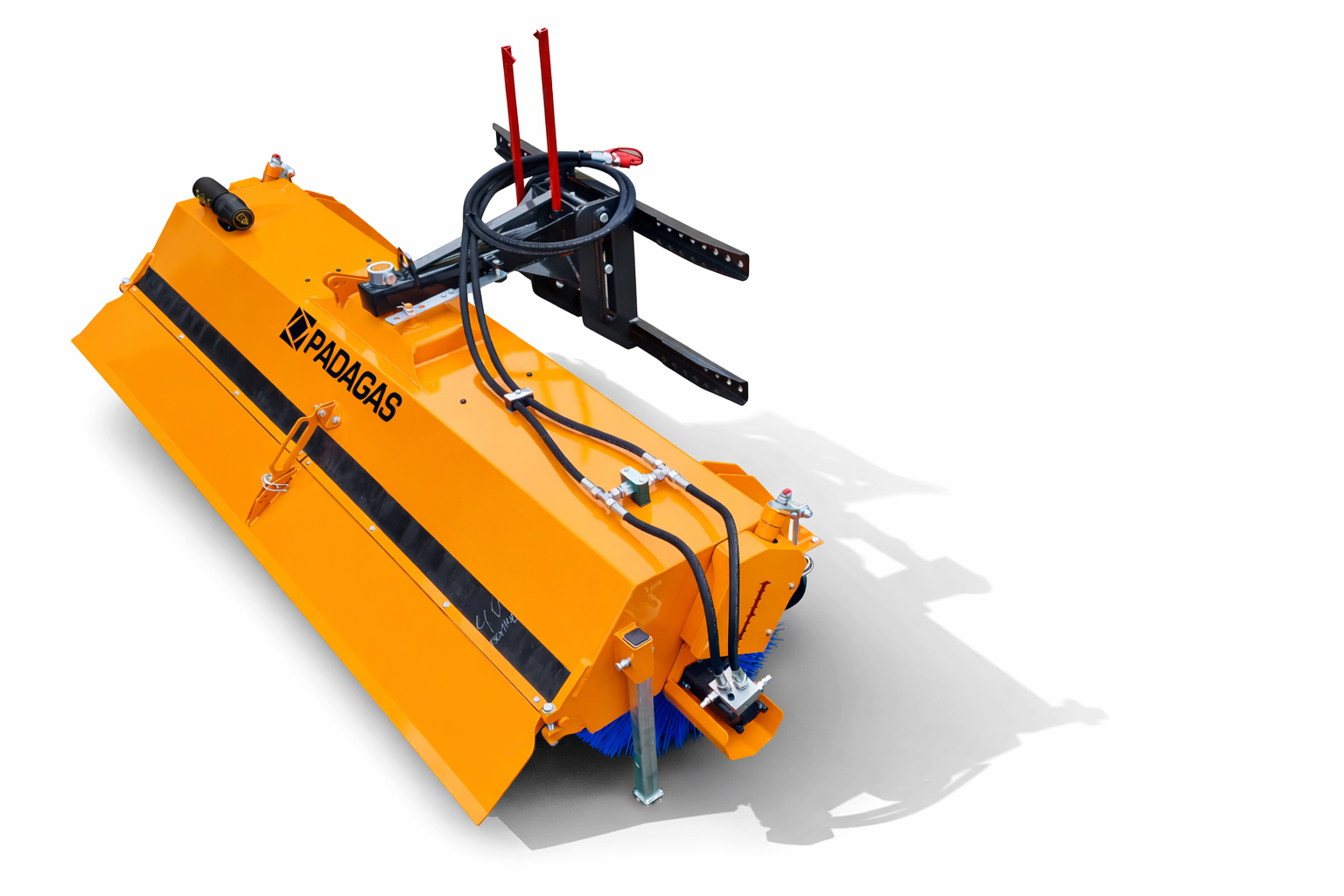

Sweeping machine FOX-H
| TECHNICAL DATA | FOX-H 150 | FOX-H 200 | FOX-H 230 | FOX-H 250 |
| Total width, mm | 1753 | 2253 | 2563 | 2793 |
| Working width, mm | 1428 | 1928 | 2238 | 2445 |
| Angling | 20° | |||
| Weight with bracket, kg | 328 | 380 | 407 | 430 |
| Brush ring diameter, mm | 600 | |||
| Drive | 1 Oil motor | |||
| Oil pressure min/recomended/max, bar | 120/140/175 | |||
| Oil flow min/recomended/max, l/min | 25/30/60 | |||
Suspension systems:
- Three-point
- Triangle
- Frontloader (Euro)
- Wheeloader
- Telescopic loader
- Mini loader
- Forklift loader
Customers could select FOX-H between widths 1,5 to 2,5 m. Also could order additional functions – hydraulic angling, and collecting box emptying mechanism, or accessories – water system, side brush. By customers request, we will include composite segment brush (50% wire, 50% plastic).
PADAGAS recommends FOX-H sweeping machine, especially for low power tractors.
The basic model of the sweeping machine FOX-H comes with plastic rings, without hydraulic angling and water system.
Sweeping machine FOX-H benefits
- Professional design. Padagas sweeper produced to make the job more efficient. Adjustable arms to adjust the height of the sweeper off the ground and a motor guard which prevents damage to the Roller Stator motor.
- Powerful sweeper. High torque motor for more power in the bucket brush, so powerful hydraulic engine for long life.
- High-quality parts. Most importantly is that all parts used in Padagas sweepers are from well-known brands.
- Easy Maintainance. The sweeping brushes are easy to change. Order extra brushes directly from us. Sweeping machines FOX-BH with collection bunker for dust.
