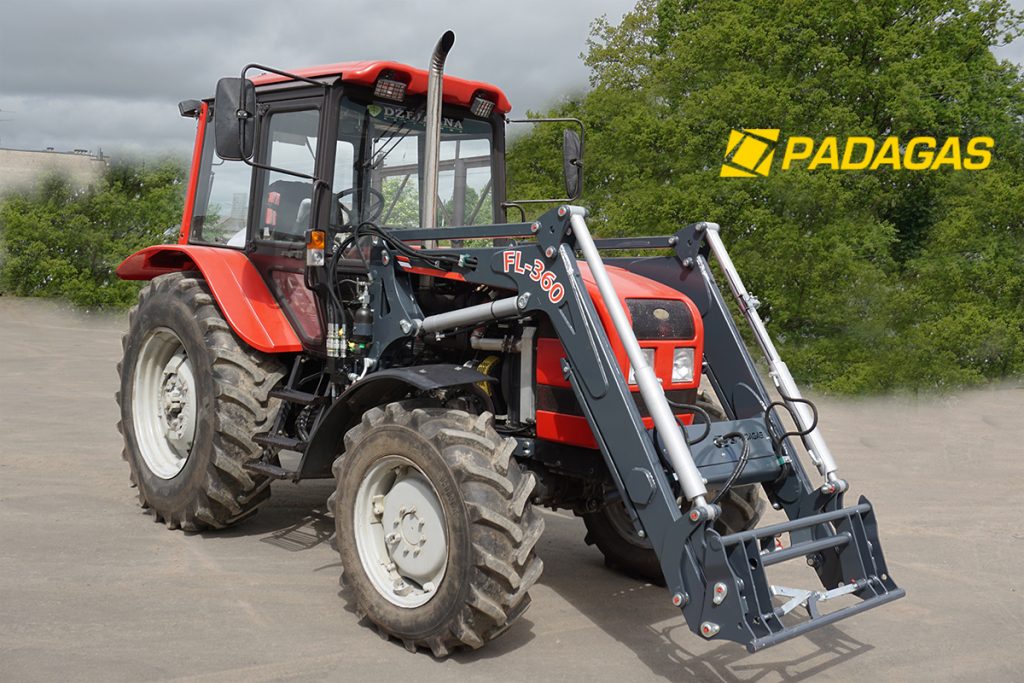

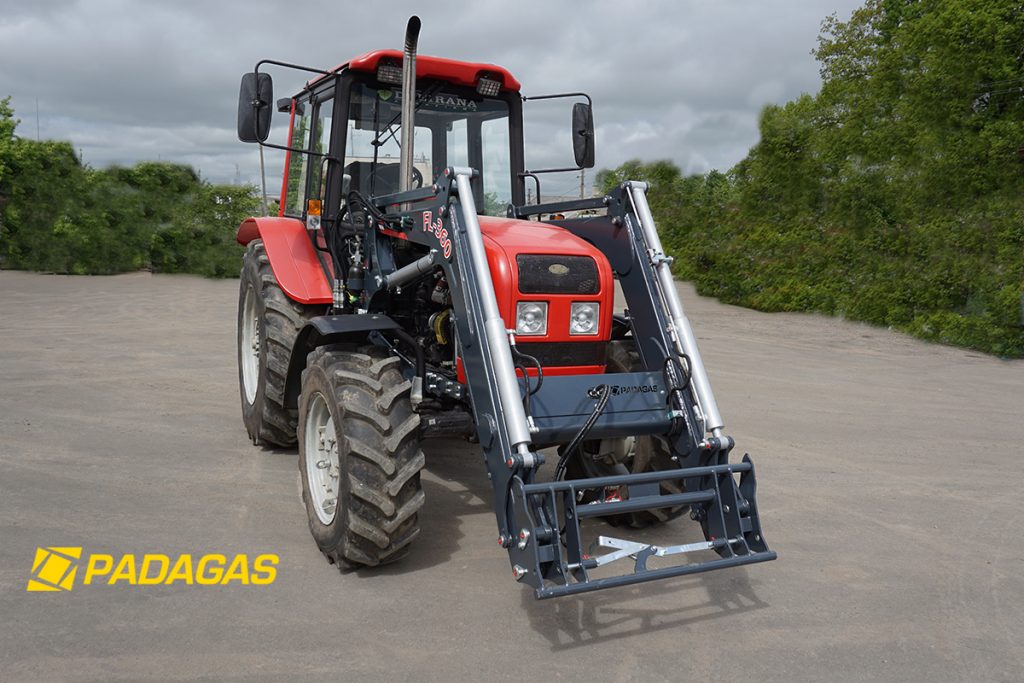

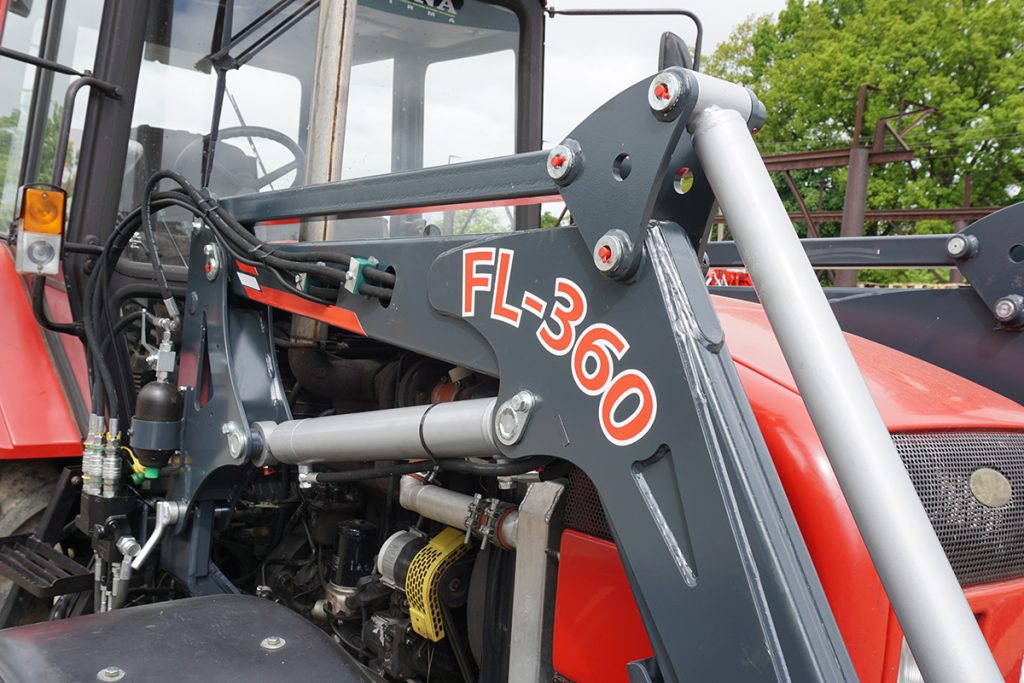

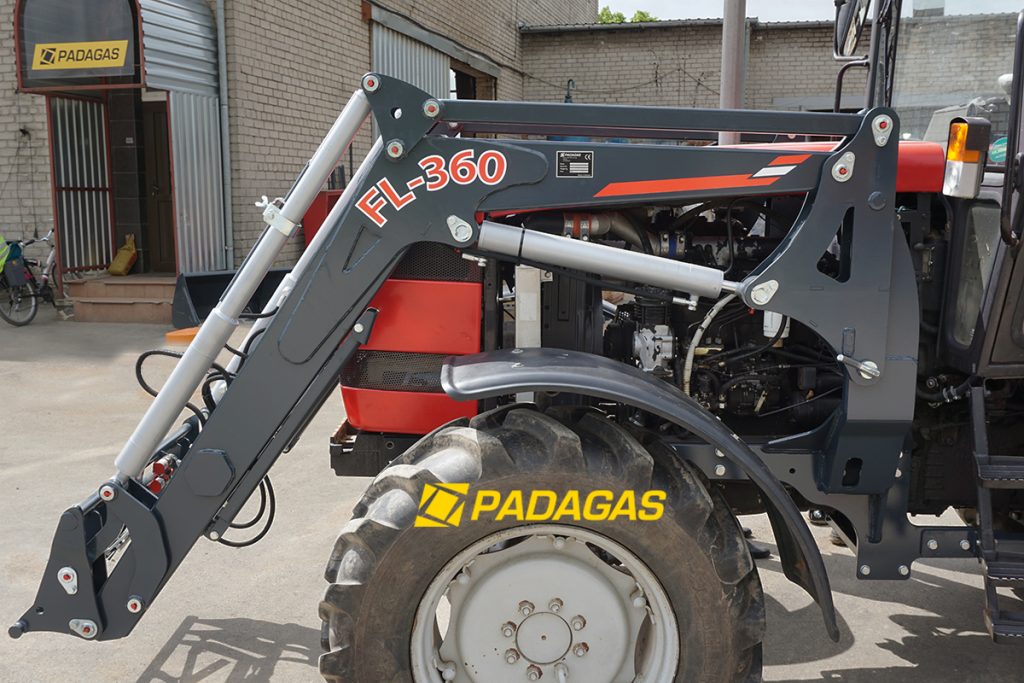

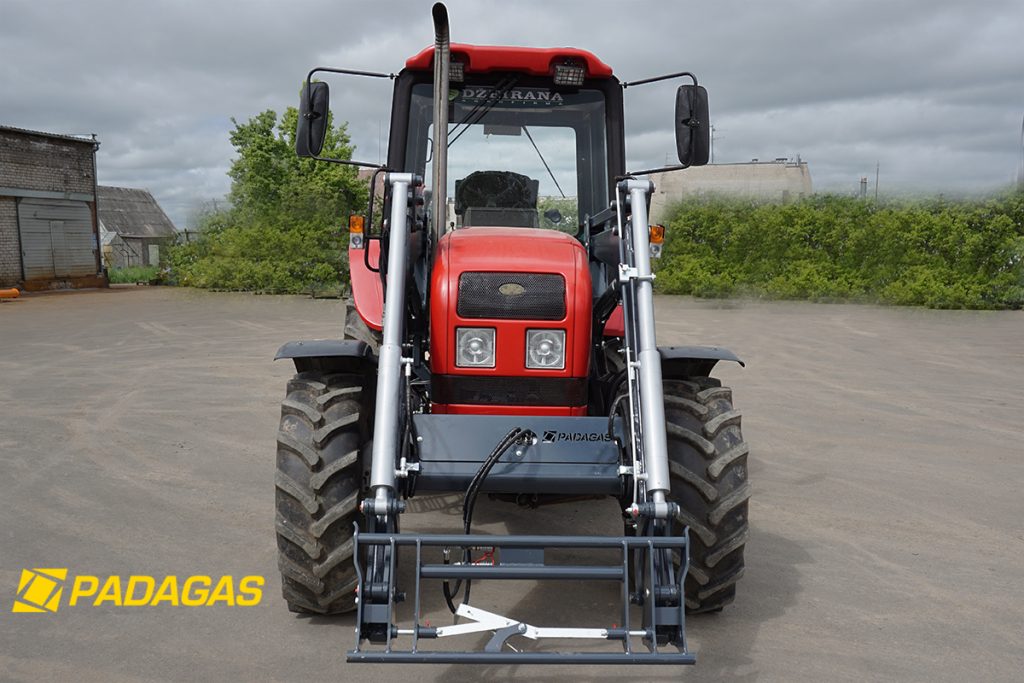

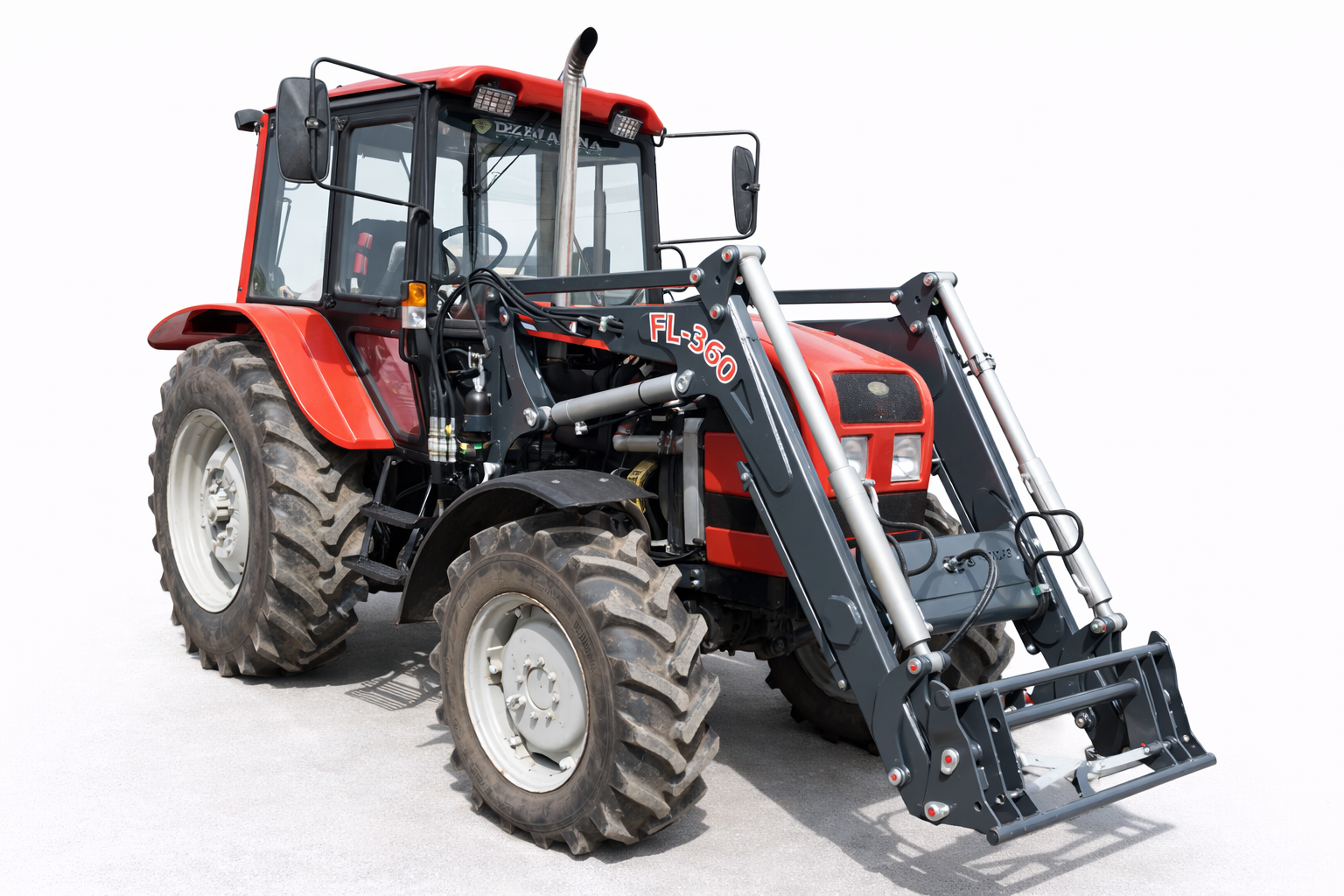

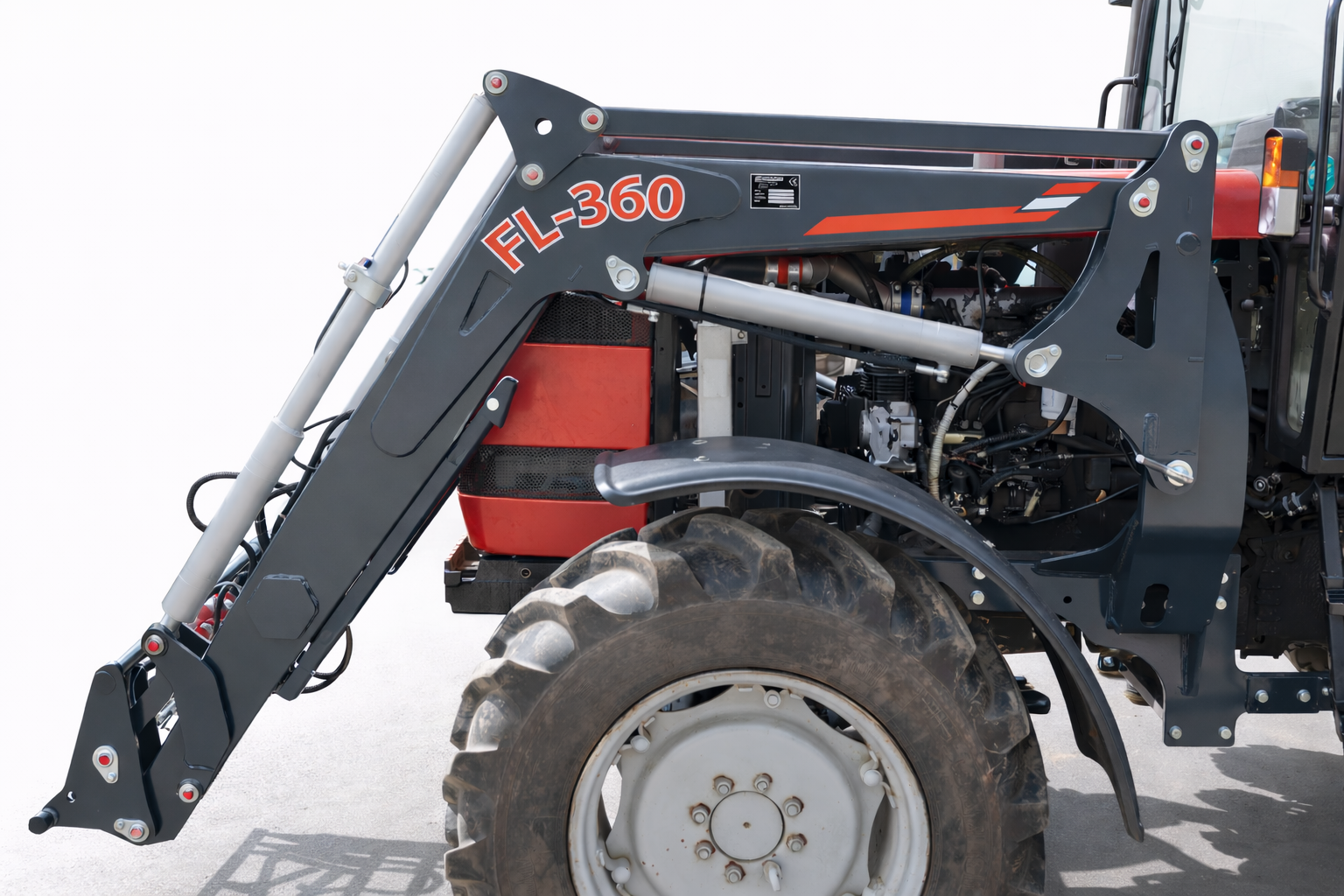

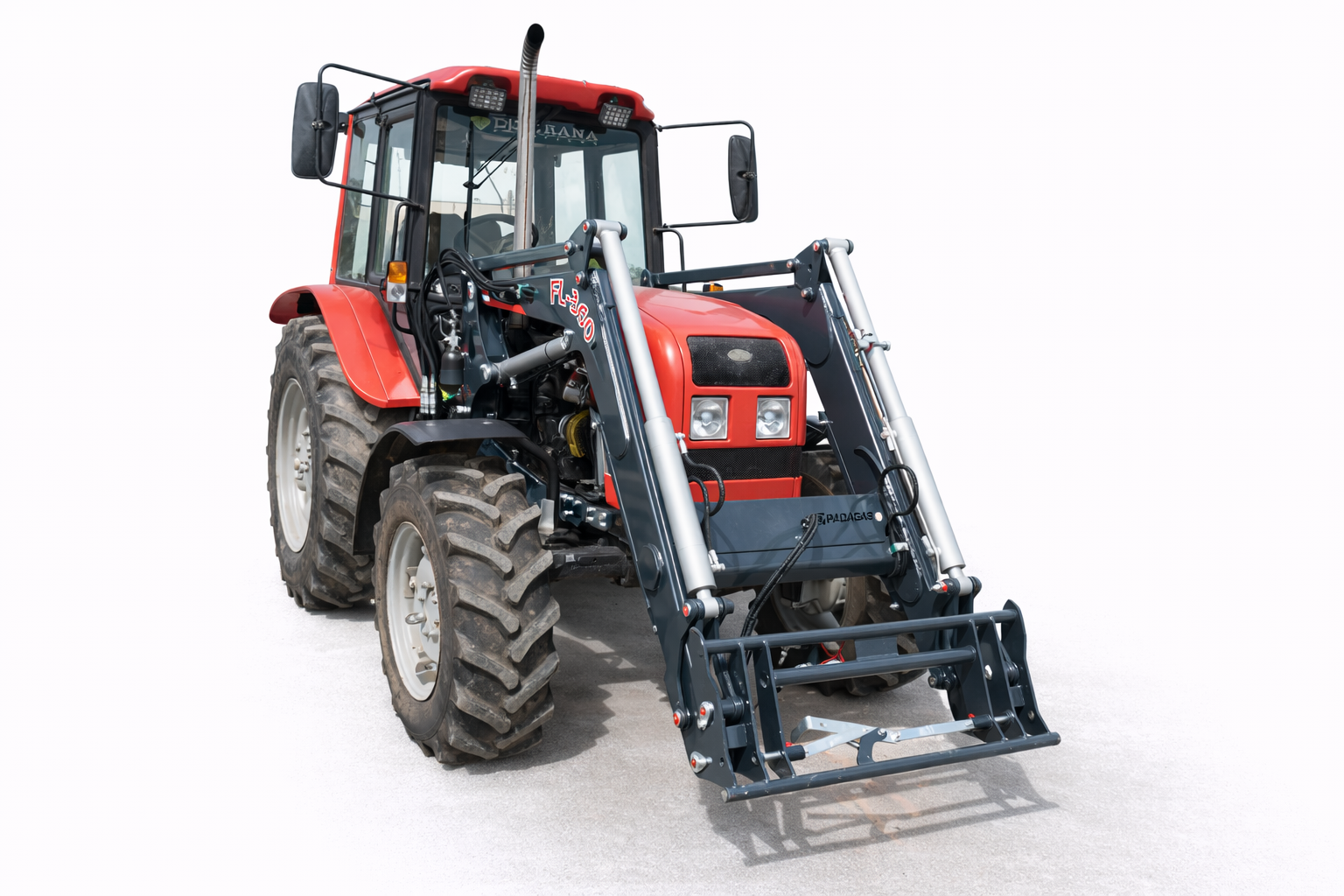

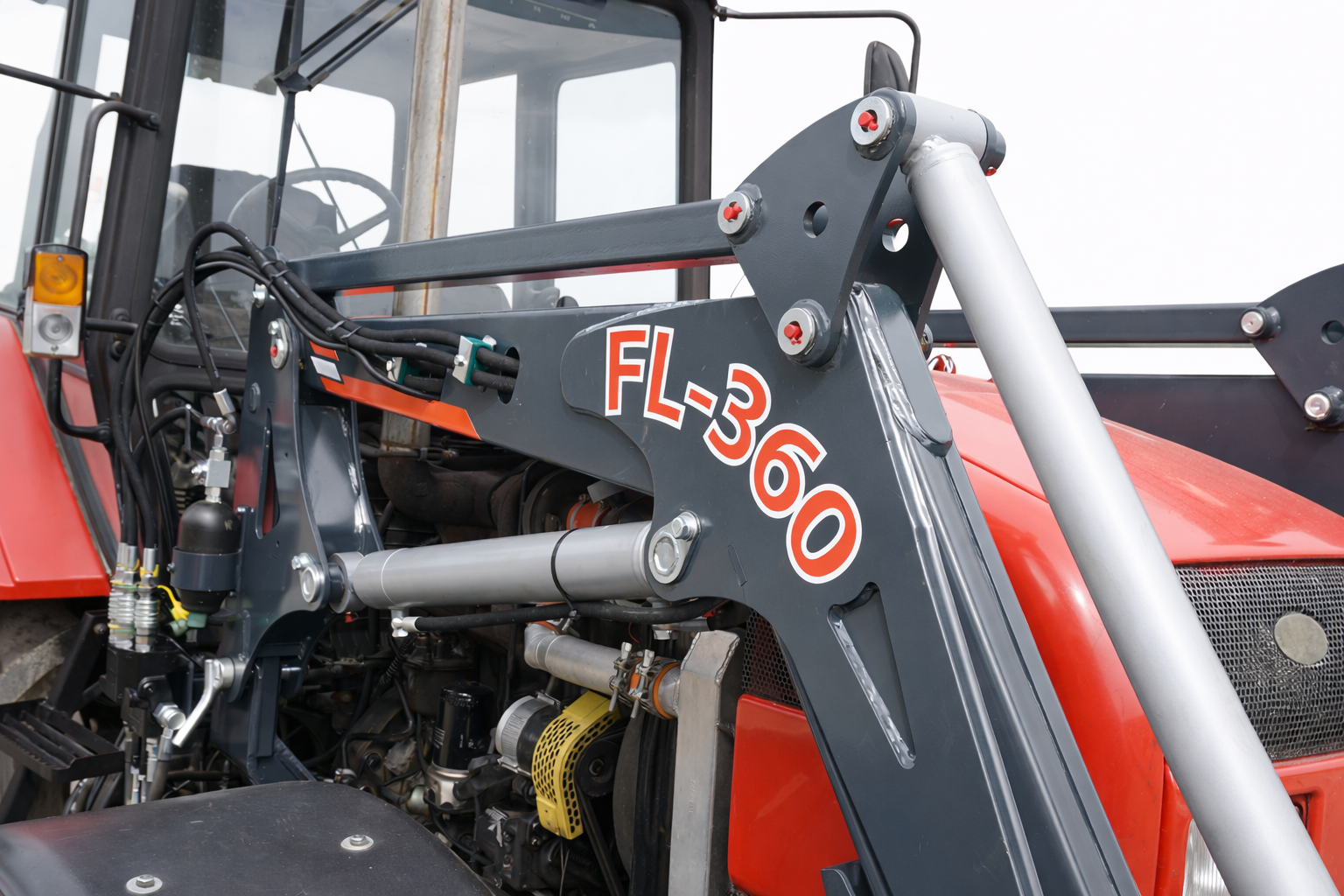

The FL-360 S2 front loader is designed for reliable lifting performance and compatibility with a wide range of MTZ tractors. Equipped with a boom, 3rd function, subframe, and hydraulic accumulator, it ensures stable and efficient operation.
With a lifting height of 3.6 meters and solid lifting performance across multiple points, this loader is suitable for various loading tasks.
Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.
Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.
Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.
- Boom

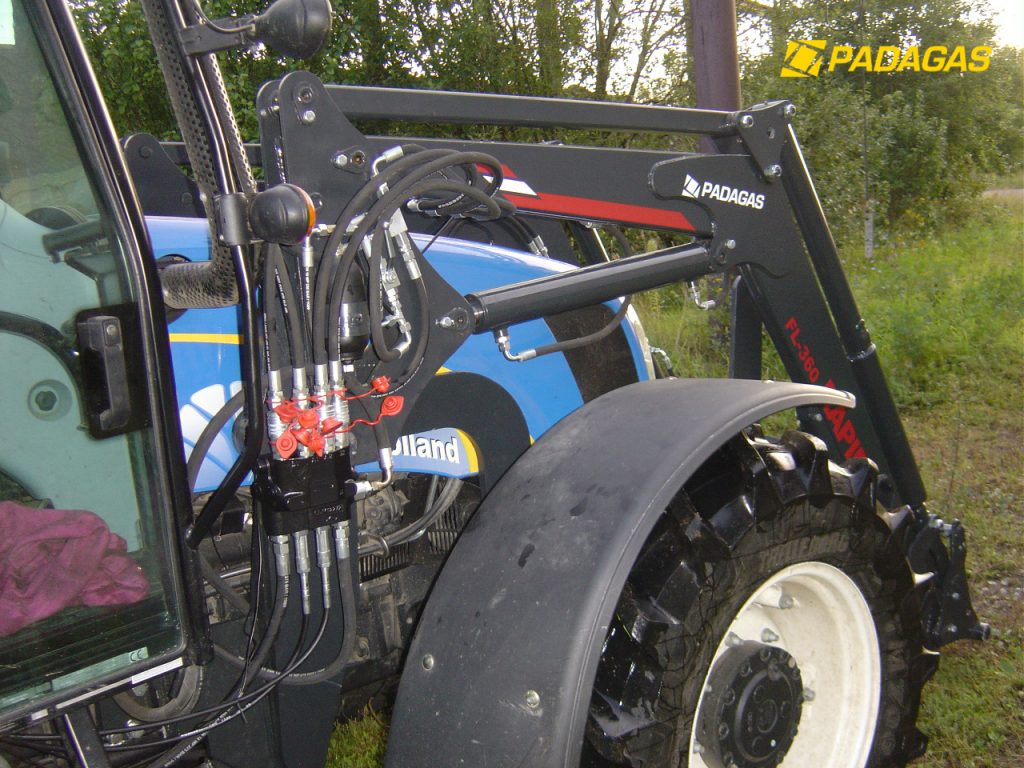

- 3rd function
- Subframe

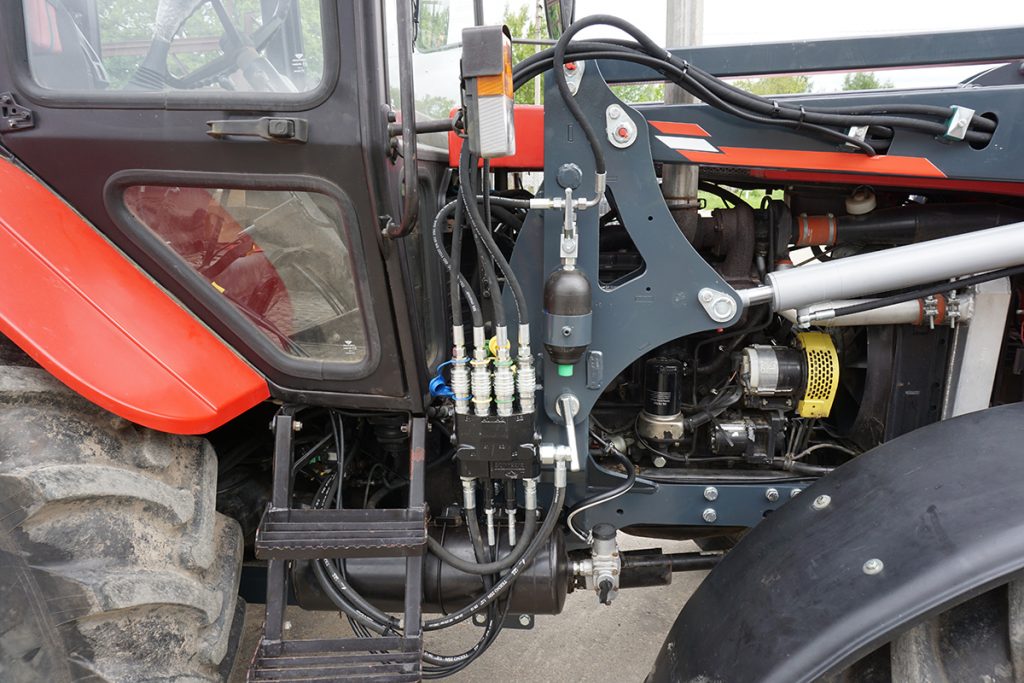

- Hydraulic accumulator
- RAL-7021 color
- Frame reinforcement strips (if required): 02.29.00.00.11
- Designed for MTZ tractors
- Compatible with models:
- MTZ 50 / 52
- MTZ 80 / 82 / 82.1 / 820 / 892 / 892.2 / 82.3
- MTZ 920 series
- MTZ 952 series
- MTZ 1025 series
Main Parameters
- Model: FL-360
- Lifting Height: 3.6 m
- Working Pressure: 180 bar
Lifting Capacity
- With bucket: 1120 kg
- Without bucket: 1325 kg

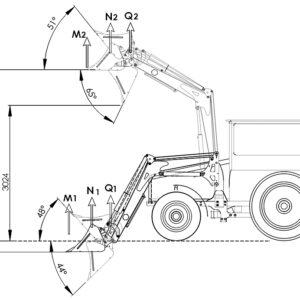

Lifting Forces (daN / kg, without bucket)
| Position | Force |
| M1 (bottom, bucket edge) | 1370 |
| M2 (top, bucket edge) | 1020 |
| N1 (bottom, bucket center) | 1750 |
| N2 (top, bucket center) | 1325 |
| Q1 (bottom, mounting point) | 2110 |
| Q2 (top, mounting point) | 1730 |

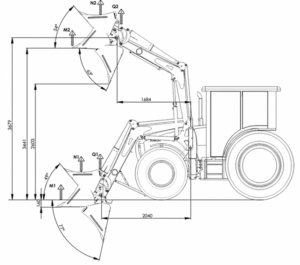

Dimensions & Angles
- Lifting height to bucket pivot: 3679 mm
- Maximum dumping height: 3441 mm
- Dumping height (tilted bucket): 2603 mm
- Forward reach (from pivot): 1684 mm
- Distance from tractor to bucket edge: 2040 mm
- Digging depth: 160 mm
Bucket Angles
- Rollback angle (bottom): 49°
- Rollback angle (top): 54°
- Dump angle: 63°
- Maximum lowering angle: 77°
Front Loader FL-360 S2
kg, weight
m, width
mm, height
Main Parameters
- Model: FL-360
- Lifting Height: 3.6 m
- Working Pressure: 180 bar
Lifting Capacity
- With bucket: 1120 kg
- Without bucket: 1325 kg
What tractors is this loader compatible with?
It is designed for a wide range of MTZ tractor models.
What is included in the standard configuration?
Boom, 3rd function, subframe, and hydraulic accumulator.
What is the lifting height?
3.6 meters.
What is the lifting capacity?
1120 kg with bucket and 1325 kg without bucket.
Is additional reinforcement required?
Yes, if the tractor does not have a frame reinforcement strip, additional strips are required.
Can the product be painted in a custom color?
Yes, we can paint the product according to your requested RAL color.
How durable is the paint finish?
The product is powder coated, providing strong protection against rust, scratches, and environmental impact.
