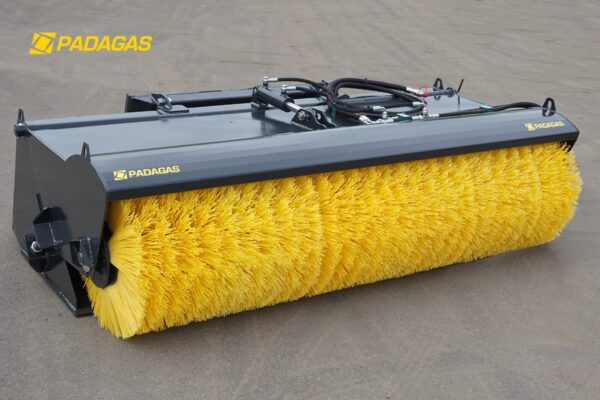

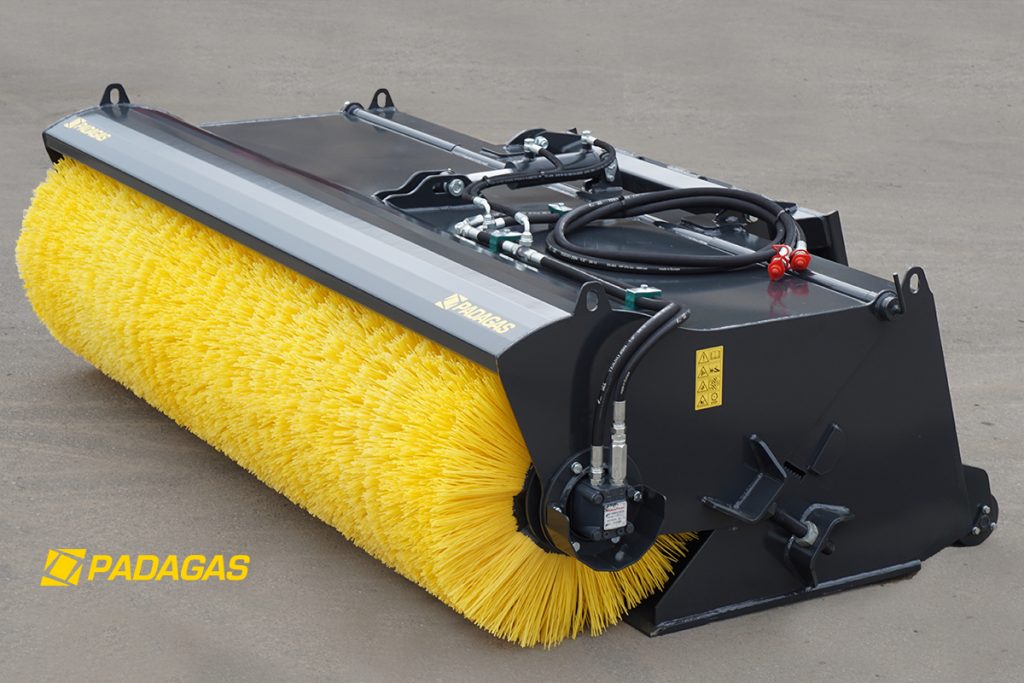

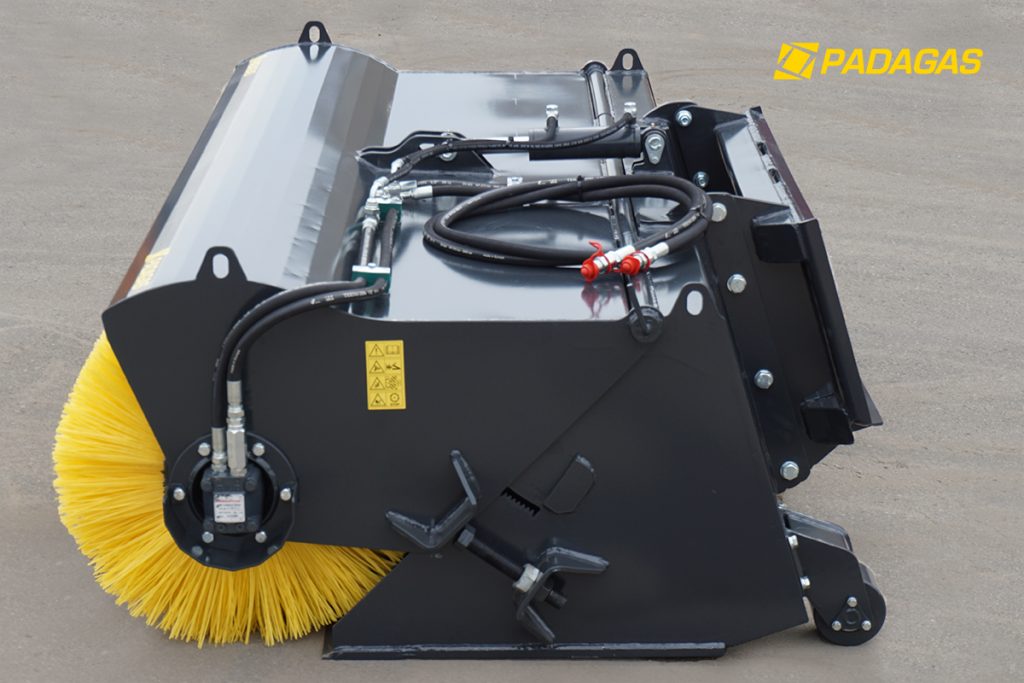

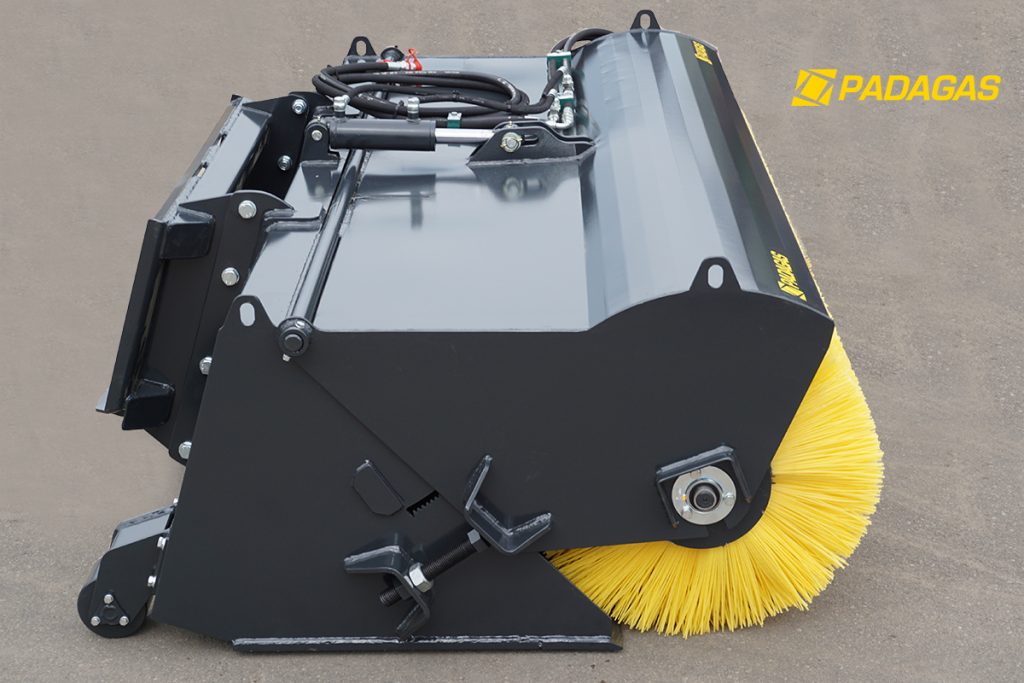

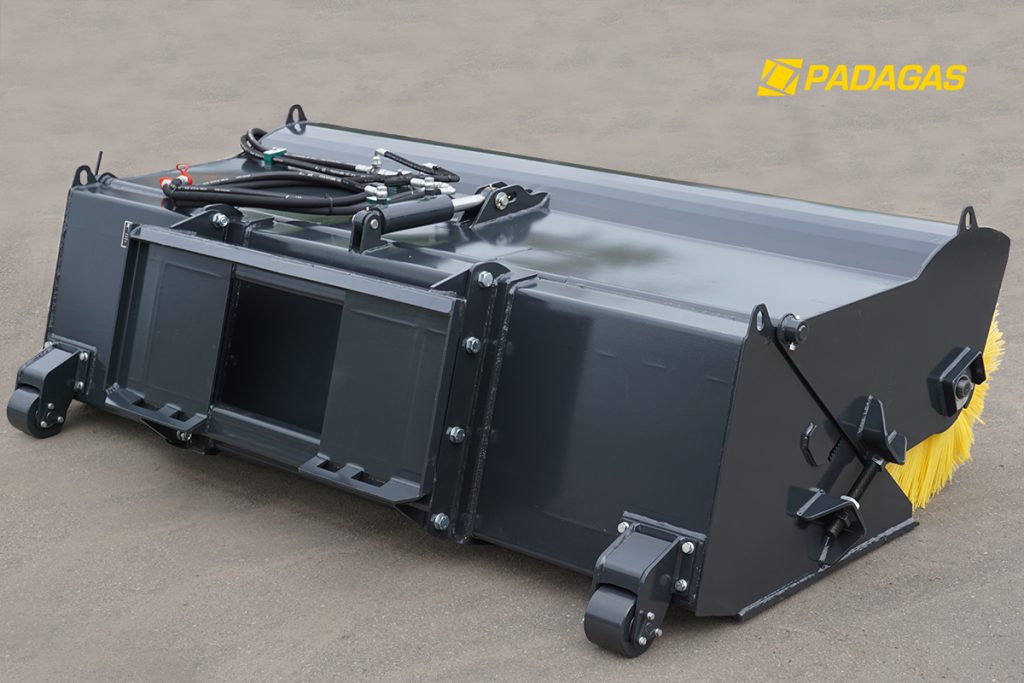

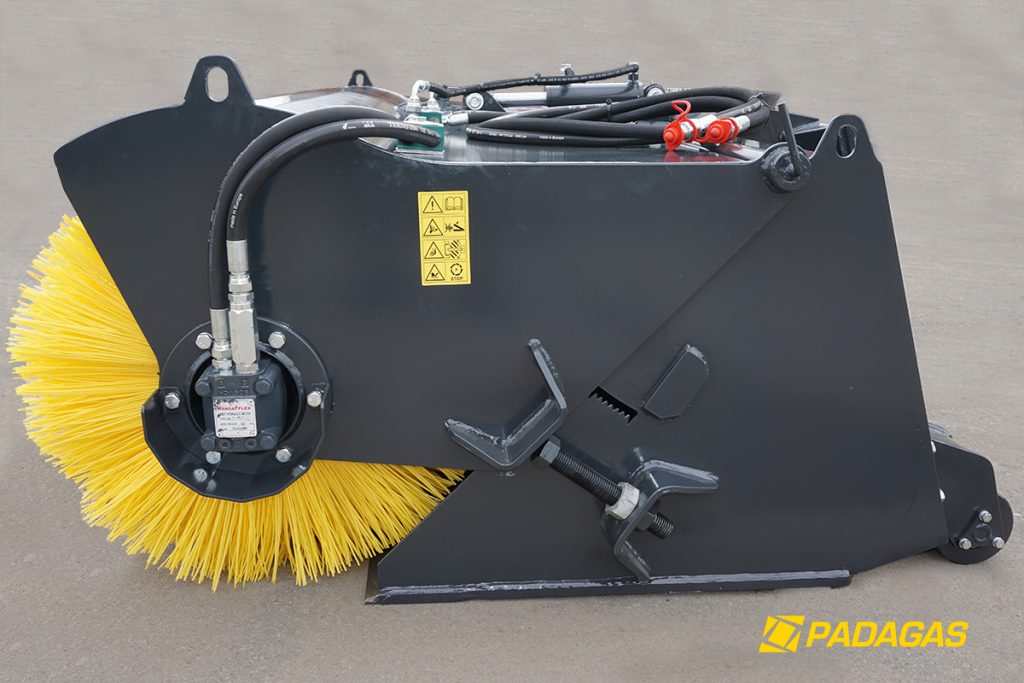

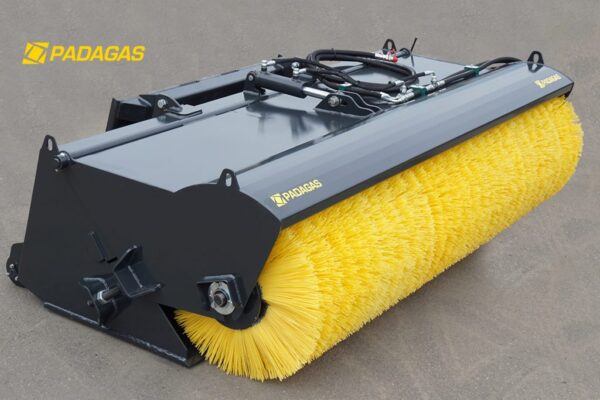

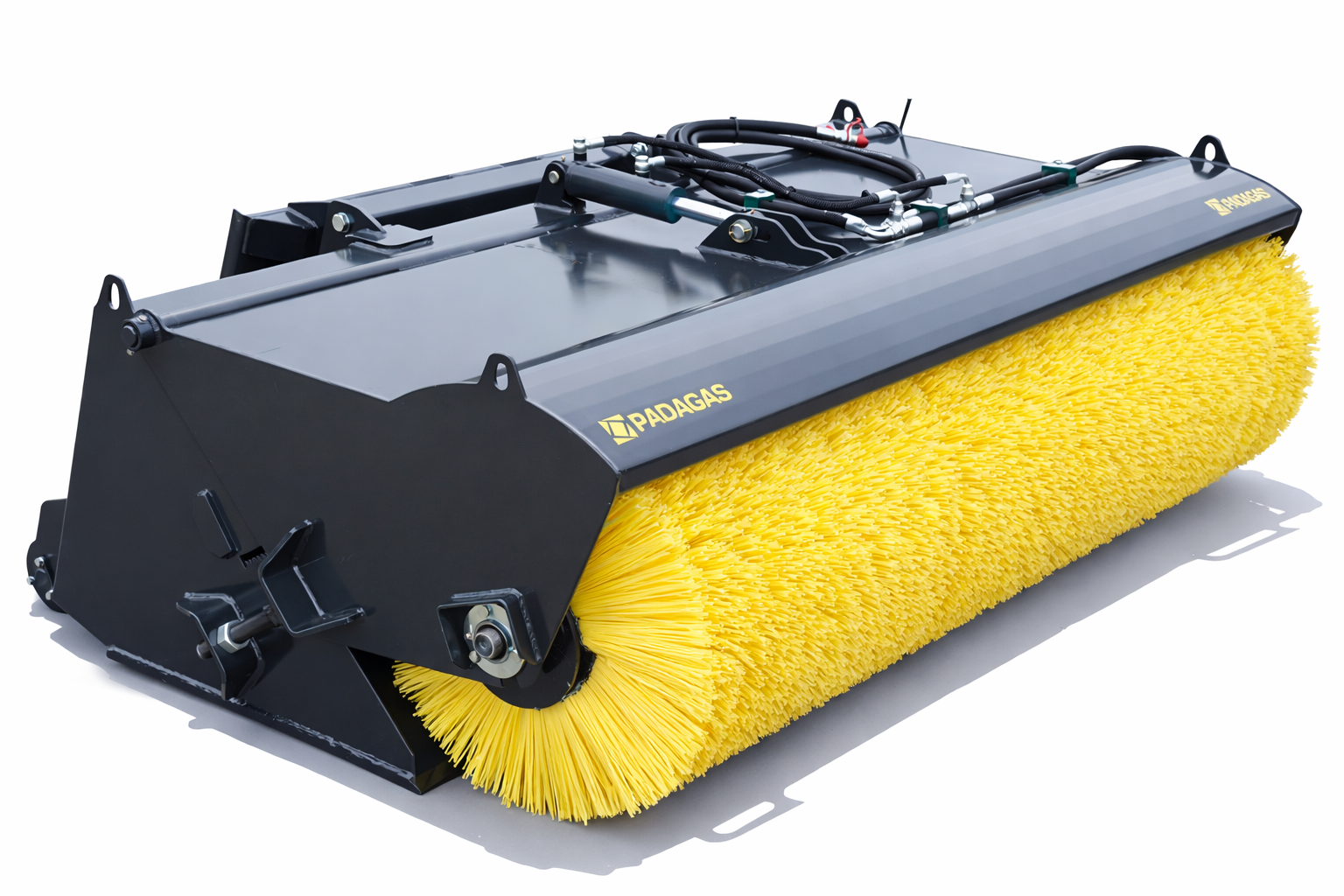

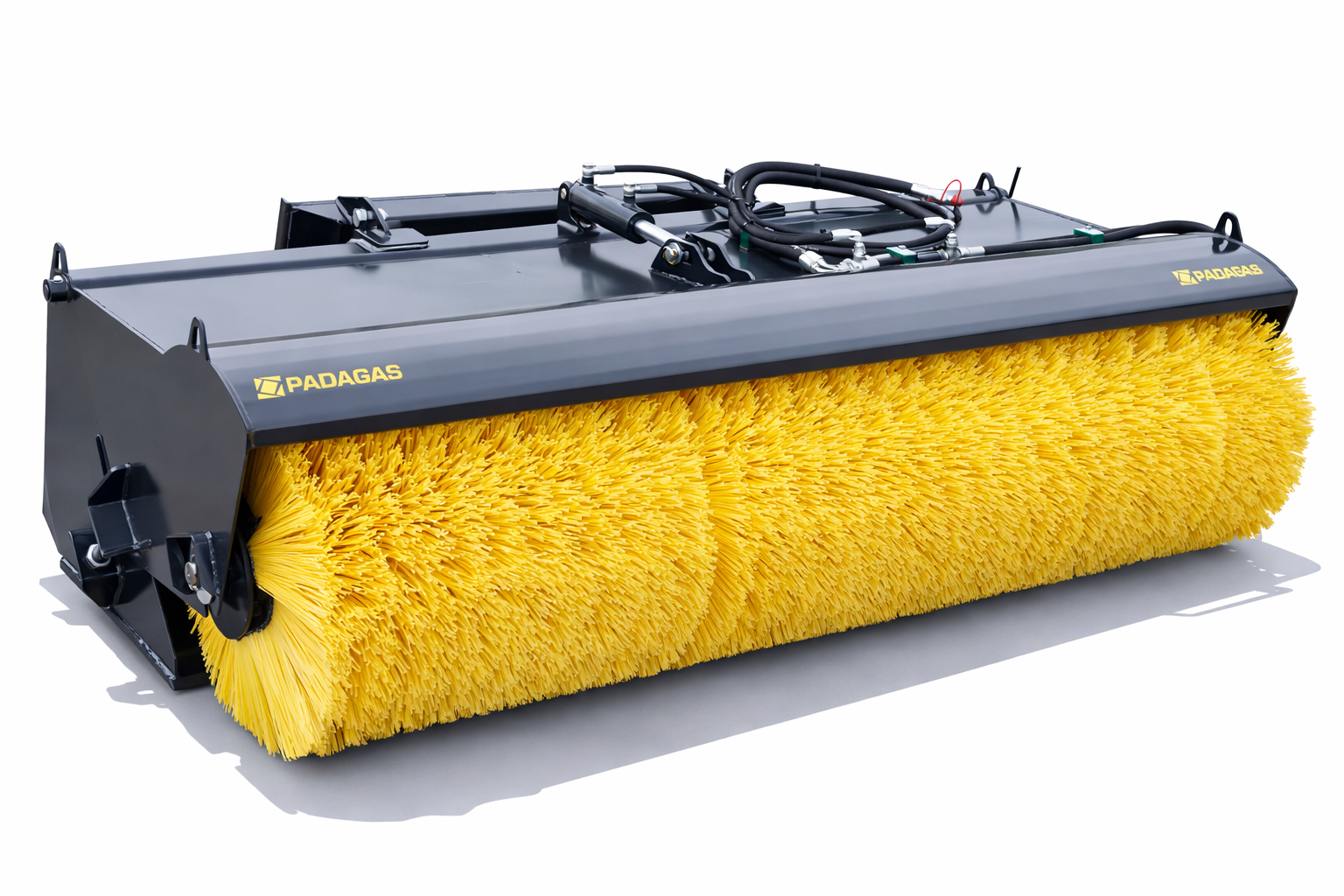

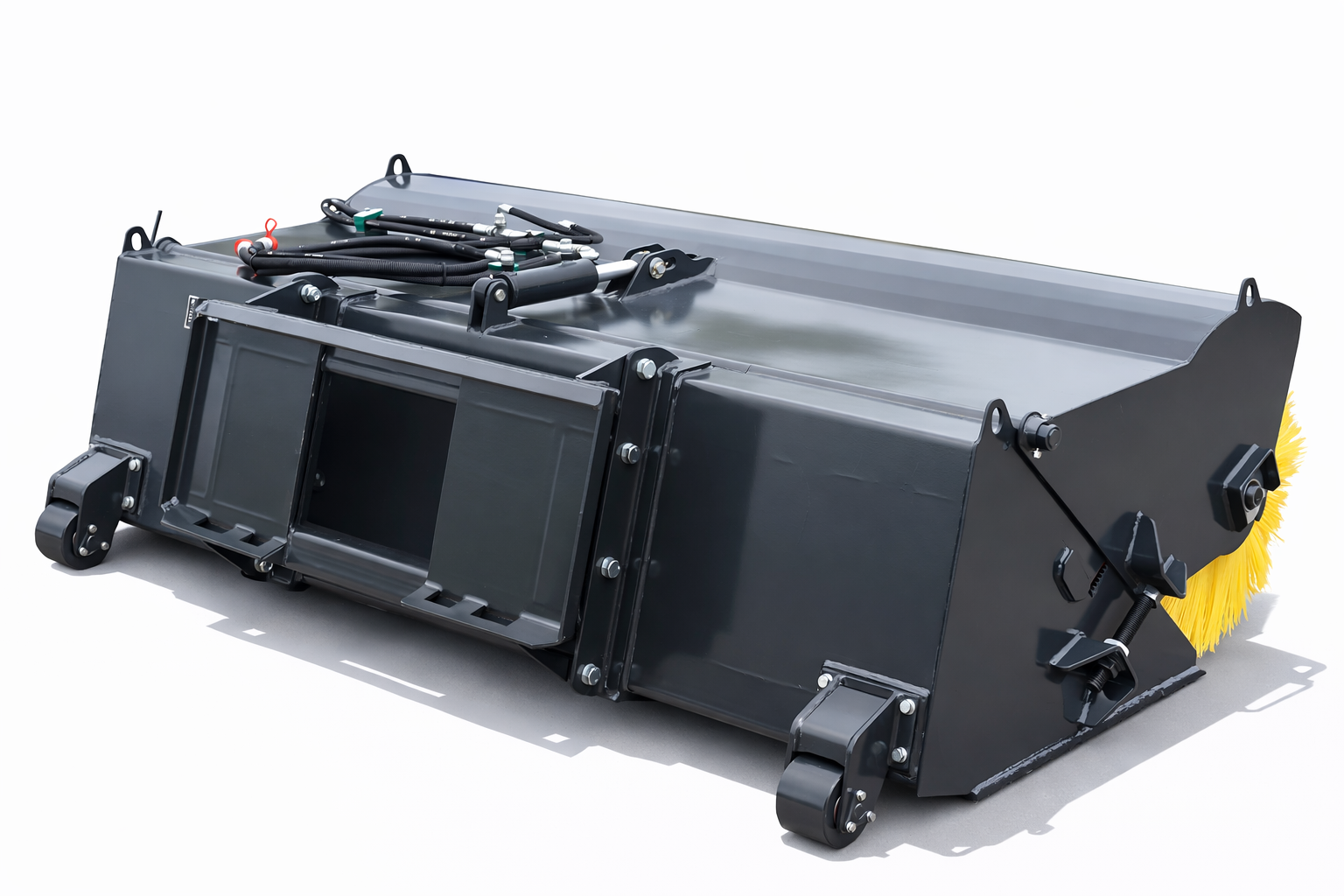

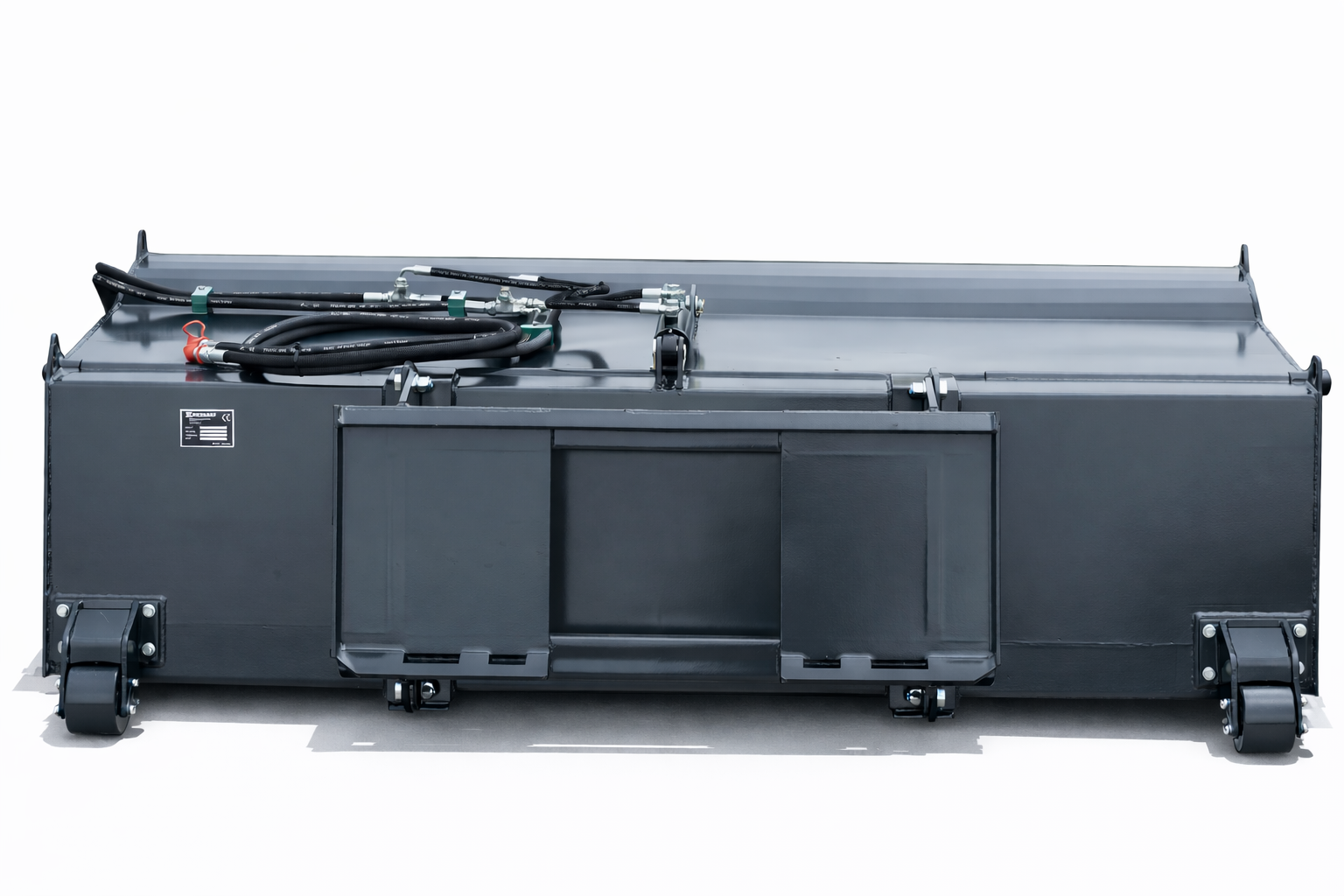

For clean and efficient surface maintenance, the BS sweeper bucket with collector is a versatile solution for everyday cleaning tasks. Designed to sweep, collect, and unload debris in one operation, it helps keep working areas clean with minimal effort.

Ideal for parking lots, sidewalks, warehouses, and industrial areas, this “collector sweeper” combines efficiency with practicality. Its large-diameter brushes ensure longer service life, while the ability to operate in both forward and reverse directions increases productivity in any environment.

Accordion title

Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.

Accordion title

Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.

Accordion title

Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.

Product Highlights

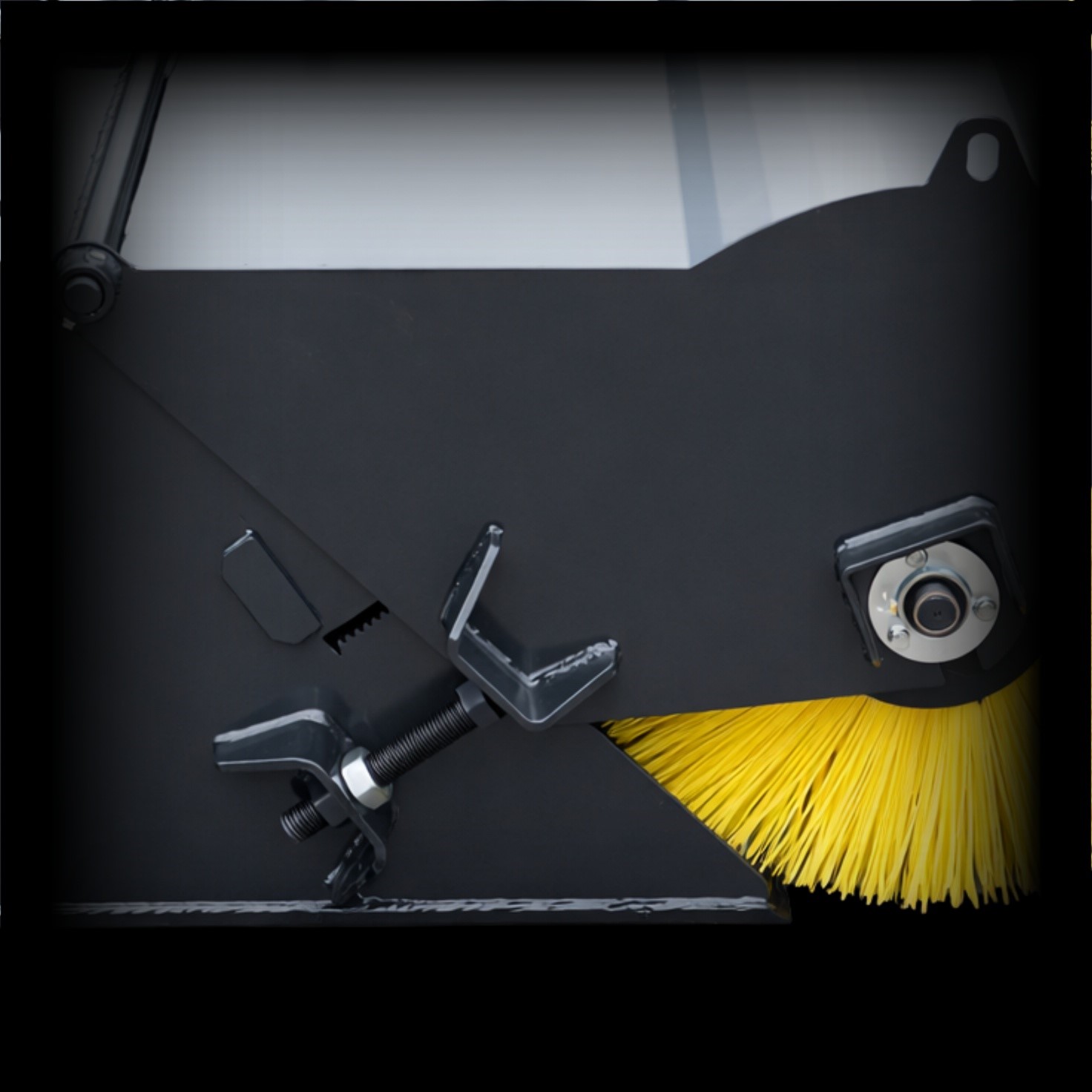

All-in-One Cleaning Solution

Sweep, collect, and unload debris with a single attachment.

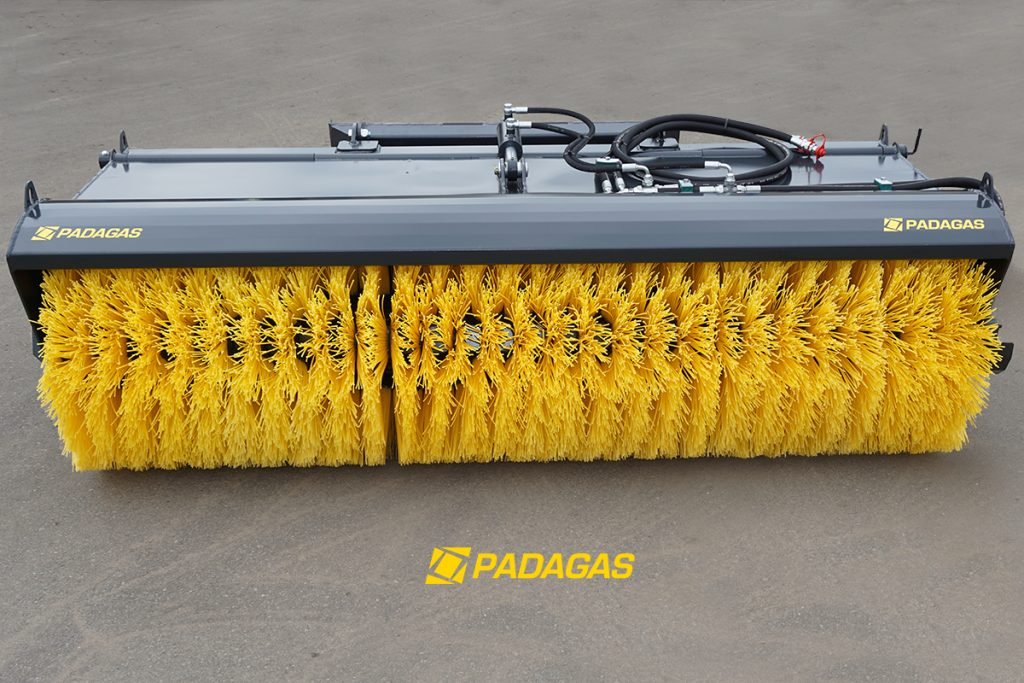

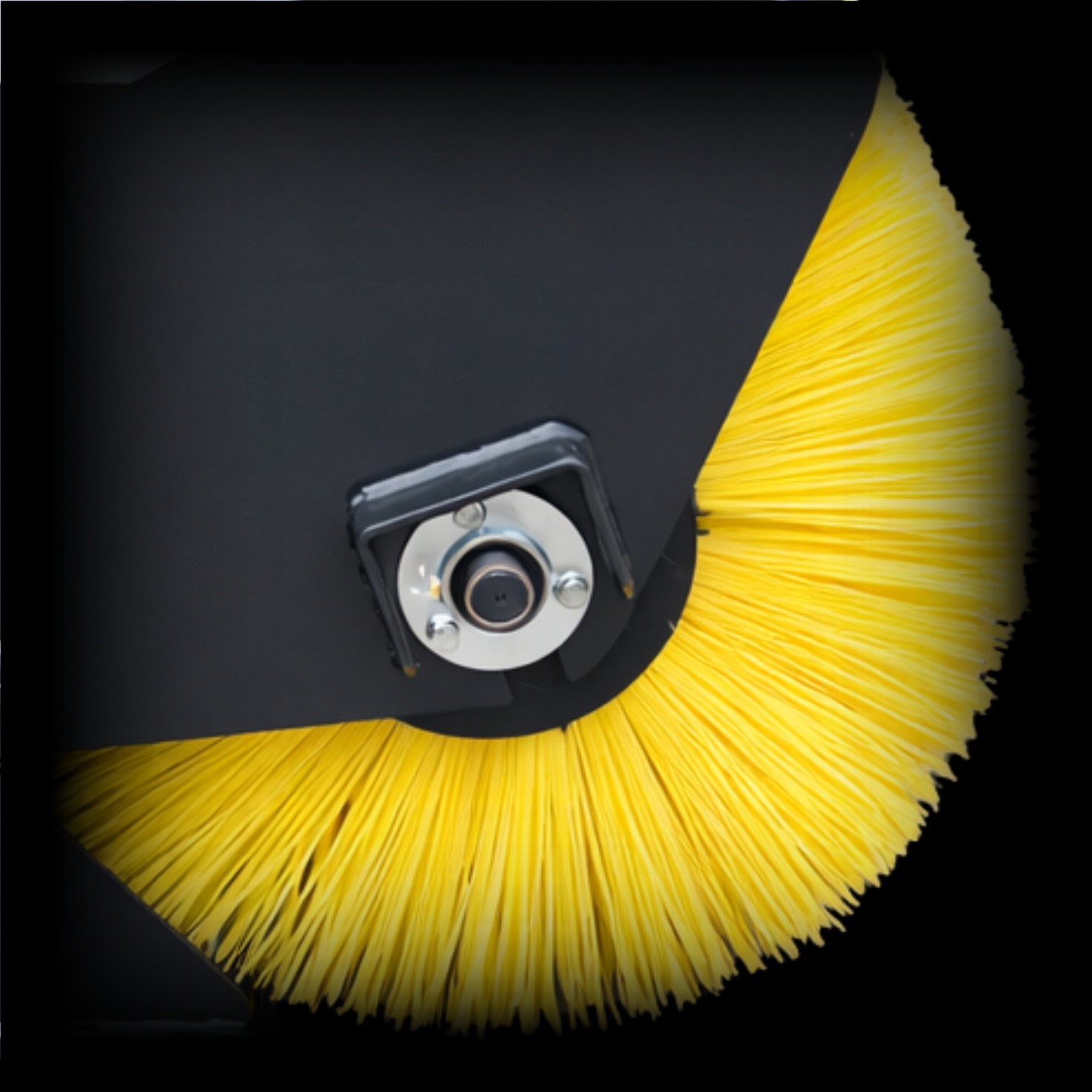

Large Brush Diameter

650 mm sweeping rings ensure longer service life and reduced maintenance.

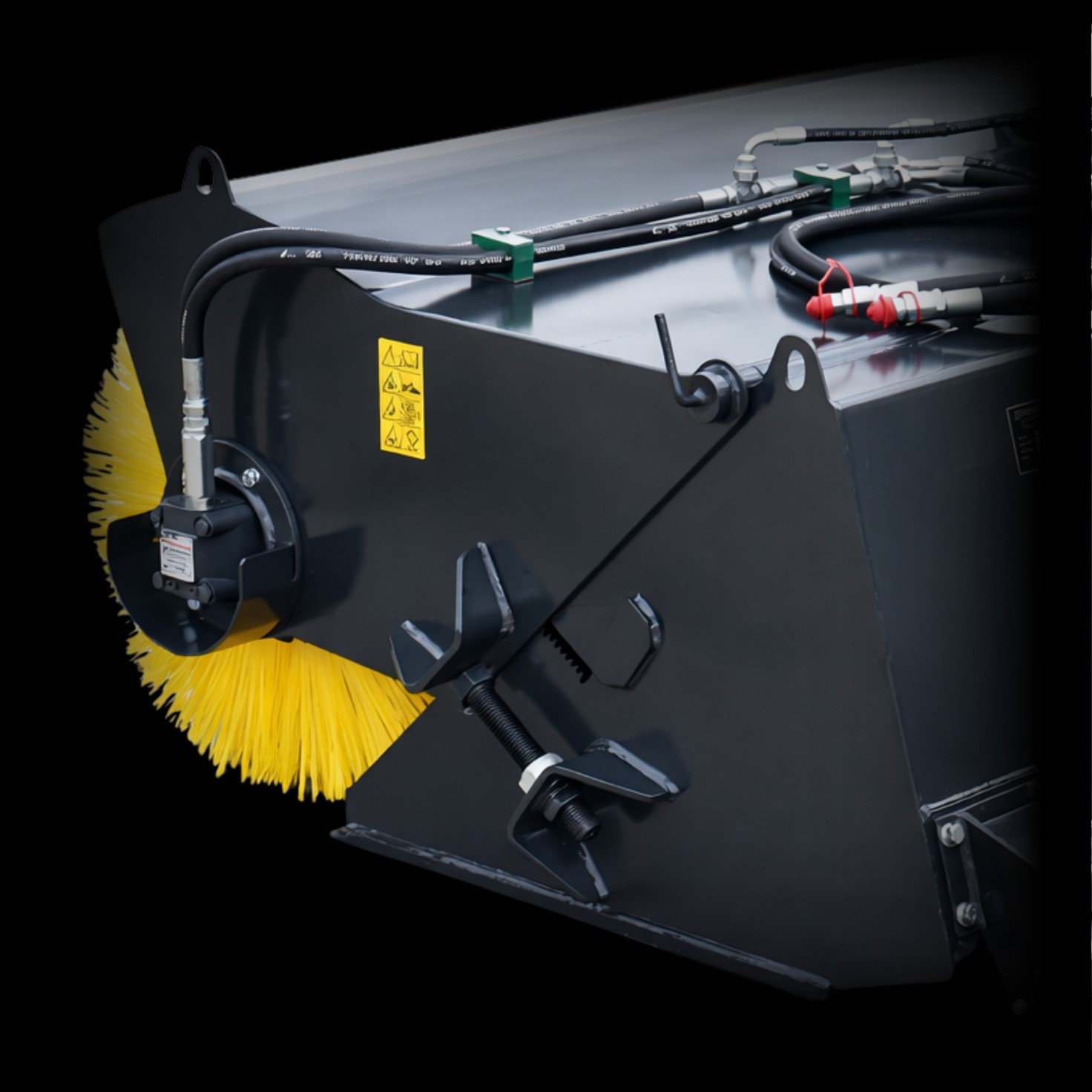

Dual Direction Sweeping

Can operate in both forward and reverse directions for maximum efficiency.

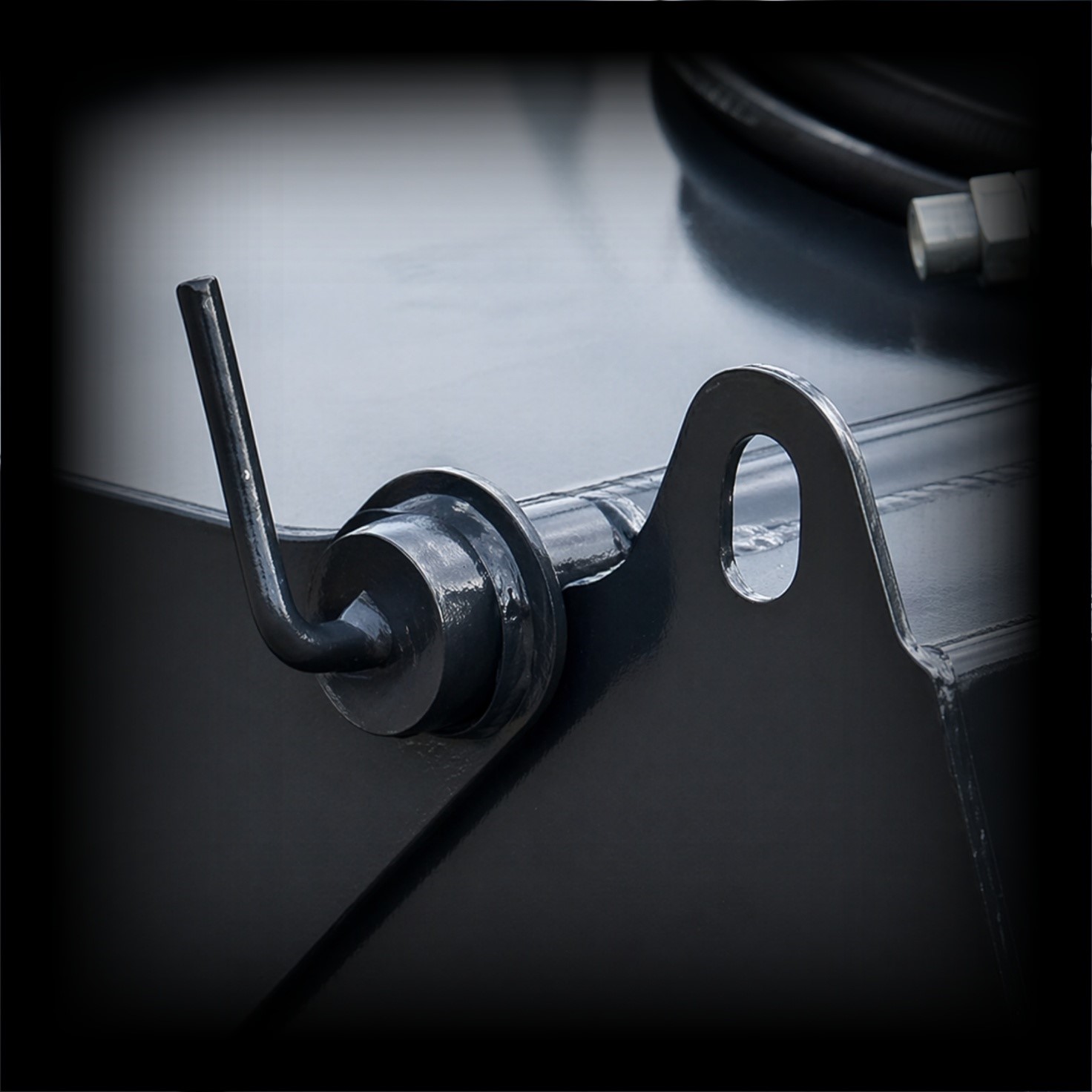

Multi-Function Use

Sweeping unit can be removed, allowing the bucket to be used for material handling or leveling.

Standard Configuration

Additional Equipment

Possible Mounting Systems

Technical Specifications

Parameter	BS-130	BS-155	BS-185	BS-210	BS-230	BS-250
Width	1523 mm	1773 mm	2073 mm	2457 mm	2657 mm	2857 mm
Working Width	1297 mm	1547 mm	1847 mm	2098 mm	2298 mm	2598 mm
Bucket Capacity (bucket only)	0.37 m³	0.44 m³	0.52 m³	0.59 m³	0.65 m³	0.71 m³
Capacity (sweeping mode)	0.26 m³	0.31 m³	0.37 m³	0.41 m³	0.46 m³	0.50 m³
Weight	372 kg	445 kg	493 kg	534 kg	565 kg	596 kg
Brush Diameter	650 mm	650 mm	650 mm	650 mm	650 mm	650 mm

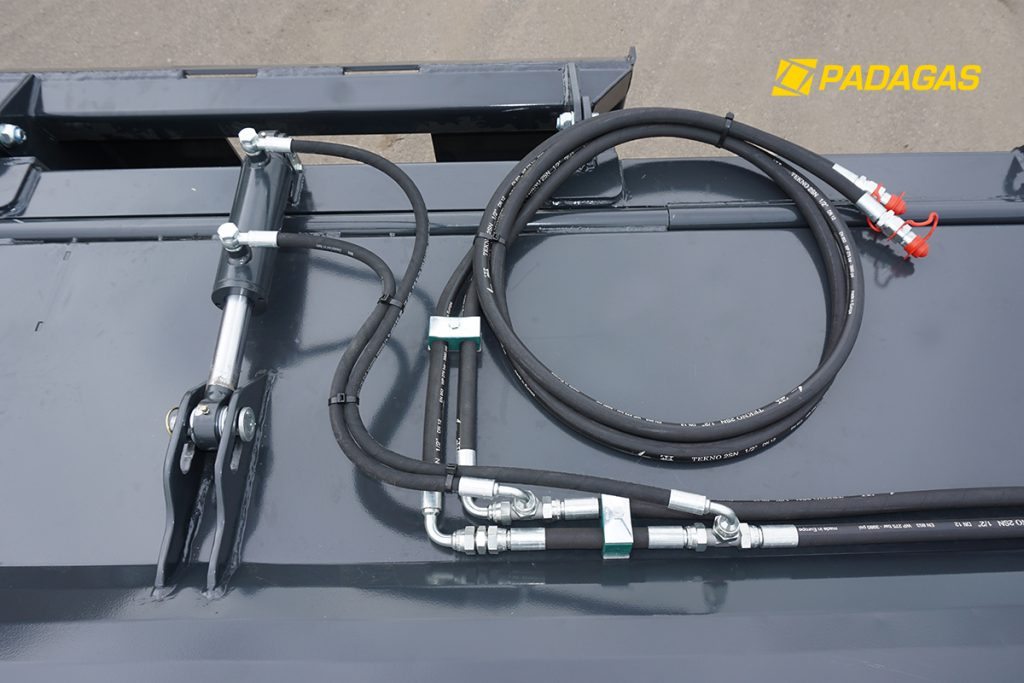

Hydraulic Motors	1	1	1	1	1	1
Pressure (min/recommended/max)	125 / 150 / 175 bar	125 / 150 / 175 bar	125 / 150 / 175 bar	125 / 150 / 175 bar	125 / 150 / 175 bar	125 / 150 / 175 bar
Oil Flow (min/recommended/max)	40 / 50 / 75 L/min	40 / 50 / 75 L/min	40 / 50 / 75 L/min	40 / 50 / 75 L/min	40 / 50 / 75 L/min	40 / 50 / 75 L/min
