The FL-400 front loader is designed for powerful lifting performance and reliable daily operation. Equipped with a boom, 3rd function, subframe, and hydraulic accumulator, it provides stable handling and efficient workflow for demanding loading tasks.
With a lifting height of 4 meters and strong lifting capacity, the FL-400 is suitable for agricultural, material handling, and general loading applications.
Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.
Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.
Ac non ac hac ullamcorper rhoncus velit maecenas convallis torquent elit accumsan eu est pulvinar pretium congue a vestibulum suspendisse scelerisque condimentum parturient quam.Aliquet faucibus condimentum amet nam a nascetur suspendisse habitant a mollis senectus suscipit a vestibulum primis molestie parturient aptent nisi aenean.A scelerisque quam consectetur condimentum risus lobortis cum dignissim mi fusce primis rhoncus a rhoncus bibendum parturient condimentum odio a justo a et mollis pulvinar venenatis metus sodales elementum.Parturient ullamcorper natoque mi sagittis a nibh nisi a suspendisse a.
Complete Loader Configuration
High Lifting Capacity
Hydraulic System
Extended Reach
- Boom
- 3rd function
- Subframe
- Hydraulic accumulator
- RAL-7021 color
- Optional mounting adaptations upon request
- Adapted for tractor mounting systems
Main Parameters
- Model: FL-400
- Lifting Height: 4.0 m
- Working Pressure: 180 bar
- Load Capacity: 2100 kg
Lifting Capacity
- With bucket: 1470 kg
- Without bucket: 1670 kg

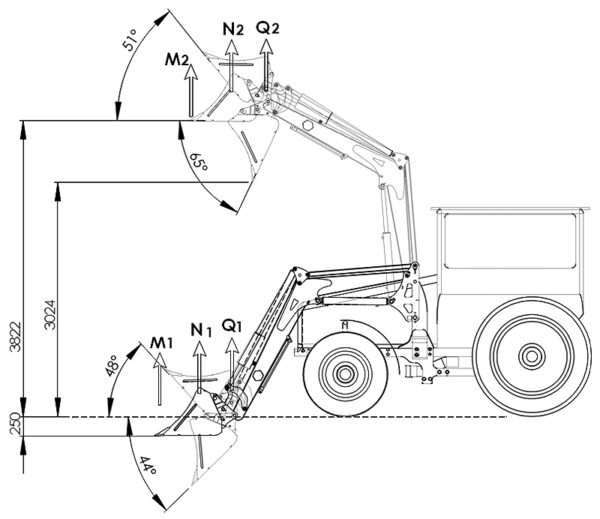

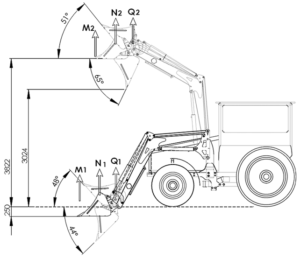

Lifting Forces (daN / kg)
| Position | Force |
| M1 | 1670 |
| M2 | 1330 |
| N1 | 2020 |
| N2 | 1670 |
| Q1 | 2440 |
| Q2 | 2100 |
Dimensions

| Parameter | Value |
| Maximum Height | 3822 mm |
| Dumping Height (tilted bucket) | 3024 mm |
| Digging Depth | 250 mm |
Bucket Angles
| Parameter | Value |
| Rollback Angle (bottom) | 48° |
| Rollback Angle (top) | 51° |
| Dump Angle (top) | 65° |
| Dump Angle (bottom/middle) | 44° |
Front Loader FL-400
kg, weight
m, width
mm, height
Main Parameters
- Model: FL-400
- Lifting Height: 4.0 m
- Working Pressure: 180 bar
- Load Capacity: 2100 kg
Lifting Capacity
- With bucket: 1470 kg
- Without bucket: 1670 kg
What is included in the standard configuration?
Boom, 3rd function, subframe, and hydraulic accumulator.
What is the lifting height?
The FL-400 offers a lifting height of 4 meters.
What is the lifting capacity?
Maximum load capacity is 2100 kg.
What working pressure is required?
The hydraulic system operates at 180 bar.
What applications is this loader suitable for?
It is suitable for agricultural work, material handling, and general loading operations.
Can the product be painted in a custom color?
Yes, we can paint the product according to your requested RAL color.
How durable is the paint finish?
The product is powder coated, providing strong protection against rust, scratches, and environmental impact.
