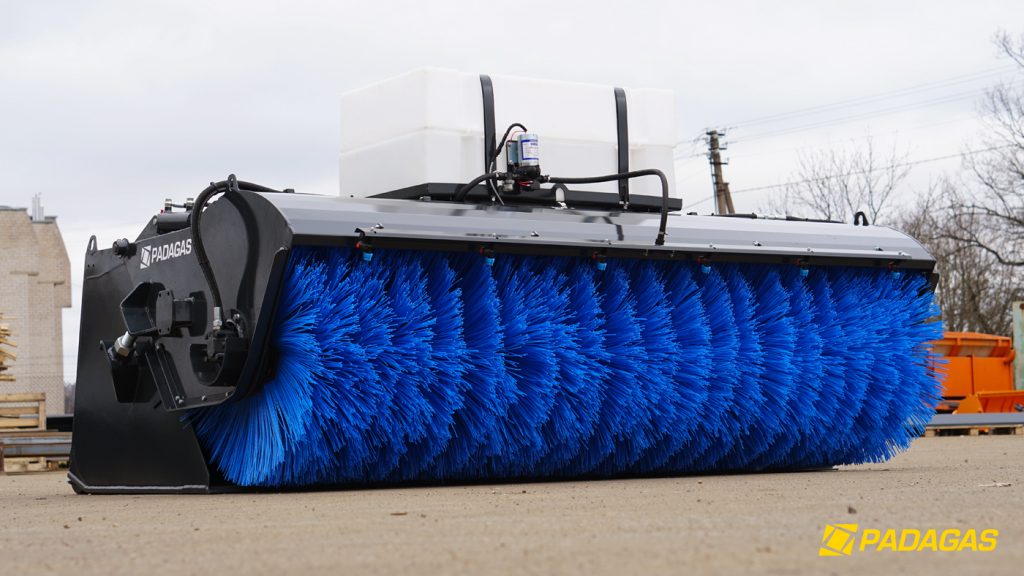

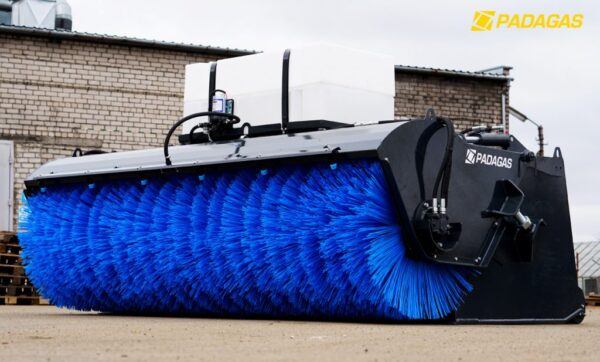

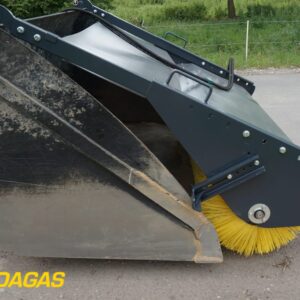

Sweeping machine BSH
Sweeping machines BS can sweep, collect and pick up dirt and trash. This machine is designed for big loaders, telehandlers and frontloaders. Big road sweeper with bug bunker provides effective work in any conditions. The sweeping machine’s ring is 915 mm and it is the biggest in the market.
Product inquiry
Or
Features
- Sweeping rings

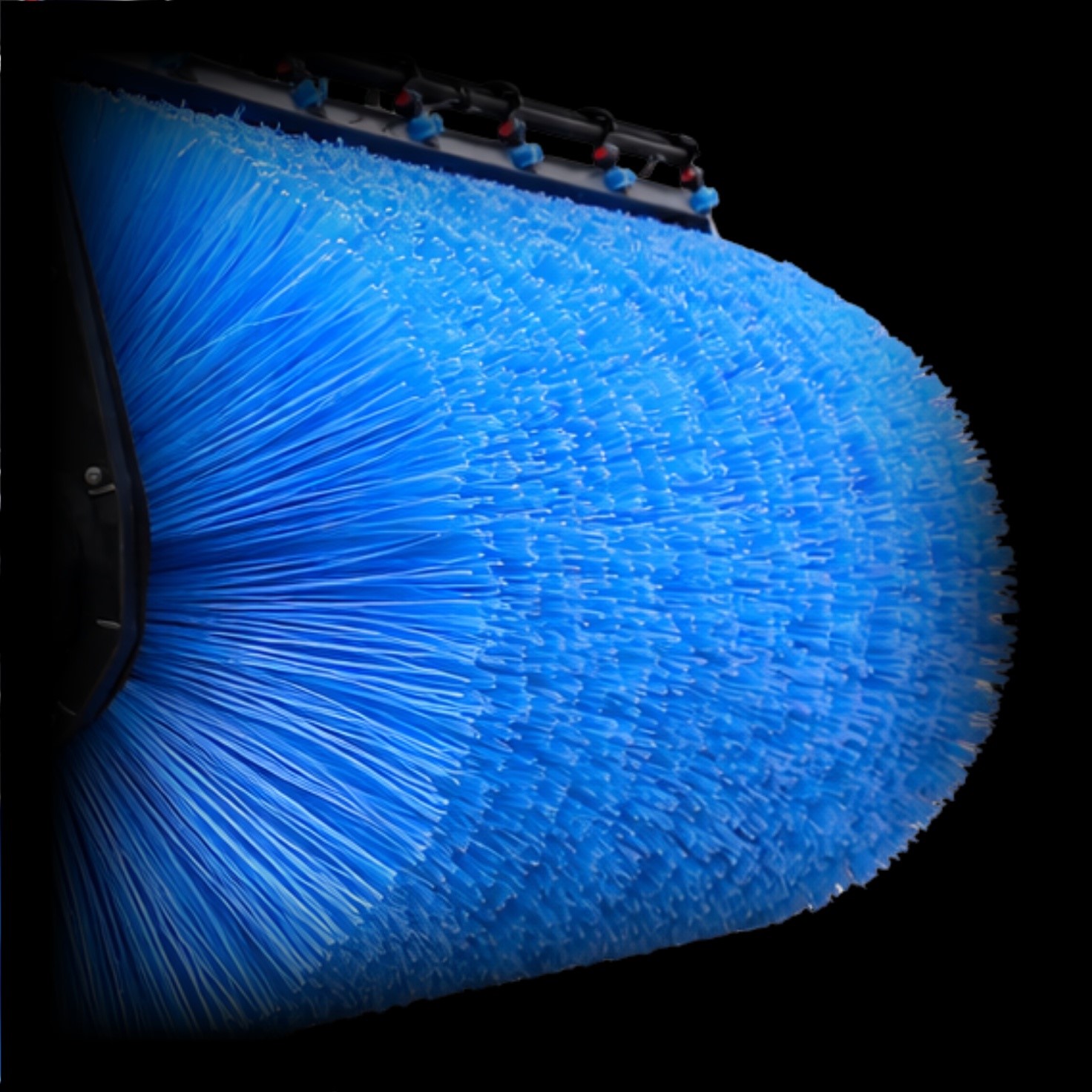

- Bunker in the sweeping machine BS H is used by 915 mm diameter brush.
Sweeping Directions
- BS H has the ability to sweep directly and in reverse order.
| TECHNICAL DATA | BS H-230 | BS H-250 | BS H-280 | BS H-300 |
| Width, mm | 2657 | 2857 | 3157 | 3357 |
| Working width, mm | 2303 | 2503 | 2803 | 3003 |
| Bucket capacity, using bucket only, m3 | 1,32 | 1,44 | 1,61 | 1,72 |
| Bucket capacity, while sweeping, m3 | 0,93 | 1,01 | 1,13 | 1,21 |
| Weight, kg | 888 | 930 | 995 | 1037 |
| Brush ring diameter, mm | 915 | |||
| hydraulic motor | 2 | |||
| Oil pressure min/recomended/max, bar | 125/150/175 | |||
| Oil flow min/recomended/max, l/min | 80/100/150 | |||
Suspension systems:

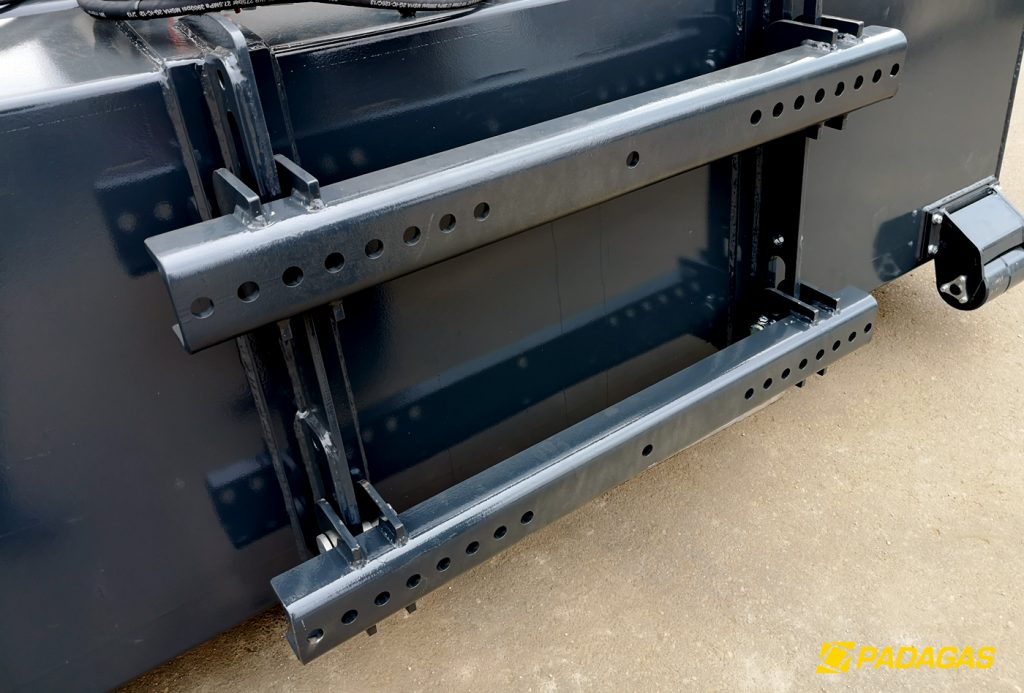

- BSH professional sweeper is produced with a universal connection for any type of brackets.

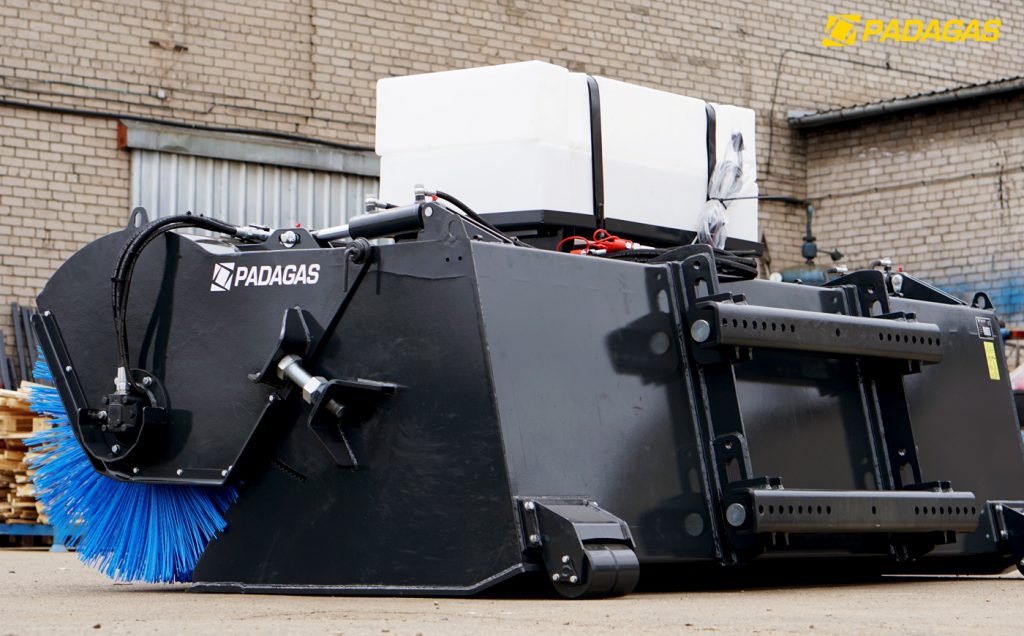

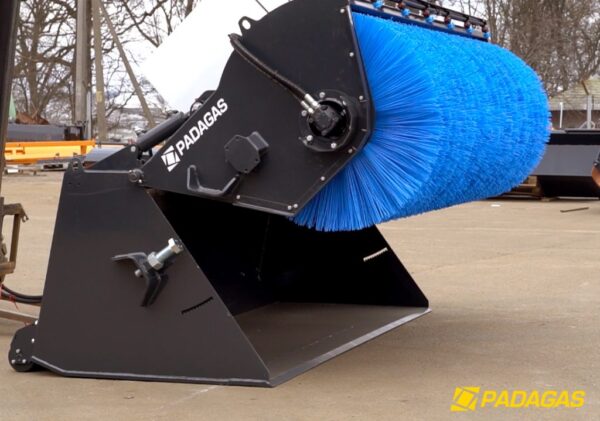

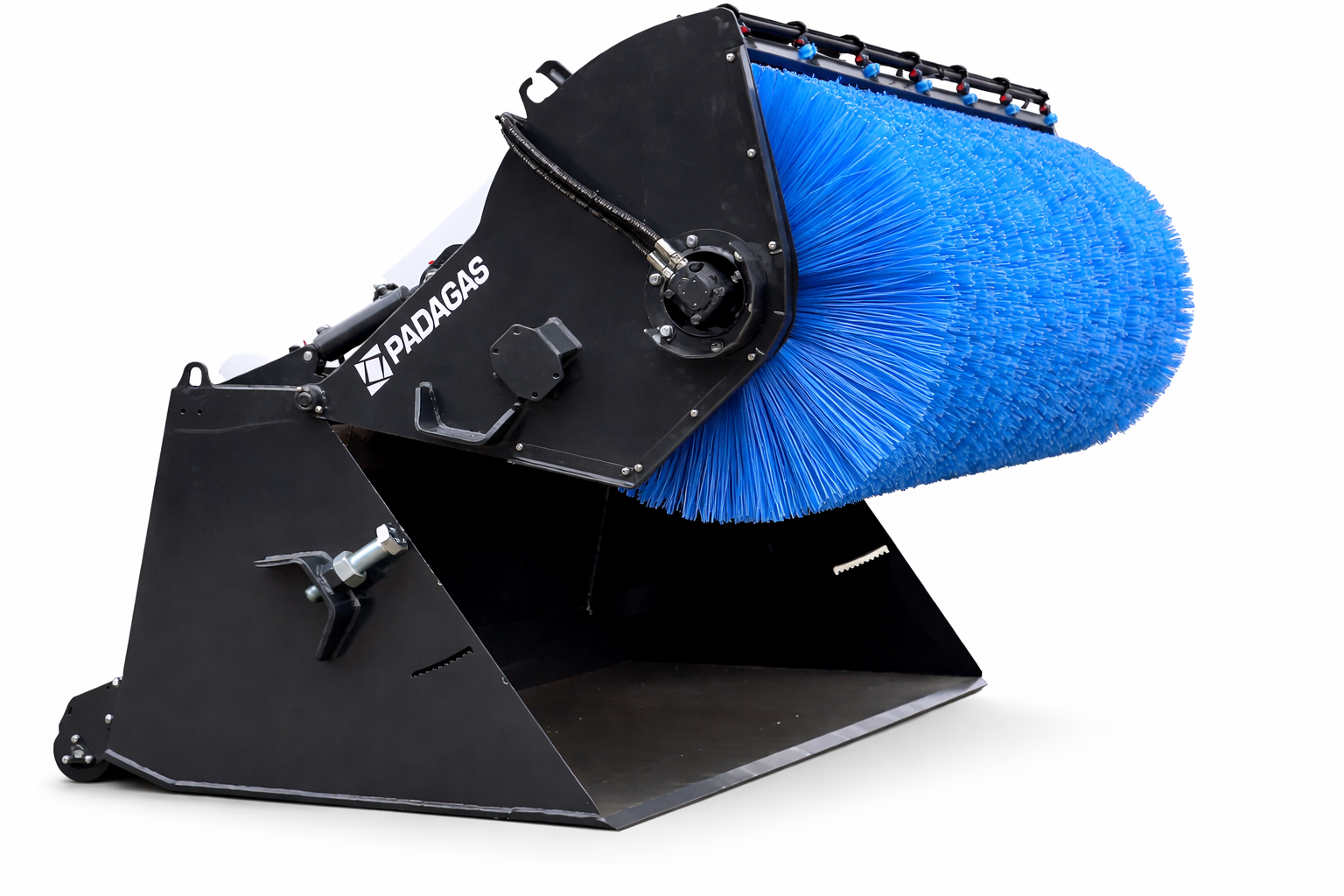

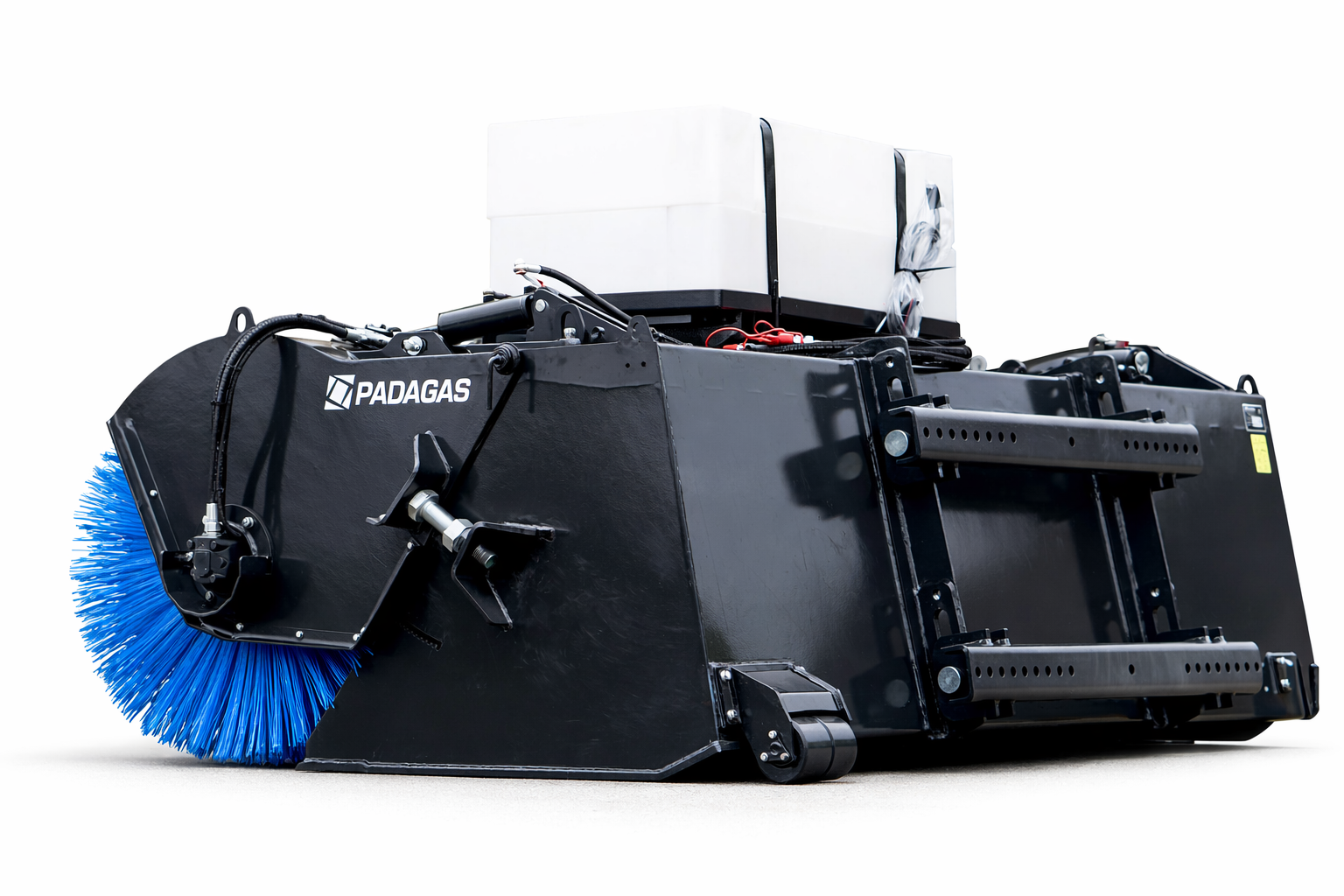

Sweeping machines BSH with collection bunker for big loaders

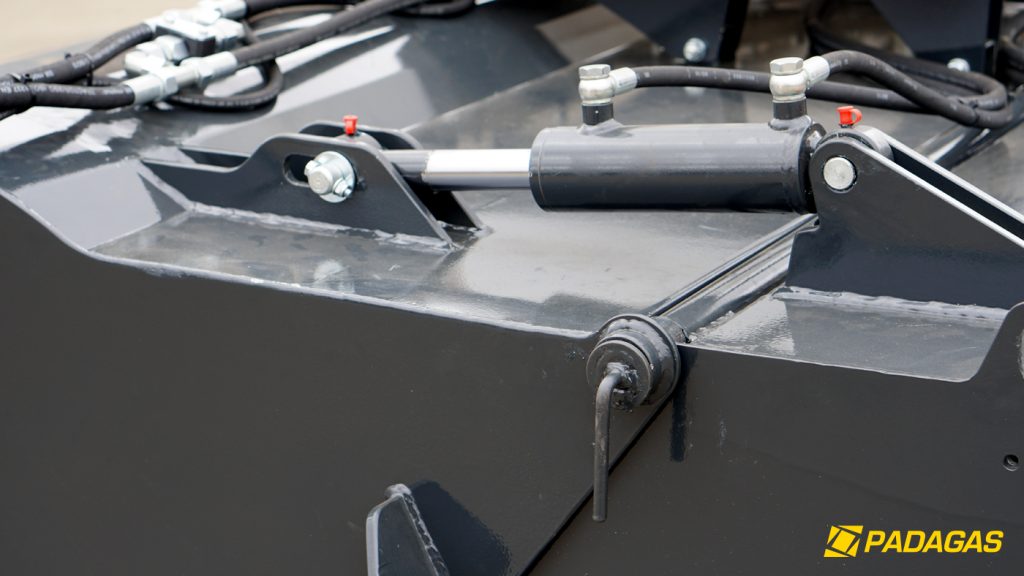

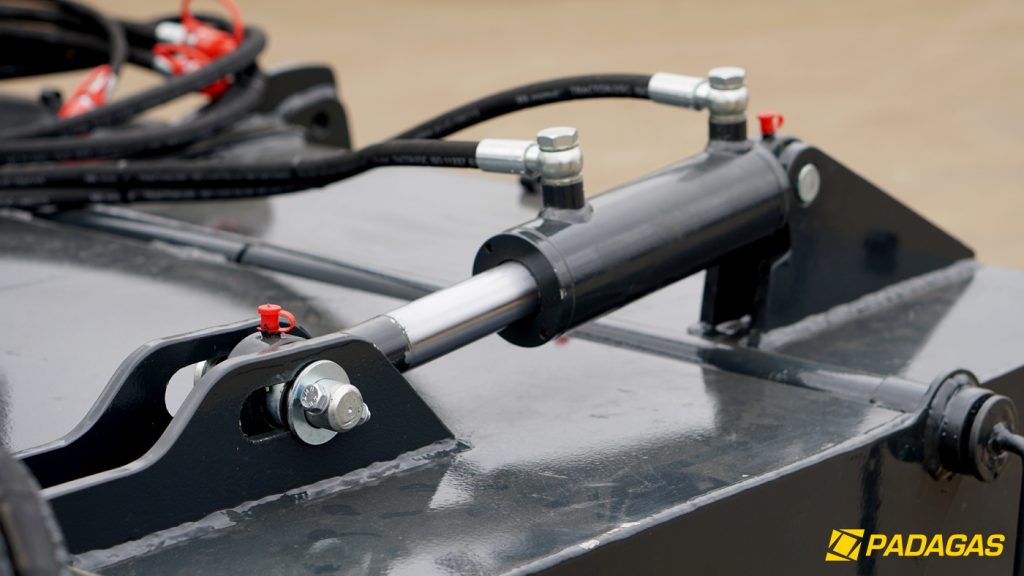

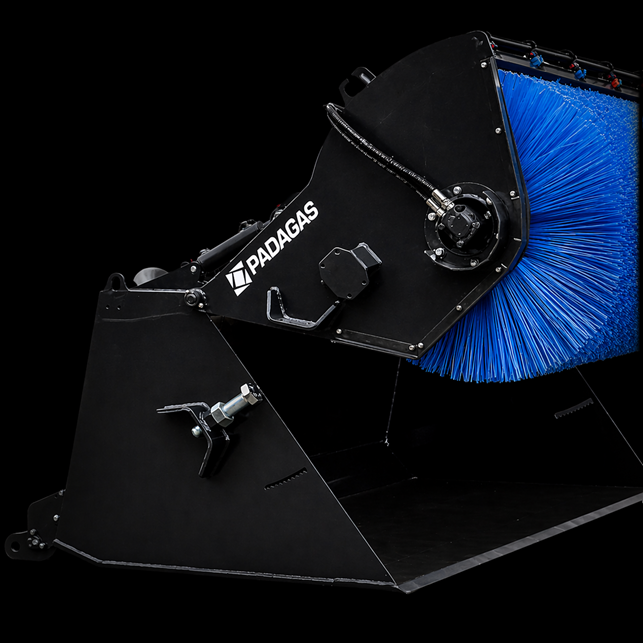

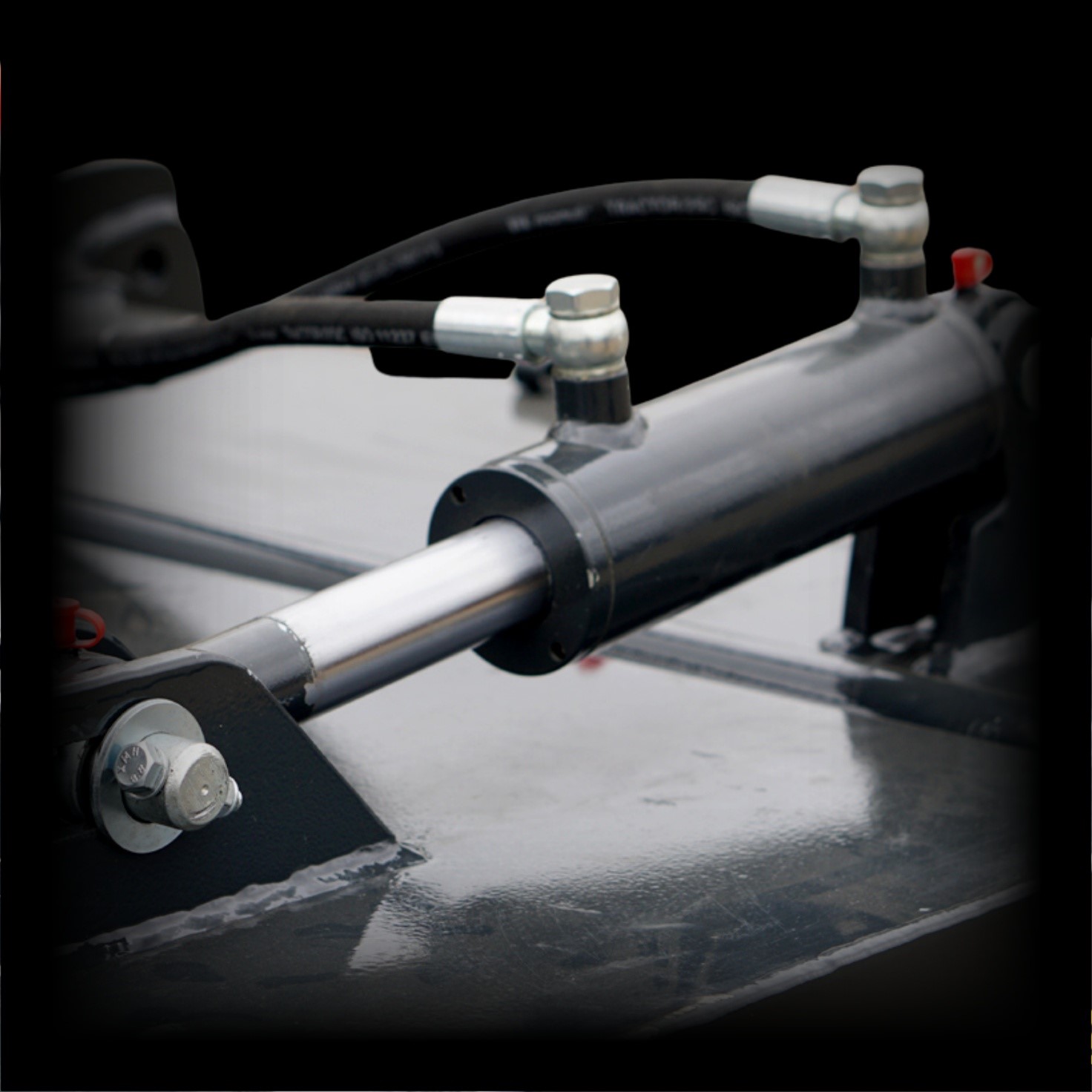

Sweeping machines BS can sweep, collect and pick up dirt and trash. This machine is designed for big loaders, telehandlers and frontloaders. Big road sweeper with bug bunker provides effective work in any conditions. The sweeping machine’s ring is 915 mm and it is the biggest in the market. The bigger ring makes sweeper’s lifetime longer and for this reason, one should not change sweeping rings too often. BSH sweeping machines can sweep directly and has a reverse function. One can use the bucket collection container without a sweeping machine. The bucket can be used for grading work while hydraulic cylinders are lifting the sweeping device. Sweeping machines BSH with collection bunker for big loaders.
Sweeping machine BSH benefits

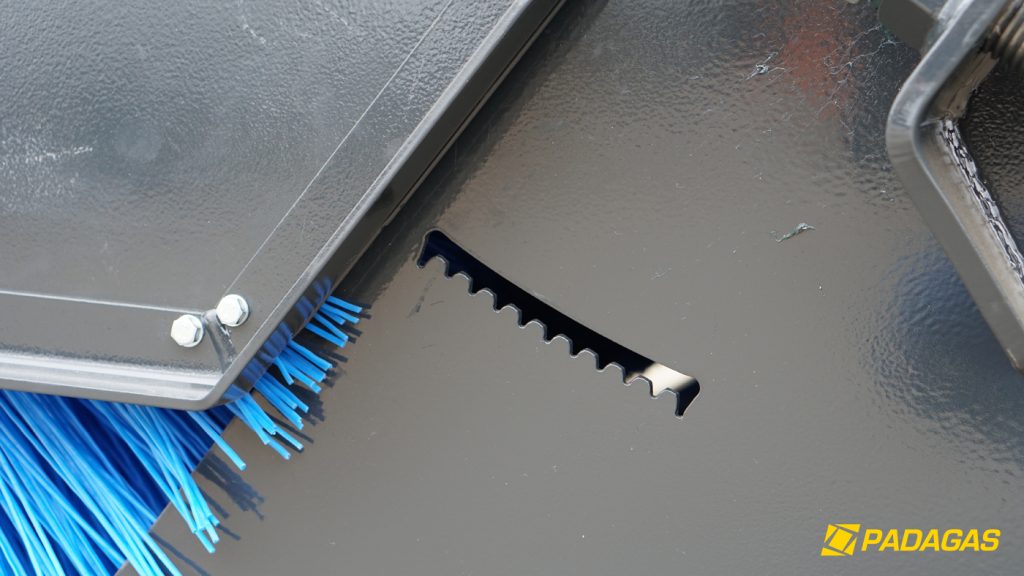

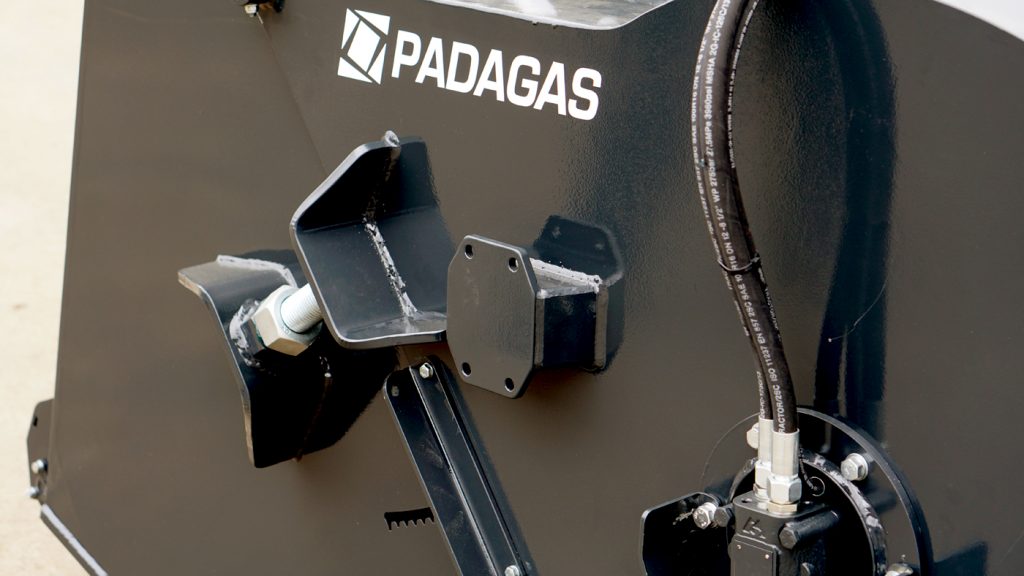

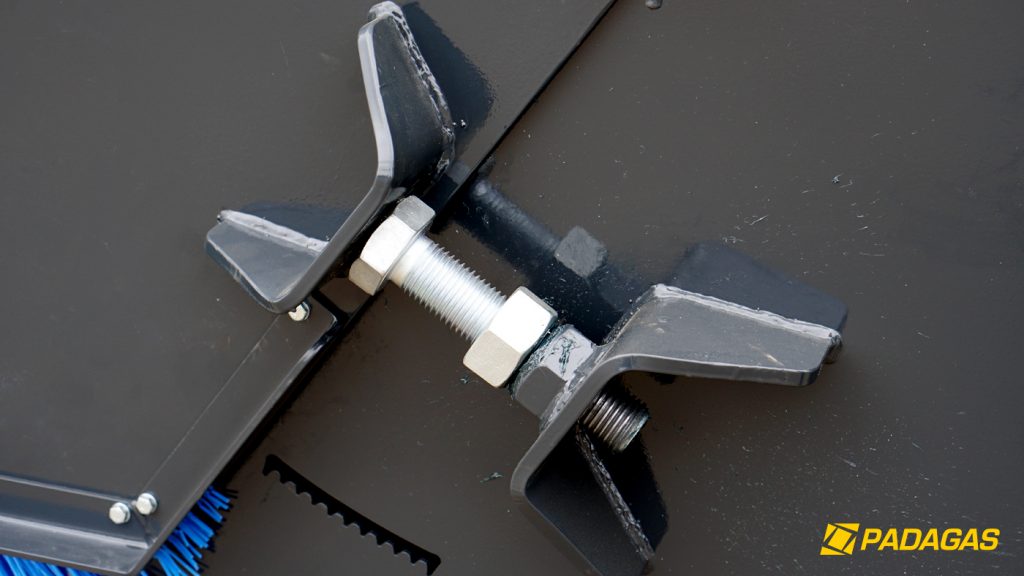

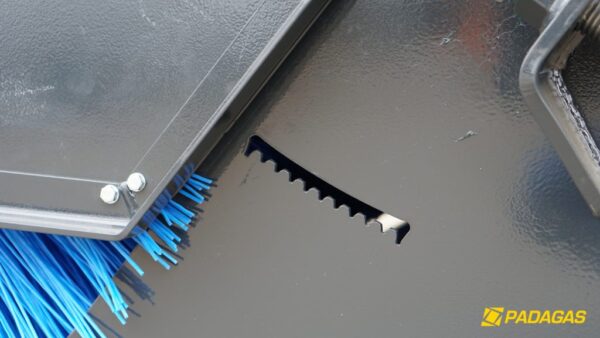

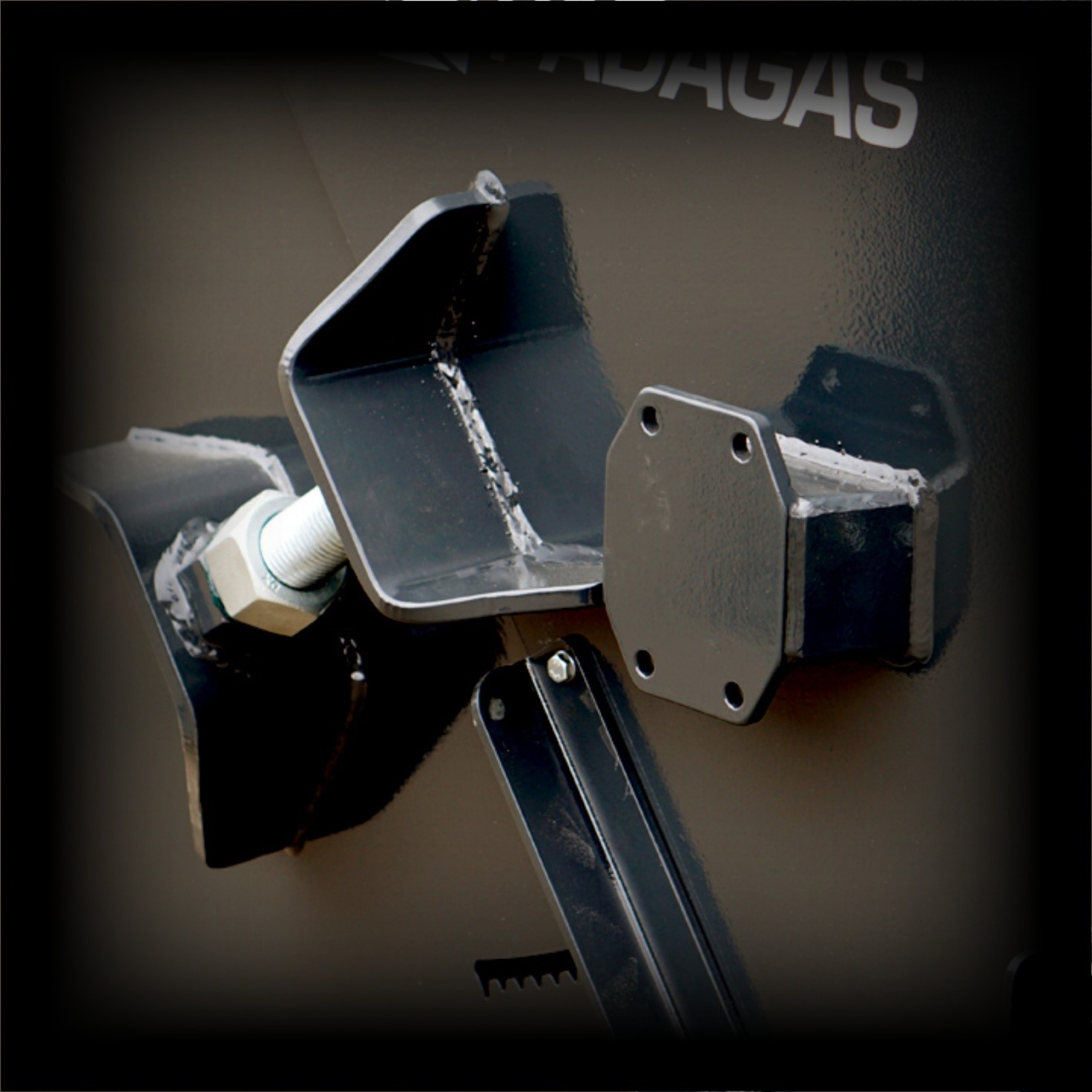

- Professional design. Padagas professional road sweeper produced to make the job more efficient. Adjustable arms to adjust the height of the sweeper off the ground and a motor guard which prevents damage to the Roller Stator motor.

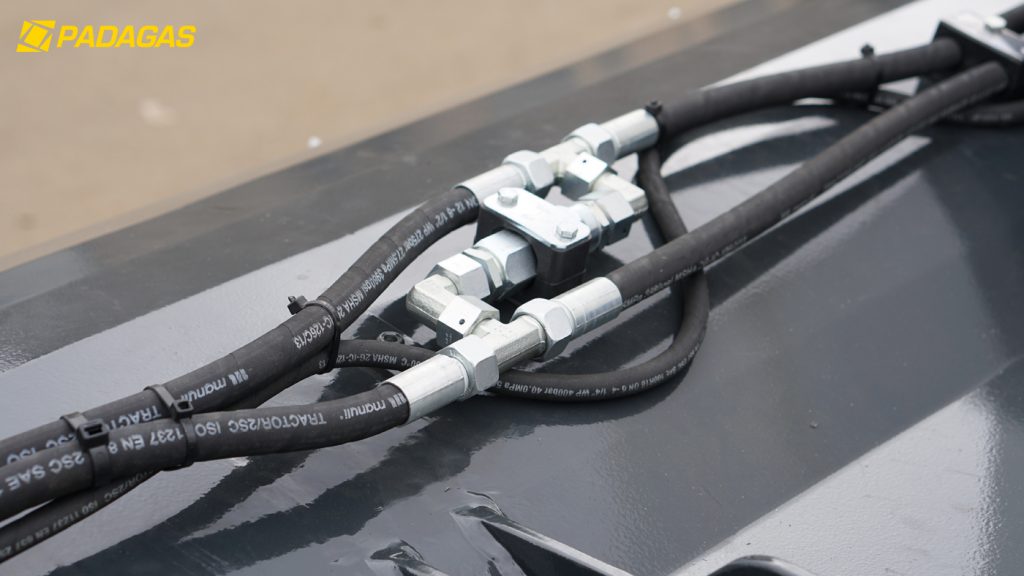

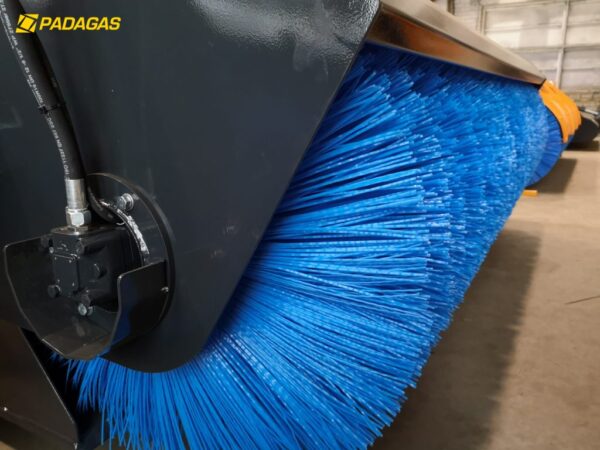

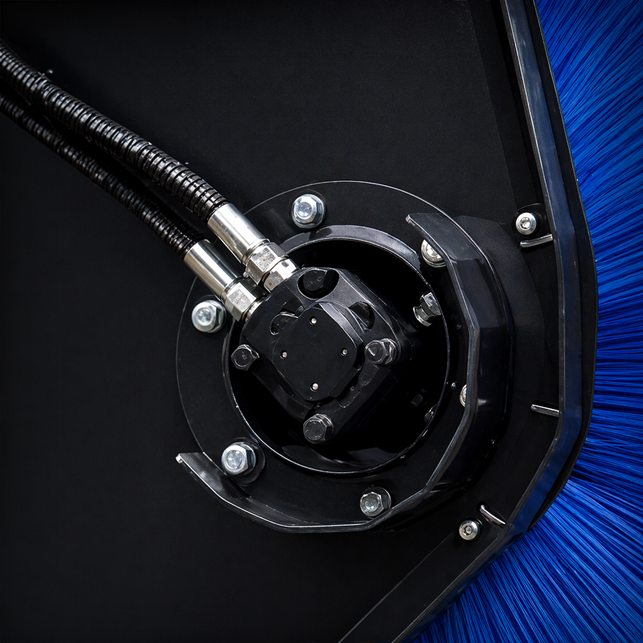

- Powerful sweeper. High torque two hydraulic motors for more power in the bucket brush, so powerful hydraulic engine for long life.
- High-quality parts. Most importantly is that all parts used in Padagas sweepers are from well-known brands.
- Easy Maintainance. The sweeping brushes are easy to change. Order extra brushes directly from us. Sweeping machines BS with collection bunker for dust.
