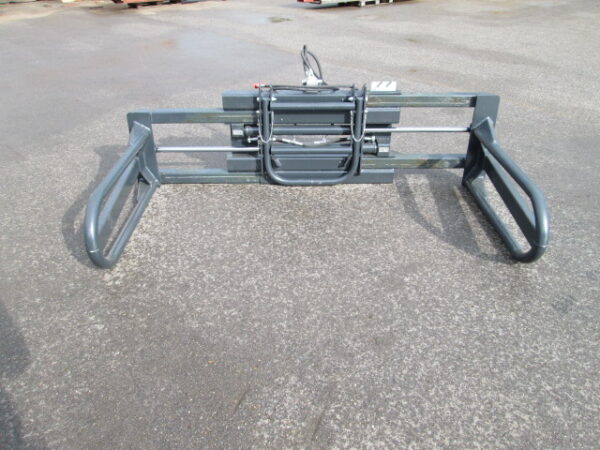

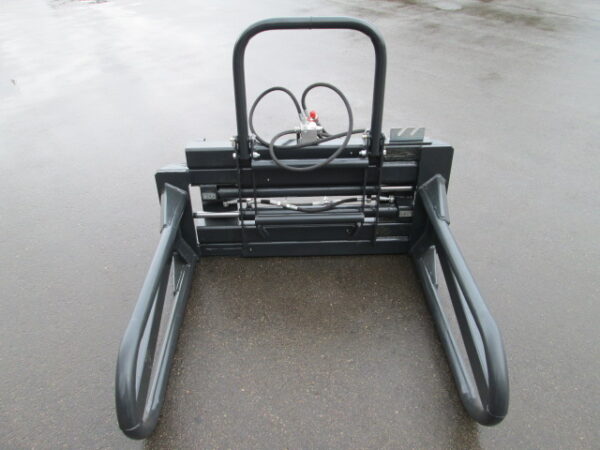

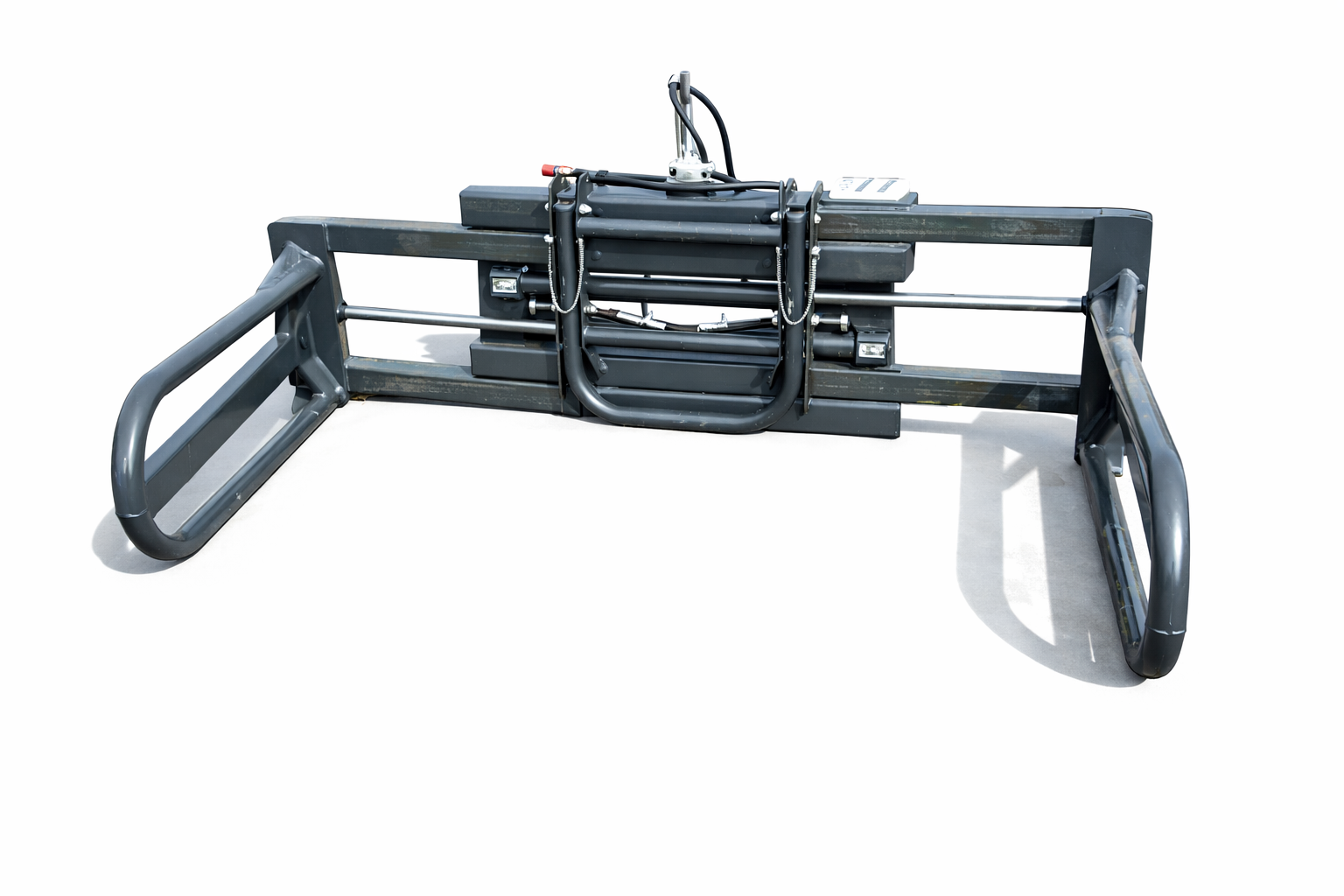

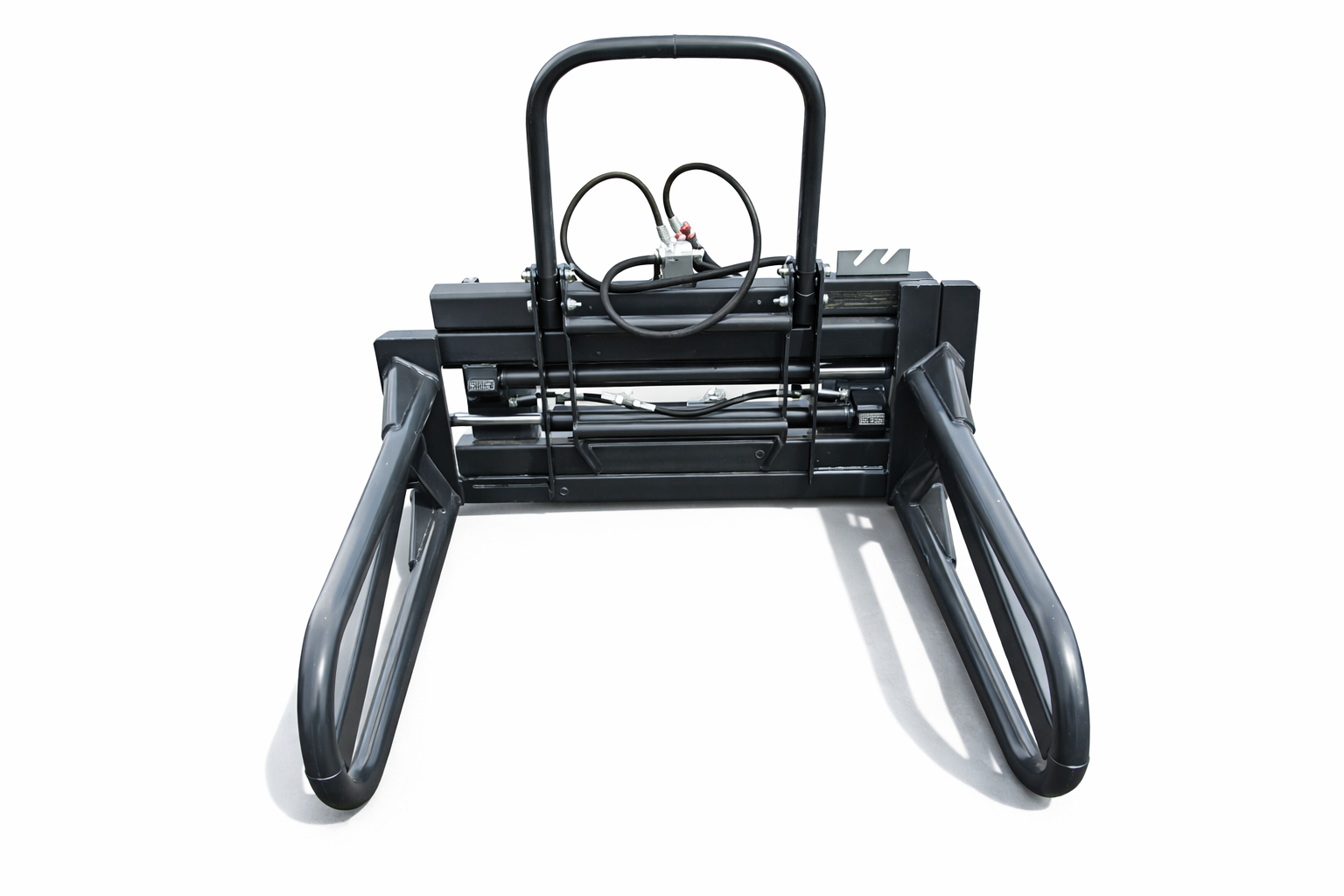

Square bale grapple KRR

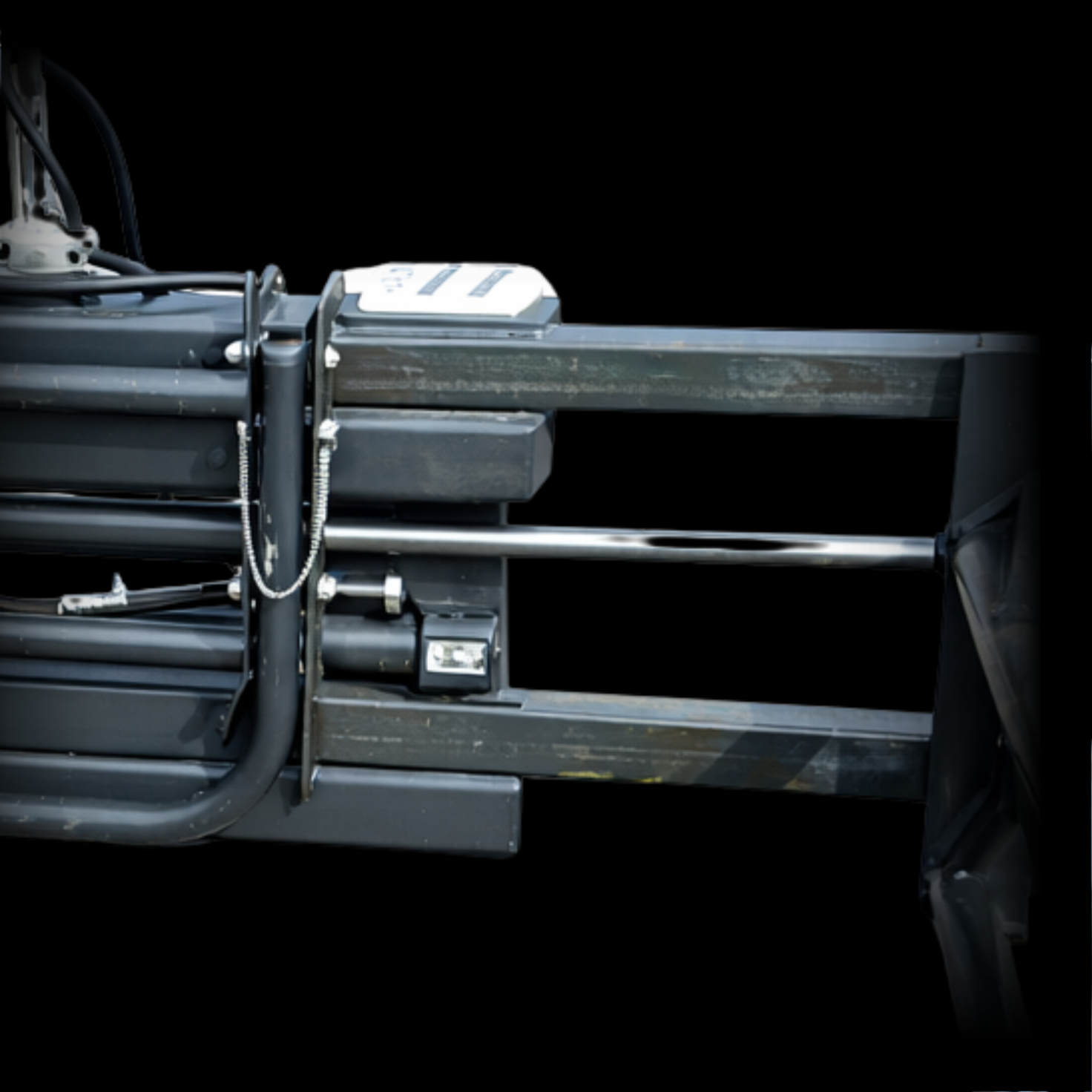

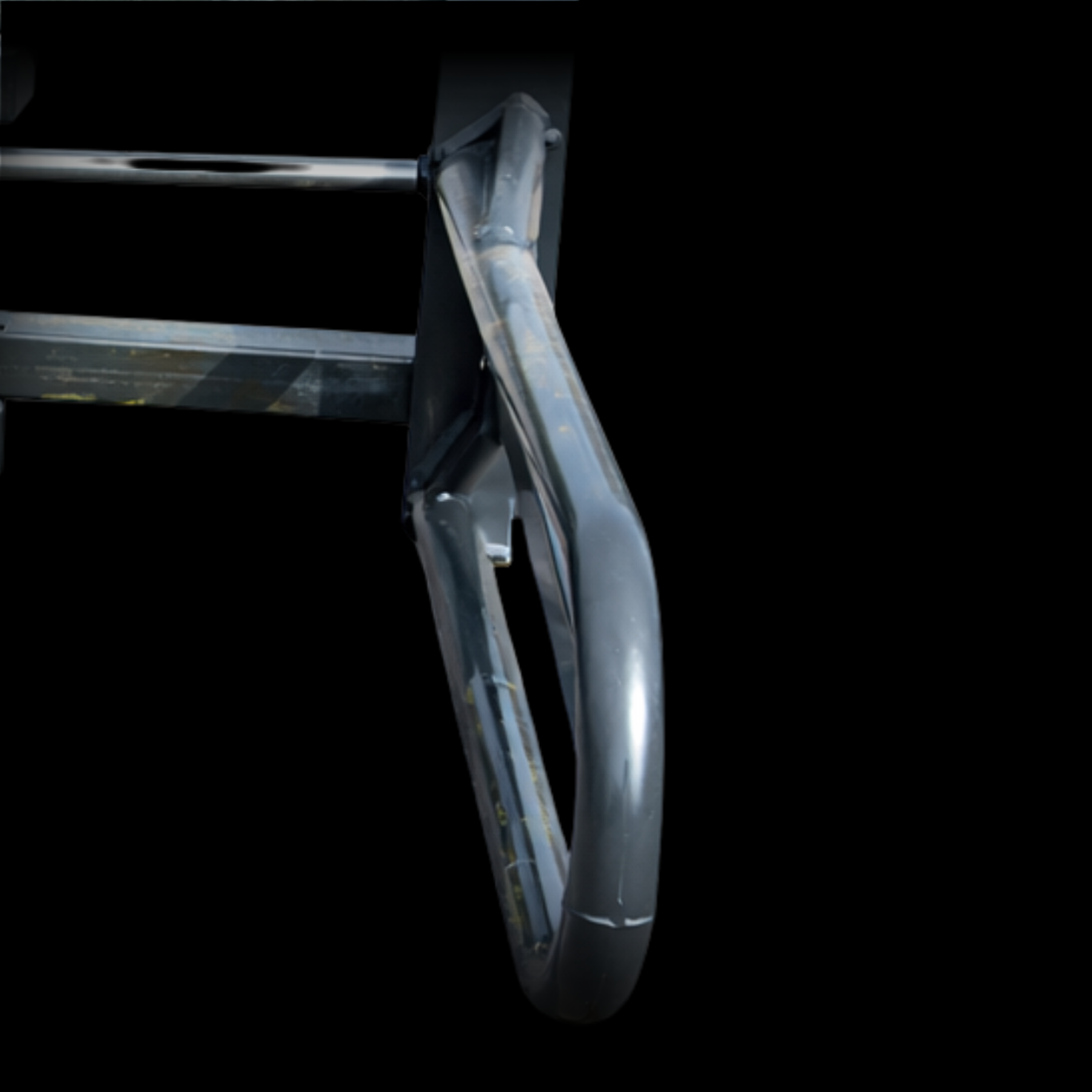

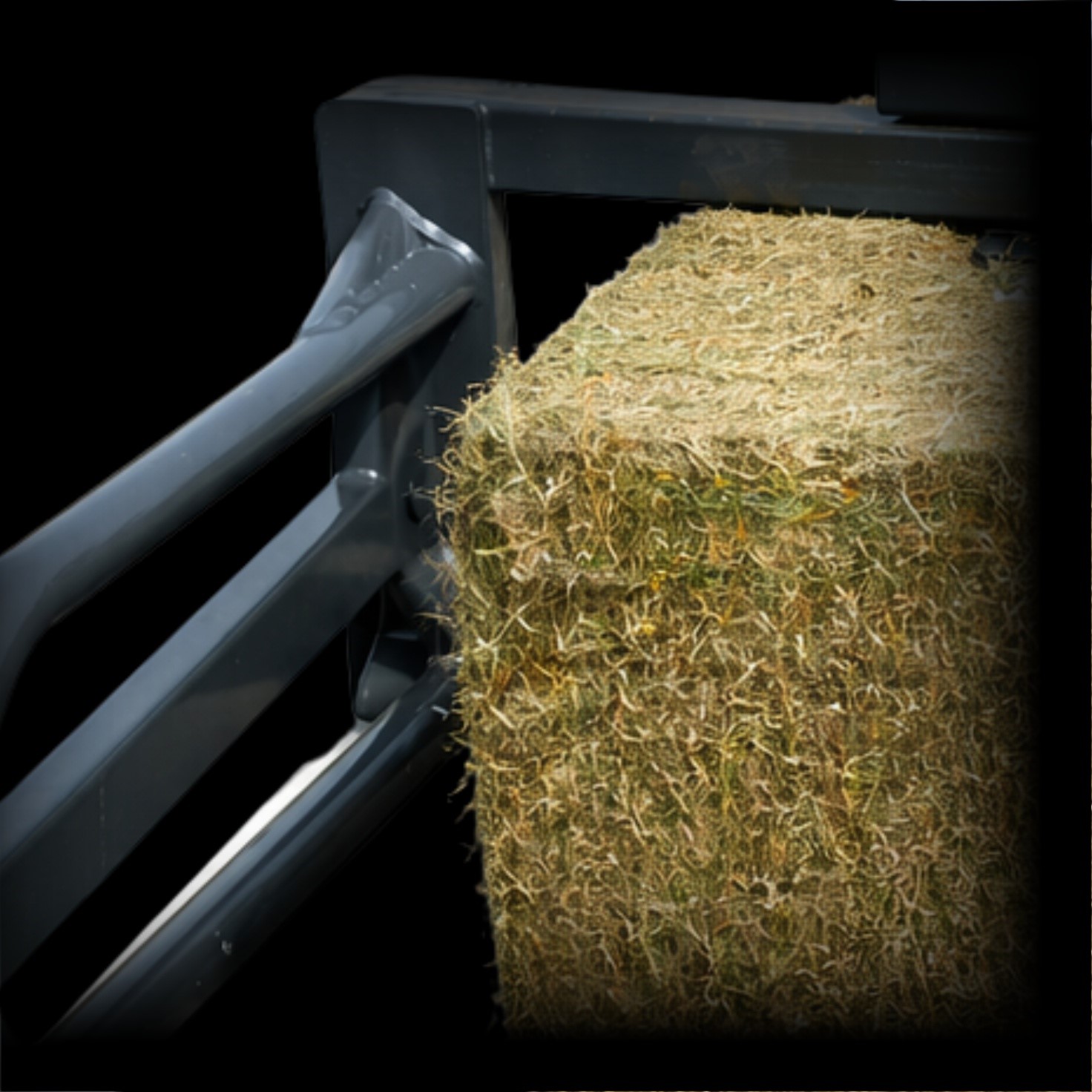

Square bale grapple KRR is made for loading works of square bales, compressed hay or straw cobs. The structure consists of two lateral grabs, two hydraulic cylinders (along with all the hydraulic hoses and couplings) and upper protection if there is a need to transfer longer bales.

Product inquiry

    Or

    Description



    TECHNICAL DATA KRR 755-2100
    Min. bale width, mm 742
    Max. bale width, mm 2102
    Lifting power, kg 1500
    Load center of gravity, mm 495
    Gripper depth, mm 1082
    Height, mm 1198
    Weight, kg 425
