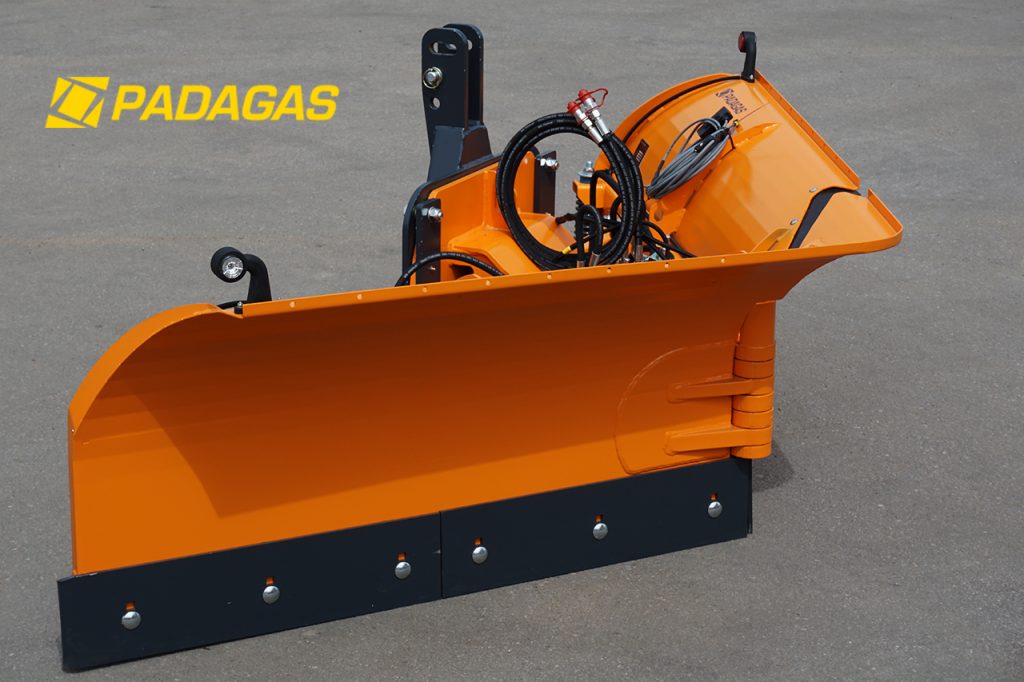

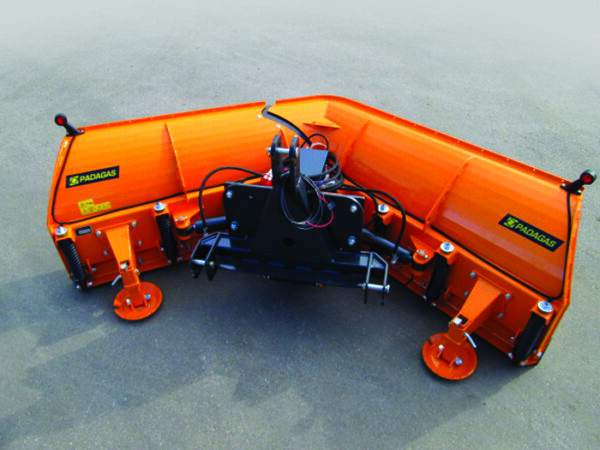

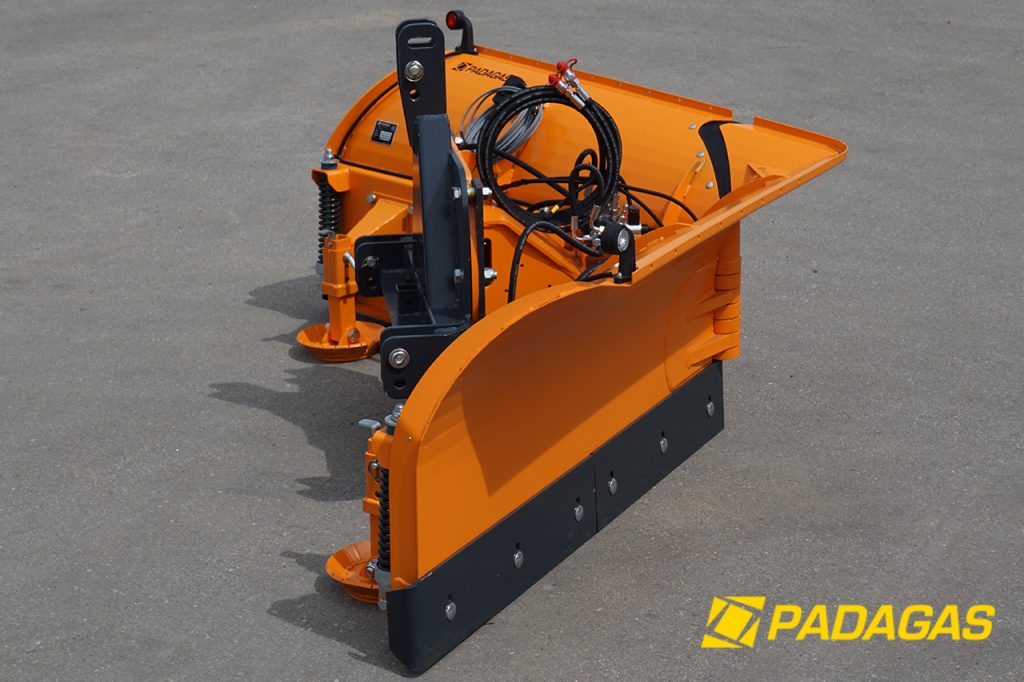

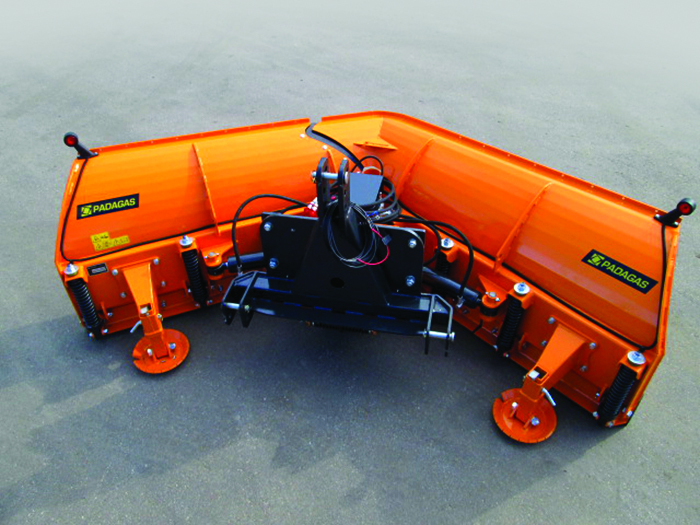

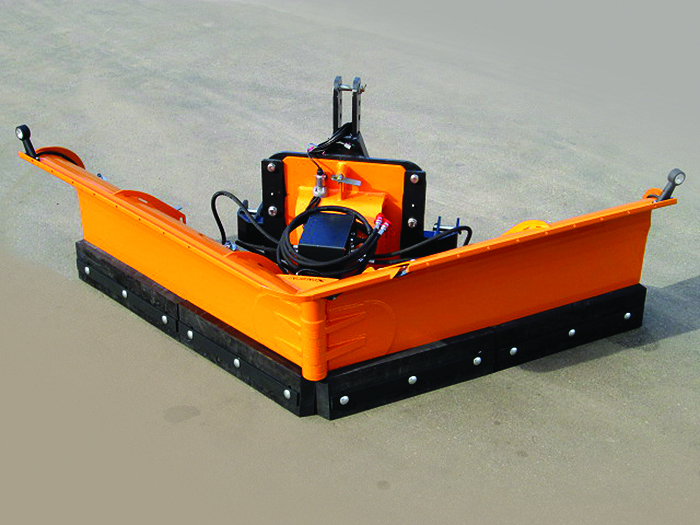

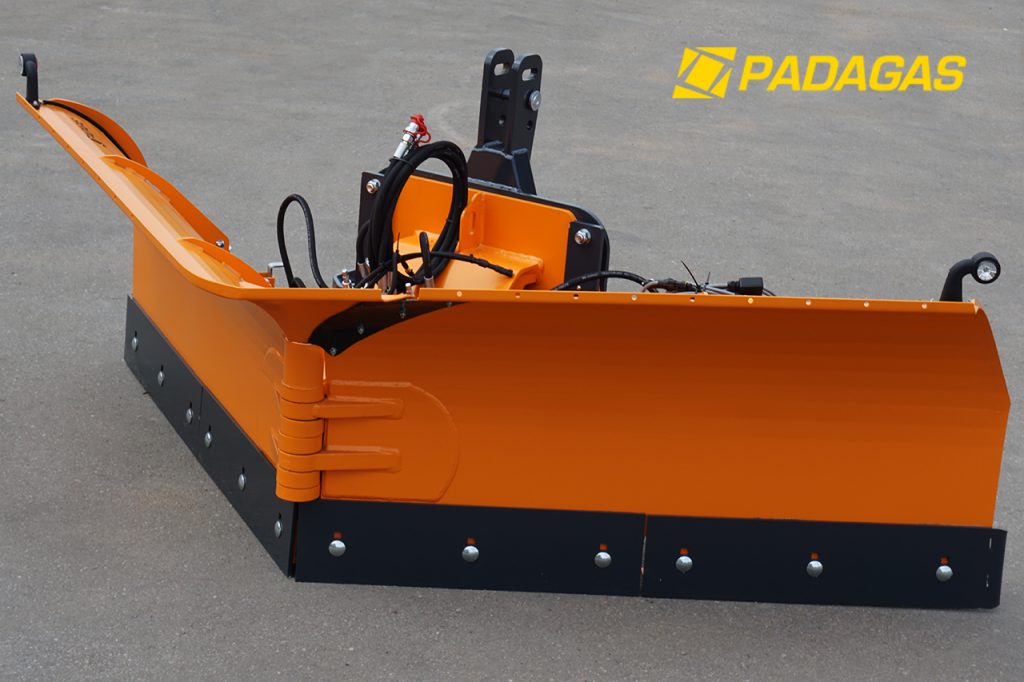

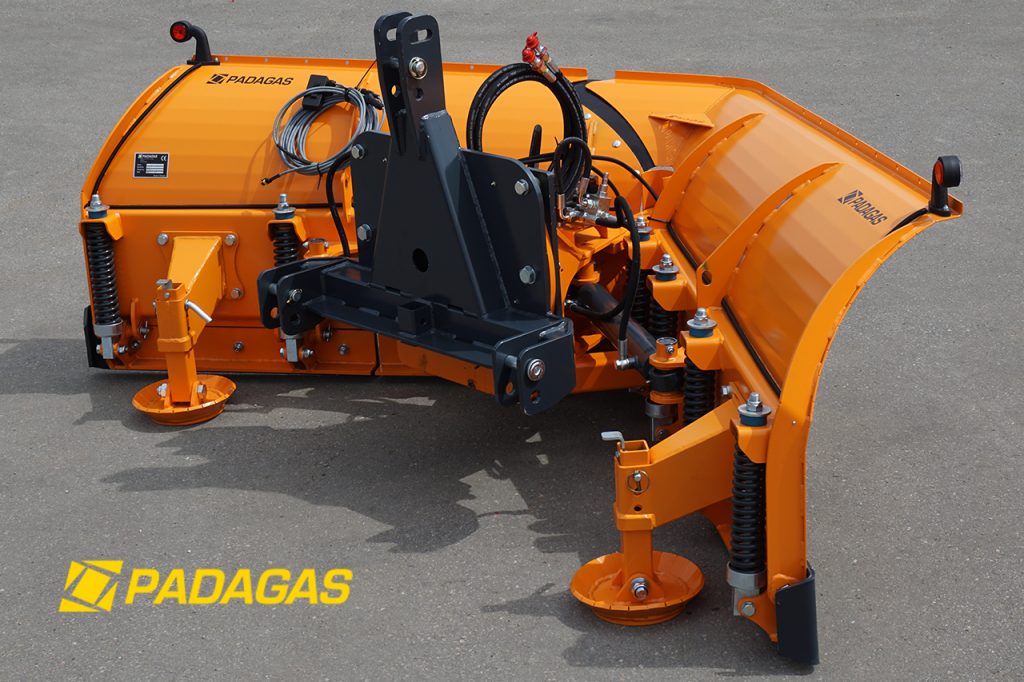

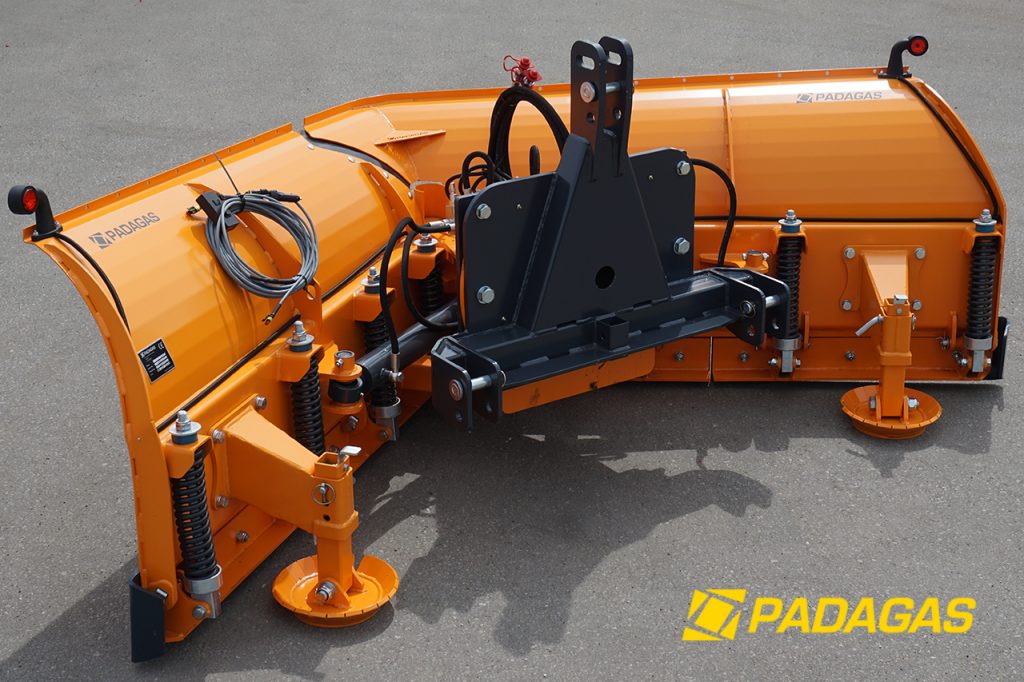

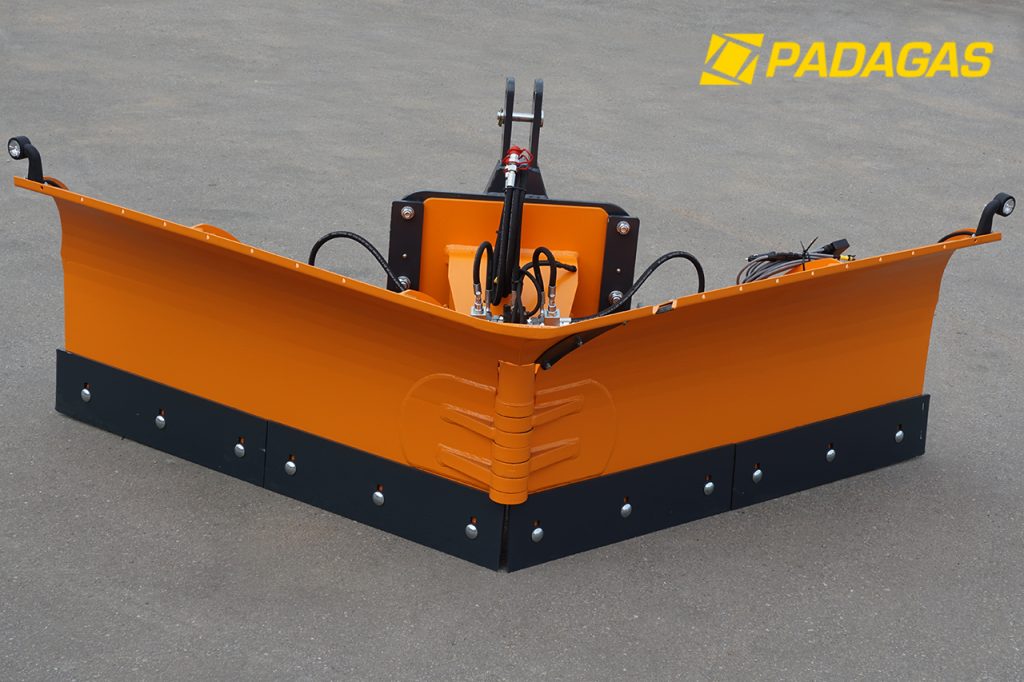

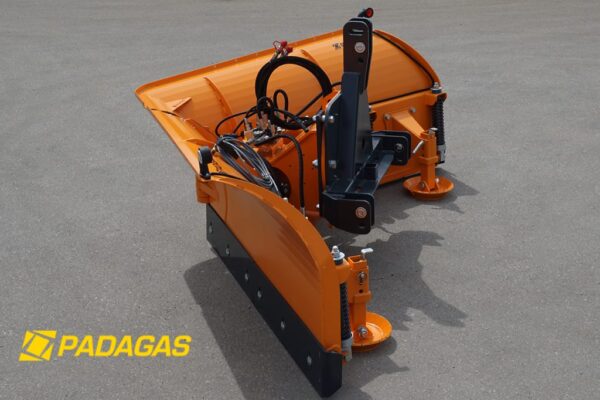

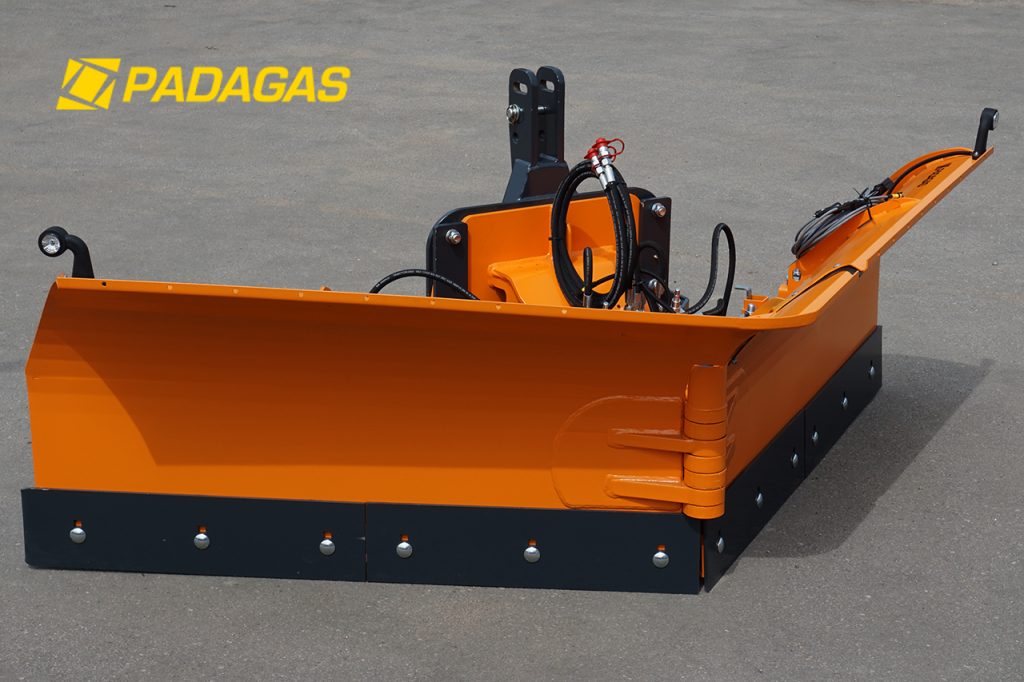

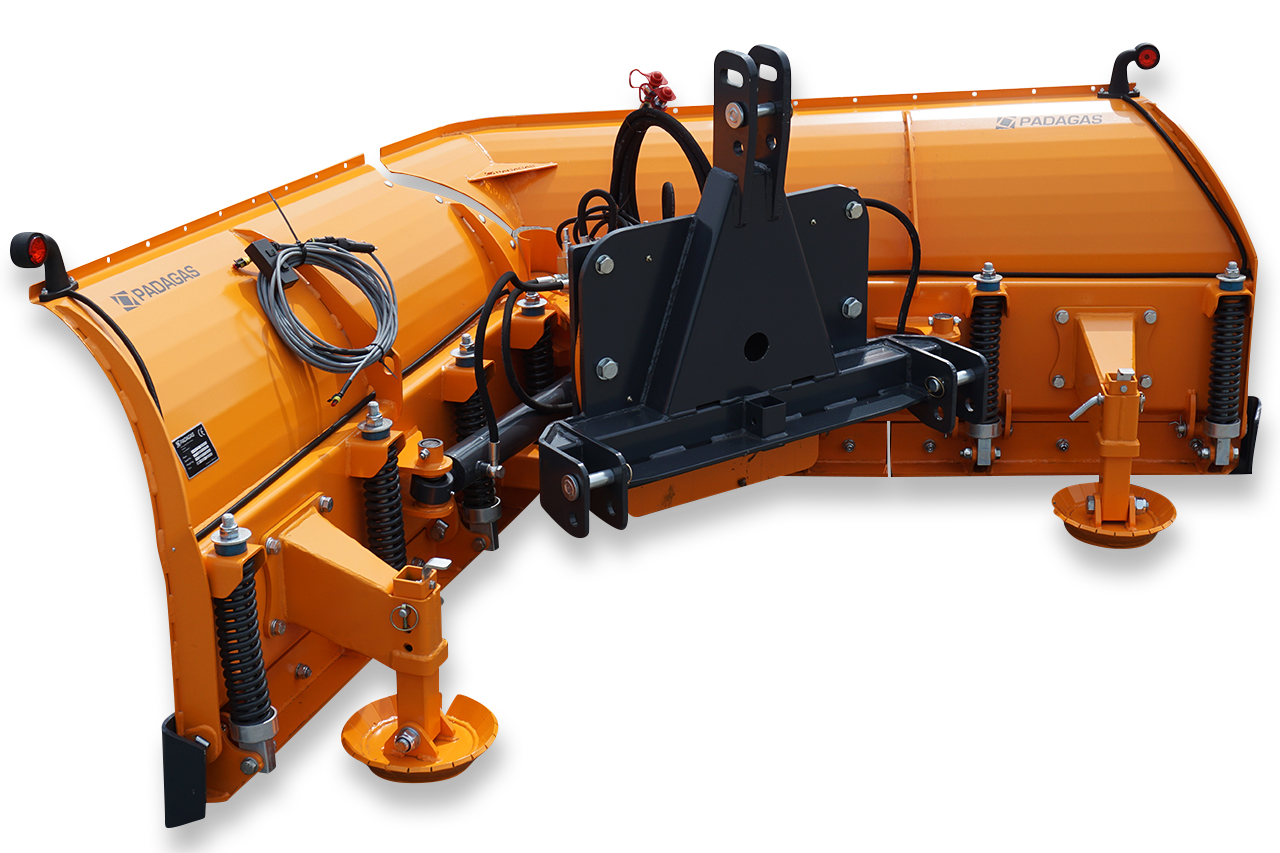

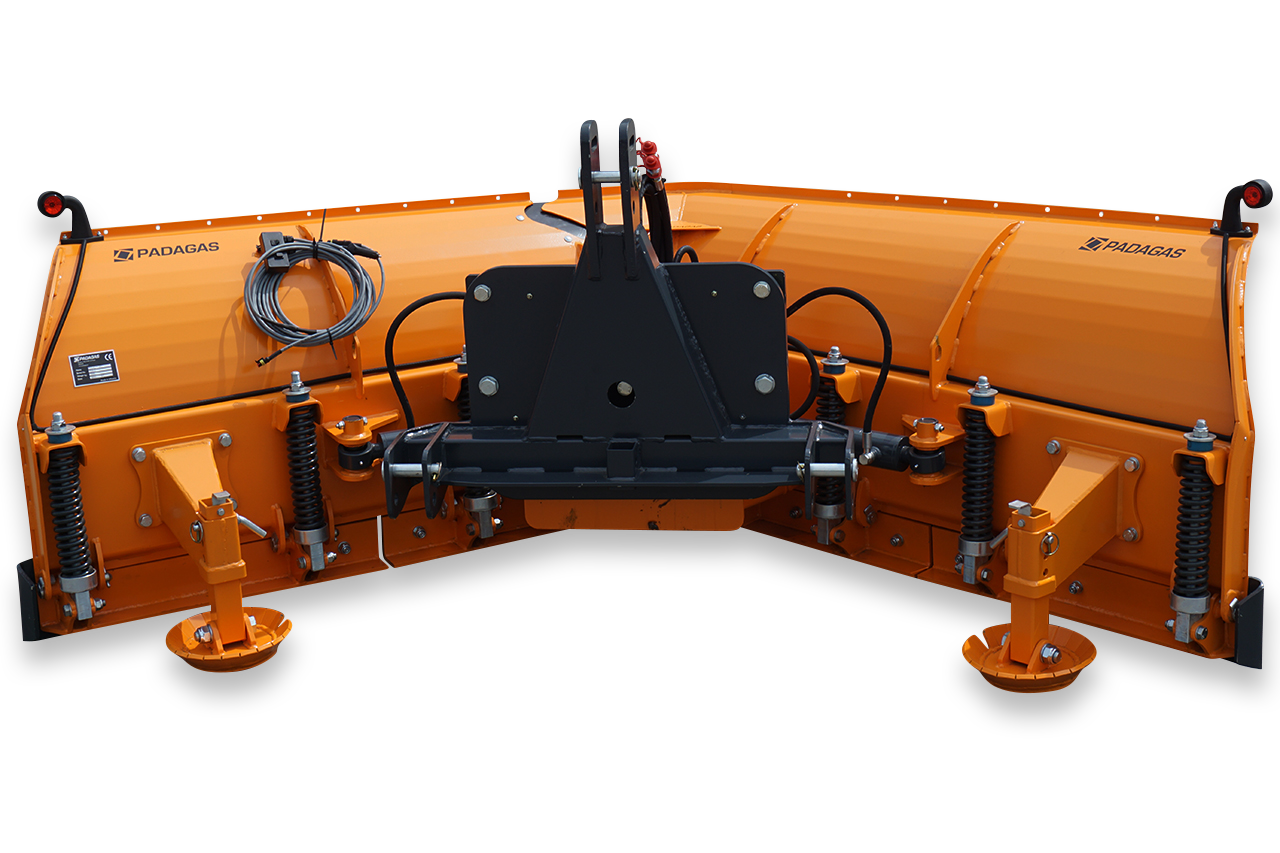

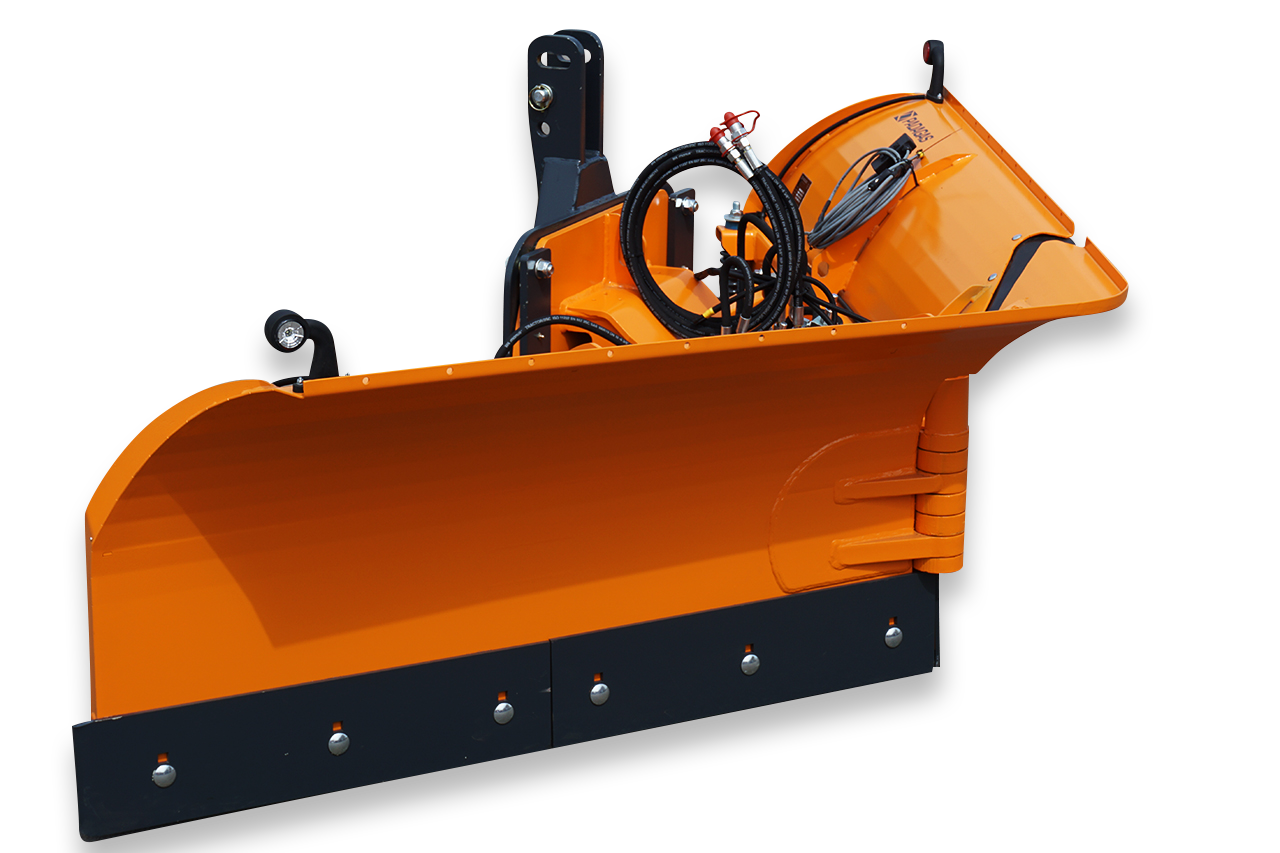

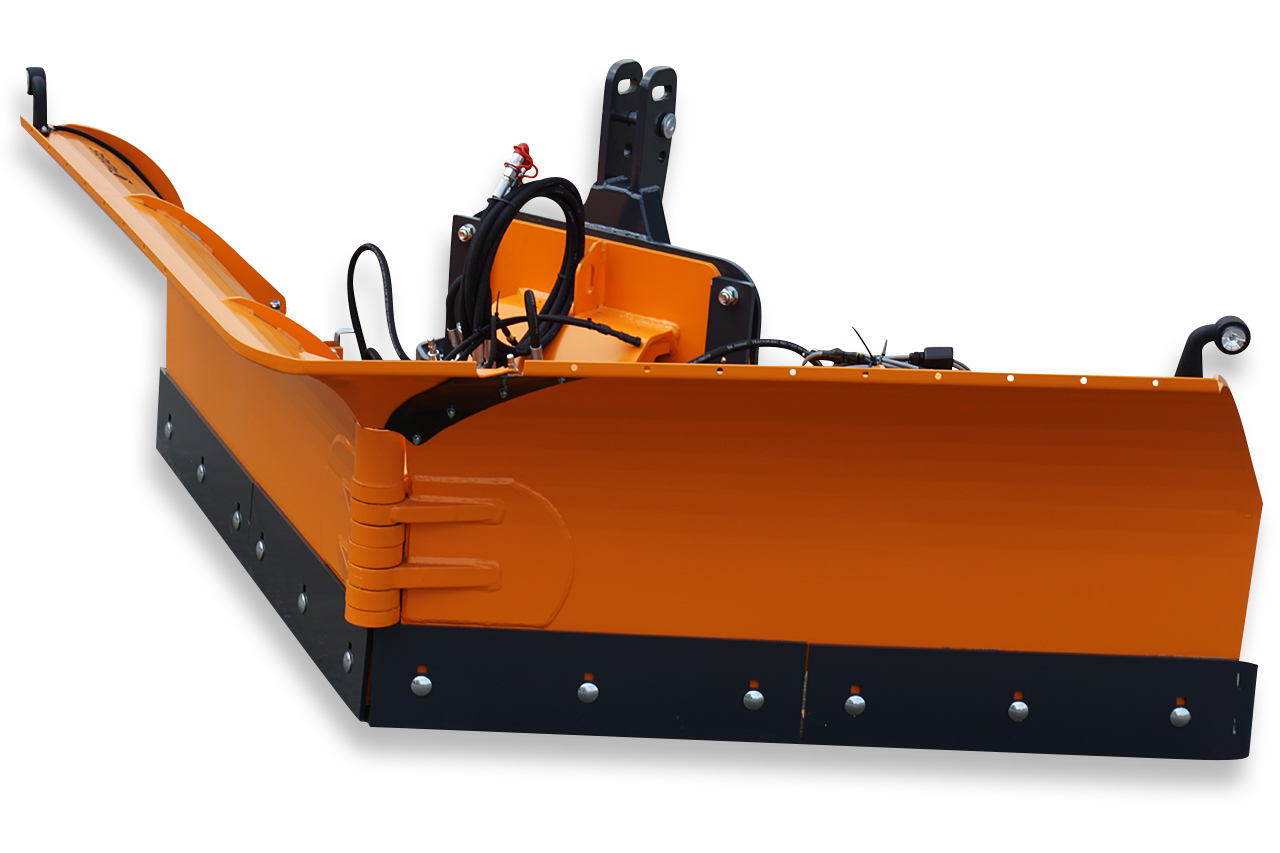

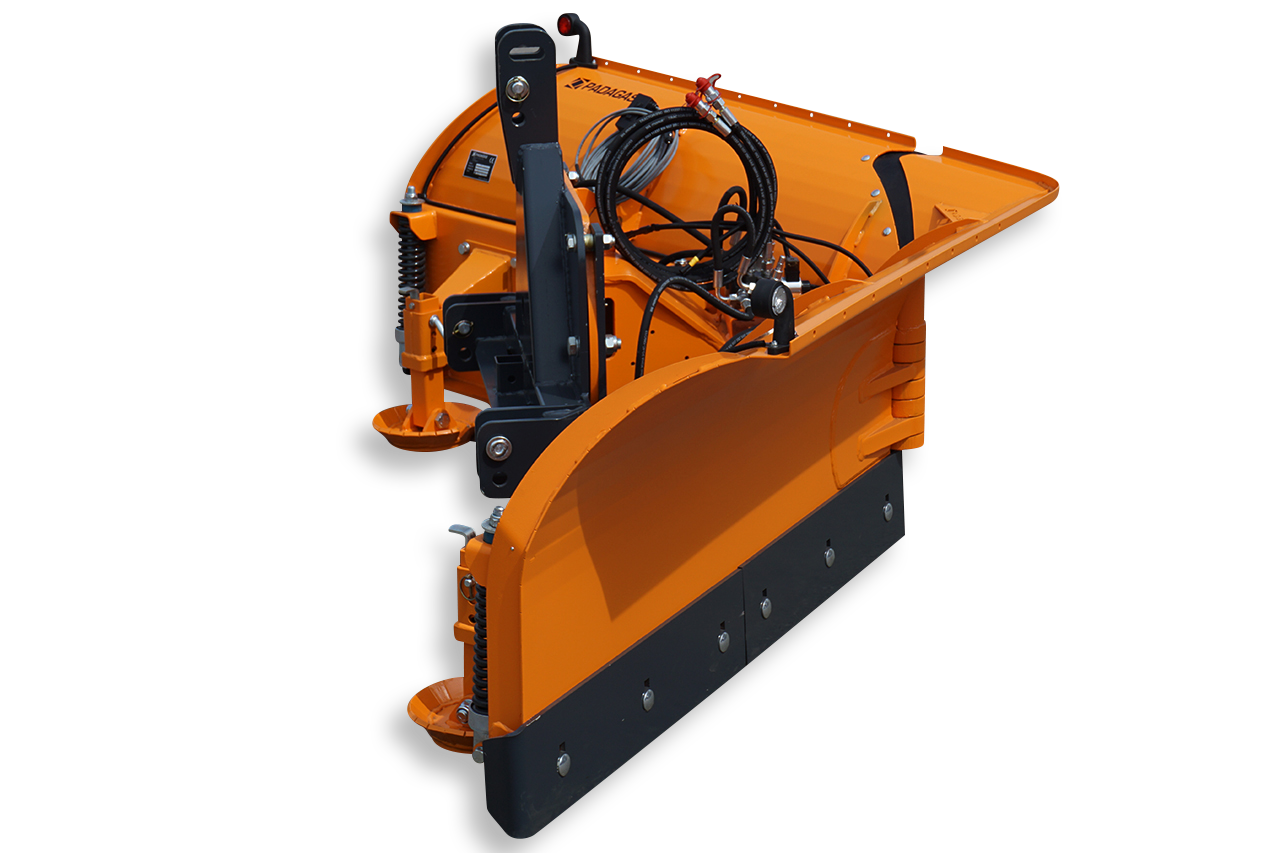

Snowplow semi-heavy class SSVL-M (V-type)
Snowplow moderate class heaviness SSVL-M has 5 working positions and hydraulic control. SSVL-M is suitable for tractors from 40 hp to 100 hp. This snowplow perfectly fits for utilities sector and snow plowing of small, private spaces. SSVL-M is produced with easily changeable bracket. This makes snowplow’s application process easier for various techniques. Snowplow has a spring-loaded coulter protection.

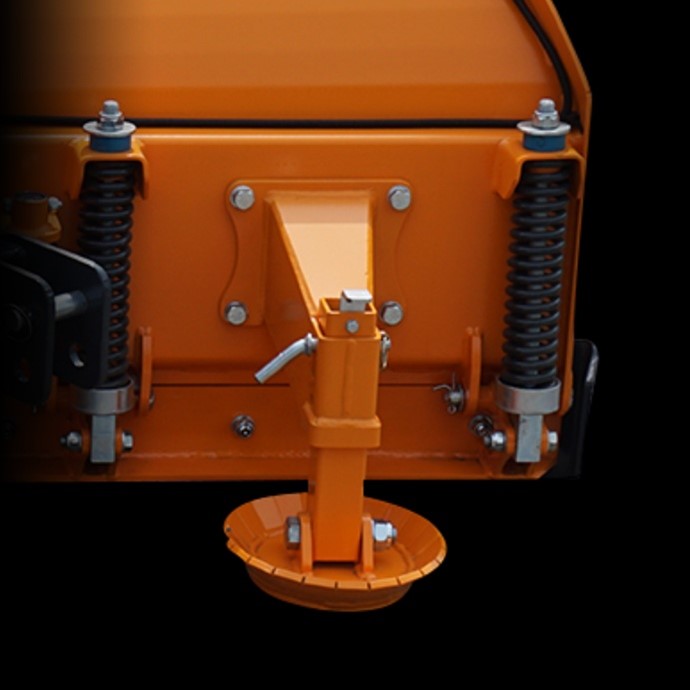

Standard product: shellboard, bracket, hydraulic rotation, spring-loaded coulter guard, safety valve of the hydraulic cylinders, support skis, Hardox steel knife. Upon request, Hardox steel knife is replaced by a rubber one, while supporting skis by wheels.
Product inquiry
Or
Description
Features
- Electromagnetic valve
- SSVL-M can be equipped with an electromagnetic valve, which reduces number of hydraulic pores necessary for connection from 2 to 1.
Rubber knife
- It can be supplied instead of Hardox knife.

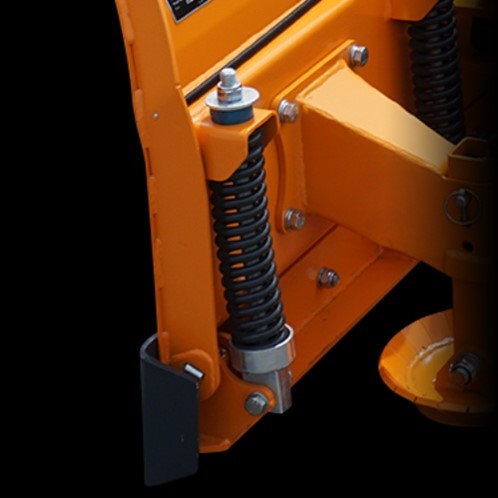

Spring-loaded coulterprotection

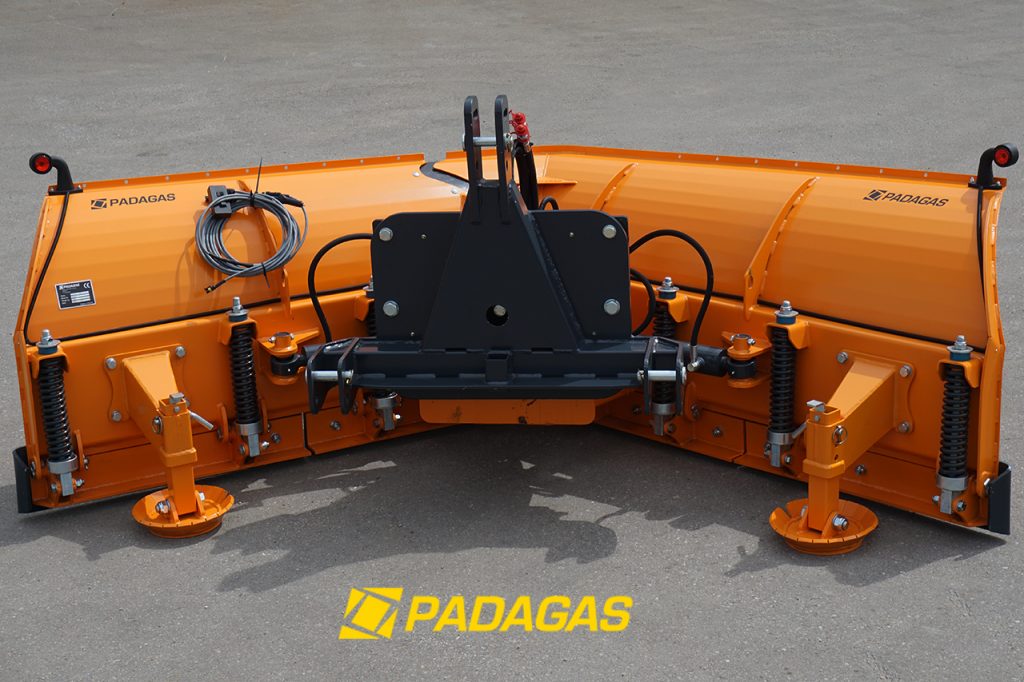

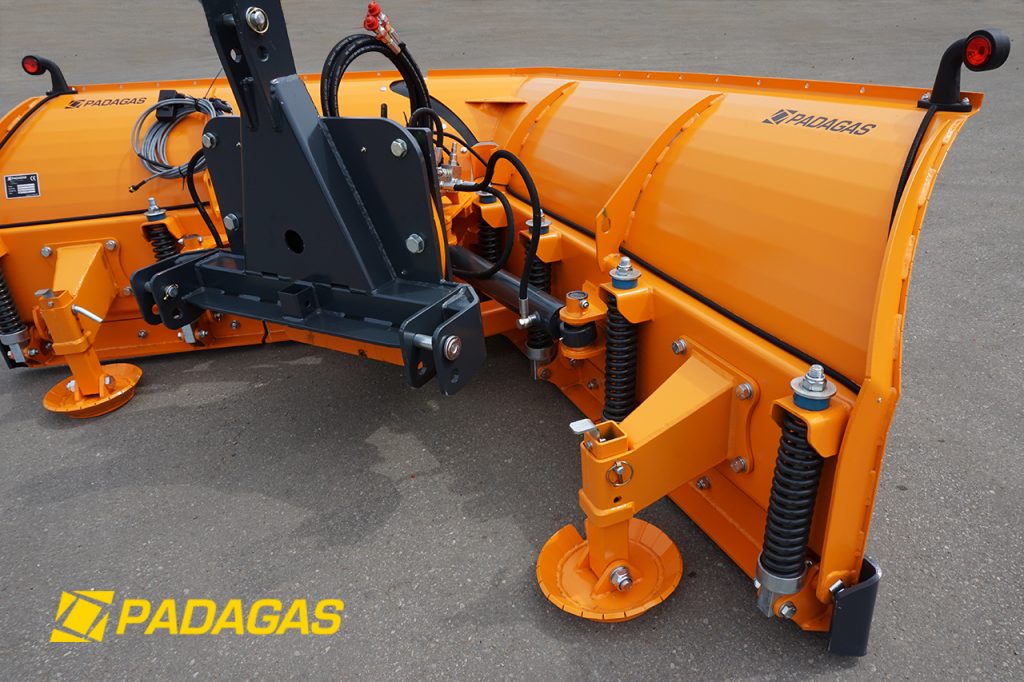

- Snowplow is equipped with a spring-loaded coulter protection which aids the knife to remove the obstacle by flip.

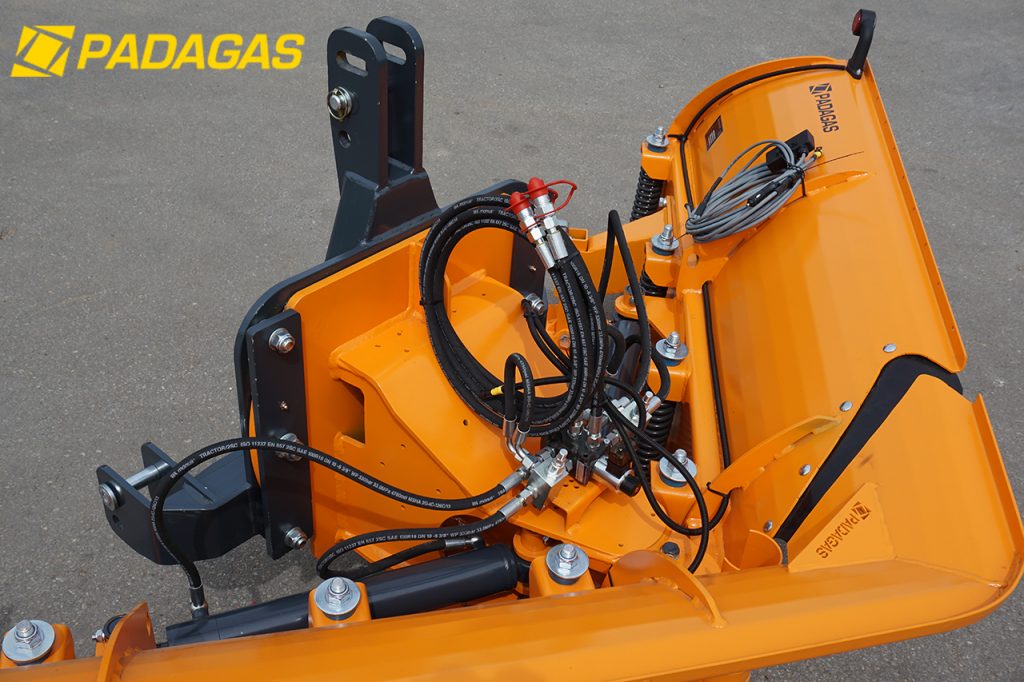

Hydraulic cylinder
- Hydraulic cylinder SSVL-M is equipped with safety valves.
| TECHNICAL DATA | SSVL-25M | SSVL-28M | SSVL-32M |
| Working width, mm | 2572 | 2886 | 3286 |
| Working width angled, mm | 2129 | 2386 | 2713 |
| Working width in position „Y“, mm | 2168 | 2425 | 2753 |
| Working width in position „V“, mm | 2090 | 2348 | 2676 |
| Hydraulic rotation | 35o | ||
| Height middle/side, mm | 779/854 | 779/854 | 779/854 |
| Cleaning knife | Hardox | ||
| Weight without bracket, kg | 630 | 670 | 700 |
| Product warranty | 1 year | ||
|
Parts warranty
|
1 year | ||

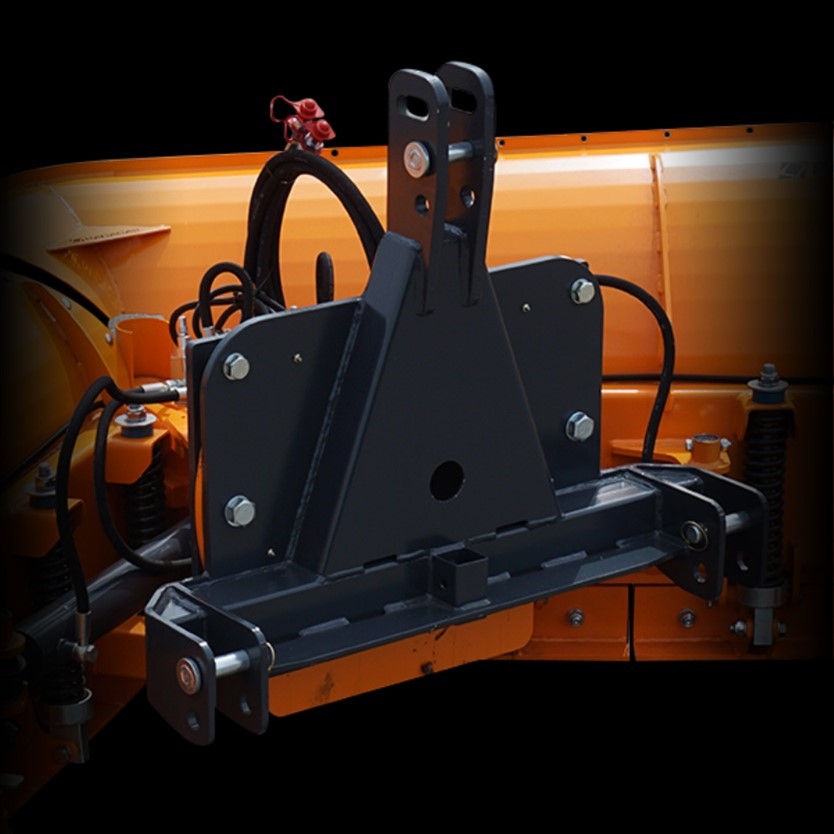

Hitch system:
- Three-point / triangle
- Frontloader (Euro)
- Wheeloader
- Telescopic loader
- Mini loader
