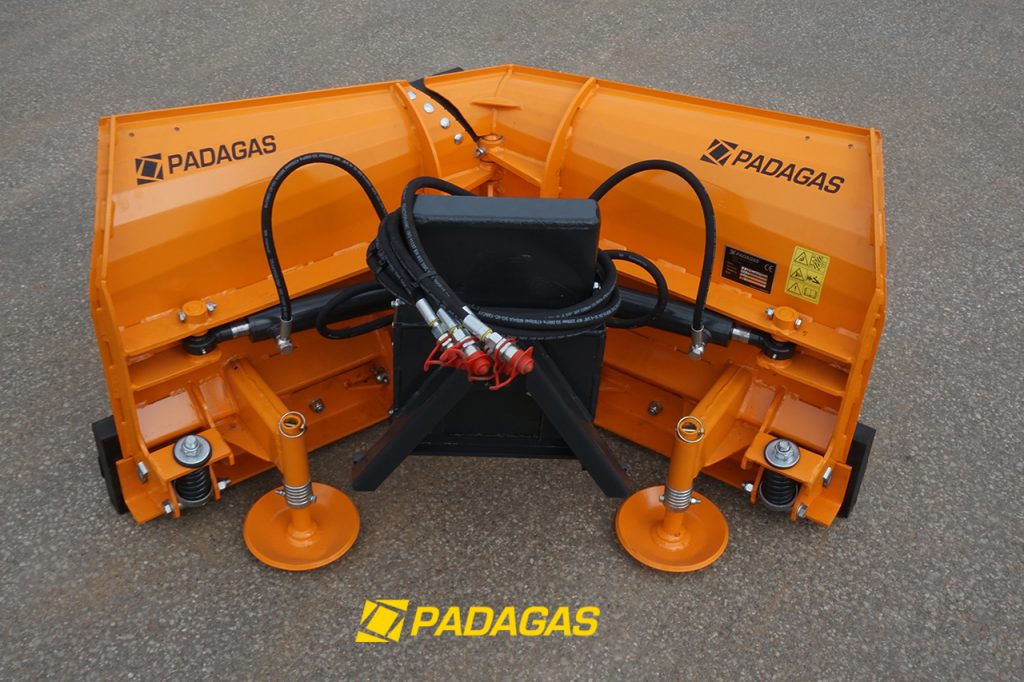

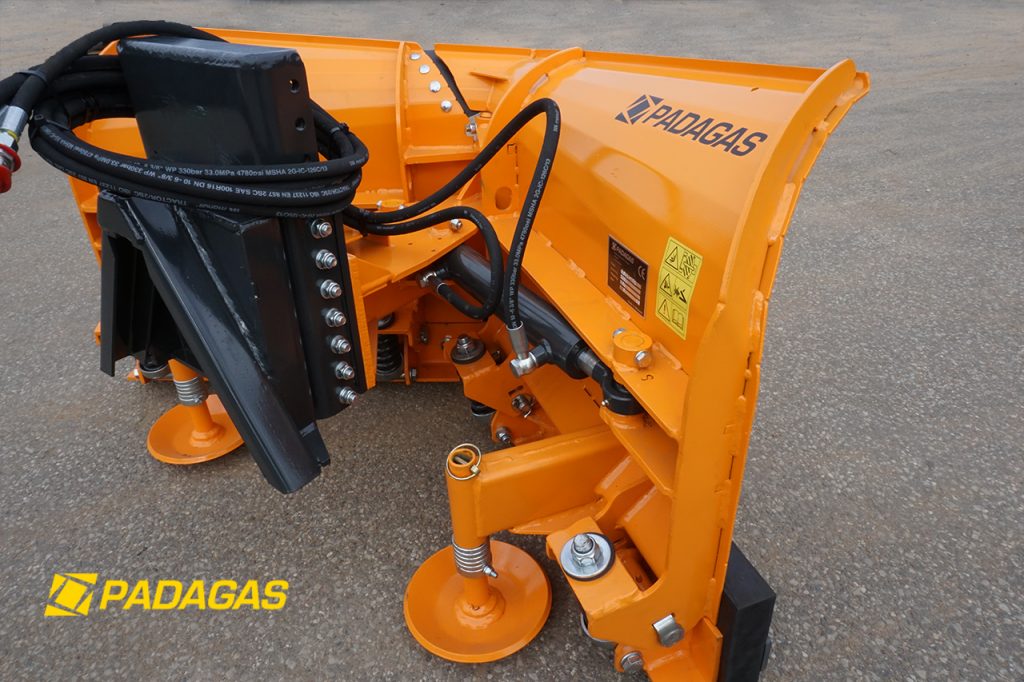

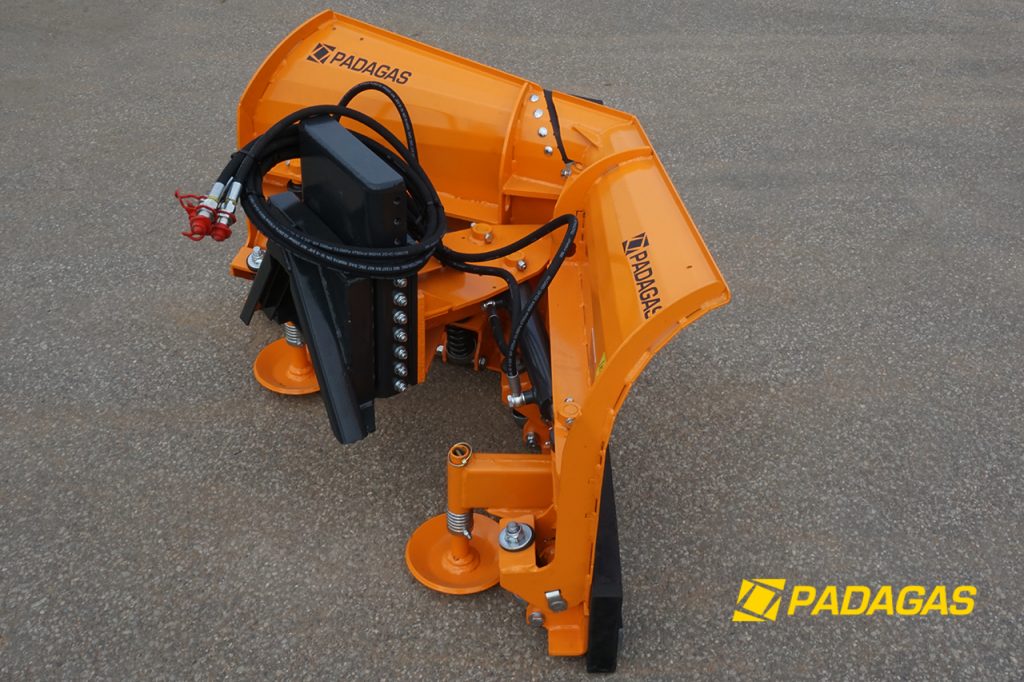

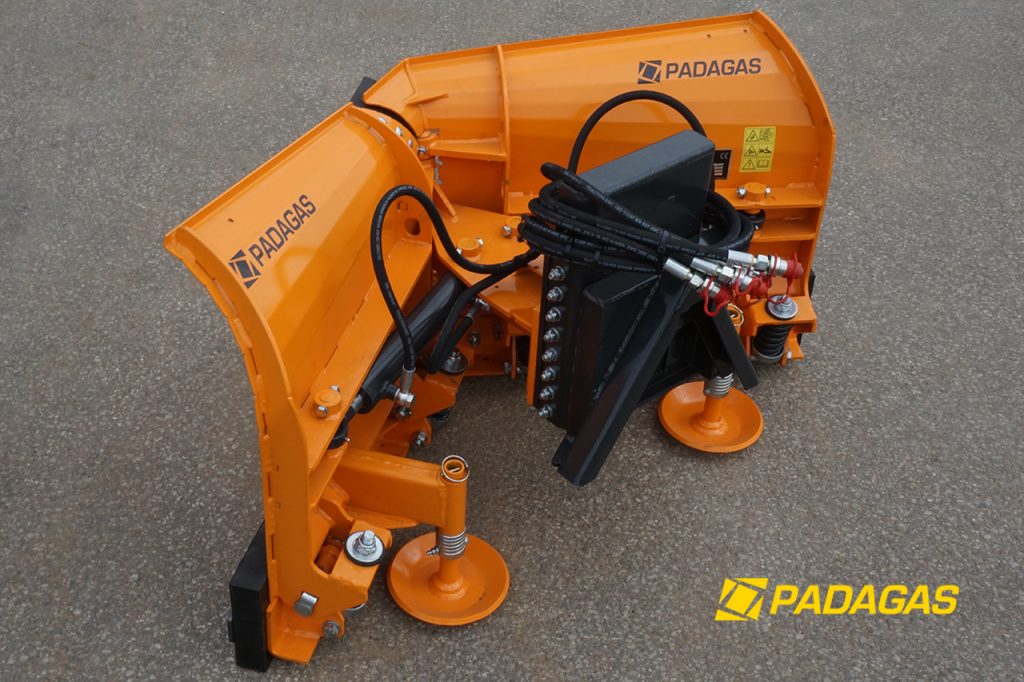

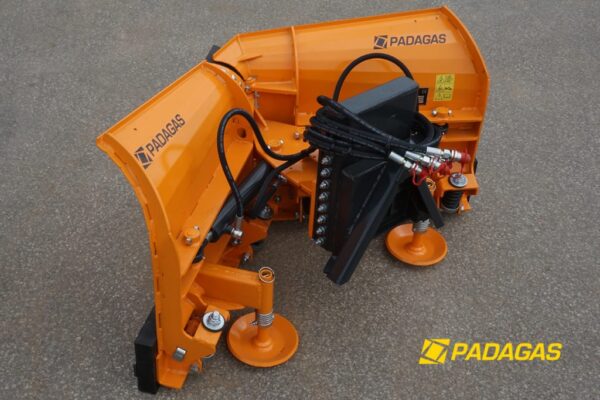

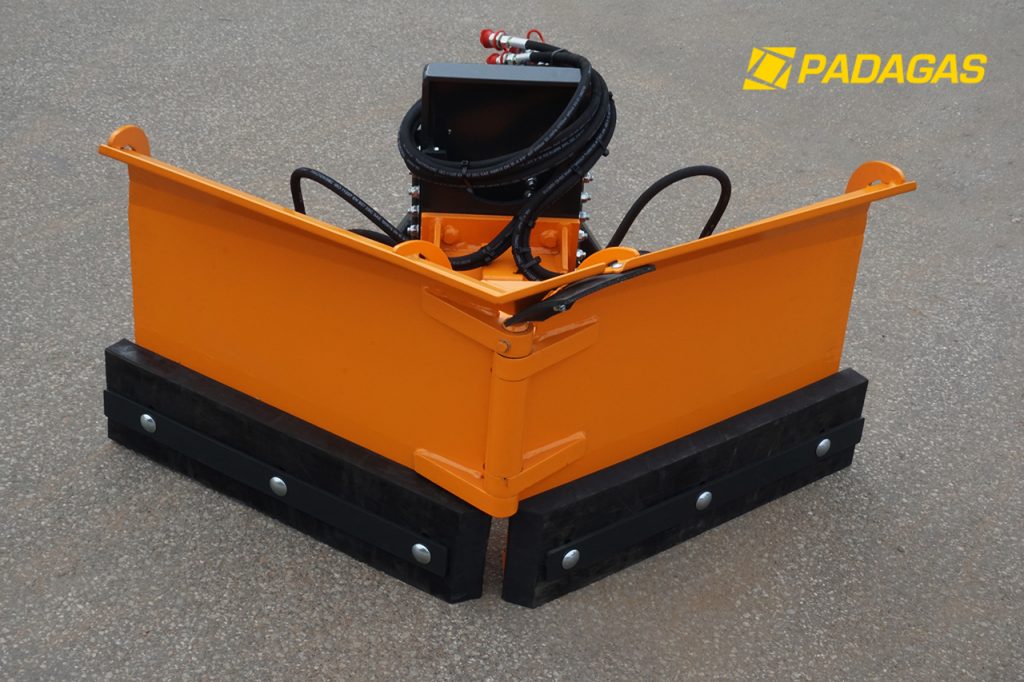

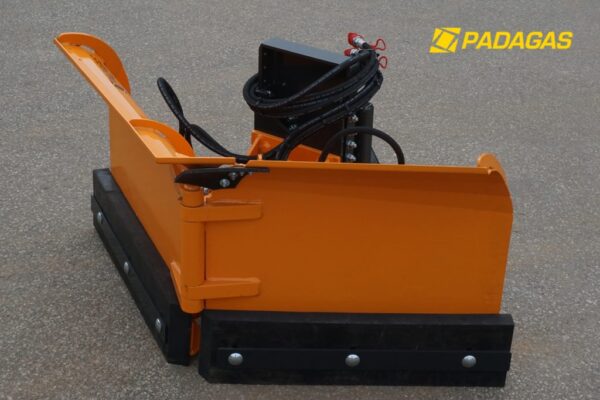

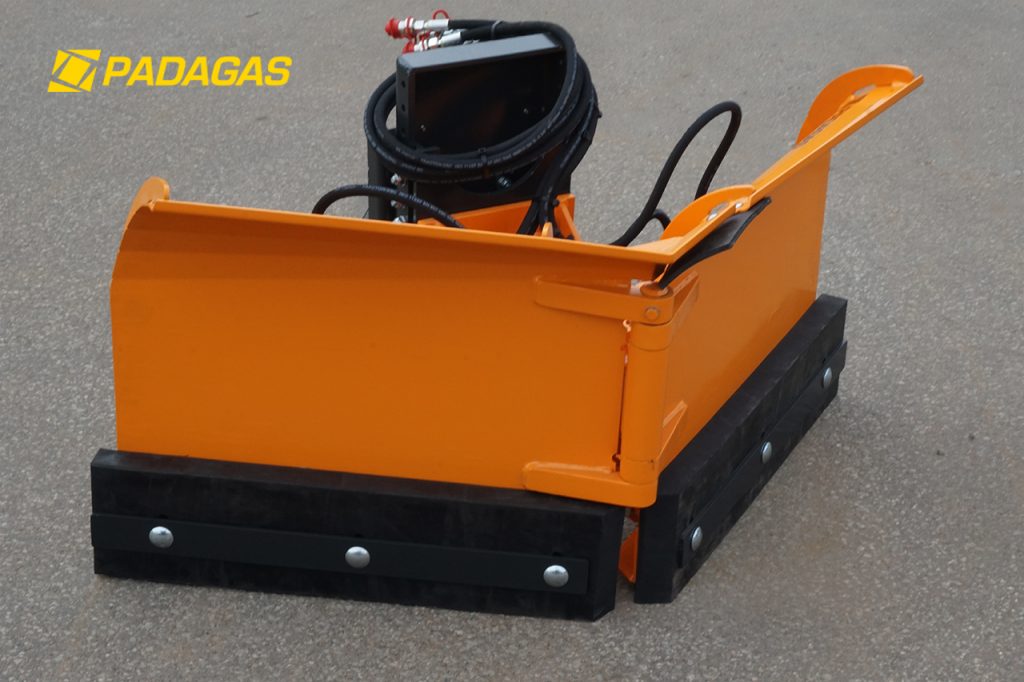

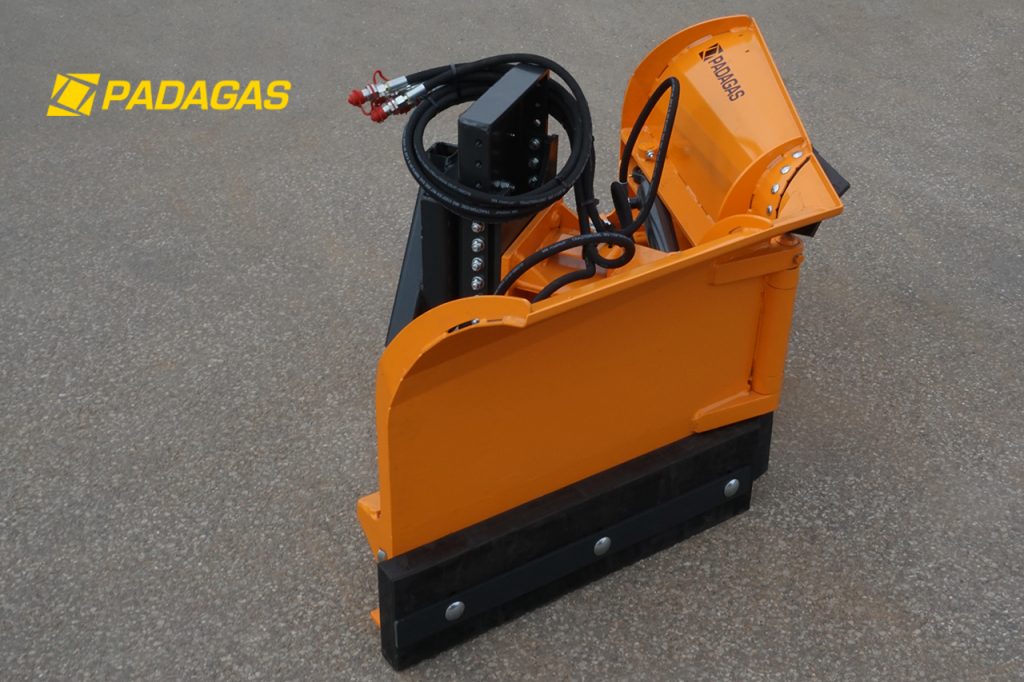

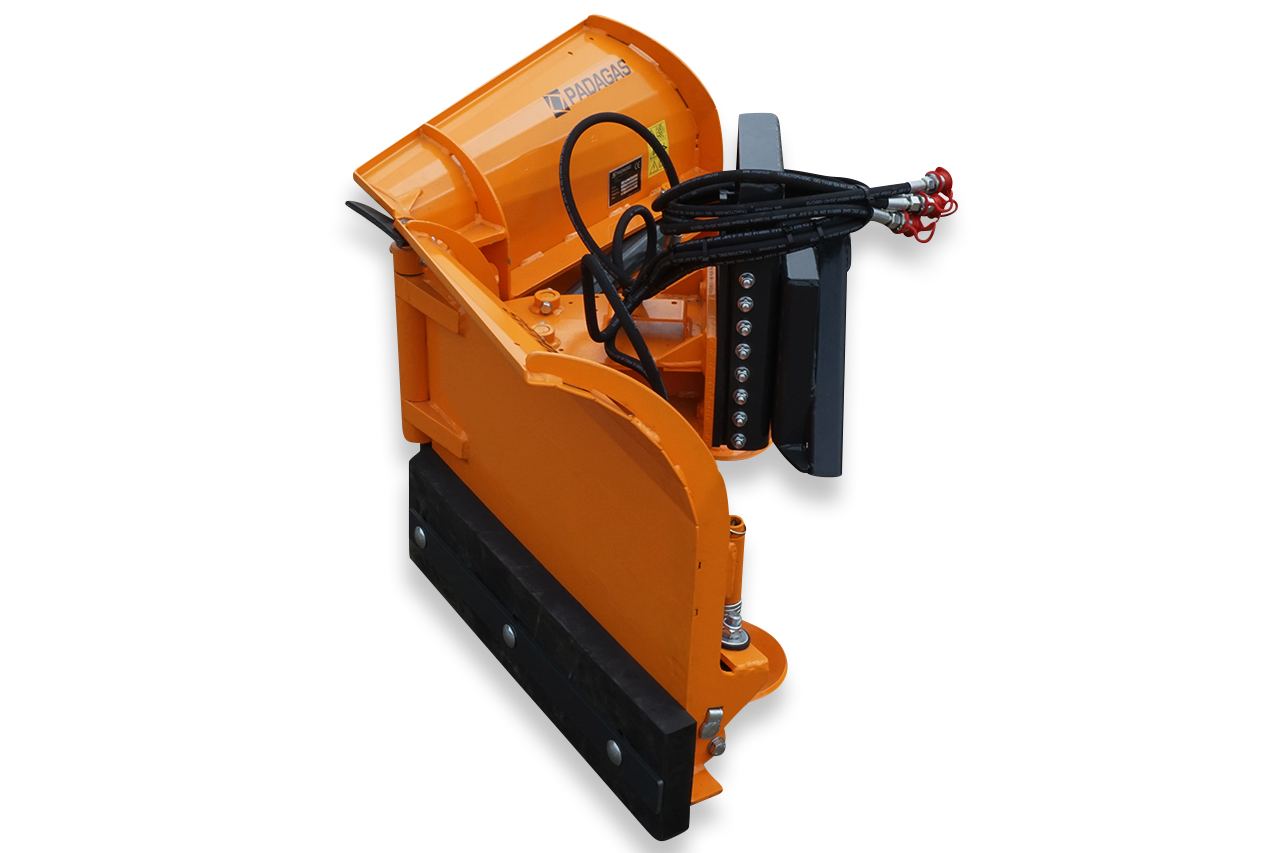

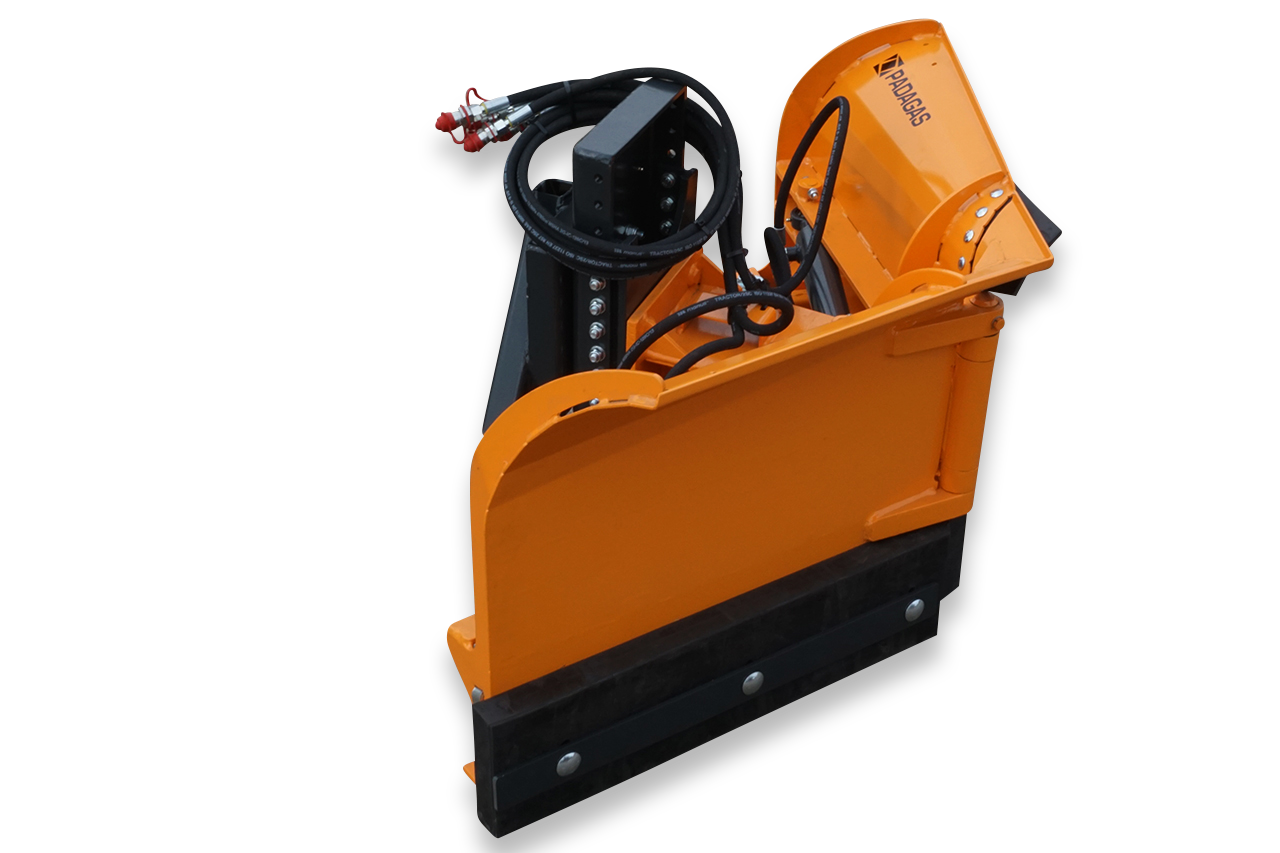

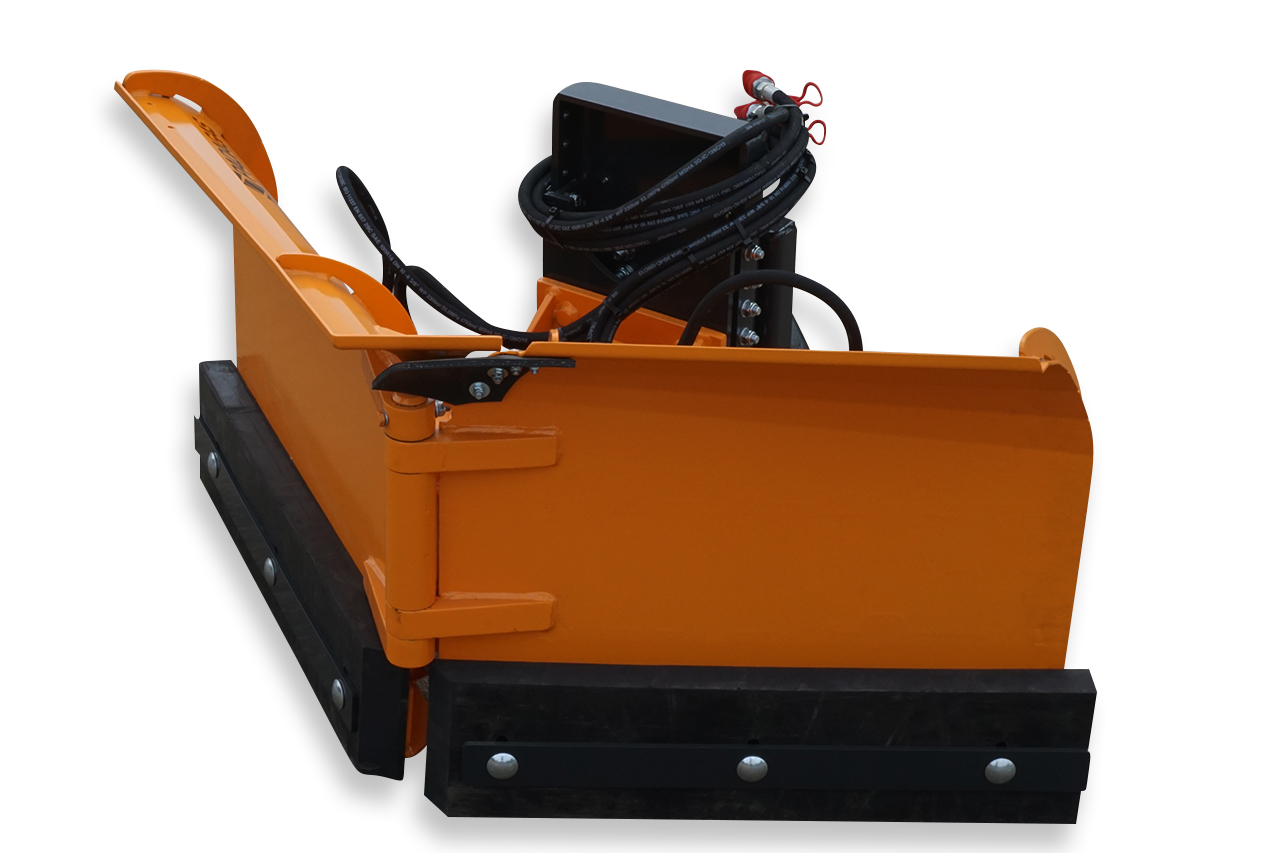

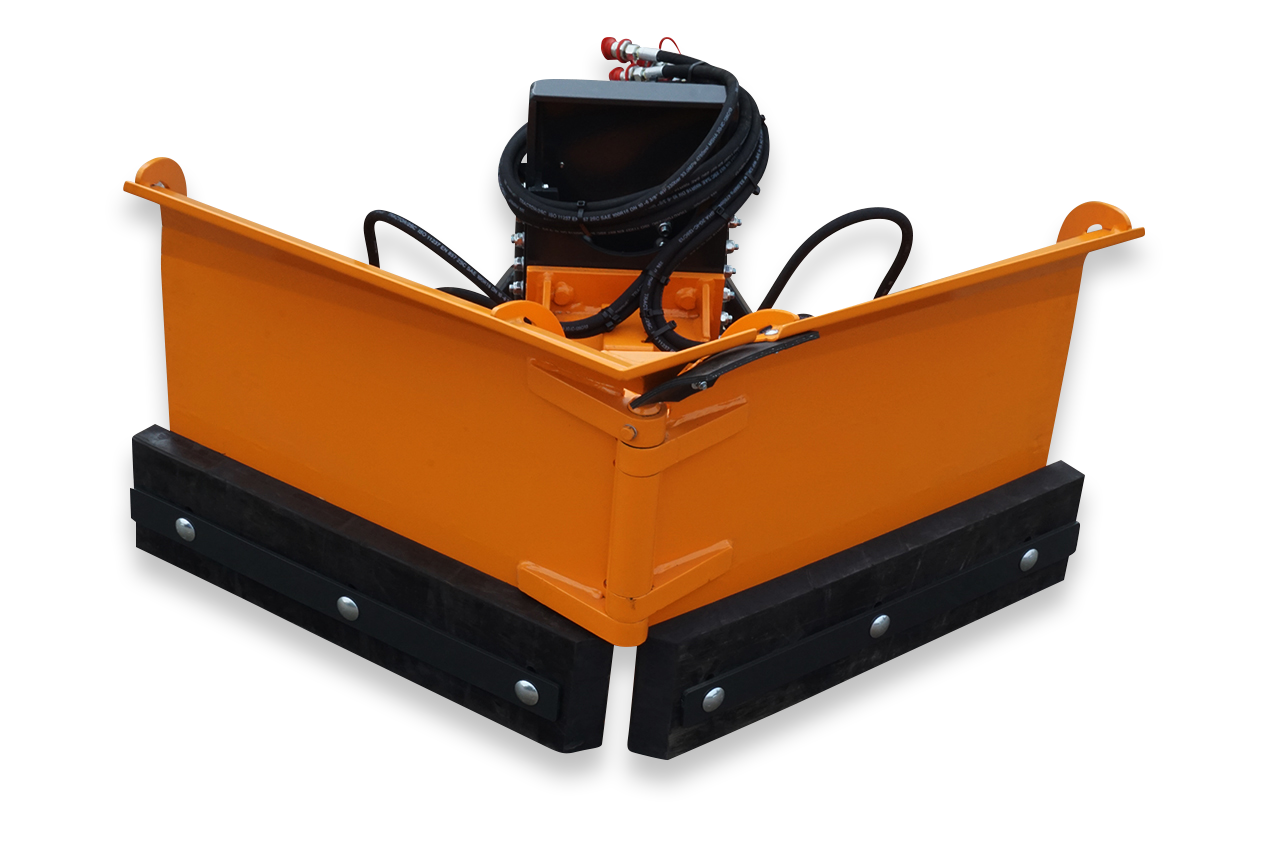

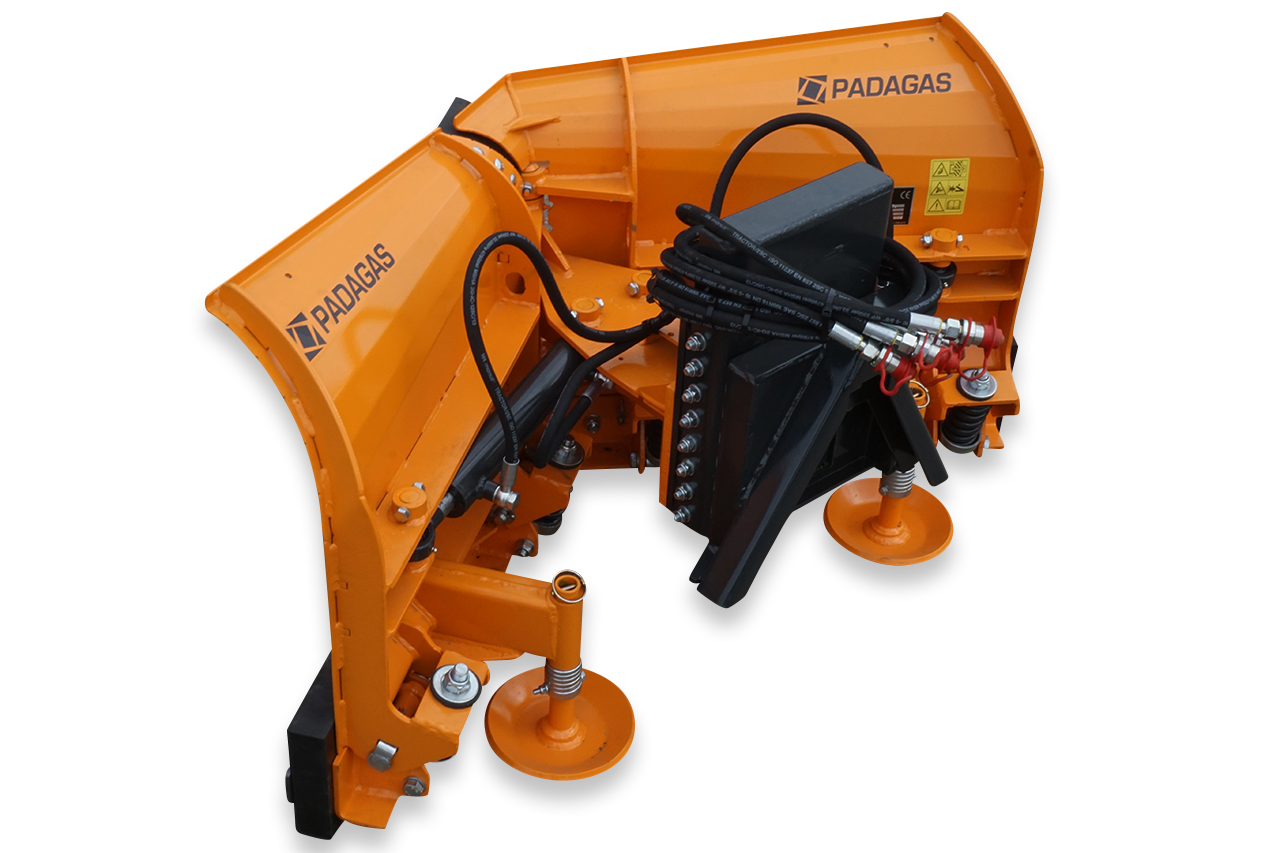

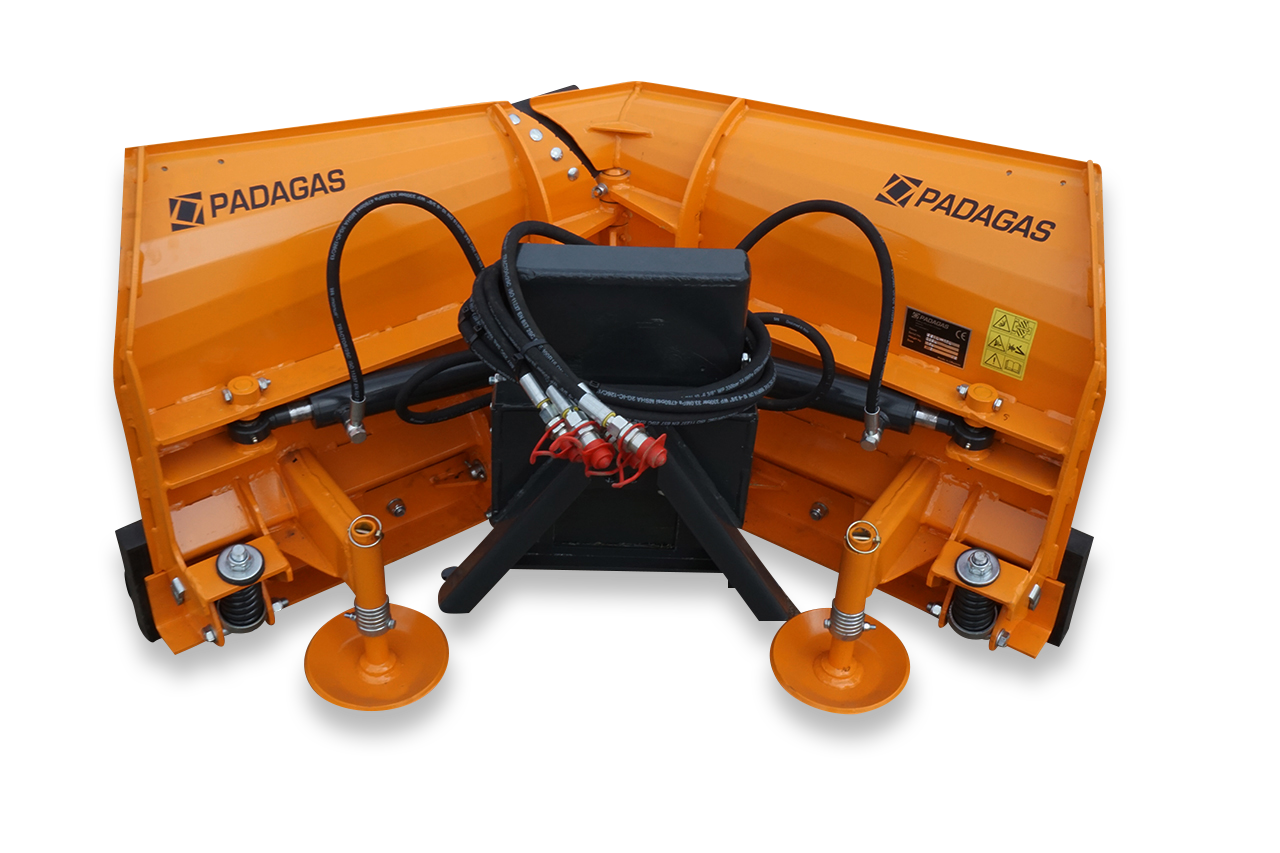

Snowplow light duty class SSVL-L (V-type)

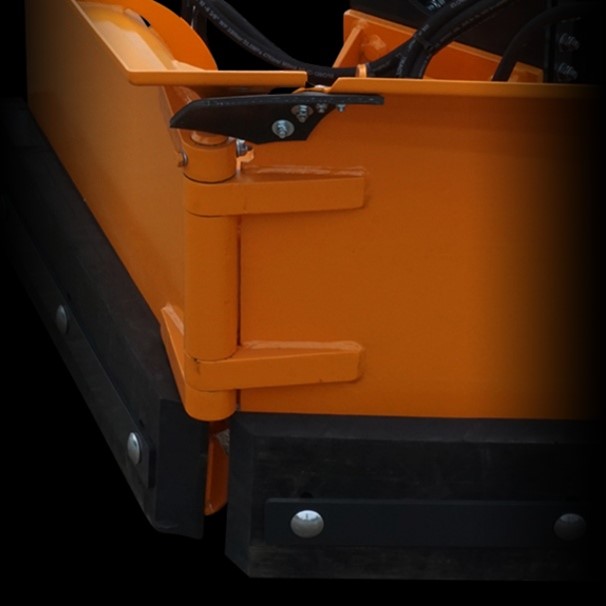

Snowplow light duty class SSVL-L has 5 working positions and hydraulic control. It is suitable for low power tractors (from 16hp to 40hp). SSVL-L perfectly suits for cleaning of utilities sector (sidewalks, parking areas, etc.) and small private spaces. Snowplow is manufactured with exchangeable suspension which facilitates the application of various techniques. Also the SSVL-L has spring-loaded coulter protection.

Standard product: shellboard, bracket, hydraulic angle, spring-loaded coulter protection, support skis, Hardox steel knife.

Upon request, Hardox steel blade is replaced by a rubber one.

Product inquiry

Become a dealer

Features

Electromagnetic valve
Snowplow can be equipped with an electromagnetic valve which reduces number of hydraulic pores necessary for connection from 2 to 1.

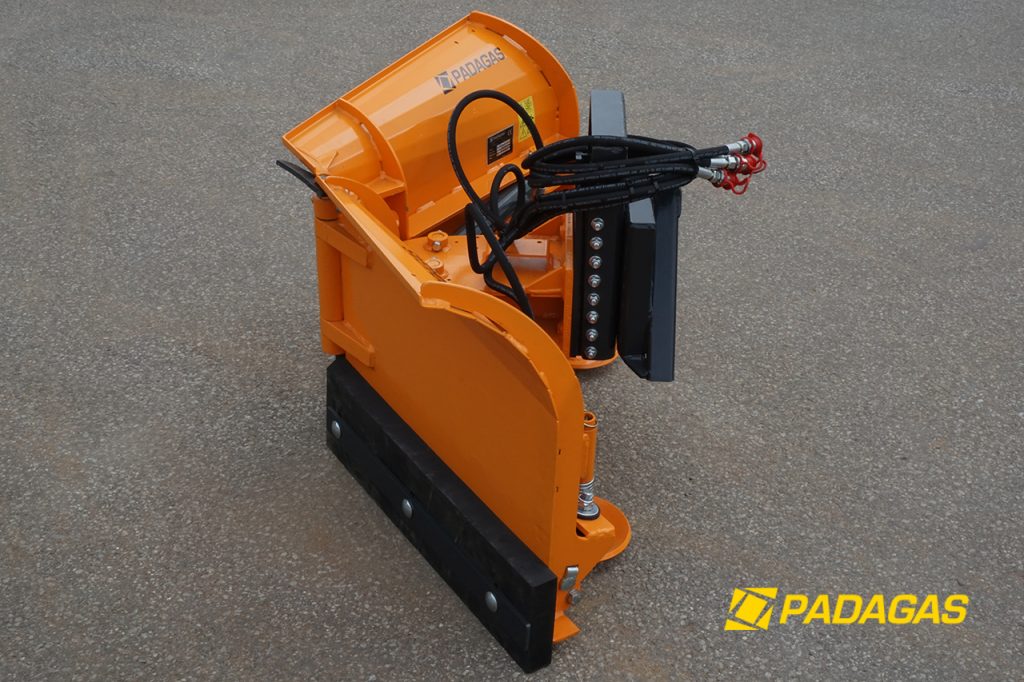

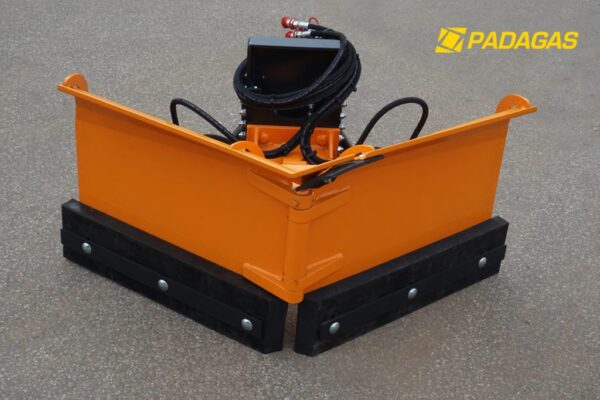

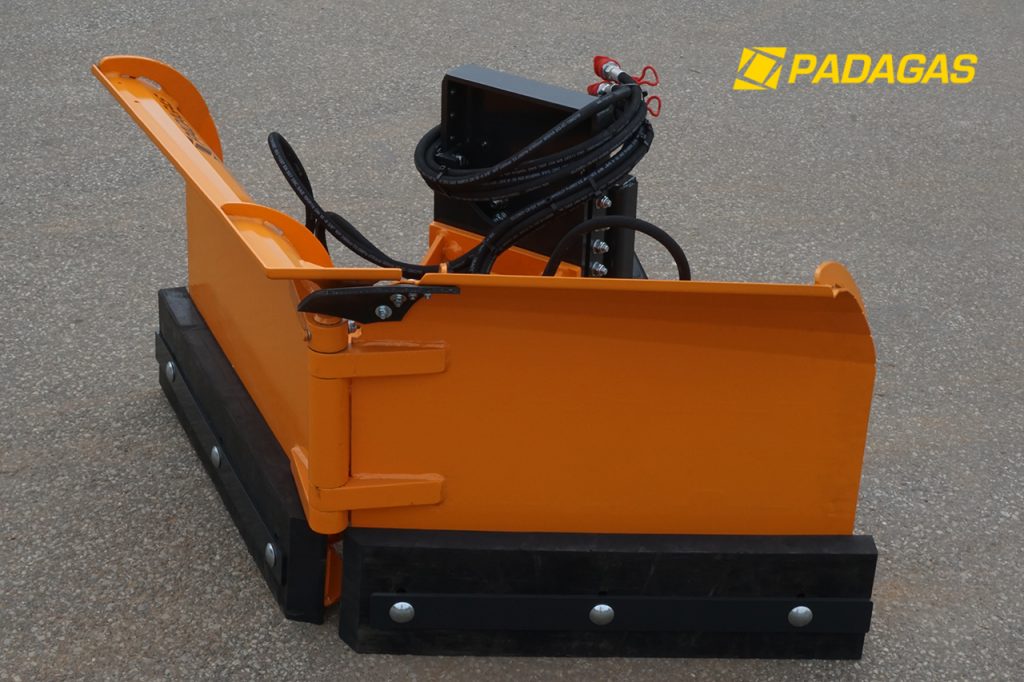

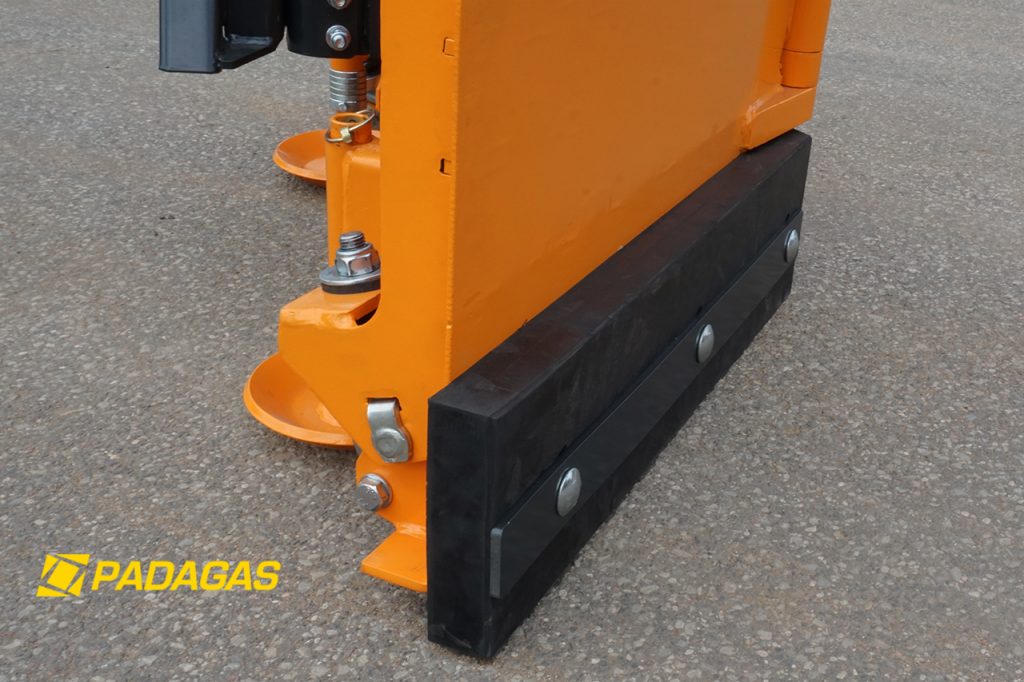

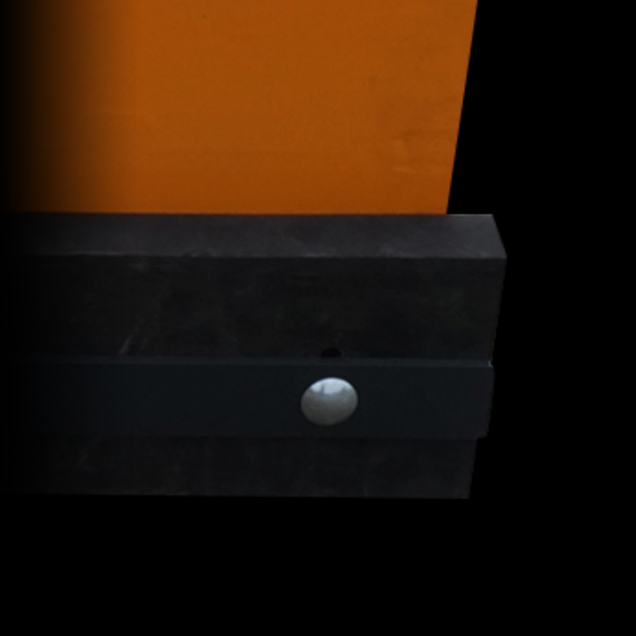

Rubber knife

It can be supplied instead of Hardox knife with a rubber knife.

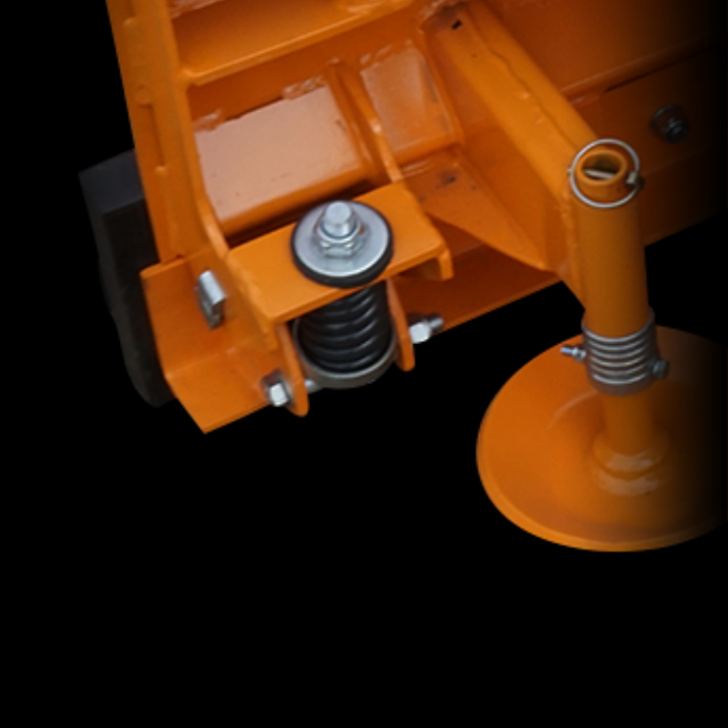

Spring-loaded counterprotection

SSVL-L is equipped with a spring-loaded coulter protection, which aids the knife to remove the obstacle by flip.

Hydraulic cylinder

Hydraulic cylinders are equipped with safety valves.

TECHNICAL DATA	SSVL-15L	SSVL-17L	SSVL-21L	SSVL-25L	SSVL-28L
Working width, mm	1497	1697	2123	2577	2890
Working width angled 35^o, mm	1225	1412	1760	2132	2370
Working width angled 25^o, mm	1300	1500	1850	2200	2400
Working width in position „Y“, mm	1274	1453	1802	2173	2430
Working width in position „V“, mm	1198	1372	1719	2093	2350
Hydraulic rotation	35^o
Height middle/side, mm	678/730	678/730	677/760	677/760	677/760
Cleaning knife	Hardox
Weight, kg	245	265	305	340	390
