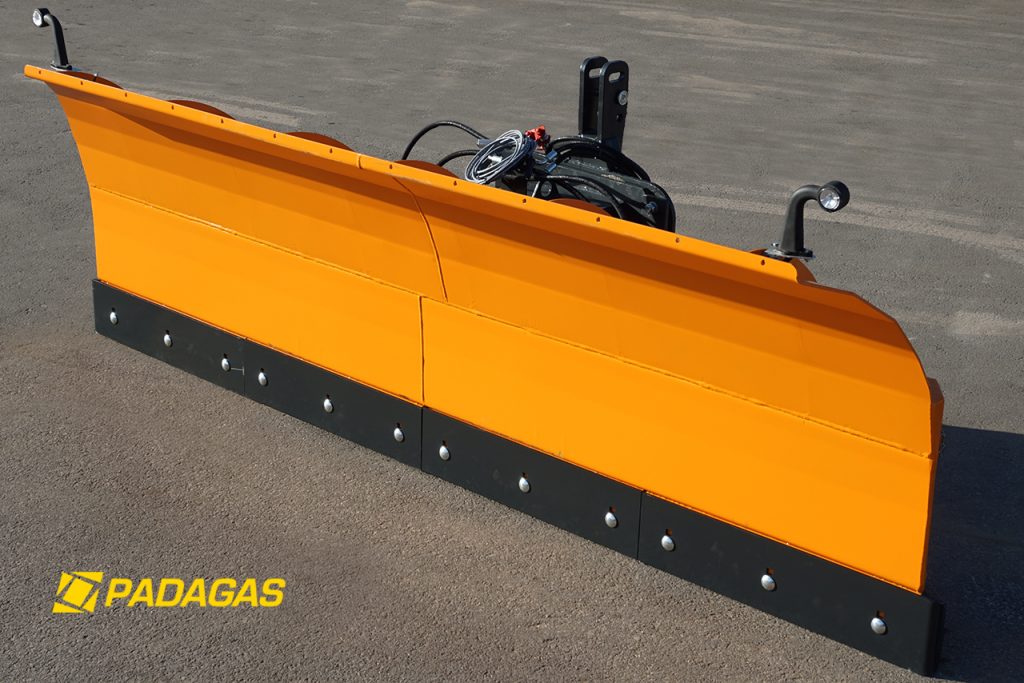

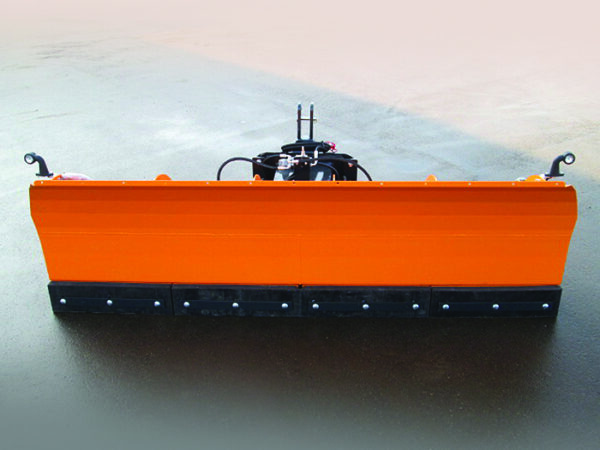

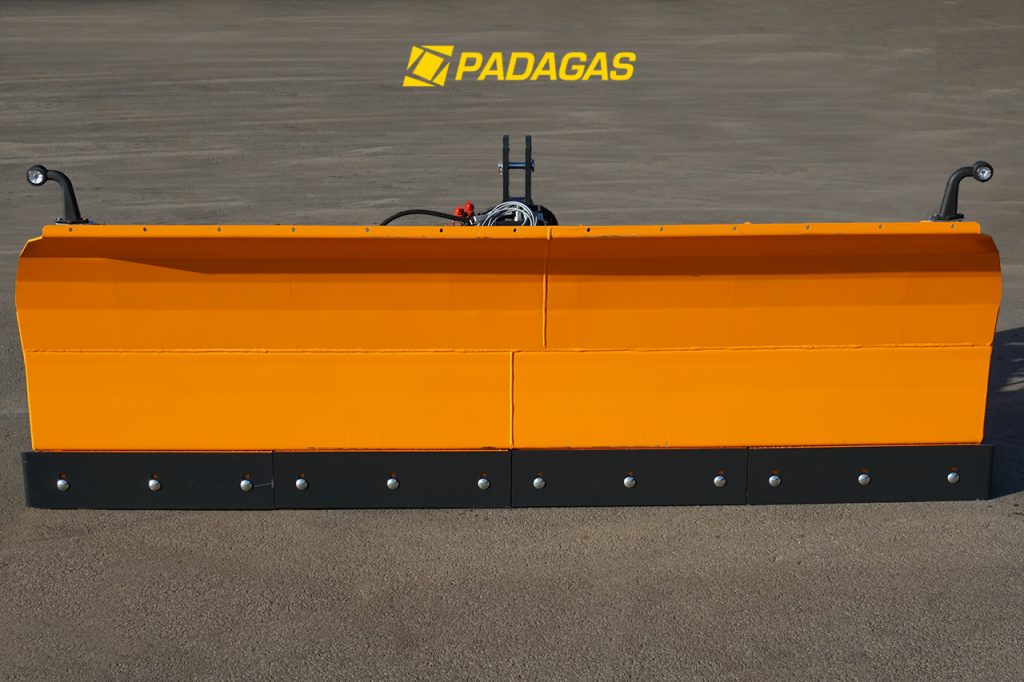

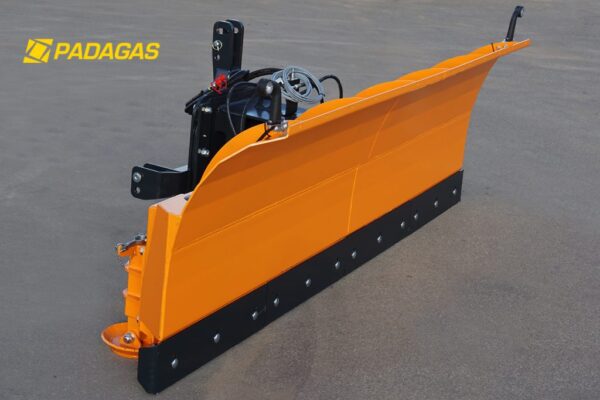

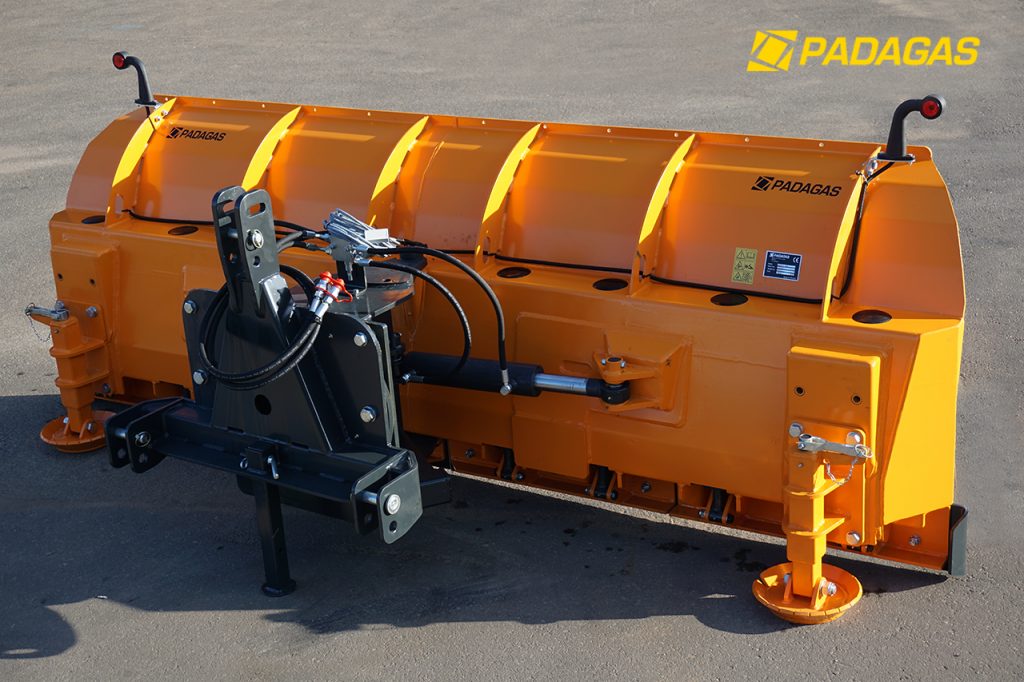

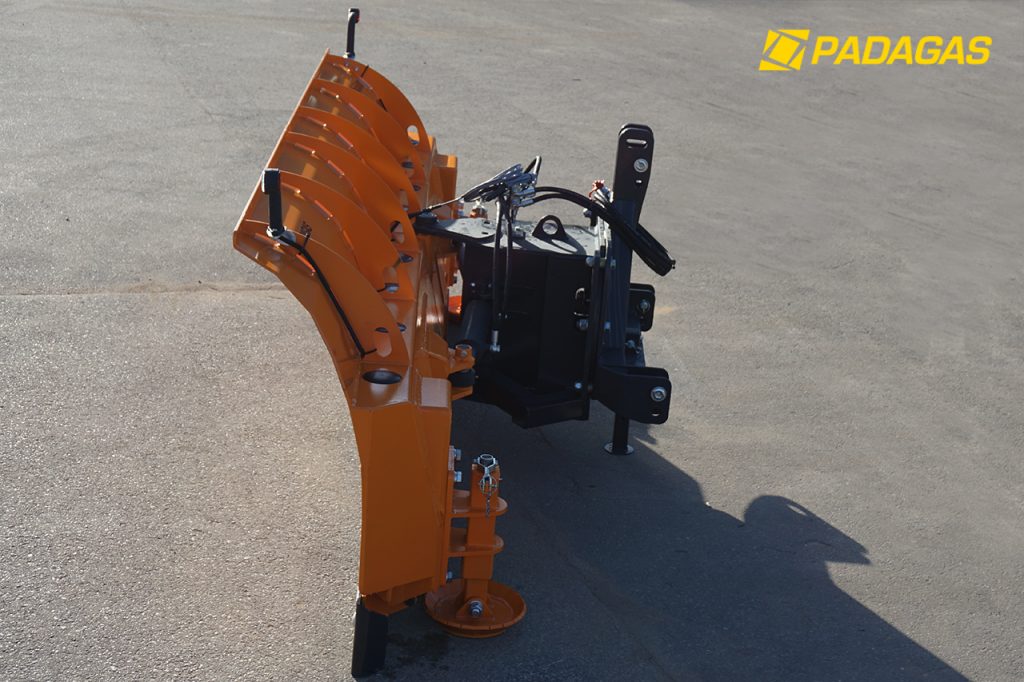

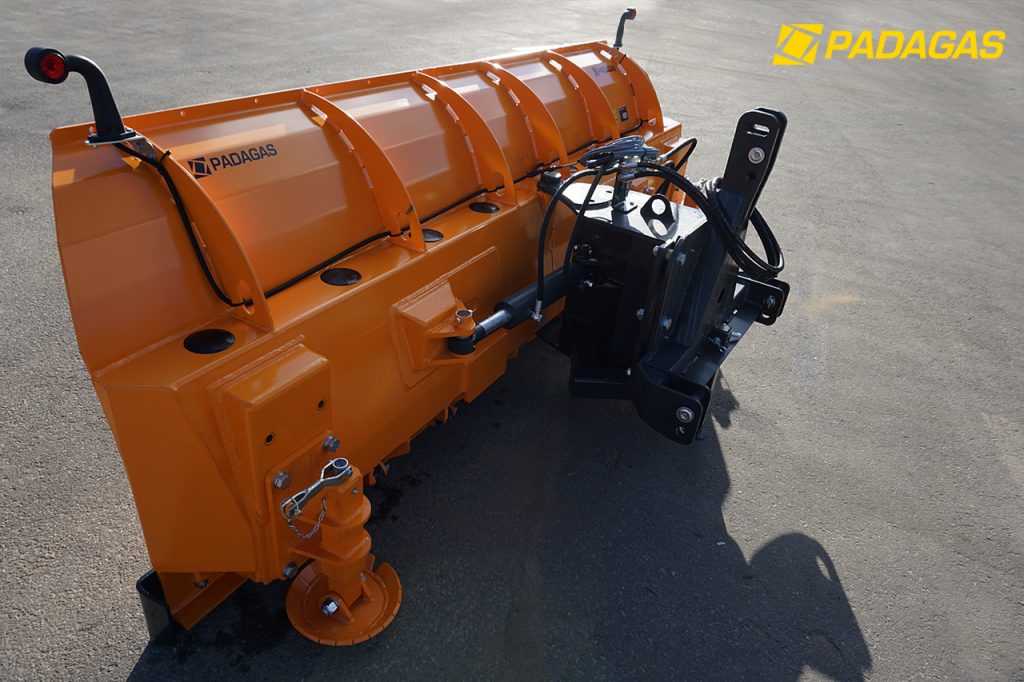

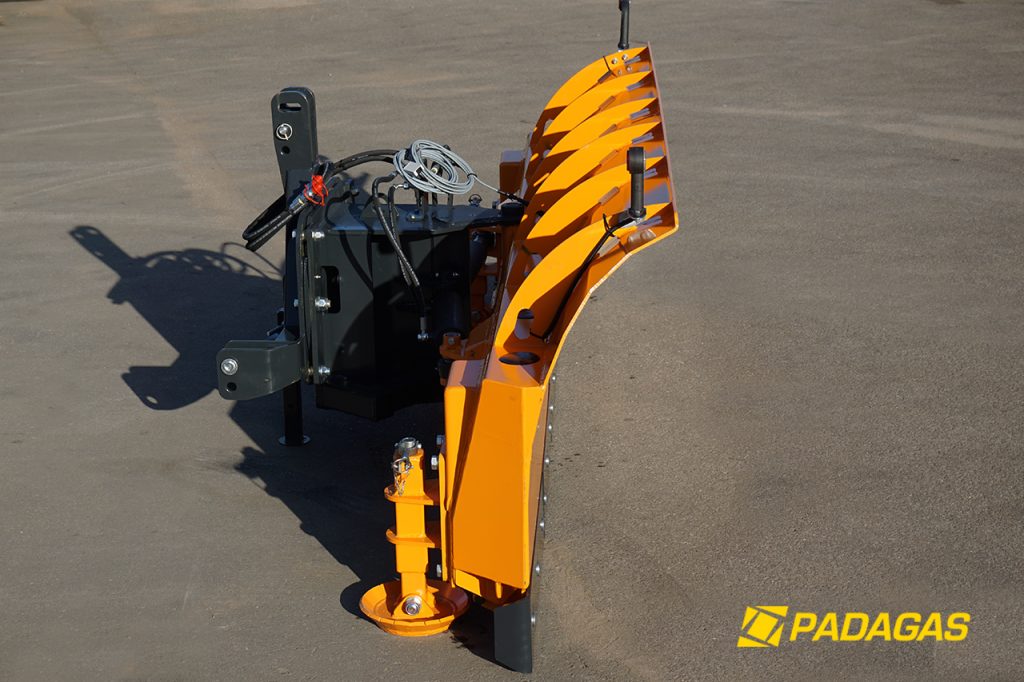

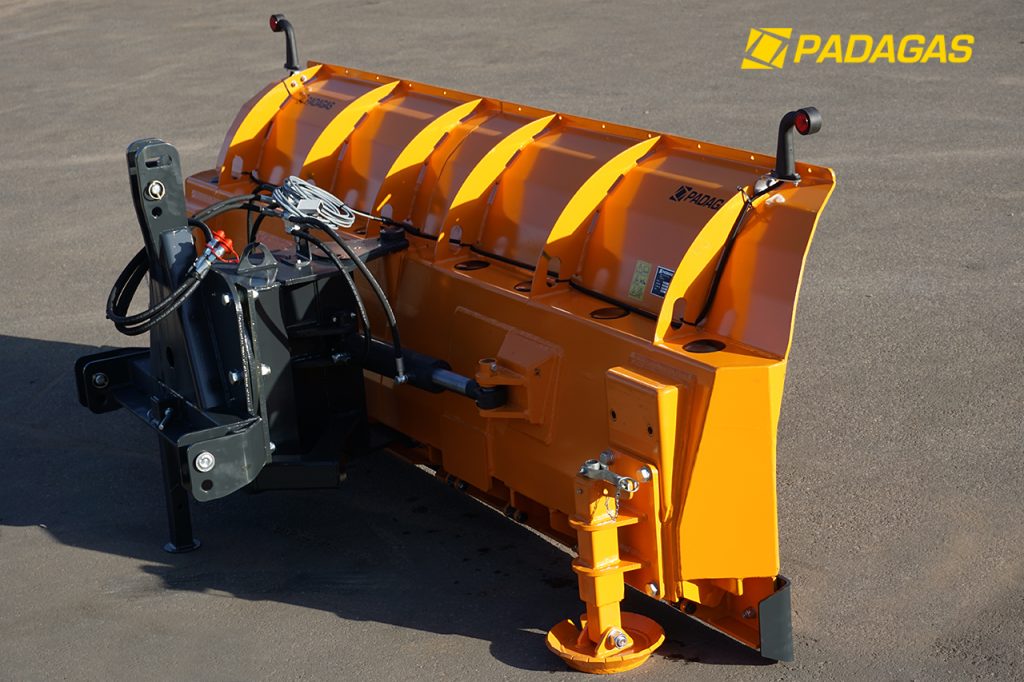

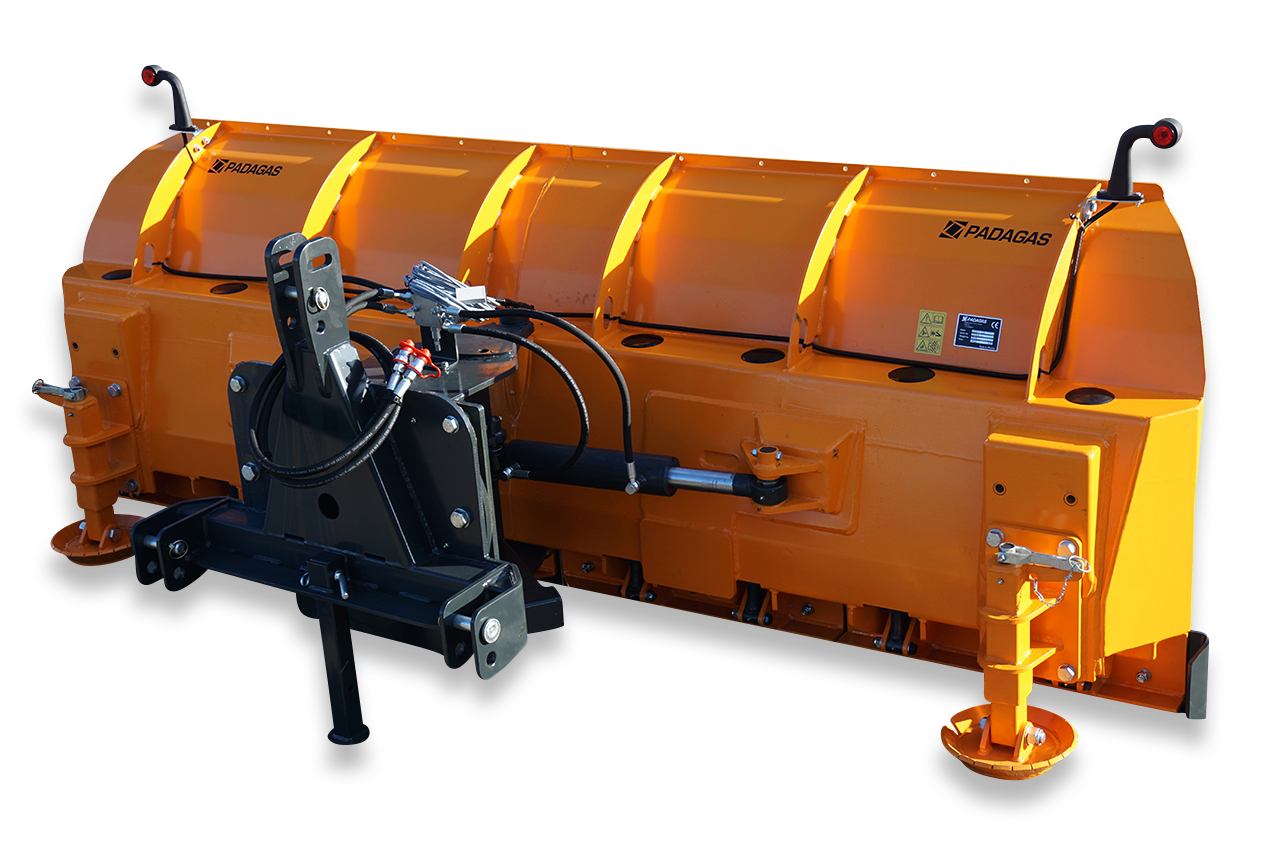

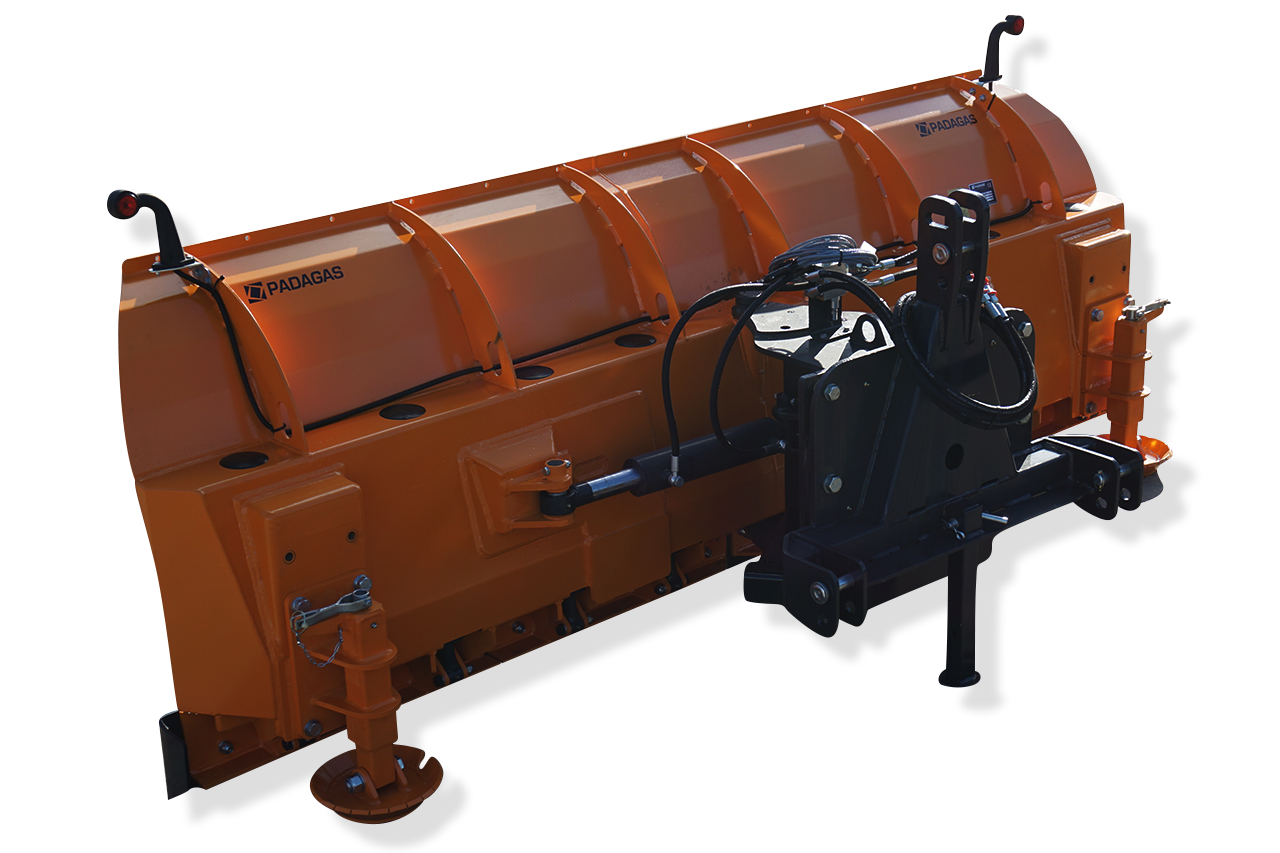

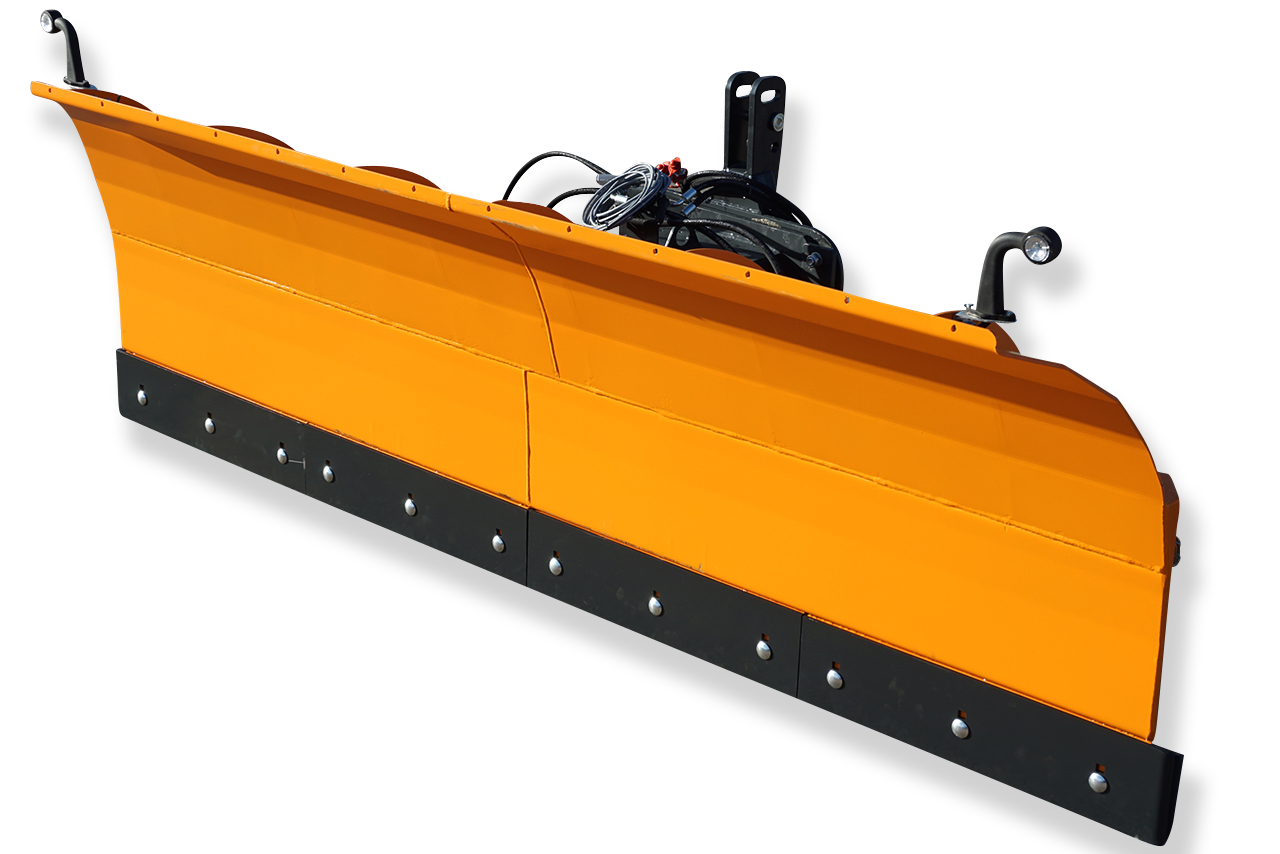

Snowplow heavy class SSV
Snowplow heavy duty class SSV has 3 work positions and it is hydraulically controlled and suitable for high-power tractors (from 110 HP). SSV is perfectly adapted to the utilities sector (squares, roads, etc.) and cleaning of private spaces.

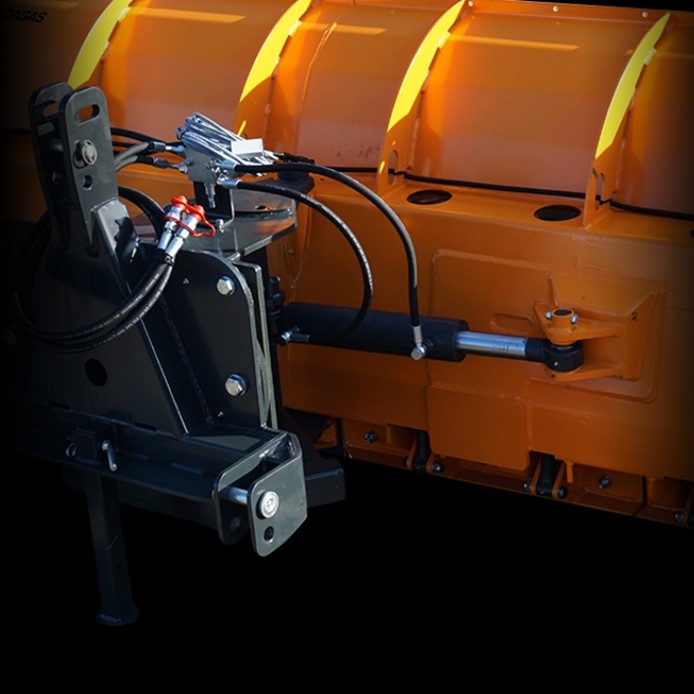

Working positions of the snowplow heavy duty class SVV are set hydraulically.
Product inquiry
Or

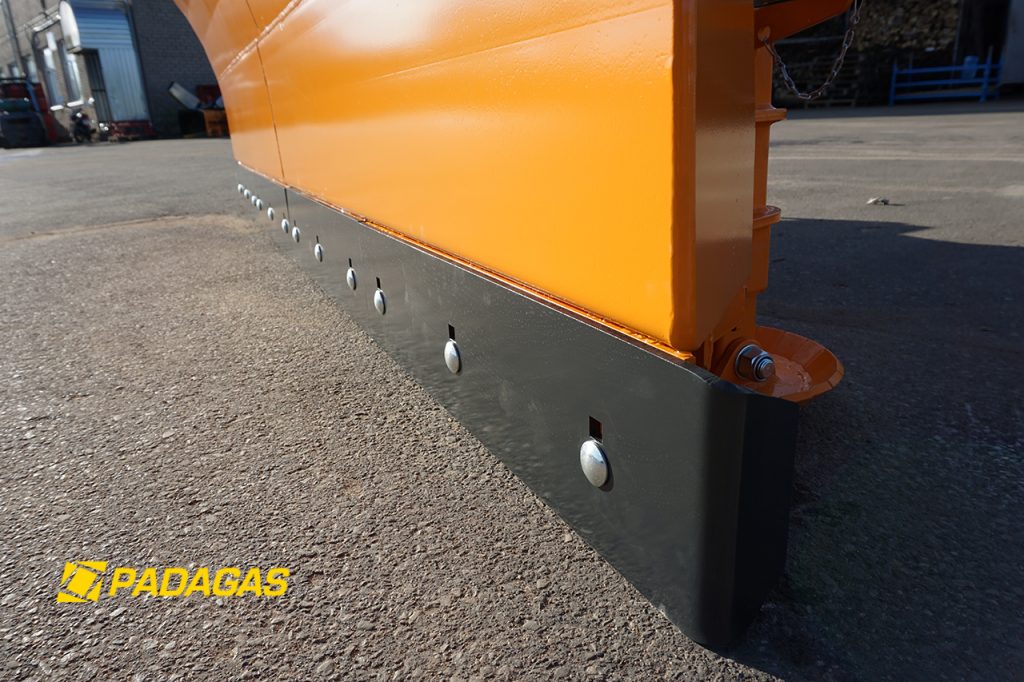

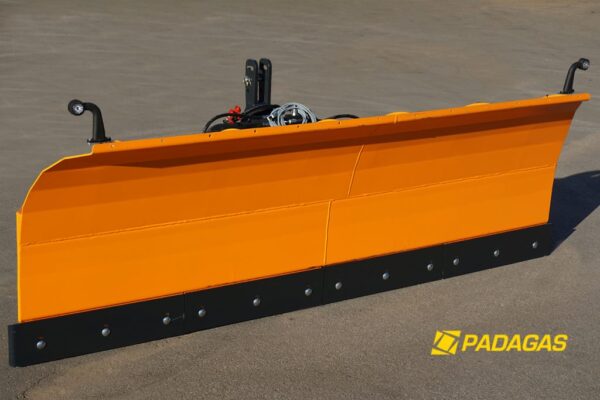

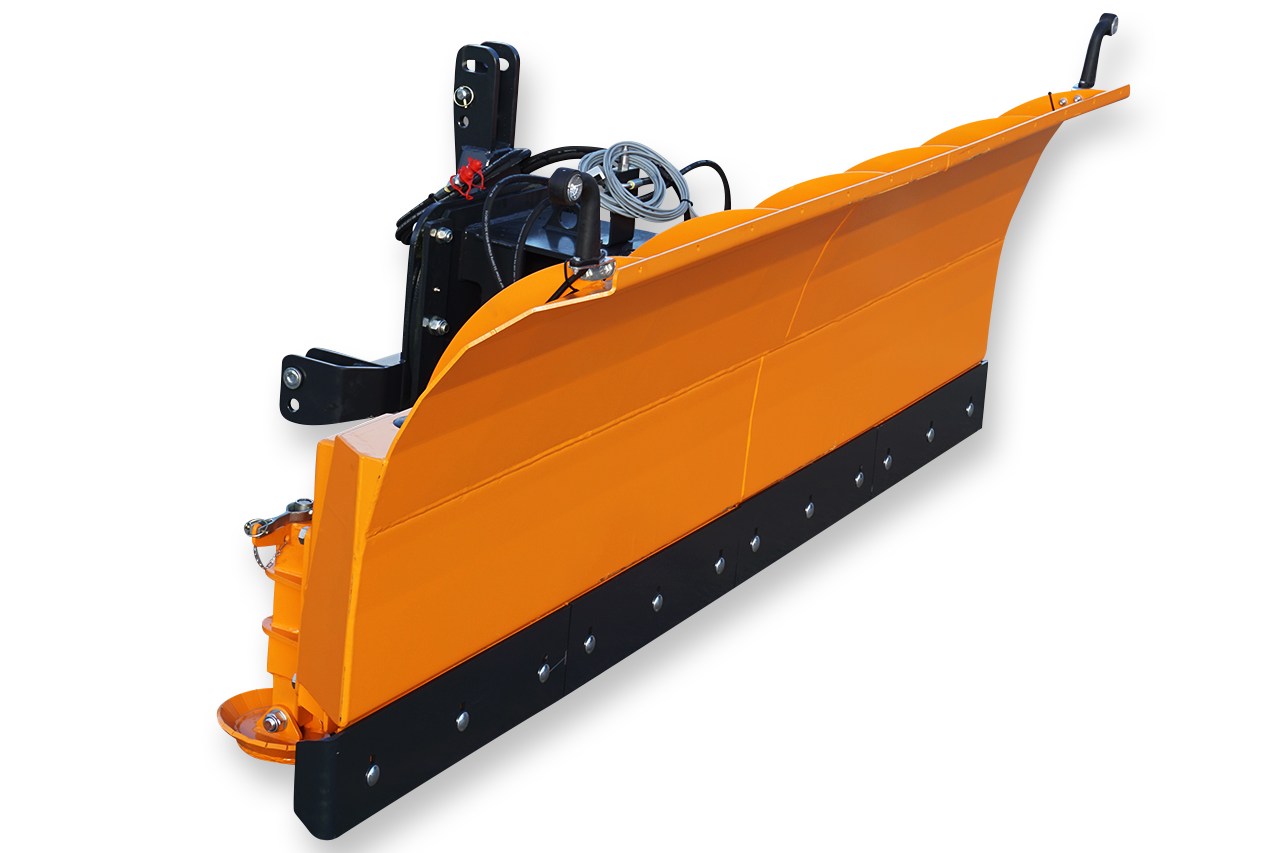

Rubber knife
- SSV can be complemented with rubber knife instead of Hardox knife.

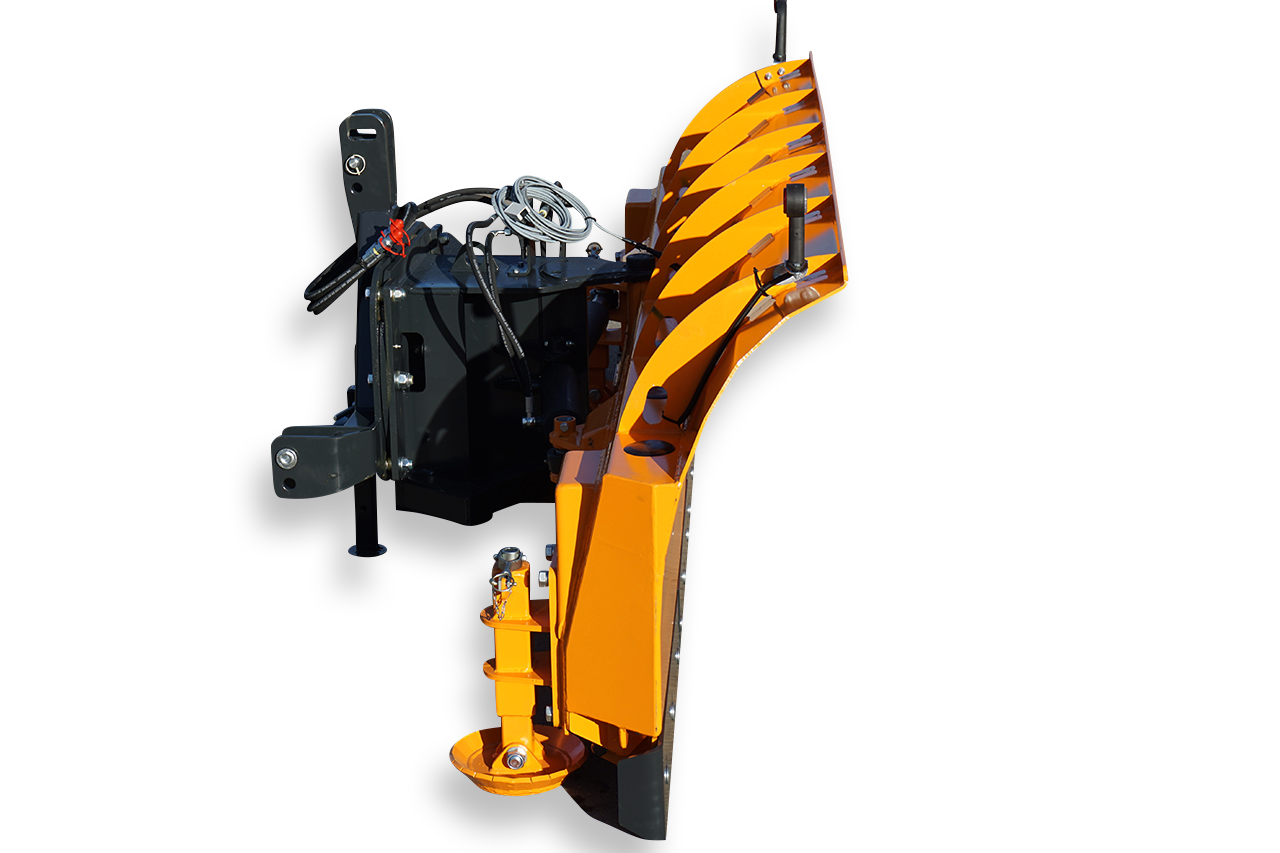

Flick-knife protection
- Snowplow SSV is equipped with a spring-loaded coulter protection, which aids the knife to remove the obstacle by flip.
| TECHNICAL DATA | SSV-32 | SSV-37 | SSV-40 |
| Working width, mm | 3277 | 3675 | 3951 |
| Working width angled, mm | 2677 | 3033 | 3256 |
| Hydraulic angling | 35o | ||
| Height, mm | 1058 | 1058 | 1058 |
| Cleaning knife | Hardox | ||
| Weight without bracket, kg | 781 | 800 | 815 |

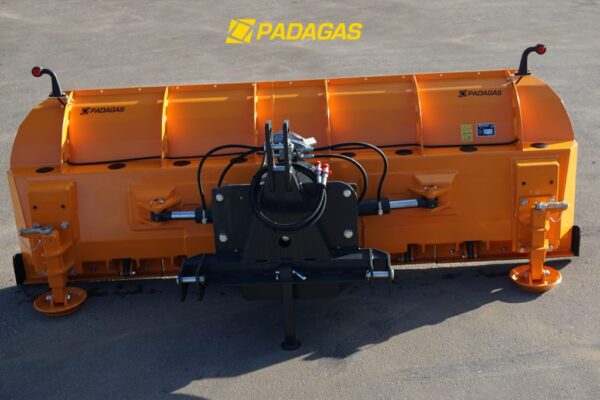

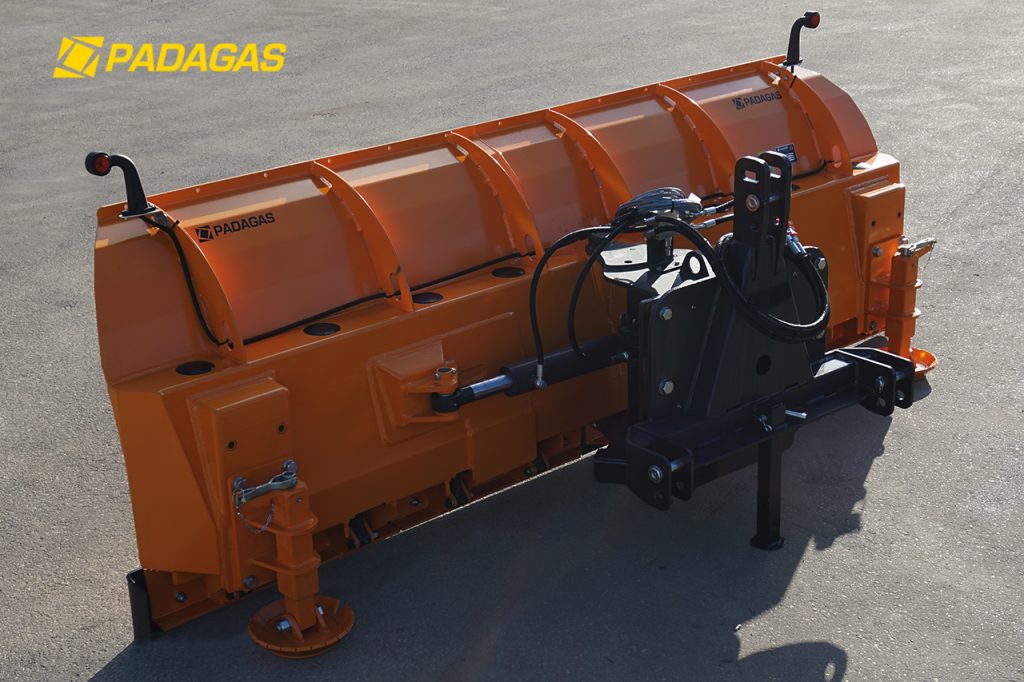

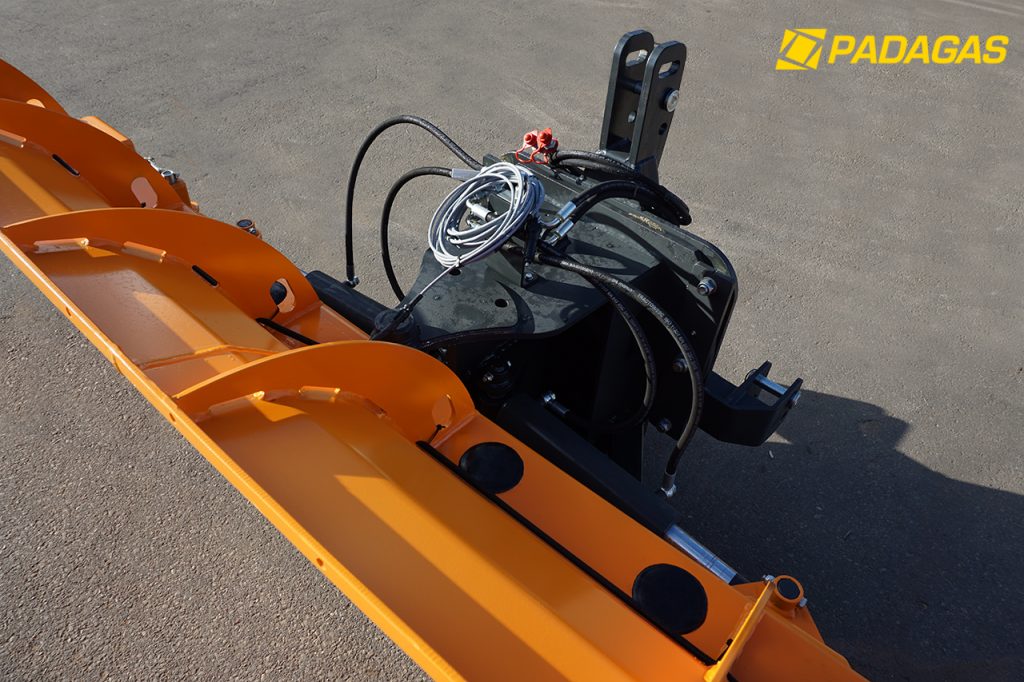

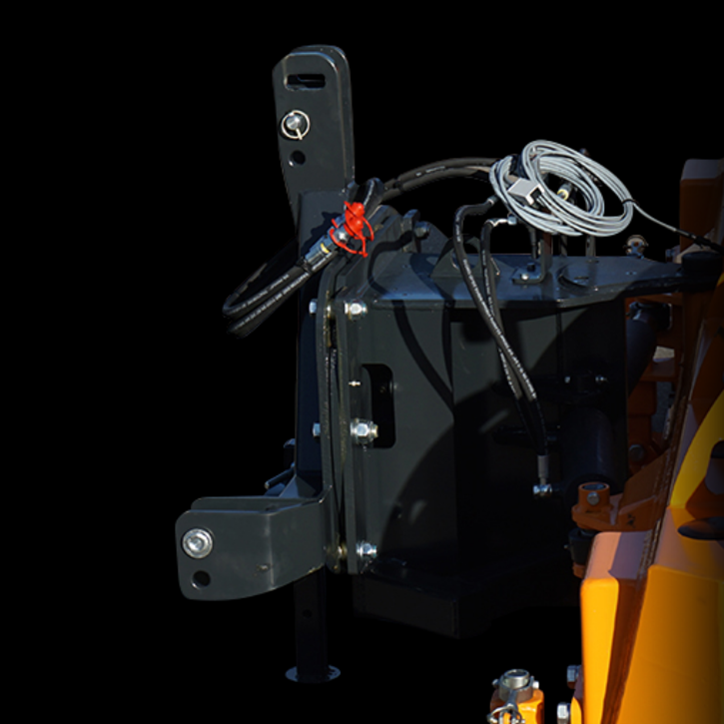

These snowplows are mounted with easily replaceable suspension which simplifies snow plows application for various mechanisms. SSV is manufactured from highly durable alloy steel. Designed spring-loaded gourd of cleaning knife fully protects from dangerous obstacles hidden underneath the snow.
Protective valve of the hydraulic cylinders is also mounted in the snowplow, which does not let to make damage to the hydraulic system equipment during impact.
Standard product: shellboard, suspension, hydraulic rotation, protective valve of the hydraulic cylinders, support skis, spring-loaded coulter guard, Hardox steel knife.
Upon request, Hardox steel blade is replaced by a rubber one while supporting skis by wheels.
