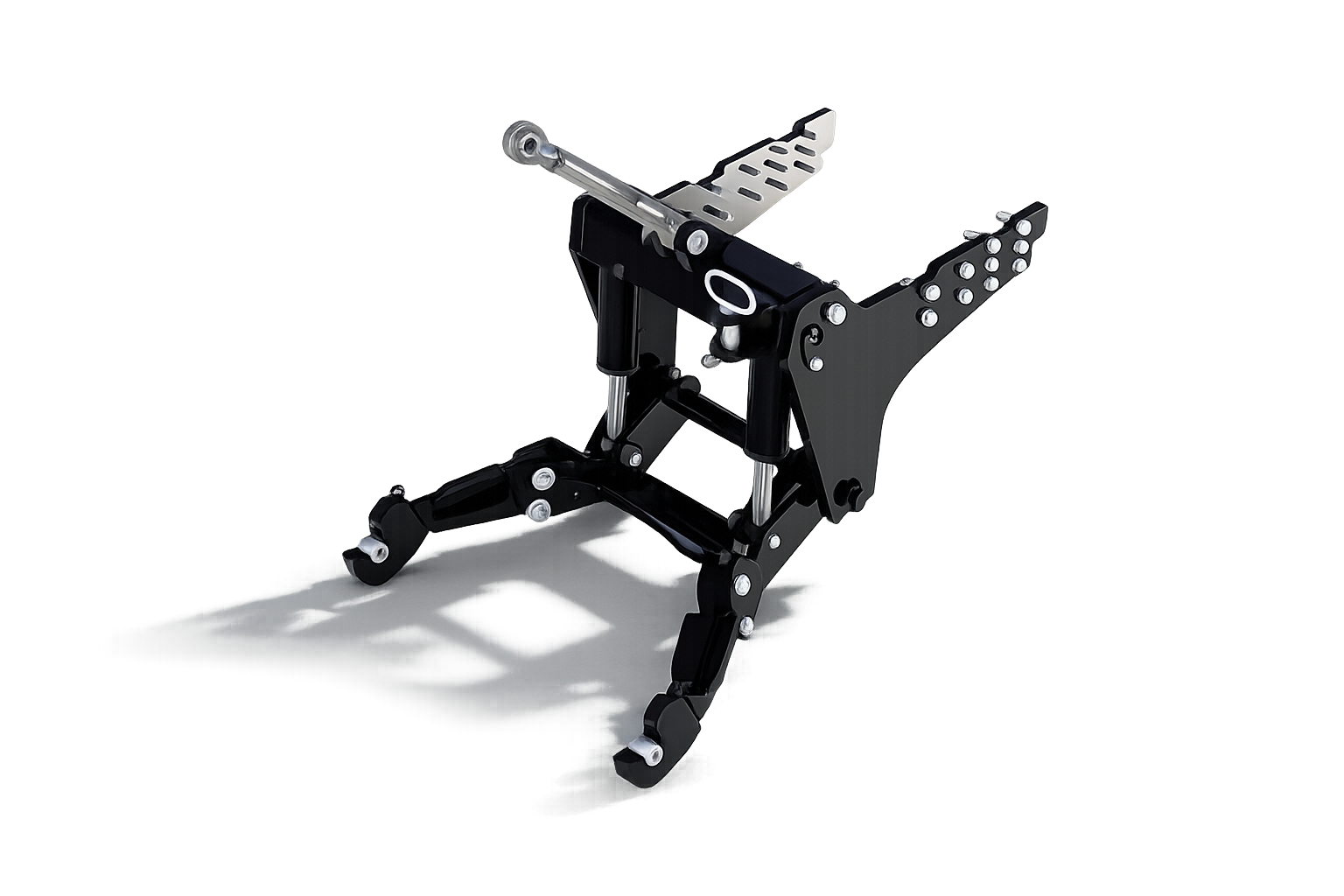

Front mount brackets for tractors

Front mount brackets from Padagas – solid construction, suitable for different tractor models such as ArmaTrac, John Deere, Europard, LS PLUS, MTZ, New Holland, TYM, Valtra, Massey Ferguson, etc. We have the possibility to design the hydraulic front deck hanger according to individual order for any brand of the tractor.

Standard product has 2 pcs. of hydraulic cylinders, rod, side “thighs”, bottom hooks can be chosen from the 40 mm sheet or molded with the boules and fastening system components to the tractor.

Product inquiry

    Or

    Become a dealer
    Description

    Usability

    • The front hydraulic suspension is used for a various tractor models. It can be designed according to the individual order.

    Construction

    • Extremely robust front hydraulic suspension design consists of 2 pieces of hydraulic cylinders, rod, side „thighs“, bottom hooks, which can be selected from 40 mm sheet or castings with apples, and fastening system components to the tractor.
    TECHNICAL DATA MTZ FRONT SUSPENSION E-2
    Front suspension category Cat. 2
    Weight, kg 200
    Lifting the weight of the hook*, kg 3000
    Suspension hook height of the bottom position, mm 200
    Suspension hook height of the top position, mm 750

    *Additional information. Data depends on the tractor’s specifications.
