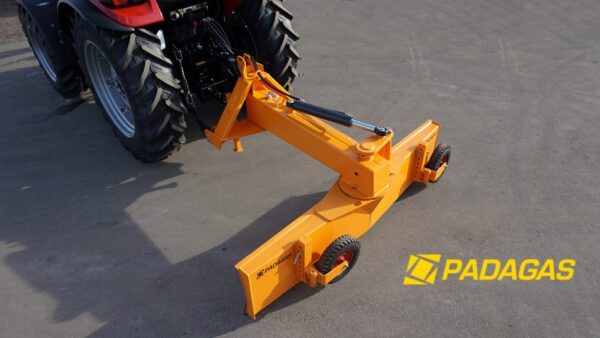

Tractor grader RB-M
Tractor grader RB-M with three-point suspension of II category allows hanging the grader to the tractor’s back and front. After removal of the locking pin, the grader can be set into three positions. Supporting locking leg after the work allows a convenient storage of the product.
Product inquiry
Or
Description
Features
- Bracket
- RB-M grader can be hanged in both front and rear of the tractor.
Angle of rotation
- RB-M rotation is even 252 degrees.
| TECHNICAL DATA | RB-250M | RB-275M | RB-300M |
| Bracket | 3P kat. II | 3P kat. II | 3P kat. II |
| Recommend power, hp | < 100 | < 100 | < 100 |
| Width, m | 2,50 | 2,75 | 3,00 |
| Shellboard rotation | 2520 | 2520 | 2520 |
| Height, m | 0,55 | 0,65 | 0,65 |
| Cleaning blades, pcs | 2 | 3 | 4 |
| Weight, kg | 470 | 526 | 600 |

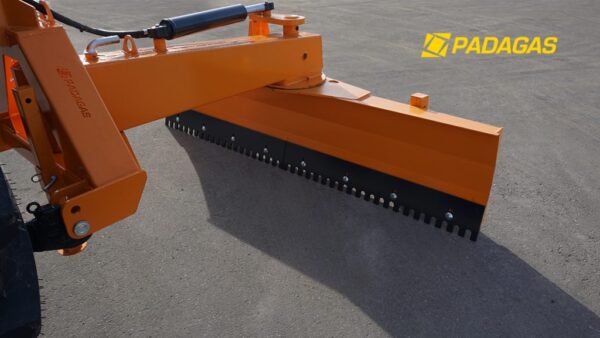

With the help of hydraulic cylinders the rotation angle of the grader‘s shellboard is 252 degrees. With the help of sleeve and chock the grader’s wheel position angle is 180 degrees. Angle of coulter attack is 15 degrees. RB-M grader is suitable for from 60 horse power tractors. Standart model RB-M graders comes with hydraulic angling.
